These dc voltage reducer converters are high reliability power transformers. They feature wide input voltage, low power consumption, high efficiency, high reliability. We provide different power voltage converters for all kinds of application devices.

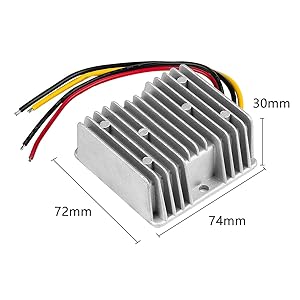

Compact Size
Compact aluminium shell with epoxy potting is anti-shock, damp-proof ,anti-dust protections and better heat dissipation

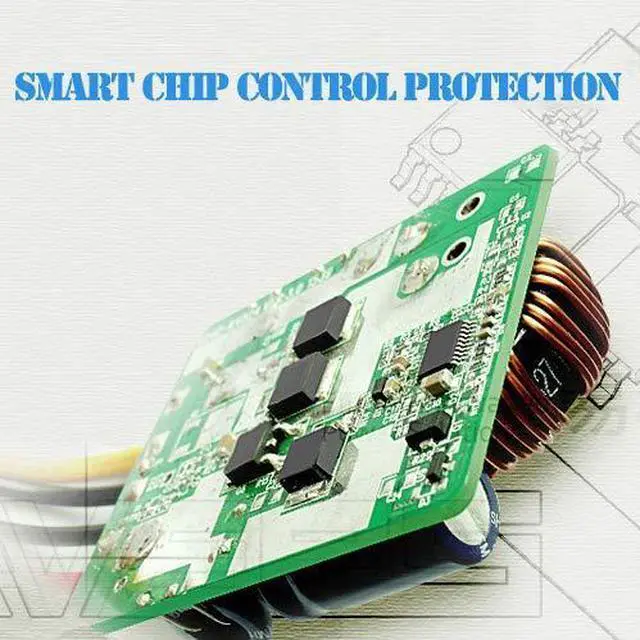

Intelligent Protection
Assembled with smart chip--has features of Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection
Synchronous Rectification Technology
The synchronous rectifier circuit use MOSFET instead of rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiency
Features
Non-Isolated Module
- Input Voltage: 36V/48V nominal; Input range: 30V to 60V
- Input Current: 10A (max) ; No-load input current: =10mA
- Output Voltage: DC 24V ±2% ; Output Current: 10A
- Ripple Wave: 50Mv
- Starting Delay time: = 2S
- Efficiency: =95%
- Operating Temperature:-40 ~ 80?
- Weight: 290g / 10.23oz

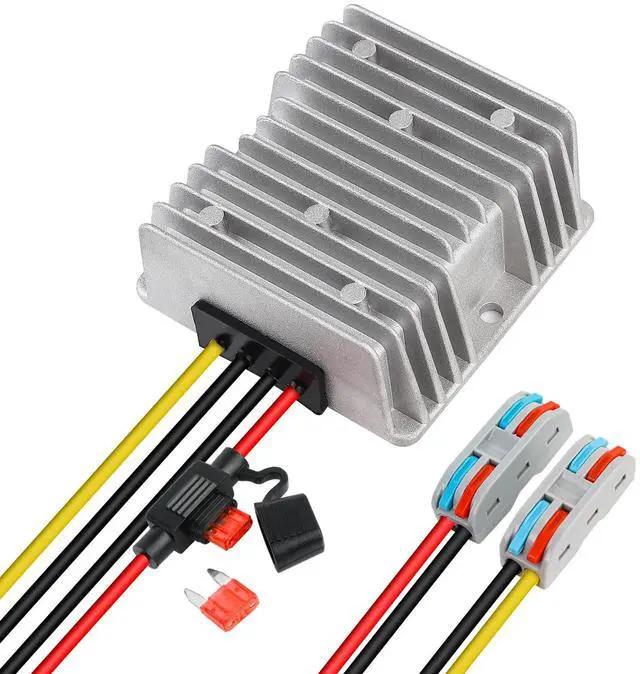

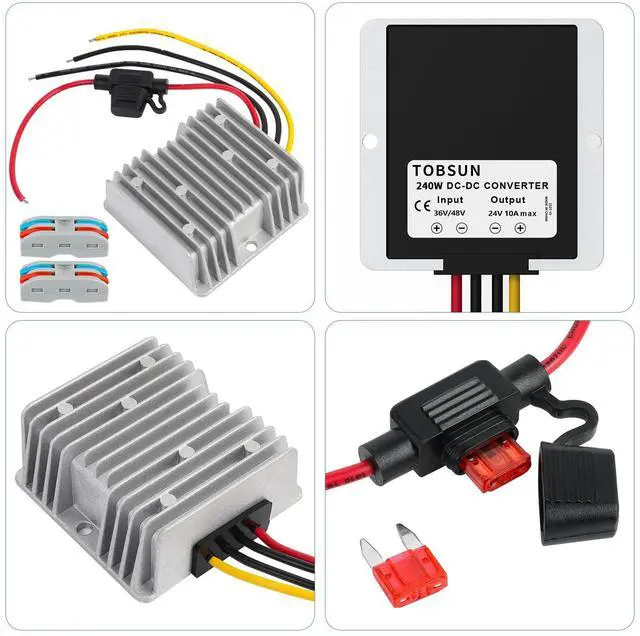

Package Include
1x Voltage Reducer 36V/48V to 24V 10A 240W
IP68 Waterproof Module
Better Heat Dissipation
Strict glue pouring process is waterproof, moisture-proof, seismic and adapt to a variety of harsh environment.
Aluminium shell improve better heat dissipation effect and sturdiness to extend service life.
SMT Process
FR-4 multilayer lines, resistors, capacitors and switch MOS tube are SMD components with high integration, high reliability, high stability.
Notes: It's normal that the case is hot when converter inside temp is over 113?, converter will protect itself when inside temp is over 185?.
Wide Applications
These compact size dc voltage reducer converters are high reliability power transformers. They can work safely and reliability within temperature range -40°C~80°C.
Widely used to golf cart, motor, speaker, GPS, LED car display screen, air-conditioner, electric fan, solar energy, photo-voltaic power, DVD, industrial equipment ect.
These dc voltage reducer converters are high reliability power transformers. They feature wide input voltage, low power consumption, high efficiency, high reliability. We provide different power voltage converters for all kinds of application devices.
Compact Size
Compact aluminium shell with epoxy potting is anti-shock, damp-proof ,anti-dust protections and better heat dissipation
Intelligent Protection
Assembled with smart chip--has features of Over-current /Over-load /Low-load /Short-circuit /Over-heat intelligent protection
Synchronous Rectification Technology
The synchronous rectifier circuit use MOSFET instead of rectifier diode to greatly reduce the loss of the rectifier and improve the converter efficiency
Features
Non-Isolated Module
- Input Voltage: 36V/48V nominal; Input range: 30V to 60V
- Input Current: 10A (max) ; No-load input current: =10mA
- Output Voltage: DC 24V ±2% ; Output Current: 10A
- Ripple Wave: 50Mv
- Starting Delay time: = 2S
- Efficiency: =95%
- Operating Temperature:-40 ~ 80?
- Weight: 290g / 10.23oz
Package Include
1x Voltage Reducer 36V/48V to 24V 10A 240W
IP68 Waterproof Module
Better Heat Dissipation
Strict glue pouring process is waterproof, moisture-proof, seismic and adapt to a variety of harsh environment.
Aluminium shell improve better heat dissipation effect and sturdiness to extend service life.
SMT Process
FR-4 multilayer lines, resistors, capacitors and switch MOS tube are SMD components with high integration, high reliability, high stability.
Notes: It's normal that the case is hot when converter inside temp is over 113?, converter will protect itself when inside temp is over 185?.
Wide Applications
These compact size dc voltage reducer converters are high reliability power transformers. They can work safely and reliability within temperature range -40°C~80°C.
Widely used to golf cart, motor, speaker, GPS, LED car display screen, air-conditioner, electric fan, solar energy, photo-voltaic power, DVD, industrial equipment ect.
