$238.49
Meet Your Seller

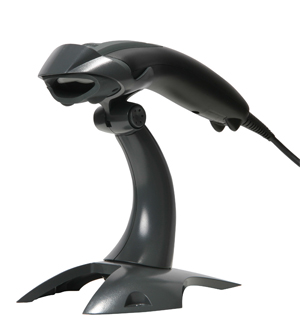

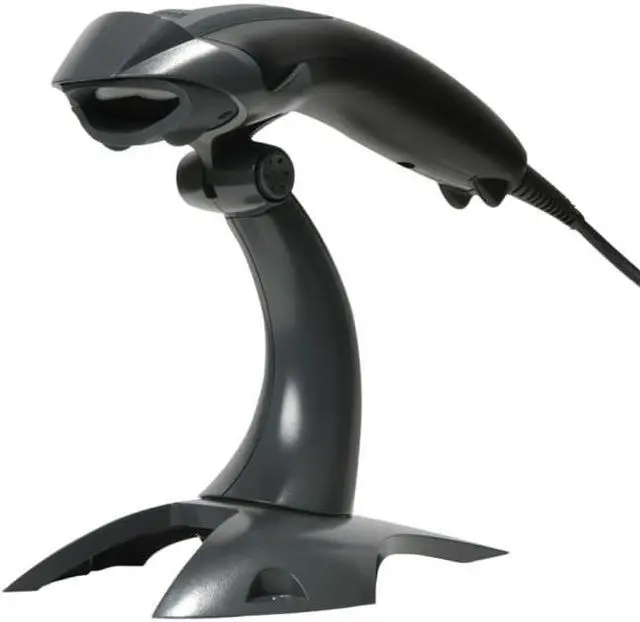

Honeywell Voyager 1400g Upgradeable Wired General Duty Laser Barcode Scanner, Omni-directional, 1D, PDF, RS232/USB/KBW/IBM, Black, USB Kit - 1400GPDF-2USB
- The Voyager 1400g upgradeable scanner lets you ramp up to area-imaging at your own pace – and in the most cost-effective way
- Buy the 1D version today and reserve the option to affordably upgrade the device to enable 2D barcode scanning at any point in the future, as your data capture needs evolve
- Unlike traditional laser scanners, the 1D version of this scanner can read barcodes omnidirectionally, ideal for presentation scanning
- Supports your mobile marketing programs by scanning coupons, mobile tickets and digital wallets from the screens of mobile devices
- Provides an affordable upgrade path to 2D scanning at any time; a simple software license upgrade is all it takes
- Designed to withstand 30 1.5 m (5 ft) drops to concrete
- Environmental Sealing: IP42
- Decodes all standard 1D and PDF417 symbologies
- USB Kit includes: Omni-directional 1D, PDF417, Scanner, black, USB Type A 1.5m straight cable (CBL-500-150-S00)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
2D bar codes are becoming increasingly popular across a wide range of industries for a number of reasons. Some enterprises have a desire to capture large amounts of data, despite space constraints, while others are being required to read 2D bar codes due to government regulations or supplier mandates. And an even larger group of enterprises simply have the desire to leverage emerging trends that require area-imaging technology, today or in the future, without needing to purchase additional scanning hardware.
Enterprises that recognize the importance of upgrading to areaimaging scanners are generally unwilling to accept a decline in scan performance. They are also looking for a solution that is capable of reading traditional paper-based bar codes, as well as bar codes found on alternative mediums, such as mobile phone screens.
Built on the platform of Honeywell's world-renowned Voyager series of hand-held linear scanners, the Voyager 1400g delivers omnidirectional reading of linear bar codes, plus the ability to affordably upgrade the device to enable PDF and 2D bar code scanning—at the time of purchase or as scanning needs evolve. Performing at speeds that are comparable to laser-based scanners, the versatile and reliable Voyager 1400g can be customized to meet current and future scanning needs, lowering the total cost of ownership.
With no need for additional functionality beyond linear and 2D bar code scanning, many enterprises are unwilling to pay for fully-featured area-imaging scanners. The Voyager 1400g enables PDF and 2D bar code scanning without extra value-added features, such as advanced image capture and processing applications, allowing Honeywell to offer 2D scanning at an attractive price.
The Voyager 1400g offers an exceptional value for enterprises that require the versatility of area-imaging technology today or may need it in the future. Produced by a company with more than 15 years of experience in engineering quality area-imaging solutions, Honeywell's Voyager 1400g area-imaging scanner is a smart investment.
Features
- Reliable Data Collection: Offers omnidirectional reading of virtually all linear bar codes and the most widely used 2D bar codes, including poor quality and mobile bar codes (2D decoding available in select models)
- Remote MasterMind™ Ready: Reduces total cost of ownership by providing a turnkey remote device management solution that easily manages and tracks usage of installed devices
- Future Proof: Delivers affordable scanning of 2D bar codes, allowing enterprises to meet their current and future bar code scanning needs with a single device
- Flexible Licensing Solution: Meets diverse scanning requirements by offering models with basic functionality — purchase software licenses to enable additional functionality as the need arises
Voyager 1400g Technical Specifications
| Mechanical | |
| Dimensions (L x W x H) | 7.1 x 2.6 x 1.7 in. (180 x 66 x 43mm) |
| Weight | 4.2oz (119g) |
| Electrical | |
| Input Voltage | 4.0 to 5.5 VDC |
| Operating Power | 2W (400mA @ 5 VDC) |
| Standby Power | 0.45W (90mA @ 5 VDC) |
| Host System Interfaces | USB, Keyboard Wedge, RS232, IBM 46xx (RS485) |
| Environmental | |
| Operating Temperature | 32 - 104°F (0 - 40°C) |
| Storage Temperature | -40 - 140°F (-40 - 60°C) |
| Humidity | 0% to 95% relative humidity, non-condensing |
| Drop | Designed to withstand 30 5' (1.5m) drops to concrete |
| Environmental Sealing | IP42 |
| Light Levels | 0 to 100,000 lux (9,290 foot-candles) |
| Scan Performance | |
| Scan Pattern | Area Image (640 x 480 pixel array) |
| Motion Tolerance | Up to 4 in./s (10cm/s) for 13 mil UPC at optimal focus |
| Scan Angle | Horizontal 42.4°; Vertical: 30.8° |
| Symbol Contrast | 35% Minimum reflectance difference |
| Pitch, Skew | 60 Degrees, 70 degrees |
| Decode Capability | 1400g1D: All standard 1D symbologies 1400gPDF: All standard 1D and PDF417 symbologies 1400g2D: All standard 1D, PDF417 and 2D symbologies |
| Warranty | 5-Year factory warranty |
Honeywell's Voyager 1400g is the ultimate 2D barcode scanner. This linear imager is capable of reading even poor quality and mobile 2D barcodes. 2D barcode scanners are becoming increasingly popular across a wide range of industries for a number of reasons. Enterprises have a growing need to capture large amounts of data, despite space constraints, while others are being required to read 2D barcodes due to government regulations or supplier mandates. An even larger group of enterprises simply have the desire to leverage emerging trends that require linear imagers with advanced area-imaging technology, without needing to purchase additional scanning hardware. The 1400g's features go above and beyond in meeting 2D scanning needs. Host Interface: USB Barcode Symbology Supported: PDF417 Host Interface: USB Product Type: Handheld Barcode Scanner Image Sensor: Imager Product Type: Handheld Barcode Scanner Image Sensor: Imager Manufacturer Part Number: 1400GPDF-2USB Limited Warranty: 5 Year Weight (Approximate): 4.20 oz Color: Black Connectivity Technology: Cable Color: Black Connectivity Technology: Cable Length: 1.7 Manufacturer: Honeywell International, Inc Product Model: 1400g Product Name: Voyager 1400g Linear/Area-Imaging Scanner Product Line: Voyager Brand Name: Honeywell Brand Name: Honeywell Height: 2.6 Depth: 7.1 Barcode Dimension: 1D Scan Pattern: Omni-directional Product Family: Voyager Environmentally Friendly: Yes Environmental Certification: RoHS Environmental Certification: WEEE Barcode Dimension: 1D
