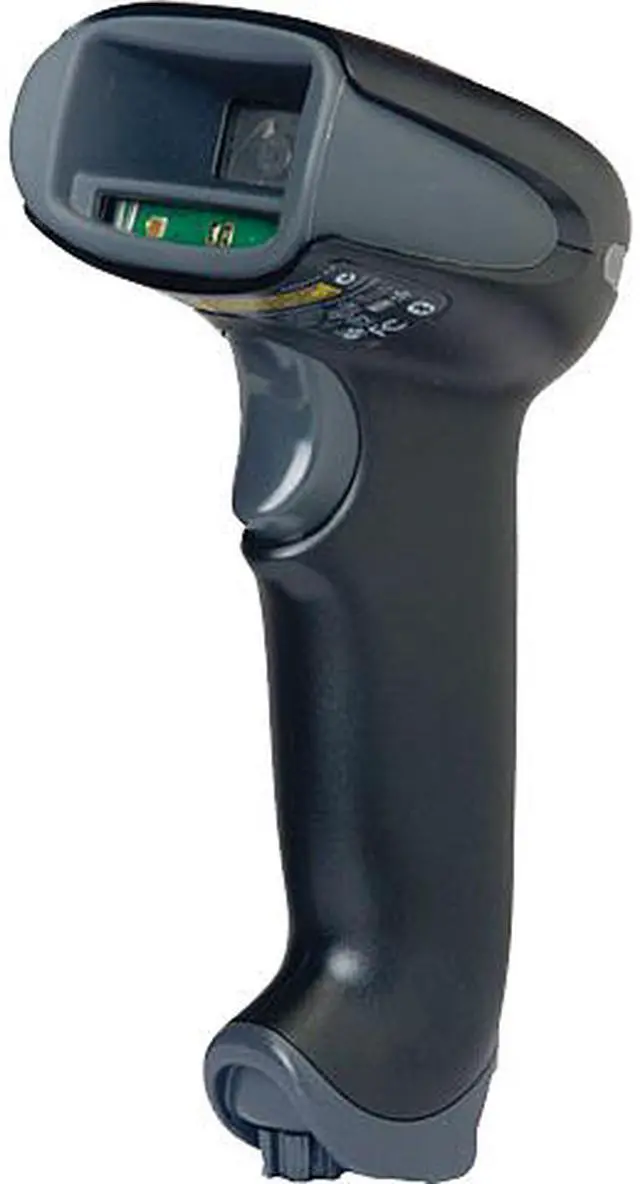

Honeywell Xenon 1902g Wireless General Duty Barcode Scanner, Color Imaging, 1D, PDF417, 2D, SR Focus, Bluetooth, Black (Scanner Only) - 1902GSR-2-COL

  • ColorFusion Technology: Allows color images to be captured & high contrast color bar codes to be scanned, without negatively impacting bar code scanning performance
  • 2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1; Class 2 enables movement up to 33ft from base, reduces interference w/ other wireless systems, & lowers TCO by allowing up to 7 imagers to communicate to a single base
  • Image Processing Software: Offers advanced editing functionality such as cropping, brightening, rotating & sharpening to produce high-quality digital images
  • TotalFreedom 2.0: Second-generation development platform enables the loading & linking of multiple applications on the scanner to enhance image processing, decoding or data formatting functionality, eliminating the need for host system modifications
  • Designed to withstand 50 1.8 m (6´) drops to concrete; IP41
  • SR Focus: Horizontal: 42.4°; Vertical: 33°
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Xenon 1902




Honeywell 1902GSR-2USB-5 Xenon 1902 Handheld Bar Code Reader
Xenon 1902

Wireless Area-Imaging Scanner


Xenon 1902

The Xenon 1902, Honeywell’s sixth-generation of area-imaging technology, is redefining the standard for hand-held scanners. Featuring a custom sensor that is optimized for bar code scanning, the Xenon 1902 offers industry-leading performance and reliability for a wide variety of applications that require the versatility of area-imaging technology plus the freedom of Bluetooth® wireless connectivity.

Powered by Adaptus® Imaging Technology 6.0, the Xenon 1902 delivers superior bar code scanning and digital image capture. The Xenon 1902 incorporates a revolutionary decoding architecture that combines Adaptus Imaging Technology 5.5 and Omniplanar’s SwiftDecoder™ software along with a custom sensor, enabling extended depth of field, faster reading, and improved scanning performance on poor quality bar codes. From high-density linear to 2D bar codes found directly on the screen of a mobile device, the Xenon 1902 decodes virtually all bar codes with ease.

The Xenon 1902 incorporates a Bluetooth Class 2, v2.1 radio, enabling unrestricted movement up to 33 ft (10m) from the base. Honeywell’s Shift-PLUS™ power management system provides up to 14 hours of battery life, maximizing productivity. For added convenience, a paging system helps locate misplaced scanners.

A new space-saving design that mounts critical components on a single board eliminates the need for connectors. A more reliable design with fewer components minimizes downtime and improves serviceability, resulting in increased productivity. Its small form factor ensures that the Xenon 1902 fits well in nearly any sized hand, reducing fatigue.

Built with durability in mind, Xenon 1902 can withstand up to 50 drops to concrete from 6 ft. An IP41-rating provides added protection. With a solid-state design backed by a three-year warranty, the Xenon 1902 is constructed to deliver years of uninterrupted performance.

Features


  • Wireless Connectivity: Bluetooth Class 2, v2.1 radio enables movement up to 33 ft (10m) from base, reduces interference with other wireless systems, and lowers total cost of ownership by allowing up to seven imagers to communicate to a single base
  • Long-Lasting Lithium-Ion Battery: Powers up to 50,000 scans per full charge, ensuring maximum uptime
  • Flexible Power Management: Allows user to limit radio power output of scanner, minimizing the likelihood of interference with other devices
  • Optional Disinfectant-Ready Housing: Protects investment with durable construction that is better able to resist the harmful effects of harsh chemicals
  • Image Processing Software: Offers advanced editing functionality—cropping, brightening, rotating, sharpening and more—to produce high-quality digital images
  • TotalFreedom™ 2.0: Second-generation development platform enables the loading and linking of multiple applications on the scanner to enhance image processing, decoding or data formatting functionality, eliminating the need for host system modifications
  • Remote MasterMind™ Scanner Management Software: Provides a quick and convenient solution for IT administrators seeking to manage all scanners within their network from a single remote location

Xenon 1902 Technical Specifications

Wireless
Radio/Range 2.4 to 2.5GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1; Class 2: 33 ft (10m) line of sight
Data Rate (Transmission Rate) 3Mbps (2.1Mbps)
Battery 1800mAh Li-ion minimum
Number of Scans Up to 50,000 scans per charge
Expected Hours of Operation 14 hours
Expected Charge Time 4.5 hours
Mechanical / Electrical
  Scanner Charger / Communication Base
Dimensions (LxWxH) 4.1in. x 2.8in. x 6.3in. (104mm x 71mm x 160mm) 5.2in. x 4in. x 3.2in. (132mm x 102mm x 81mm)
Weight 7.5oz (214g) 6.3oz (179g)
Operating Power (Charging) N/A 5W (1A @ 5V)
Non-Charging Power N/A 0.5W (0.1A @ 5V)
Host System Interfaces N/A USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Environmental
Operating Temperature 32°F to 122°F (0°C to 50°C) Charging: 41°F to 104°F (5°C to 40°C)
Non-Charging: 32°F to 122°F (0°C to 50°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C) -40°F to 158°F (-40°C to 70°C)
Humidity 0 to 95% relative humidity, non-condensing 0 to 95% relative humidity, non-condensing
Drop Designed to withstand fifty 6-foot (1.8m) drops to concrete Designed to withstand fifty 3.3-foot (1m) drops to concrete
Environmental Sealing IP41 IP41
Light Levels 0 to 100,000lux (9,290 foot-candles) N/A
Scan Performance
Scan Pattern Area Image (838 x 640 pixel array)
Motion Tolerance Up to 610cm/s (240in./s) for 13 mil UPC at optimal focus
Scan Angle (HD): Horizontal: 41.4 degrees; Vertical: 32.2 degrees
(SR): Horizontal: 42.4 degrees; Vertical: 33 degrees
(ER): Horizontal: 31.6 degrees; Vertical: 24.4 degrees
Print Contrast 20% minimum reflectance difference
Pitch, Skew 45 degrees, 65 degrees
Decode Capabilities Reads standard 1D, stacked, 2D and postal symbologies; limited OCR font reading
Warranty Three-Year factory warranty (Note: battery warranty is 1 year)




Xenon 1902 Color, Honeywell's most advanced wireless area-imaging scanner, has been enhanced to deliver color imaging. Featuring Honeywell's Color
Fusion Technology and a custom sensor that is optimized for bar code scanning, Xenon 1902 Color offers industry-leading innovation, performance and reliability, plus the freedom of Bluetooth wireless connectivity.
Connectivity Technology: Wireless
Bar Code Dimension: 1DBar
Code Dimension: 2DBar
Code Symbology Supported:
Linear: China Post
Codabar (NW7) Code 11Code 128Code 32Code 39Code 93Code 2 of 5EAN
Interleaved 2 of 5Matrix 2 of 5MSIGS1 Data
Bar (formerly RSS) Telepen
Trioptic Code
UPC
Stacked: Codablock FGS1 Composite (formerly EAN/UCC)Micro
PDF417PDF417Matrix: Aztec
Chinese Sensible Code (Han Xin Code) Data Matrix
Maxi
Code
QR Code
Micro QR Code
Postal: Intelligent Mail Barcode (formerly 4-state customer barcode)Australian Post
British Post
Canadian Post
ID-tag (UPU 4-state)Japanese Post
Netherlands (KIX) Post
Planet Code
Postnet
OCR: OCR-AOCR-BOCR MICR (E 13 B)
Image Sensor: Imager
Bluetooth: Yes
Color: Black
Height: 6.3W
idth: 2.8"L
ength: 4.1"W
eight (Approximate): 7.50 ozGreen
Compliant: Yes
Green
Compliance Certificate/Authority: RoHSGreen
Compliance Certificate/Authority: WEEE
Limited Warranty: 3 Year"
