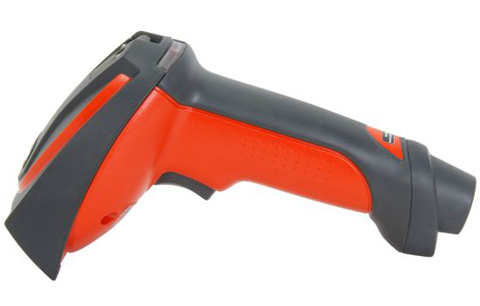

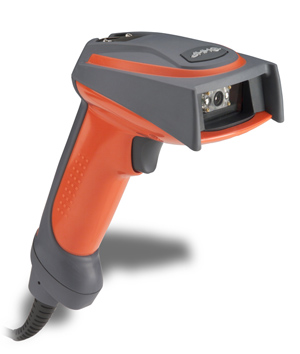

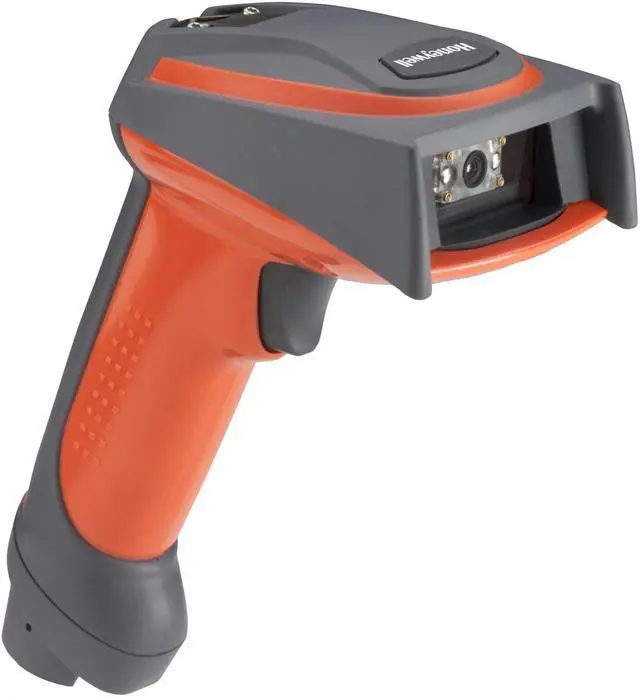

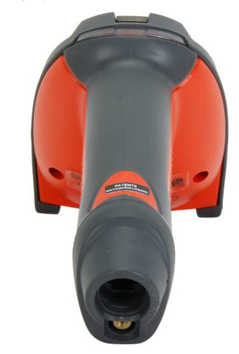

Honeywell 4800ISR051CE 4800i Industrial-Grade Barcode Scanner

  • 2D Area Imager
  • Cable Sold Separately
  • Rugged Housing
  • Orange
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

4800i

4800i Industrial-Grade Area-Imaging Scanner

Honeywell's 4800i industrial 2D imager is designed to provide unmatched data collection performance and versatility for applications that demand maximum reliability in the harshest working environments. Able to withstand drops from over six feet and environmentally sealed to provide protection from the elements, this 2D scanner is rugged and durable. It also has versatile data capture giving it the ability to read linear, stacked linear and 2D barcodes. A scanner designed for noisy industrial workplaces, the 4800i's "good read" beeper makes it easy to use and reliable.

Powered by Adaptus® Imaging Technology 5.0, the 4800i delivers high performance, omnidirectional linear and 2D bar code reading - plus the versatility of digital image capture. With Adaptus 5.0, enterprises have the ability to capture and process more data than ever before with a single device.

Built specifically for scan-intensive applications requiring the most rugged solution, the 4800i features our highest drop specification and an IP54 rating to guarantee protection against the penetration of dust and liquid. However, unlike other industrial grade solutions, the 4800i features best-in-class ergonomics - ensuring maximum user comfort and productivity


Features


4800i
  • Built for Industrial Applications: Rugged housing is specified to withstand 50 drops from 6.5' (2m) and certified to IP54 standards, while still being ergonomic and easy-to-use
  • High Performance and Versatile Data Collection: Adaptus Imaging Technology 5.0 provides aggressive, omnidirectional reading of all linear and 2D bar codes, plus enables digital image capture
  • Advanced Illumination Technology: Enhances performance and ease of use by delivering snappier scanning and minimizing reflection from shiny items
  • Simplified Device Configuration Through Advanced Software Assets: Visual Xpress™ software enables device programming and configuration on a host system through an easy-to-use Windows®-based graphical user interface
  • User Feedback Designed for Extreme Environments: Adjustable, extra loud "good read" beeper and dual LED indicators ensure reliable and intuitive feedback, even in noisy environments
  • Ease of Connectivity: All popular interfaces are on board, plus Visual Express™ software for easy integration with Unified POS (UPOS) standard and Windows® Embedded for Point of Service (WEPOS) systems
4800i

4800i Technical Specifications

Mechanical
Dimensions (L x W x H) 5.3 x 3.2 x 6.4" (135 x 81 x 163mm)
Weight 7.5oz (213g)
Electrical
Input Voltage 4.0 - 14VDC
Operating Power 1.9W (382mA @ 5V)
Standby Power 160mW (53mA @ 5V)
Host System Interfaces USB, TTL Level RS232, True RS232, Keyboard Wedge, IBM 46xx (RS485), Light Pen (Wand) Emulation
Environmental
Operating Temperature 14°F to 122°F (-10°C to 50°C)
Storage Temperature -40°F to 158°F (-40°C to 70°C)
Humidity 0% to 95% relative humidity, non-condensing
Drop Designed to withstand 6.5' (2m) drops
Environmental Sealing IP54
Light Levels 100,000 Lux
Scan Performance
Scan Pattern Area Image (pixel array: 752 x 480)
Motion Tolerance Standard: 4in./s (10cm/s); Streaming Presentation: 20in./s (50cm/s) with 13 mil UPC at optimal focus
Scan Angle Horizontal: 42 Degrees; Vertical: 27 Degrees
Print Contrast 20%
Pitch, Skew 40 Degrees, 40 Degrees
Decode Capability Reads standard 1D, stacked, 2D and postal symbologies; limited OCR font reading.
Warranty 5-year factory warranty
