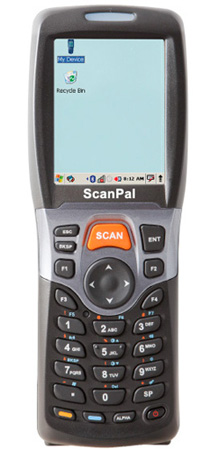

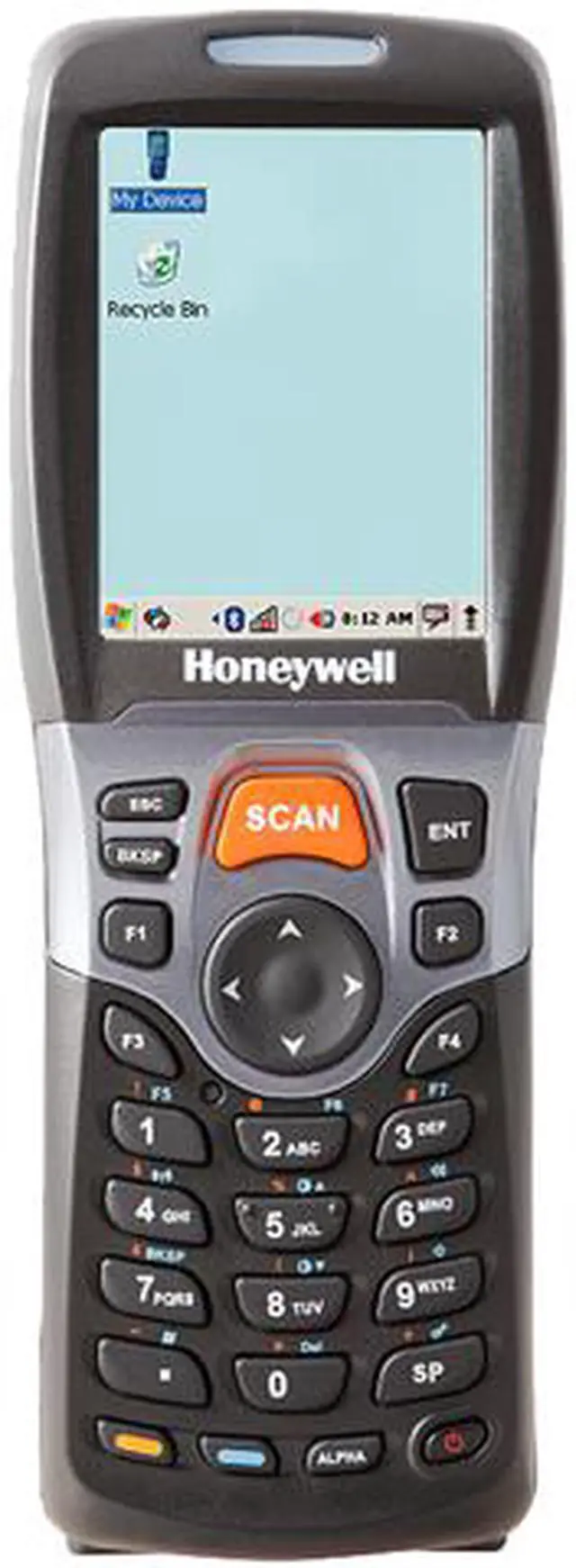

Honeywell’s ScanPal 5100 is a lightweight and reliable mobile computer that provides versatile data collection for communications within in-premise applications including data lookup/audits, inventory management, customer assistance, and merchandising.
Designed with ergonomics in mind, the ScanPal 5100 can be operated with a single hand. This pocket-sized mobile computer also features an angled engine—laser or imaging—that allows users to view the screen while scanning a bar code.
The flexible ScanPal 5100 can be configured to meet the specific needs of end users. An imaging engine that enables reading of virtually all linear and 2D bar codes is available, allowing enterprises to increase efficiency and improve customer service. Additionally, enterprises can select a touch screen option to enhance ease-of-use for touch screen based graphical applications on the ScanPal 5100’s 2.4” color QVGA screen.
Built to withstand harsh conditions, the IP54 rated ScanPal 5100 can endure exposure to dust, dirt and splashing water, as well as accidental drops from distances as high as 1.2 meters.
While engineered to support rapid batch data collection, optional 802.11b/g and Bluetooth® wireless technology provides users with access to critical data throughout the enterprise and facilitates efficient wireless connection to peripheral devices, respectively.
Purpose built for in-premise applications, Honeywell’s ScanPal 5100 mobile computer provides mobile workers with an optimal blend of ergonomics, performance, and reliability.
| Mechanical/Environmental | |
|---|---|
| Dimensions | 157 x 57 x 41mm / 6.18 x 2.24 x 1.61 in. |
| Weight | < 231g including Standard battery pack |
| Operating Temperature | -10°C to +50°C |
| Storage Temperature | -20 º to 70ºC |
| Humidity | 5% to 95%, non-condensing |
| Drop | 4ft (1.2m) |
| Environmental Sealing | IP 54 |
| ESD | ± 8 kV direct discharge |
| System Architecture | |
| Processor | PXA300 624MHz |
| OS | Microsoft® Windows CE 5.0 Core |
| Memory | 64MB RAM x 128MB Flash |
| Flash Memory | 128MB Flash |
| Display | 2.4”(240x320 pixels) QVGA * Touch screen option |
| Keypad | 28-key Numeric (Alpha/ shift /function/navigation key) |
| Audio | Built -in Speaker |
| I/O Ports | Full speed USB 1.1 from cradle (or I/O cable); RS232 (115 Kbps) from cradle |
| Development Environment | SDK |
| Application Software | Basic application softwares and demos |
| Storage Expansion | Micro SD Card with capacity up to 32G |
| Battery | Li-lon 2200mAh - STD & 3300mAh - EXT |
| Expected Hours of Operation | 8+ hours (with scan and continuously transmitting)* |
| Expected Charge Time | Less than 4 hours* -(0-40ºC) |
| Imager/Scanner | Honeywell Laser / Imager |
| Decode Capabilities | Reads standard 1D and 2D symbologies |
| Warranty | 1 year factory warranty |
| Wireless Connectivity | |
| WLAN | Dual Mode 802.11 b/g (11 Mbps/54 Mbps) |
| WLAN Security | WEP, WPA and WPA2 |
| WPAN | Bluetooth® Class II (10 m) v2.0 Enhanced Data Rate (EDR) |
