XENON HC USB KIT 1D PDF 2D
- ColorFusion Technology allows color images to be captured & high contrast color barcodes to be scanned, w/o negatively impacting scanning performance
- 2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1; Class 2 enables movement up to 33ft from base, reduces interference w/ other wireless systems & lowers TCO by allowing up to 7 imagers to communicate to a single base
- Lithium-Ion battery powers up to 50,000 scans per full charge
- Disinfectant-ready housing protects investment w/ durable construction that is better able to resist the harmful effects of harsh chemicals
- Vertical base minimizes overall footprint & enables presentation scanning
- Laser-Free Solution Class I LED illumination mitigates the risk of eye injury
- Designed to withstand 50 1.8 m (6´) drops to concrete; IP41
- HD Focus: Horizontal 41.4°; Vertical: 32.2°
- Includes white disinfectant-ready housing scanner (1902HHD-5-COL), charge/comm base (CCB01-010BT-HC), USB Type A 3m straight cable (CBL-500-300-S00)
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

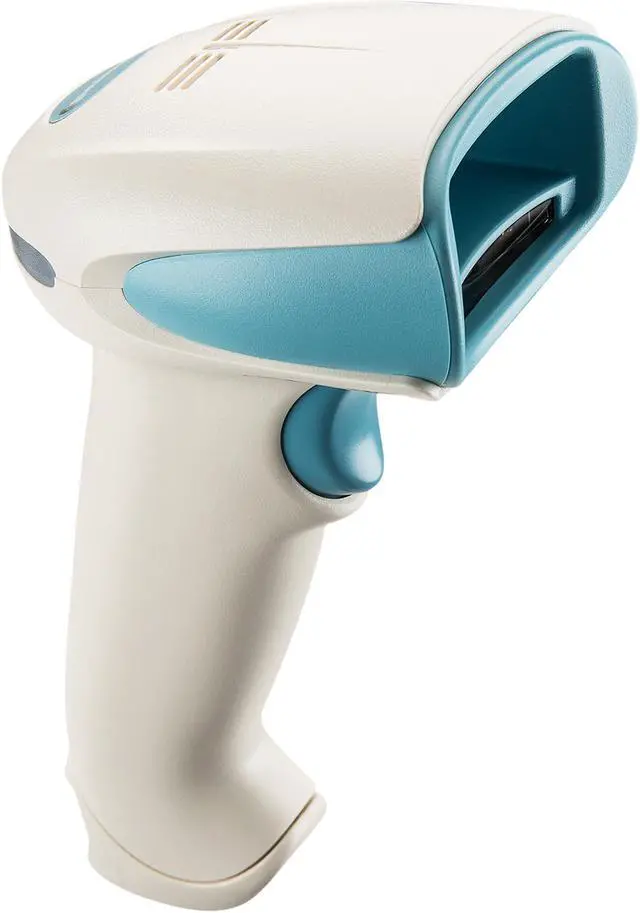

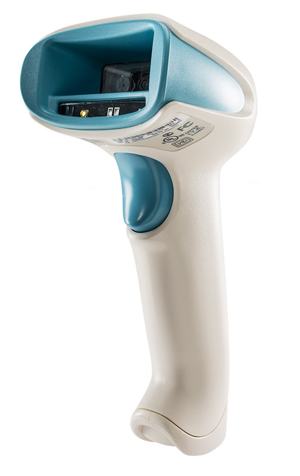

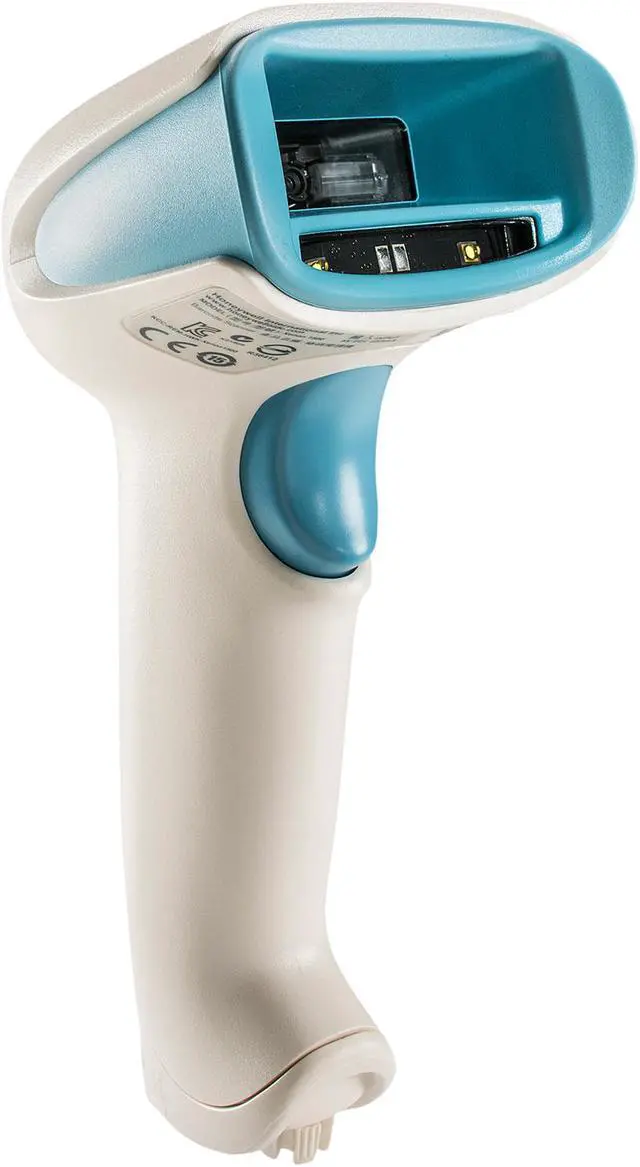

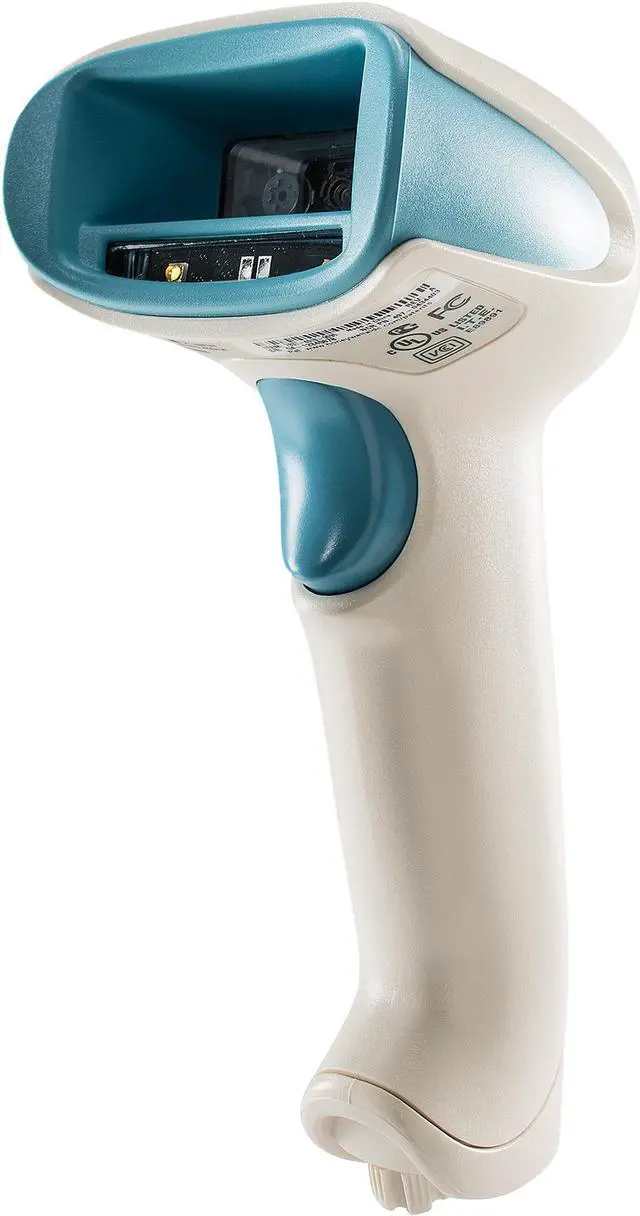

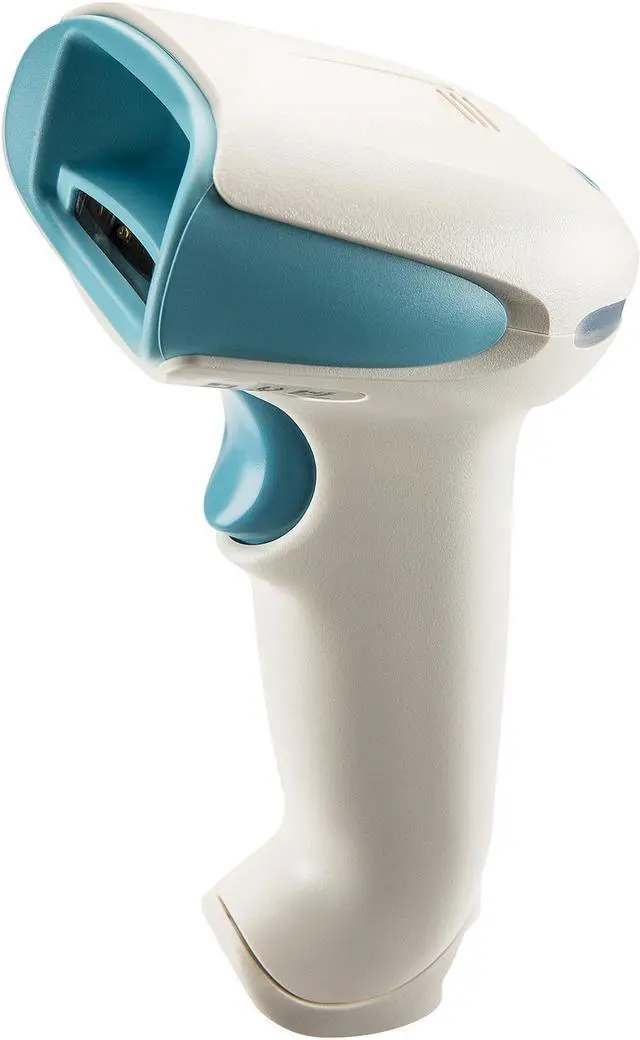

Enhanced Xenon 1902h
Wireless Area-Imaging Healthcare Scanner
Honeywell’s Xenon healthcare scanner has long been the choice for best-in-class healthcare organizations looking to improve their medication administration and positive patient identification workflows. Now, the next-generation Enhanced Xenon 1902h adds a number of features specifically requested by clinicians to further enhance patient comfort and improve common clinician workflows.
Setting the high watermark for scanning performance, the Enhanced Xenon 1902h utilizes Honeywell’s sixth-generation Adaptus™ area-imaging technology for incredibly responsive reading of virtually all 1D, PDF, and 2D bar codes—even challenging high-density, low contrast, translucent or damaged codes. ColorFusion™ technology adds color imaging, allowing the scanner to read color bar codes that are becoming more prevalent in healthcare environments.
To enhance patient comfort while maintaining clinician productivity, the Enhanced Xenon 1902h can be quickly toggled into Patient Do-Not-Disturb mode. When in this mode, audible feedback is disabled and replaced by additional visual display options that provide positive status indication to the clinician. Additionally, a unique Scan Lamp mode can be activated with the touch of a button. When mounted above a workstation on wheels (WoW) display, the Scan Lamp casts white illumination to the work surface. This allows staff to read labels, verify medication, or enter data—all without having to turn on the room light and disturb resting patients.
The Enhanced Xenon 1902h is enclosed in a disinfectant-ready housing which resists the harmful effects of harsh cleaning agents commonly used in healthcare environments and minimizes the spread of infectious diseases. Backed by a three-year warranty, the Enhanced Xenon 1902h scanner is built to deliver years of uninterrupted performance in challenging healthcare environments.
Features
- High Performance Color Area-Imaging: Powered by Adaptus™ and ColorFusion™ technologies, Xenon delivers unrivaled scanning performance on 1D, PDF, and 2D barcodes.
- Disinfectant-Ready Housing: Protects investment with durable construction that is better able to resist the harmful effects of harsh chemicals.
- Unique Night Time Modes: Quickly toggle into Patient Do-Not-Disturb and Scan Lamp modes to maintain clinician productivity during night shifts, or when resting patients are present.
- Efficient Wireless Performance: Bluetooth™ wireless technology provides freedom of movement up to 10 meters (33 feet) from base.
- Flexible Radio Power Management: Limits the radio power output of the scanner to minimize interference with other devices.
- Remote MasterMind™ Ready: Reduces total cost of ownership by providing a turnkey remote device management solution to easily manage and track usage of installed devices.
Enhanced Xenon 1902h Technical Specifications
| Wireless | ||||
| Radio/Range | 2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1: Class 2: 10m (33') line of sight | |||
| Data Rate (Transmission Rate) | Up to 1 Mbps | |||
| Battery | 2400 mAh Li-ion minimum | |||
| Number of Scans | Up to 50,000 scans per charge | |||
| Expected Hours of Operation | 14 hours | |||
| Expected Charge Time | 4.5 hours | |||
| Mechanical/Electrical |
Scanner (Enhanced Xenon 1902h) |
Charger/Communication Base (CCB01-010BT-HC) |
||
| Dimensions (LxWxH) | 104 mm x 71 mm x 160 mm (4.1" x 2.8" x 6.3") | 132 mm x 102 mm x 81mm (5.2" x 4.0" x 3.2") | ||
| Weight | 214 g (7.5 oz) | 179 g (6.3 oz) | ||
| Operating Power (Charging) | N/A | 5 W (1A @ 5V) | ||
| Dimensions (LxWxH): | N/A | 0.5 W (0.1A @ 5 V) | ||
| Weight | N/A | USB, Keyboard Wedge, RS232 TTL, IBM 46xx (RS485) | ||
| Environmental |
Scanner (Enhanced Xenon 1902h) |
Charger/Communication Base (CCB01-010BT-HC) |
||
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Charging: 5°C to 40°C (41°F to 104°F) Non-Charging: 0°C to 50°C (32°F to 122°F) |
||
| Storage Temperature with Battery |
For storage up to 90 days: -20°C to 35°C (-4°F to 95°F) For storage up to 1 year: -20°C to 20°C (-4°F to 68°F) |
-40°C to 70°C (-40°F to 158°F) | ||
| Humidity | 0 to 95% relative humidity, non-condensing | 0 to 95% relative humidity, non-condensing | ||
| Drop | Designed to withstand 50 1.8 m (6') drops to concrete | Designed to withstand 50 1.0 m (3.3') drops to concrete | ||
| Environmental Sealing | IP41 | IP41 | ||
| Light Levels | 0 to 100,000 lux (9,290 foot-candles) | N/A | ||
| Scan Performance | ||||
| Scan Pattern | Area Image (838 x 640) pixel array) | |||
| Motion Tolerance | Up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus | |||
| Scan Angle | (HD): Horizontal 41.4°; Vertical 32.2° | |||
| Symbol Contrast | 20% minimum reflectance difference | |||
| Pitch, Skew | ±45°, ±65° | |||
| Decode Capability |
Reads standard 1D, PDF, 2D,, Postal and OCR symbologies *Note: Decode capabilities dependent on kit configuration |
|||
| Warranty | 3 year factory warranty | |||
Honeywell's Xenon™ 1902h Color healthcare scanner is redefining the capabilities of hand-held scanners, featuring a custom image sensor that is optimized for barcode scanning and ColorFusion™ Technology which enables color image capture. With industry-leading performance and reliability, the Xenon 1902h Color imager is well-suited for a wide variety of healthcare applications that would benefit from the ability to capture color images, plus the freedom of Bluetooth® wireless connectivity. The wireless feature allows the user to move up to 33 feet from the base and can also support up to seven imagers per base.
FEATURES
Xenon 1902 USB Barcode scanner Kit, 2D Color Imager, Bluetooth, 1D, PDF417, 2D, Health care Disinfectant-ready, High Density. Includes USB cable and charging/communication cradle. Color: White
FEATURES
Xenon 1902 USB Barcode scanner Kit, 2D Color Imager, Bluetooth, 1D, PDF417, 2D, Health care Disinfectant-ready, High Density. Includes USB cable and charging/communication cradle. Color: White
