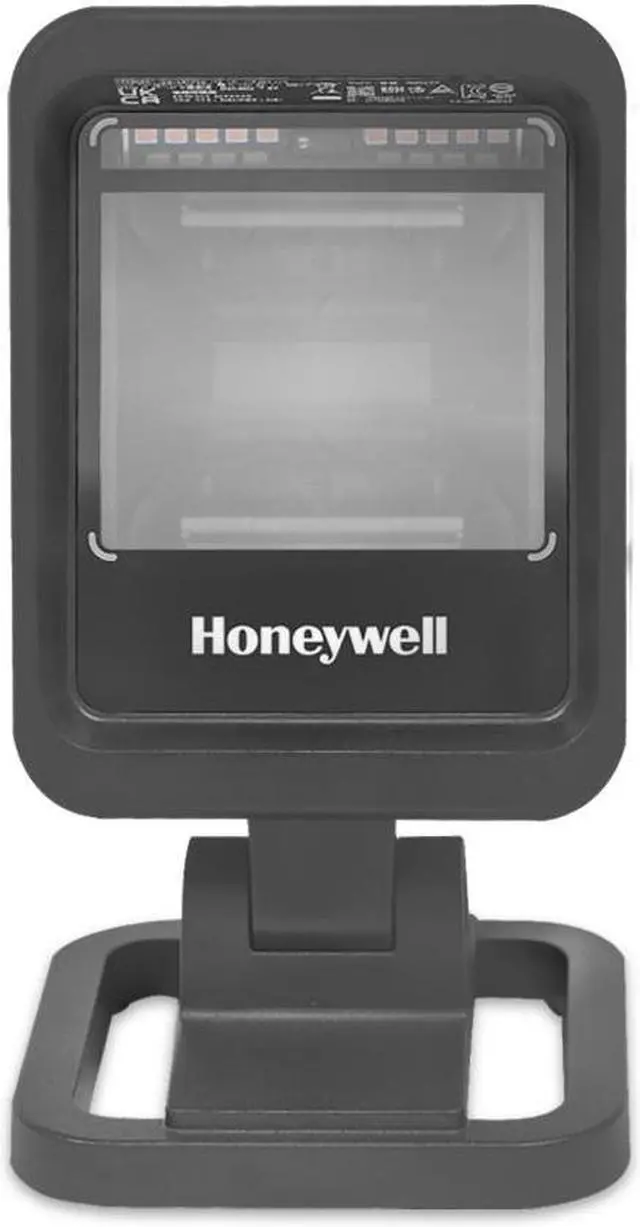

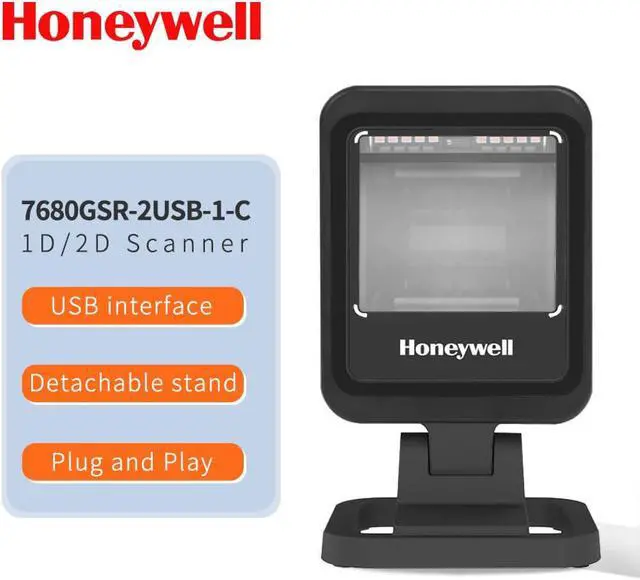

Honeywell Genesis XP 7680GSR-2USB-1-C Hands-Free Presentation Scanner 1D/2D, PDF417, Standard Range Focus, Black

The Honeywell Genesis XP 7680g is a hands-free presentation scanner that delivers an impactful customer experience while increasing business productivity.



BIG VALUE IN A SMALL PACKAGE

Increased Productivity

The Genesis XP features 20% faster scanning speed and a larger scanning area than previous products. Honeywells field proven XP scanning technology handles poorly printed and damaged barcodes with ease. Impressive depth of field allows barcodes to be read even if placed right at the face of the scanner. Featuring a full 1 mega-pixel imager and fast processor, the Genesis XP reads barcodes fast and handles a high level of motion tolerance resulting

in fewer repeat scans, keeping employees productive and efficient.



Fantastic User Experience

The compact and modern design offers a contemporary experience with minimal counter space required. The 360° tri-color LED ring highlights the scanning target area and provides clear user feedback, offering an intuitive experience for both employees and customers. The scanning user experience is a key element for delightful customer engagement. The warm, white light illumination is more pleasing to the eye. The automatic object detection feature turns the illumination completely off between scans, so the scanner is not a distraction.





Flexibility and adaptability

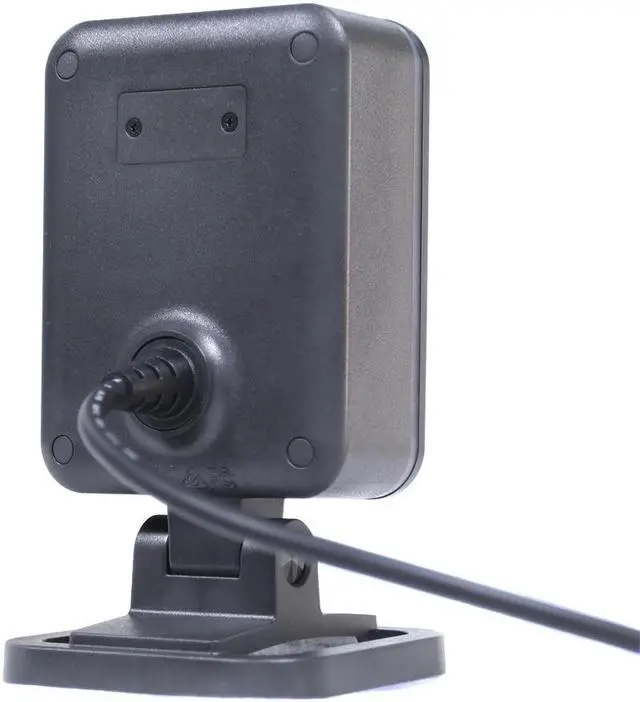

The Genesis XP was designed with flexibility in mind allowing it to easily adapt to the workflows of today and tomorrow. The removeable and adjustable

compact stand and angled cable attachment point will allow the product to be placed almost anywhere. A line of additional smart placement accessories will be available for the

Genesis XP supporting wall mount, POS mount, and downward facing installations. A built-in auxiliary expansion port will support future smart accessories, adapting to

future needs and requirements.



GENESIS XP 7680g ACCESSORIES

Compatibility

The Genesis XP is compatible with Honeywells comprehensive suite of

software tools, plugins and the Operational Intelligence platform. The Genesis

XP is backwards compatible with legacy Genesis cables in the field.

Smart Placement Accesories

Additional accessories are coming soon to support a wide

variety of installation applications and options.



ELECTRICAL

Input Voltage: 5.0V DC Typical

Operating Power: 2.5 W (500mA @ 5V)

Host System Interfaces: USB, RS-232,

Keyboard Wedge, IBM 46xx (RS-485)

Auxiliary Ports: Pin Connector for

future expandability



MECHANICAL

Dimensions (L x W x H):

80 mm x 40 mm x 105 mm, 145 mm

w/ stand;

( 3.2 in x 1.6 in x 4.1 in, 5.7 in w/ stand)

Weight: 340 g (12 oz)

Trigger: Top mounted button

ENVIRONMENTAL

Operating Temperature: 0°C to 50°C;

(32°F to 122°F)

Storage Temperature: -40°C to 70°C;

(-40°F to 158°F)

Humidity: 0% to 95% relative humidity,

non-condensing

Drop: 50 drops @ 1.5 m

Tumble: 1, 000 tumbles @ 0.5 m

Environmental Sealing: IP52

Light Levels: 100, 000 Lux

Beeper: 90db @ 10 cm

SCAN PERFORMANCE

Scan Pattern: Area Image

1, 280 x 800 pixel array, 1Mp

Motion Tolerance: 400 cm/s (158 in/s)

for 13 mil UPC at optimal focus

Scan Angle: Horizontal: 48°;

Vertical: 30°

Print Contrast: 20% minimum

reflectance difference

Pitch,
Skew: 65°, 65°

Decode Capability: Reads standard

1D, 2D, PDF, 2D, Dotcode symbologies,

Digimarc supported

Note: Decode capabilities dependent

on kit configuration.

TYPICAL PERFORMANCE*

High performance scanning right at face

of scanner Snapdragon 801 quad-core.



NARROW WIDTH DEPTH OF FIELD

3.0 mil C39 (1D) 0 mm 98 mm (0 in 3.9 in)

5.0 mil C39 (1D) 0 mm 151 mm (0 in 6.0 in)

10 mil (DM) 0 mm 129 mm (0 in 5.1 in)

13 mil UPC (1D) 0 mm 250 mm (0 in 9.9 in)

6.7 mil (PDF) 0 mm 138 mm (0 in 5.4 in)

20 mil (QR) 0mm 212 mm (0 in 8.3 in)

*Resolution: 1D: 3 mil ( 0.076 mm);

2D 5 mil ( 0.127 mm)

* Performance may be impacted by barcode

quality and environmental conditions
