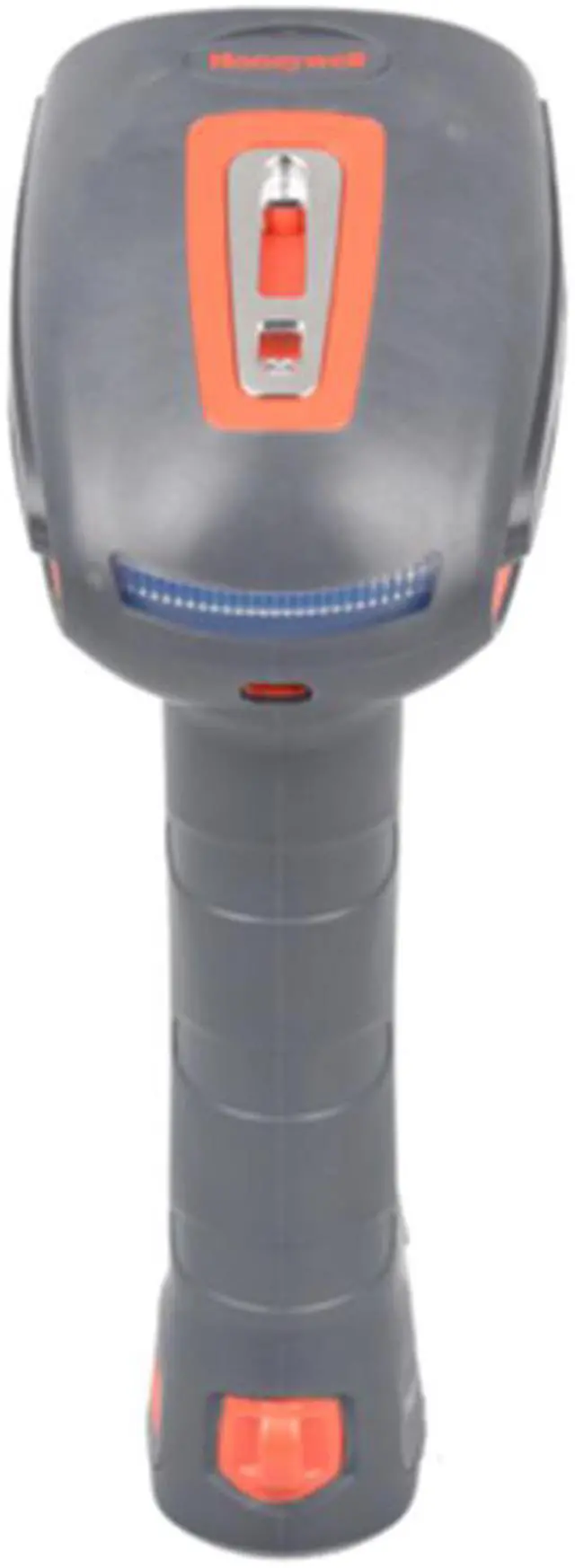

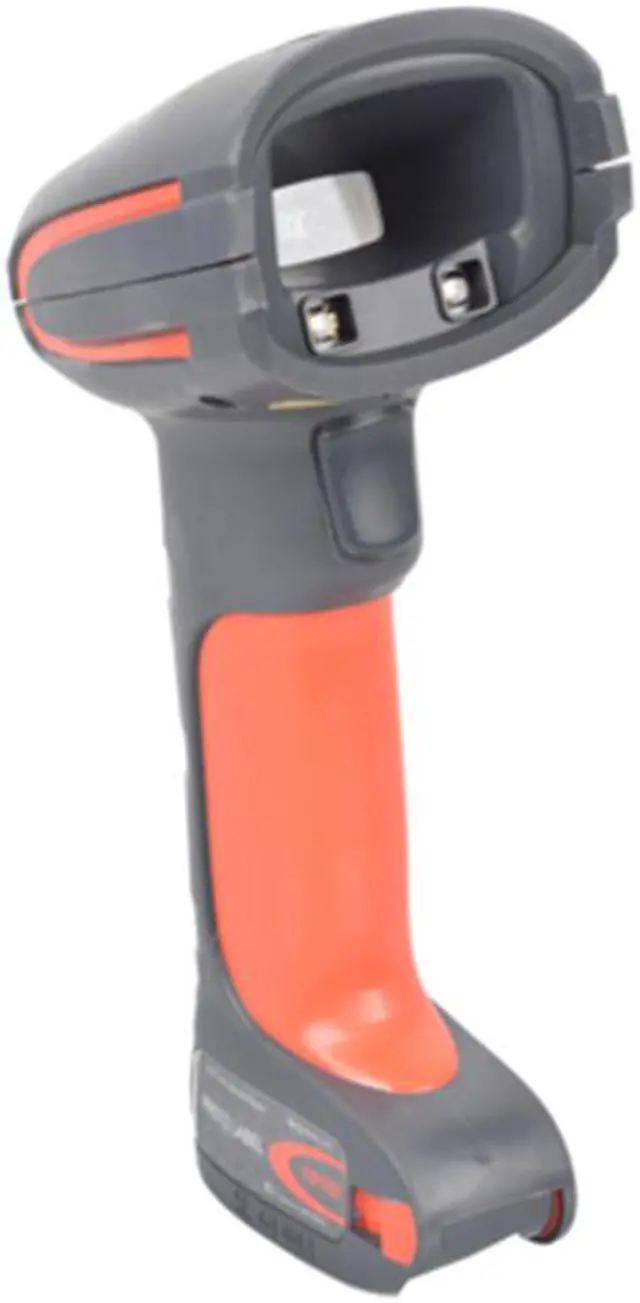

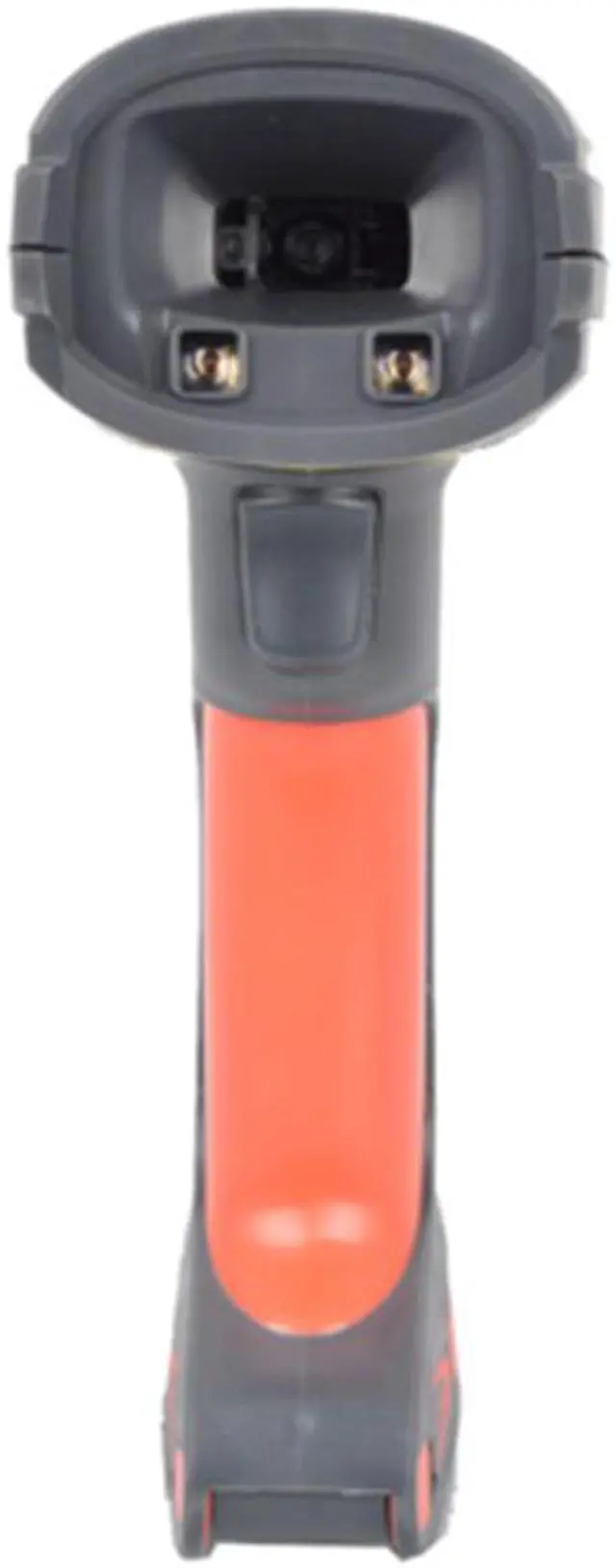

Honeywell 1910IER-3USB Granit 1910i Corded USB Industrial Barcode Scanner Orange
- Handheld
- Multi-Interface
- USB Cable Included
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
MechanicalDimensions (LxWxH) 133 mm x 75 mm x 195 mm ( 5.2 '' x 2.9 '' x 7.6 '')Weight 300 g ( 10.6 oz)ElectricalInput Voltage 4.0 to 5.5 VDCOperating Power 2.35 W (470mA @ 5 VDC)Standby Power 0.5 W (100mA @ 5 VDC)Host System Interface USBEnvironmentalOperating Temperature* -30°C to 50°C (-22°F to 122°F)Storage Temperature -40°C to 70°C (-40°F to 158°F)Humidity Up to 95% relative humidity, non-condensingDrop Designed to withstand 50 2 m ( 6.5 ') drops to concrete at -30°CTumble 5, 000 1m (40? ) tumblesEnvironmental Sealing IP65Light Levels 0 to 100, 000 lux (9, 290 foot-candles)ESD ±20Kv air discharge, ±8kV contact dischargeScan PerformanceScan Pattern Area Imager (838 x 640 pixel array) Motion Tolerance Up to 610 cm/s (240 in/s) at 16.5 cm ( 6.5" ) and 381 cm/s (150 in/s) at 25 cm ( 10.0" ) for 13 mil
UPCScan Angle ER Focus:
Horizontal: 31.6 °;
Vertical: 24.4 °Symbol Contrast 20% minimum reflectance differencePitch, Skew 45°, 65°
UPCScan Angle ER Focus:
Horizontal: 31.6 °;
Vertical: 24.4 °Symbol Contrast 20% minimum reflectance differencePitch, Skew 45°, 65°
