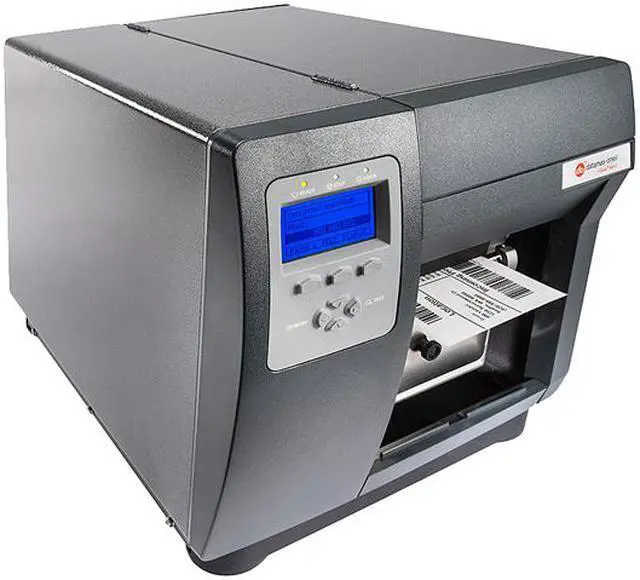

Honeywell (Datamax-O'Neil) I-Class I-4310e 4" Thermal Transfer Industrial Label Printer, Graphic Display, 300dpi, Serial, USB, Parallel Bi-direct., Std. Cutter, 3.0"-1.5" Media Hub - I13-00-48040007

64MB Flash, 32MB RAM, Serial RS-232, USB 2.0, Parallel bi-directional, Standard Cutter
The I-Class Mark II family of mid-range industrial barcode printers can easily keep up w/ high-speed label demand applications
With a state-of-the-art processor, printer throughput is very fast
Features a gear-driven & beltless design that delivers confidence-building performance for your 24/7 mission-critical operations
Durable die-cast aluminum frame; clear side window lets you easily monitor media supply levels
Seven-button, 128x64 LCD graphics backlit display is easy to read, enabling user-friendly label configuration setup
Multi-lang. menu available in Eng/Span/Germ/Ital/Fren
Includes DPL & other popular language emulations that allow the printer to integrate easily into your new or existing applications
Wide printhead access makes the I-Class Mark II easy to maintain w/ quick printhead & platen roller replacement
Includes 110v Black Power Cord with U.S. Plug

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Datamax-ONeil I-Class I-4310E Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - Label Print

Printer
Print Technology	Thermal Transfer Printer
Printer Type	Industrial
Print Speed	10 ips (254 mm/s)
Max Resolution(B&W)	300 dpi (12 dots/mm)
Memory	32 MB / 64 MB (SDRAM / Flash)
Fonts Included	Resident fonts: Ten alphanumeric fonts from 2.5 to 23 point size, including OCR-A, OCR-B, CG Tsmooth font from AGFA. Scalable Fonts: CG Triumvirate Bold Condensed, CG Triumvirate & CG Times with Cyrillic, Greek Arabic and Hebrew character support. Downloadable font types: True-Type, Bitmap. Font expansion / rotation: All fonts expandable vertically and horizontally up to 24x; fonts and graphics can be printed in four directions: 0 , 90, 180 and 270 degree.
Barcode Type	Barcodes: Linear: Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5, Industrial 2 of 5, Std 2 of 5, Code 11, Code 93, Code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5 digit addendums, Postnet, UCC/EAN Code 128, Telepen, Planetcode, FIM, USPS-4 State. 2D Symbologies: MaxiCode, PDF417, USD-8, Datamatrix, QR Code, Codeablock, Code 16k, Aztec, TLC 39, Micro PDF417, GS1 Databar
Cutter	Yes

Media Handling
Media Type	Roll-fed: 8.00" (203.20 mm) O.D. on a 1.50"- 3.00" (38.10 mm - 76.20 mm) core Fan-fold stock: accepted from rear of printer Die-cut or continuous labels Perforated or continuous tag / ticket stock
Media sizes supported	Media width range: 1.00" - 4.65" (25.40 mm - 118.10 mm) Minimum media length: Tear-off and rewind modes: 0.25" (6.35 mm) Peel and cutter modes: 1.00" (25.40 mm) Ribbon: Width range: 1.00" - 4.50" (25.40 mm - 114.30 mm) Core: 1.00" (25.00 mm) Length: 1968.00 ft. (600.00 m)
Print Size	Print width (max): 4.10" (104.10 mm) Print length range: 0.25"- 99.00" (6.35 - 2514.60 mm)

Connections
Interface	Parallel / Serial RS232 / USB

Features
Features	OPTIMedia reduces set-up time by enabling the printer to automatically adjust to optimum heat and speed setting to produce the best print quality Lower power consumption delivers 25% lower power consumption in its category. The ECO IntelliSEAQ print head has durable coating, better abrasion resistance, and longer life Multiple Communication Ports: Offers the largest selection of communication ports in the mid level industrial printer range including serial, parallel, USB, LAN, 2 USB Host ports and SDIO, W-LAN, and GPIO interface card Graphical Display includes a 7-button 128x64 LCD graphical backlit display that is easy to read, enabling user friendly label configuration set-up Rugged construction features a geardriven design and durable die-cast aluminum frame Wide access to the printhead makes the I-Class Mark II very easy to maintain; both printhead and platen roller can be changed in less than 5 minutes Field installable options such as cutters, peel & present sensors, and thermal transfer option can be added easily to upgrade a base printer Multi-language menu available in English, Spanish, German, Italian, and French Software: Includes DPL and other popular language emulations that allow the printer to integrate easily into new or existing applications

Dimensions & Weight
Dimensions	12.70" x 12.62" x 18.60"
Weight	45.00 lbs.

Additional Information
First Listed on Newegg	February 02, 2019

Warranty & Returns

Return for refund within: Non-refundable

Return for replacement within: 30 days
