Honeywell MK3580-32A38 Multi-Interface Barcode Scanner with 3" flex stand and USB Cable (Black)

  • Visible Laser Diode 650 nm
  • 1650 scan lines /sec, omnidirectional; 80 scan lines /sec, single line
Overview
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

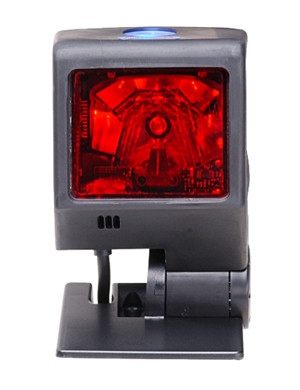

QuantumT 3580

Omnidirectional Laser Scanner

QuantumT 3580

Honeywell’s QuantumT® 3580 provides retailers with industry-leading omnidirectional scan performance and optional single-line scanning in a convenient size. The small footprint and numerous stand options for QuantumT minimize required counter space, increasing available room for merchandise and advertisement displays.

Ideal for presentation scanning in moderate-volume retail environments such as convenience stores, liquor stores and pharmacies, end users can individually customize the scan pattern and operate the scanner in either a hand-held or hands-free fashion. In addition, its rugged, rubber housing provides the necessary protection against daily operational use.

QuantumT, with an industry-leading 1,650 scans/second, provides aggressive first-pass scanning, reducing the time it takes to scan products, increasing customer satisfaction and employee efficiency. The single-line scan feature, enabled by the push of a button, saves time and reduces unwanted scans on menu-style codes by providing targeted scanning through Honeywell’s patented CodeGate® technology. Handheld operation ensures easy scanning of larger, bulkier products that cannot be easily presented to stationary scanners.

QuantumT can be positioned at the user’s convenience: mounted to a wall or countertop, atop one of four optional stands, or free standing for easy hand-held use. Other key features include Honeywell’s patented IR activation mode, user-replaceable Powerlink cables and Flash memory.

Features
  • Omnidirectional/Single-Line Mode: Alternate between 20 scan lines for omnidirectional scanning and a single scan line for menu scanning
  • Sleep Mode with IR Wake-Up: Multiple sleep modes reduce power consumption, extending life and lowering cost of operation
  • Small Footprint: Keeps valuable counter space clear
  • Optional Stands: Customize the height of the scanner for unique applications
  • OPOS and JPOS System Compatible: Easily adaptable to any end-user environment
QuantumT 3580 Technical Specifications
Mechanical
Dimensions (LxWxH) 66 mm x 67 mm x 108 mm (2.6? x 2.7? x 4.3?)
Weight 170 g (6 oz)
Electrical
Input Voltage 5 VDC ± 0.25 V
Operating Power 1.4 W (275 mA @ 5 V)
Standby Power 1.2 W (230 mA @ 5 V)
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Emulation, Light Pen Wand Emulation
Environmental
Operating Temperature -20°C to 40°C (-4°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 1.5 m (5´) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux
Scan Performance
Scan Pattern Omnidirectional: 5 fields of 4 parallel lines; Button activated single line
Scan Speed Omnidirectional: 1650 scan lines per second; Single line: 80 scan lines per second
Print Contrast 35% minimum reflectance difference
Pitch, Skew 60°, 60°
Decode Capabilities Reads standard 1D and GS1 DataBar symbologies
Warranty 3 year factory warranty
HONEYWELL, NCNR, MS3580 QUANTUM T KIT, SCANNER, BLACK, USB, WITH 3 INCH FLEX STAND (46-00288), 2.8M (9.2') STRAIGHT USB TYPE A CABLE (54-54235X-N-3), DOCUMENTATION
