Honeywell MK7120-71B41 MS7120 Orbit Barcode Scanner - Light Gray, RS232 Cable, Mounting Plate
- 1D
- 20 scan line omni-directional pattern
- Adjustable scan head
- Data parsing

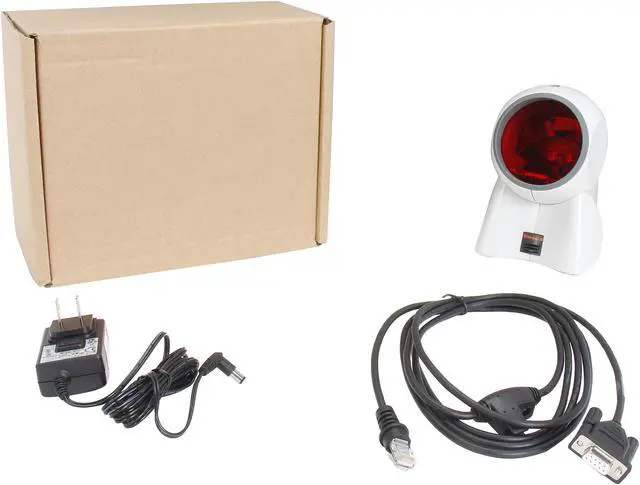

- Includes: Mounting plate (45-45619), 2.9m (9.5') straight RS232 cable (59-59000x-3), US power supply (46-00525), document
+
+
Overview
Specs
Reviews (5)
Any questions? Our AI beta will help you find out quickly.
Try me now
Orbit 7120 Series Omnidirectional Laser Scanners
Wireless Single-Line Laser Scanner
Honeywell's Orbit® series of scanners provide aggressive omnidirectional scanning in an award-winning design for retailers seeking an affordable, aesthetically-pleasing scanning solution.
Orbit, the all-time, best-selling hands-free omnidirectional scanner, presents an innovative, elegant and affordable solution for convenience retail applications where counter space is at a premium.
Compact, lightweight and rugged, Orbit maximizes customer satisfaction and employee efficiency with a patented 20-line scan pattern, an easy-to-find sweet spot and a scan speed of 1,120 scans per second.
Recipient of multiple design honors, Orbit's award-winning shape enables hand-held scanning of large, bulky items. For added flexibility, the scanning head can be tilted within a 30-degree range to accommodate objects of various sizes and shapes.
For applications that require menu scanning, OrbitCG 7180 combines the power of patented CodeGate® technology with many of the outstanding features already found in the Orbit® 7120. CodeGate
technology allows the user to easily target the desired bar code and complete data transmission with the push of a single button.
The scanner's expanded ability to update its firmware via Honeywell's free patented MetroSet®2 configuration software safeguards longterm infrastructure commitments in the event of a change in the POS system or software.
Standard features include an integrated EAS antenna for tag deactivation (OrbitCG 7180 only), power save mode, user-replaceable cables, Honeywell's patented MetroSelect and MetroSet®2 for easy
configuration, data editing and OPOS/JPOS compatibility for easy installation.
Features
- 20 Scan Line Omnidirectional Pattern: Provides aggressive scanning as an additional benefit to hand presentation applications
- Sweet Spot Scanning: Engineered "sweet spot" to optimize scan performance and first pass read rate
- Adjustable Scan Head: Ability to tilt scanner 30 degrees for targeted scanning or larger products
- Flash ROM: Protects POS investment with free firmware updates via MetroSet®2 software and standard PC
- Automatic Scanning Operation: Simply present a bar code and the unit scans in a single pass
- Built-in RF EAS Antenna (Orbit 7180 only): Increases efficiency by simultaneously deactivating RF EAS tags and decoding bar codes
Specifications
| Mechanical | |
| Dimensions (L x W x H) | 4.1 x 4.0 x 5.9 inches (105 x 102 x 150mm) |
| Weight | 14.1oz (400g) |
| Electrical | |
| Input Voltage | 5VDC ± 0.25V |
| Operating Power | 900mW (180mA @ 5V) |
| Standby Power | 850mW (170mA @ 5V) |
| Host System Interfaces | USB, RS232, Keyboard Wedge, IBM 468xx (RS485), Light Pen Wand Emulation |
| Environmental | |
| Operating Temperature | 32 - 104°F (0 - 40°C) |
| Storage Temperature | -40 - 140°F (-40 - 60°C) |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Drop | Designed to withstand 4-foot (1.2m) drops |
| Environmental Sealing | Sealed to resist airborne particulate contaminants |
| Light Levels | 4842 Lux |
| Scan Performance | |
| Scan Pattern | Omnidirectional: 5 fields of 4 parallel lines Button-activated single line (7180) |
| Scan Speed | Omnidirectional: 1120 scan lines per second Single line: 56 scan lines per second (7180) |
| Print Contrast | 35% Minimum reflectance difference |
| Pitch x Skew | 60 degrees x 60 degrees |
| Decode Capabilities | Reads standard 1D and GS1 DataBar symbologies |
| Warranty | 3-Year factory warranty |
With its 20-scan-line omni-directional scanning, an engineered "sweet spot" for reliable first-pass barcode reading, and an adjustable scan head able to tilt 30 degrees for targeted scanning or swiping of larger products, the Metrologic Orbit MK7120 has the features that make it an ideal counter companion for your retail business.
The scanner's expanded ability to update its firmware via Metrologic's MetroSet2 configuration software (provided free) safeguards long-term infrastructure commitments in the event of a change in the POS system or software. Standard features include Metrologic's PowerLink user-replaceable cables and power supply, allowing it to quickly connect to multiple system interface types including keyboard wedge, RS232, light pen emulation, IBM 468X/469X, and USB (low speed and full speed). Its ability to autodiscriminate all standard 1D and RSS-14 bar codes makes it particularly well-suited to retail environments.
The scanner's expanded ability to update its firmware via Metrologic's MetroSet2 configuration software (provided free) safeguards long-term infrastructure commitments in the event of a change in the POS system or software. Standard features include Metrologic's PowerLink user-replaceable cables and power supply, allowing it to quickly connect to multiple system interface types including keyboard wedge, RS232, light pen emulation, IBM 468X/469X, and USB (low speed and full speed). Its ability to autodiscriminate all standard 1D and RSS-14 bar codes makes it particularly well-suited to retail environments.
