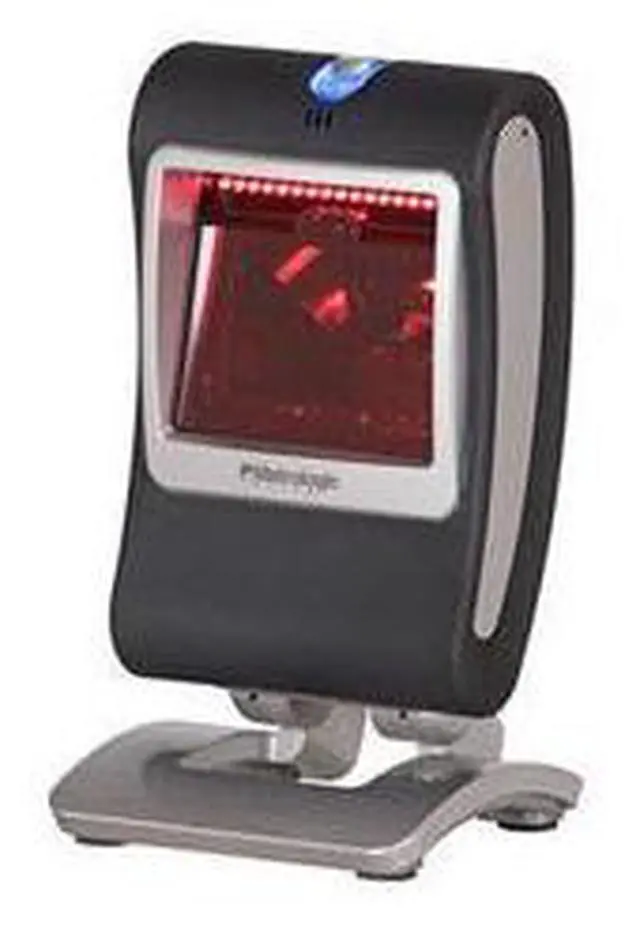

Honeywell MK7580-30D38-02-A Genesis Barcode Scanner-1D/2D/PDF

MS7580 barcode scanner is a presentation imager engineered to decode all standard electronic 1D, PDF and 2D matrix codes



MS7580 Genesis is a presentation imager engineered to decode all standard printed and electronic 1D, PDF and 2D matrix codes. The first product released under the Metrologic ELITE brand, Genesis signals the companys move to producing devices that tie advanced engineering with superior elegance, performance and reliability. Delivered in a stylish, full-color package, Genesis carries the Metrologic ELITE badge and will be offered with our new extended warranty options.





Features


Benefits




Motion Tolerance


Aggressively reads bar codes passing by the scan window




Multiple On-Board Interfaces


Reduces overall system cost




Open-System Architecture


Simplifies installation by loading custom application modules directly to imager instead of host




FirstFlash®


Increases productivity by scanning all standard bar codes on first LED flash




Code Select


Scans up to 7 bar codes in one scan and outputs data in any pre-determined order








Quick Specs




Depth of Scan Field:


0 mm - 152 mm (0 - 6) for 0.33 mm (13 mil)




Field of View:


55 mm x 35 mm (2.2 x 1.4) @ face; 185 mm x 110 mm (7.3 x 4.3) @ 152 mm (6)




Motion Tolerance:


200 cm/sec (78/sec) for 0.33 mm (13 mil) @ 10 cm (4)




Minimum Element Width 1D/2D/PDF:


0.1 mm (4 mil) / 0.127 mm (5 mil) / 0.249 mm (9.8 mil)




System Interfaces:


PC Keyboard Wedge, RS232, 46xx RS485, USB




Light Source:


LED 645 nm ± 7.5 nm
