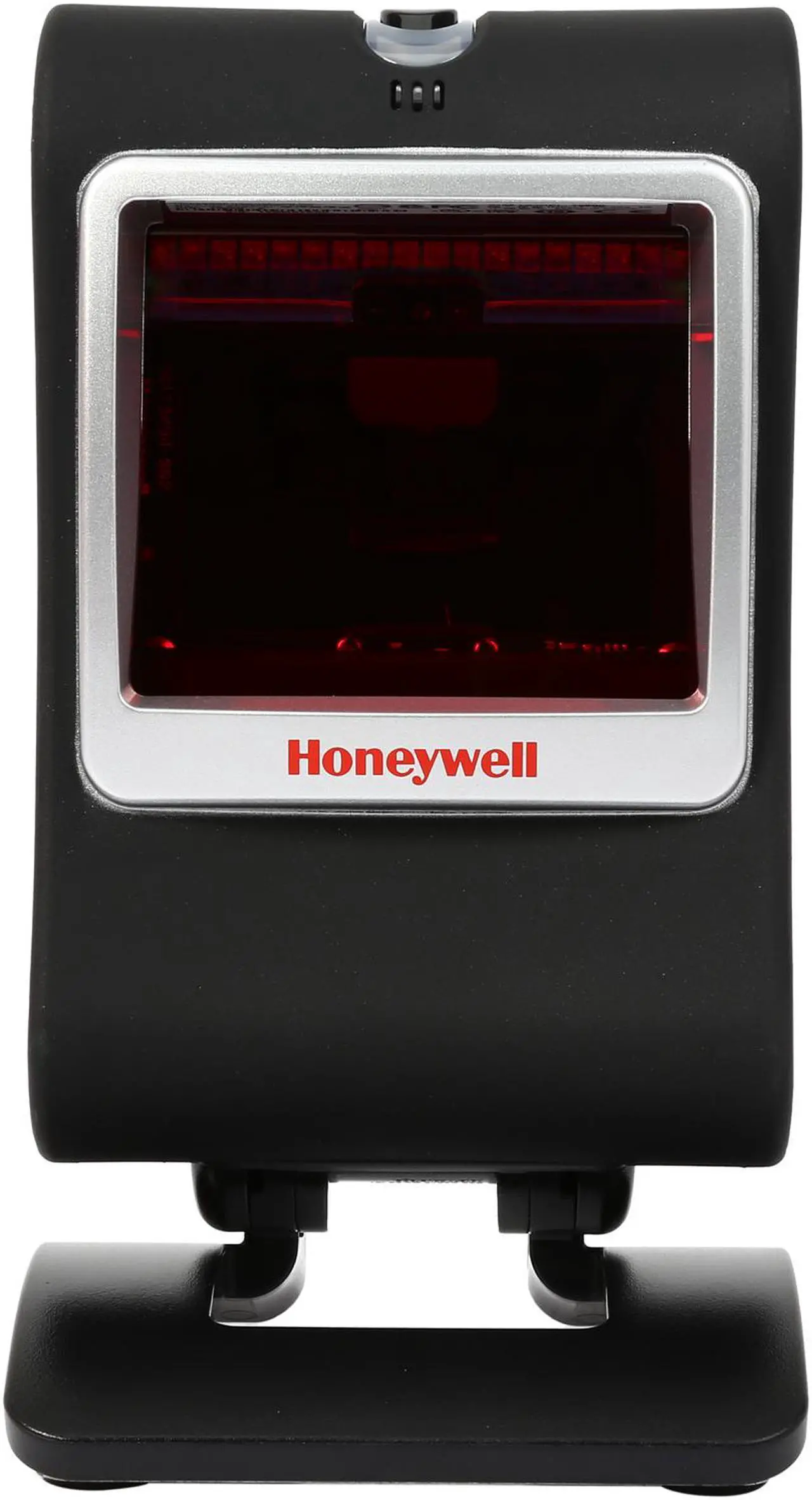

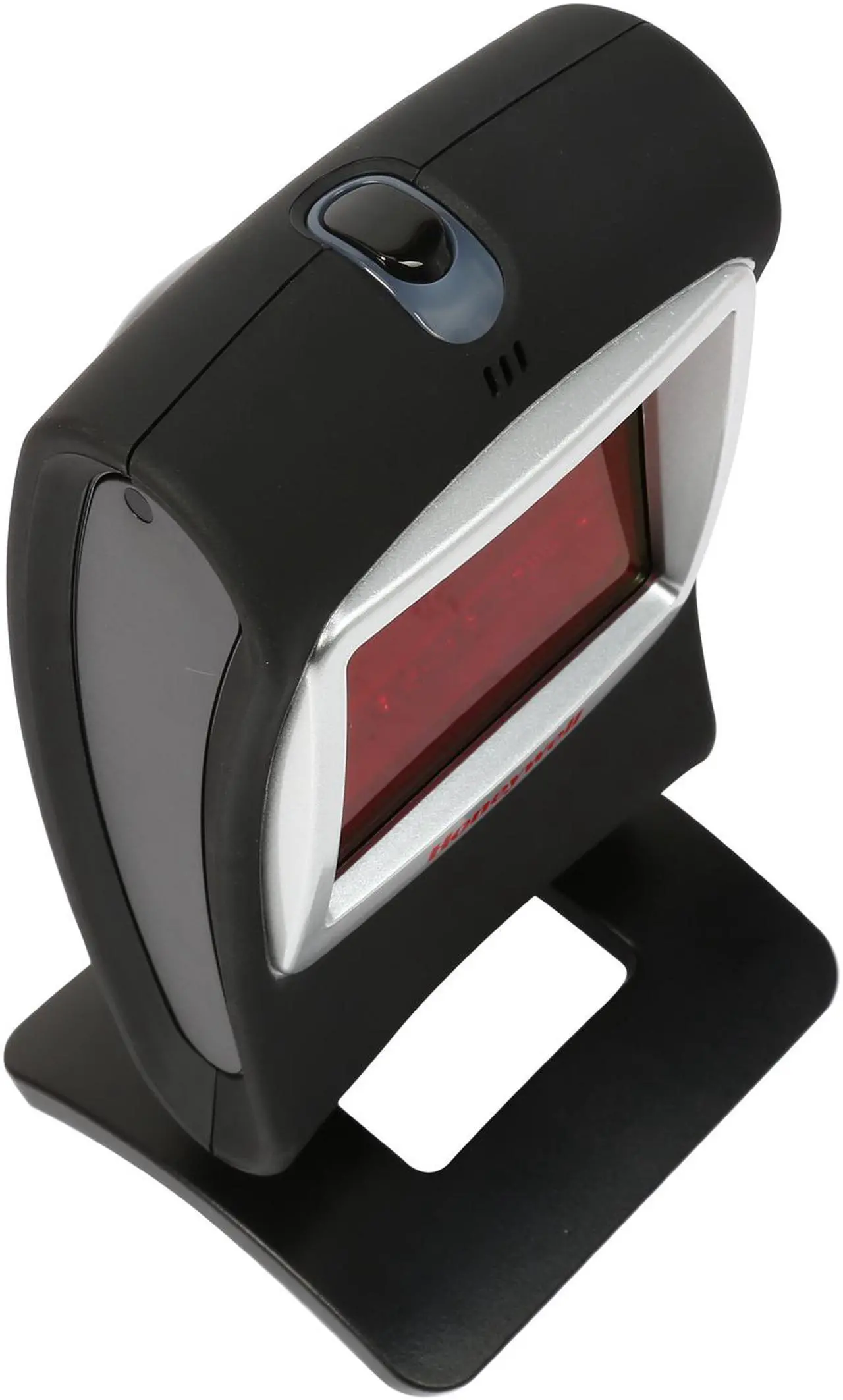

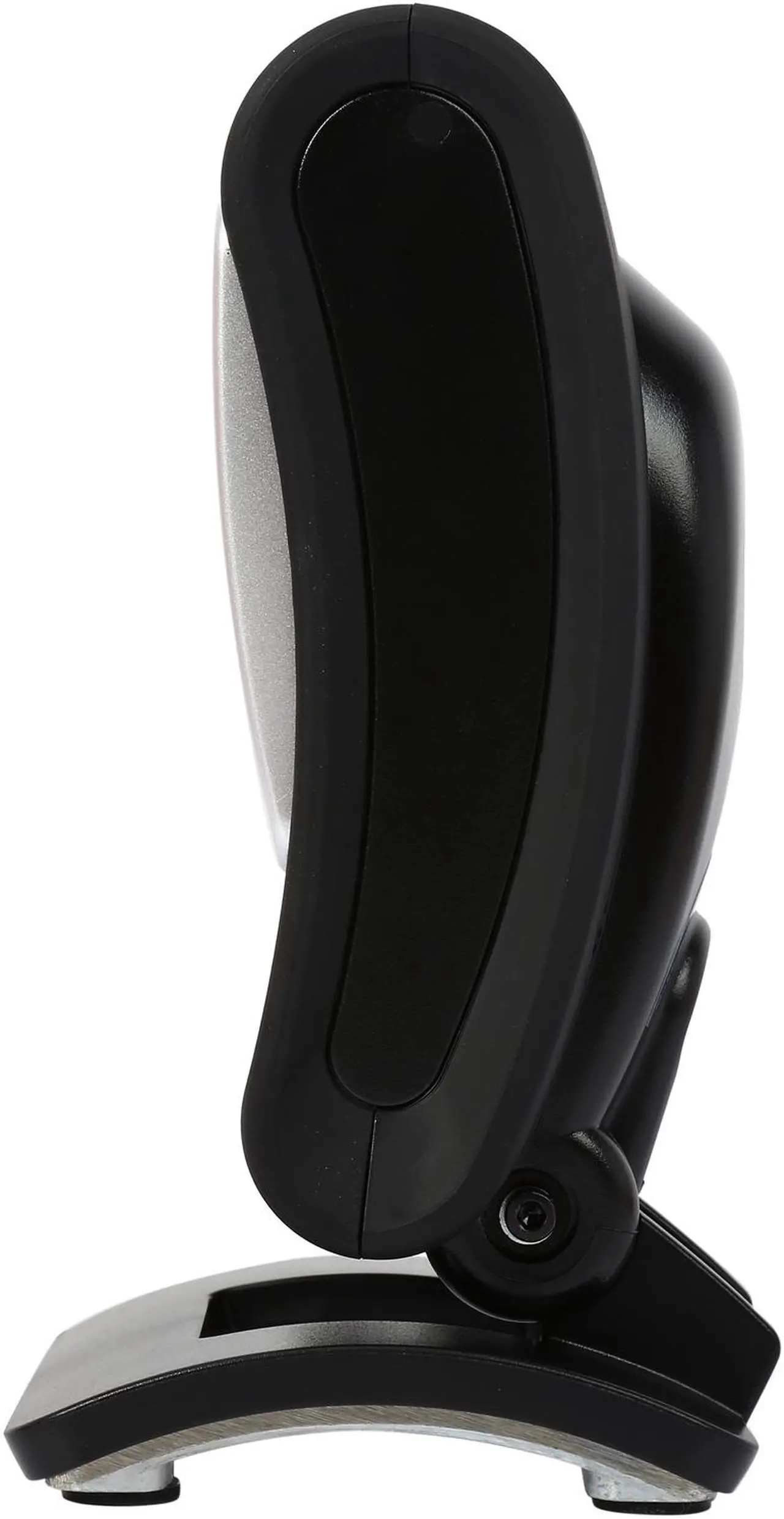

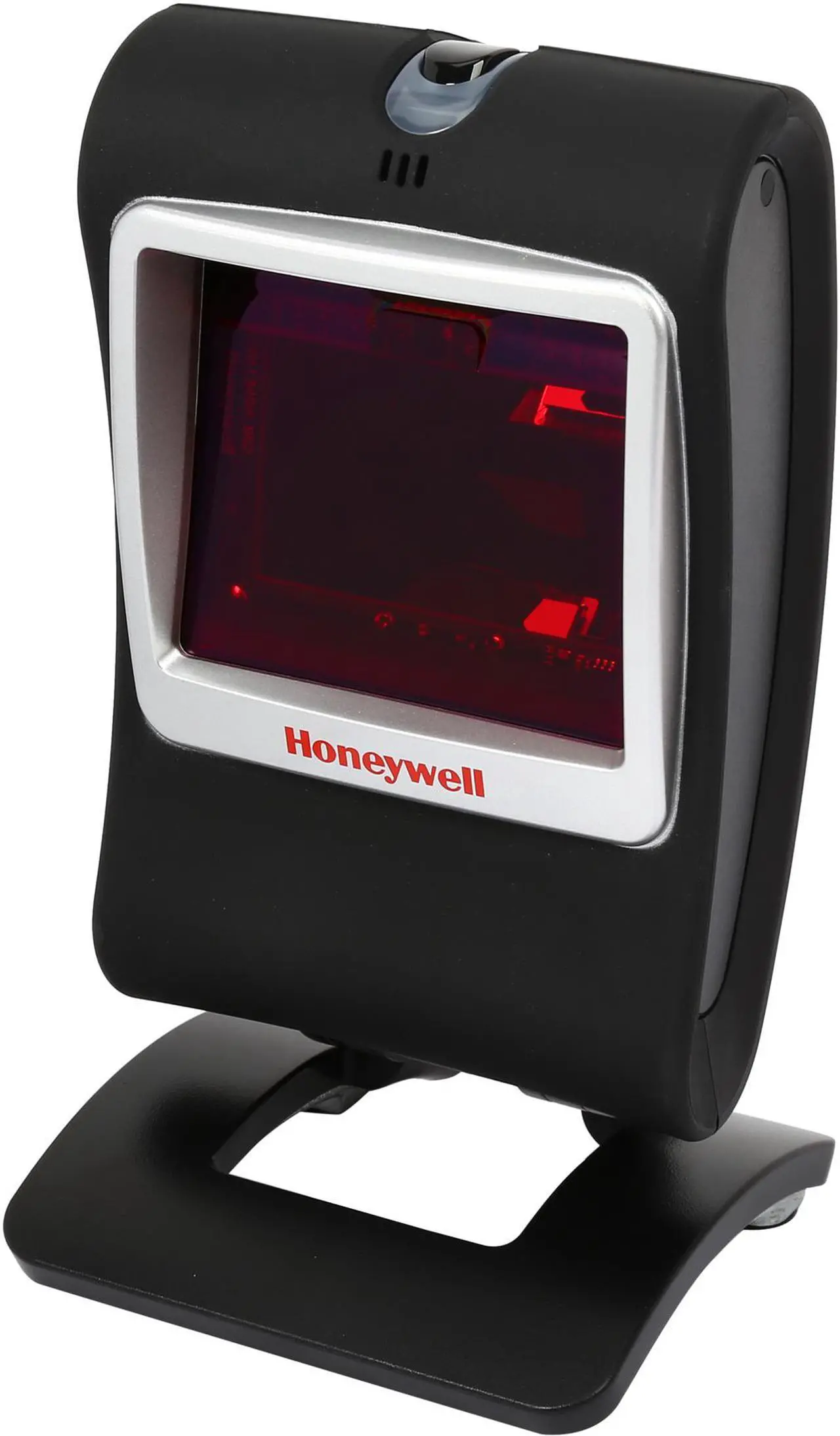

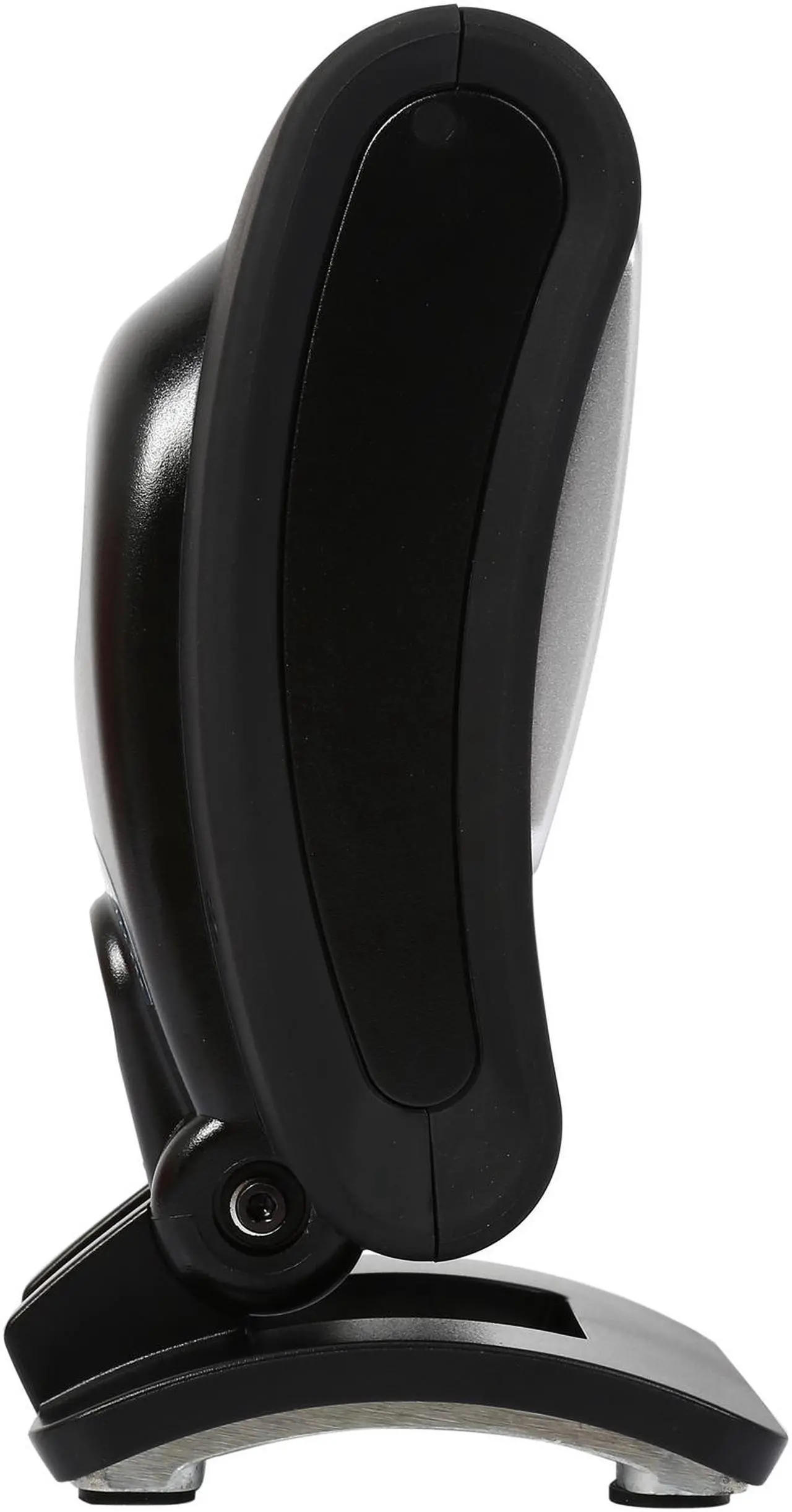

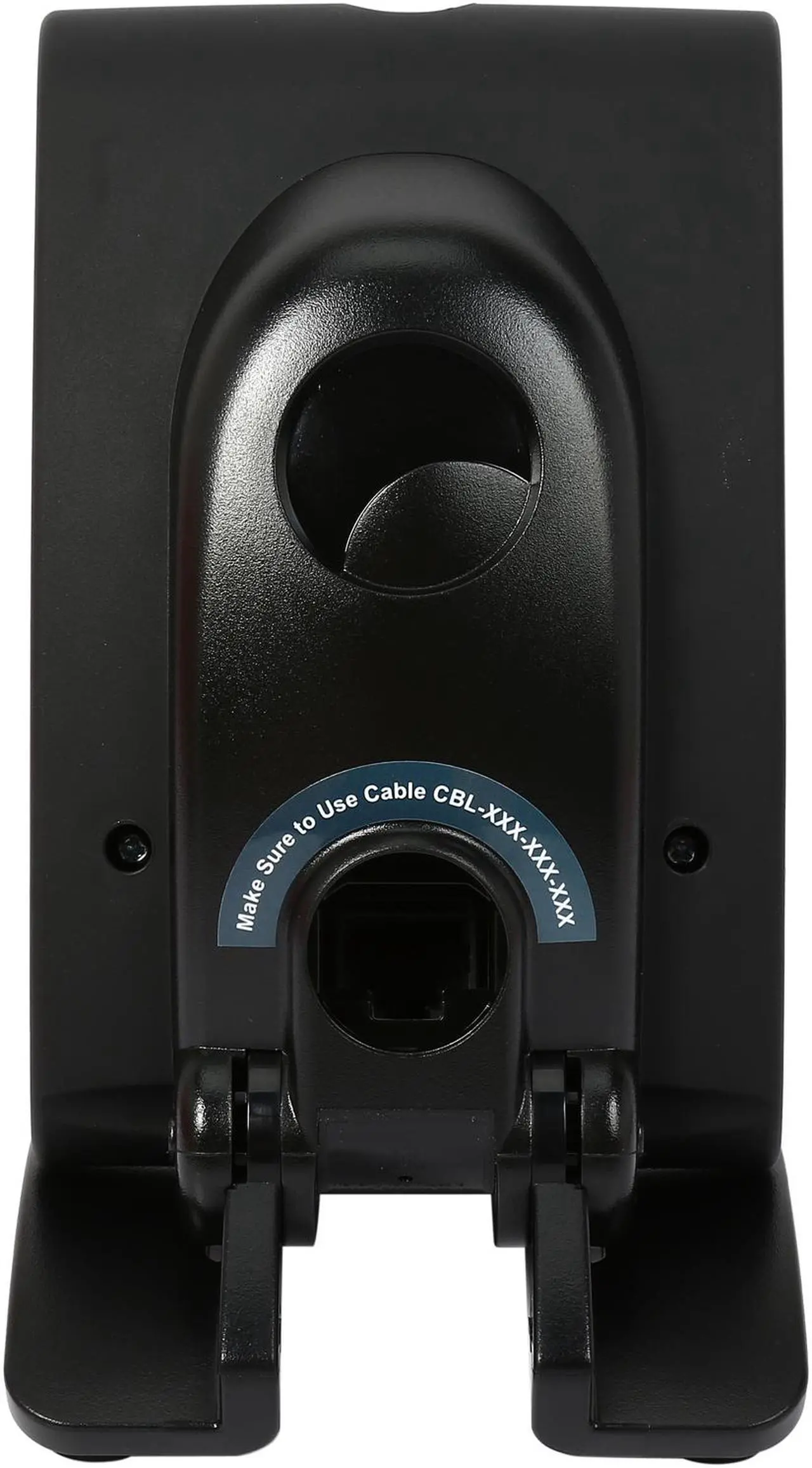

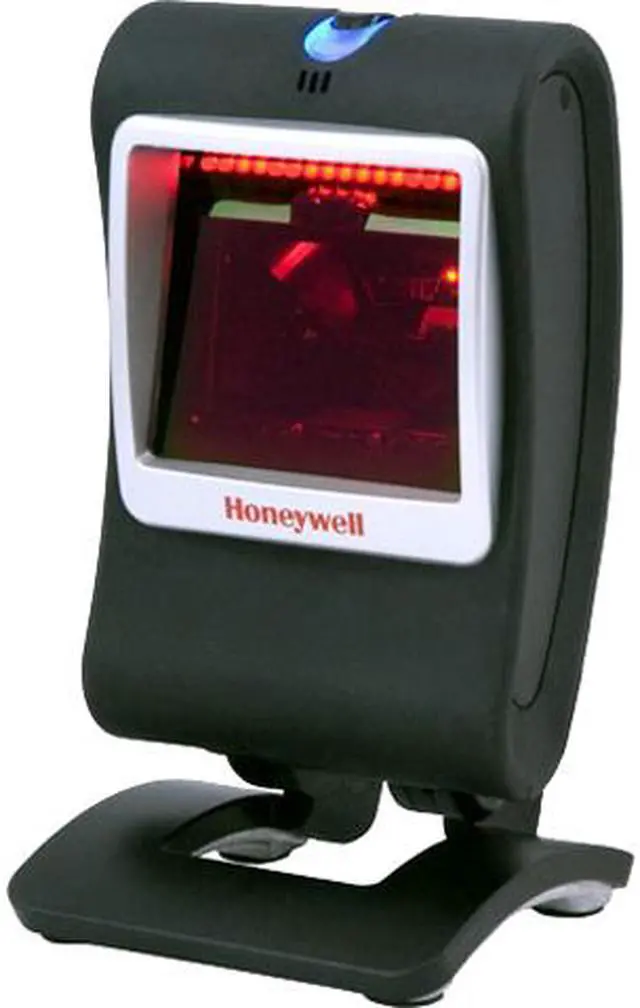

Honeywell Genesis MS7580 (MK7580-30B38-02-A) Bar Code Reader

Ships from United States. Most customers receive within 7-9 days.

Sold and Shipped by CCTV_IPC_NVR a-seller

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • 1D, PDF and 2D

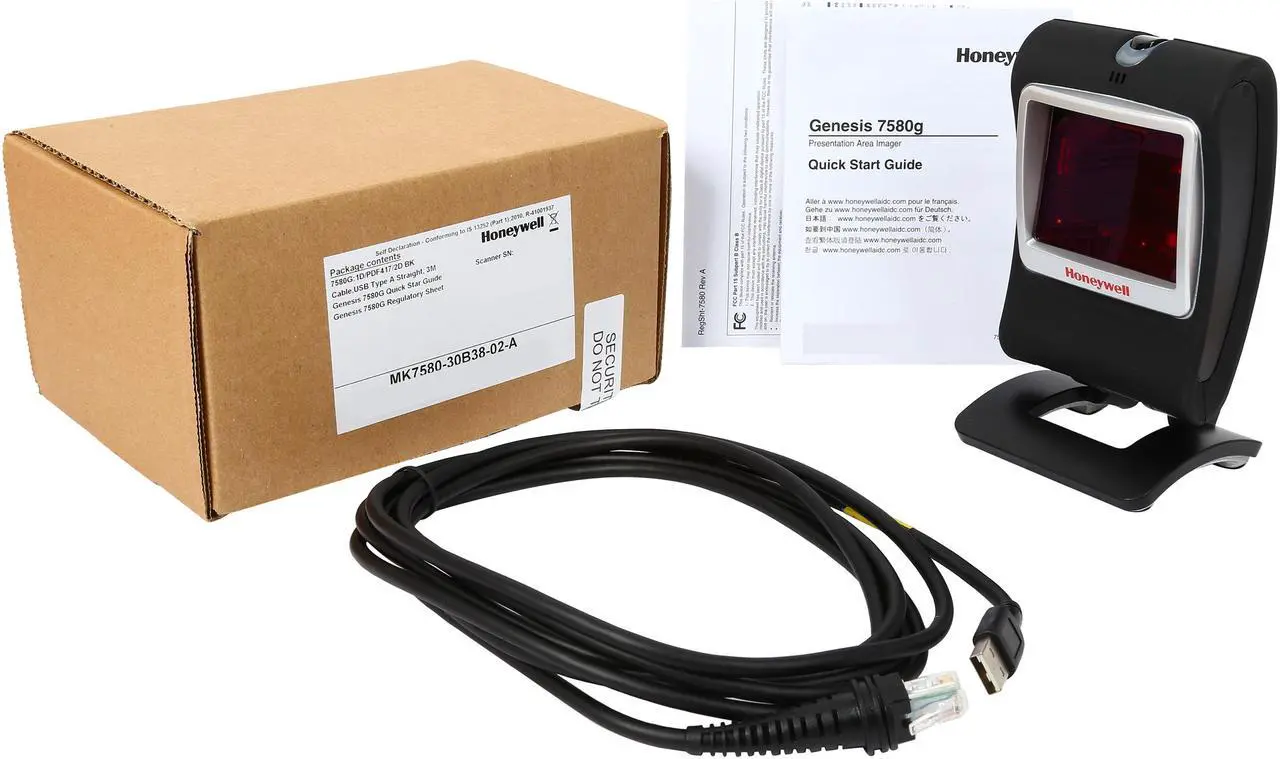

  • USB kit with Straight Cable and US Power Supply
  • Horizontal: 46 degrees; Vertical: 28 degrees

  • Overview
  • Specs
  • Warranty & Returns
  • Reviews
Genesis 7580g

Area-Imaging Scanner

Genesis 7580g

Honeywell's GenesisTM 7580g, the world's first presentation areaimaging scanner engineered to decode all standard 1D, PDF and 2D codes, provides enhanced productivity and revolutionary imaging technology in an elegant, yet durable design.

Powered by Adaptus® Imaging Technology 6.0, the Genesis 7580g is redefining industry standards for imaging solutions. Breakthrough performance and a versatile form factor make this product suitable for environments ranging from manufacturing to healthcare to retail POS.

Aggressive reading of bar codes on highly reflective surfaces, such as mobile phone screens, eliminates the need to purchase additional specialty hardware.

Patented CodeGate® technology along with an activation button support menu-scanning and other targeted-scanning applications.

Automatic cable detection and configuration simplifies migration to a new interface by eliminating the need to scan programming bar codes.

Three additional patented technologies augment the Genesis 7580g's unmatched feature set:

Shielded LEDs minimize the intense flashing common among other area imagers.

CodeSelectTM allows the Genesis 7580g to capture up to 15 bar codes in a single flash and output data in any predetermined order. TotalFreedom® expands scanner functionality by allowing decoding and formatting plug-ins to be loaded directly onto the Genesis 7580g, enabling enterprises to rapidly support proprietary or newly-developed symbologies.

Features
  • Mobile Phone Reading: Excels at scanning coupons and mobile tickets directly from the screen of a mobile device
  • Stylish Design: Instantly dresses up front end operation
  • TotalFreedom 2.0: Second-generation plug-in development platform enables the loading and linking of multiple applications directly onto the scanner, eliminating the need for host system modifications while offering expanded decoding and data formatting functionality
  • Image Capture: Improves document management by capturing and storing electronic images, including coupons, personal checks, signatures and damaged packages
  • Flexible Licensing Solution: Allows current scanning needs to be met while protecting the option to upgrade scanning capabilities in the future by simply purchasing a license for the appropriate feature
  • Remote MasterMind™ Scanner Management Software: Provides a quick and convenient solution for IT administrators seeking to manage all scanners within their network from a single remote location
  • Optional EAS: Increases efficiency by simultaneously deactivating EAS tags and decoding bar codes from up to 7 inches away
Genesis 7580g Technical Specifications
Mechanical
Dimensions (LxWxH) 80 mm x 83 mm x 150 mm (3.2? x 3.3? x 5.9?)
Weight 340 g (12 oz)
Electrical
Input Voltage 5.5 VDC ± 0.25 V
Operating System 2.0 W (400 mA @ 5 V)
Standby Power 0.5 W (100 mA @ 5 V)
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 46xx (RS485)
Auxiliary Ports EAS with interlock (EAS model)
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 0% to 95% relative humidity, non-condensing
Drop Designed to withstand 1.5 m (5´) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 100,000 Lux
Scan Performance
Scan Pattern Area Image (832 x 504 pixel array)
Motion Tolerance 200 cm/s (78 in/s) for 13 mil UPC at optimal focus
Scan Angle Horizontal: 46°; Vertical: 28°
Print Contrast 20% minimum reflectance difference
Pitch, Skew 70°, 75°
Decode Capability Reads standard 1D, PDF, 2D, Postal and OCR symbologies
*Note: Decode capabilities dependent on kit configuration
WPAN Bluetooth® Class II (10 m) v2.0 Enhanced Data Rate (EDR) with on-board antenna. BQB certified

Learn more about the Honeywell MS7580

General

|
Brand
Honeywell
Series
Genesis
Model
MS7580
Part Number
MK7580-30B38-02-A
Form Factor
Presentation
Connectivity
Corded
Scan Engine
2D Area Imager

Connectivity

|
Included Cables
USB Cable Included
Interfaces Supported
USB

Scan Performance

|
Light Source
Visible Red LED 645 nm +/- 7.5 nm
Imager Field of View
N/A
Depth of Scan Field
1.50" - 3.20" @ 5 mil - 1D
1.10" - 4.70" @ 7.50 mil - 1D
0.60" - 5.60" @ 10.40 mil - 1D
0" - 6.00" @ 13 mil - 1D
Pitch
±70 degree
Yaw
±75 degree
Print Contrast Ratio (Minimum)
20% minimum reflectance difference
Decoding Capability
Reads standard 1D, PDF, 2D, Postal and OCR symbologies

Electrical

|
Input Voltage
12 VDC +/- 0.25V
Power Consumption
Operating Power: 2.0 W (167 mA @ 12V)
Standby Power: 1.3 W (109 mA @ 12V)

Mechanical

|
Color
Black
Dimensions
5.90" x 3.30" x 3.20"
Weight
0.75 lb.

Features

|
Features
Electrical:
Auxiliary Ports: EAS with interlock (EAS model)

Environmental:
Humidity: 0% to 95% relative humidity, non-condensing
Environmental Sealing: Sealed to resist airborne particulate contaminants
Light Levels: 100,000 Lux
Drop
Designed to withstand 1.50 m (5.00 ft.) drops

Additional Information

|
Date First Available
October 17, 2019
Warranty, Returns, And Additional Information
  • Warranty
  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
  • Read full details
