Delivers proven reliability, fast drop-in deployment and integration, and advanced connectivity to maximize your uptime
Minimize workforce training and device support needs with intuitive features like a vibrant color touchscreen or intuitive icon user interface
And with the broadest connectivity options in their class – including Wi-Fi and Cisco CCX certifications, plus additional Bluetooth® connectivity – PM series quickly interface with virtually any IPv4 or IPv6 network
PM printers offer outstanding performance in harsh environments thanks to a rugged metal enclosure and the top print speed in their class at 304 mm/s (12 ips)
In-printer apps can directly control other devices such as scanners, scales, keyboard and other peripherals – without the need for an attached computer
WIFI ABGNWIFI, BT, TT203, comes with US power cord
+
+
Overview
Specs
Reviews

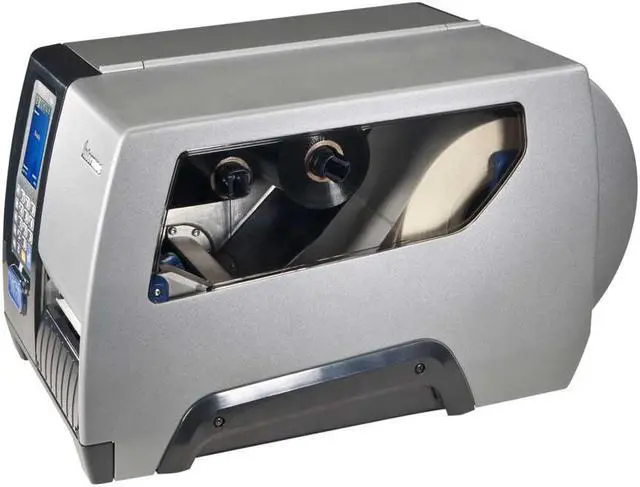

HONEYWELL PM43A14000000201 PM43A FT NA ABGNWIFI TT203 US MPN: PM43A14000000201 PM43A FT NA ABGNWIFI TT203 US
Learn more about the Honeywell PM43
General
Brand
Honeywell
Series
PM series
Model
PM43
Printer
Print Technology
Direct Thermal/Thermal Transfer Printer
Printer Type
Industrial
Print Speed
At 203 / 300 dpi: 100 - 300 mm/s (4 - 12 ips)
At 406 dpi: 100 - 250 mm/s (4 - 10 ips)
Max Resolution(B&W)
At 203 dpi: 8.00 dots/mm At 300 dpi: 11.80 dots/mm At 406 dpi: 16.00 dots/mm
Memory
128MB Flash
Barcode Type
All major 1D and 2D symbologies are supported.
Cutter
Yes
RFID Encoder
Yes
Media Handling
Media Type
Linerless Platen
Media sizes supported
Max. Width: 114.00 mm Min. Width: 19.00 mm Thickness: 3.00 mil to 10.40 mil Roll Max. Diameter: 80.00 mm (3.15"), approx. 450.00 m (1,476.00 ft)
Total Media Capacity
1 rolls
Print Size
Max. Width at 203 dpi: 108.00 mm (4.25") Max. Width at 300 dpi: 106.00 mm (4.17") Max. Width at 406 dpi: 104.00 mm (4.09") Max. Length at 203 dpi: 4.80 m (15.75 ft) Max. Length at 406 dpi: 1.20 m (3.94 ft)
Connections
Interface
Ethernet / Serial / USB
Features
Features
Ready Fast to deploy and easy to integrate, PM series printers fit into virtually any environment.
Reliable Now on their third generation, the PM43, PM43c, and PM23c printers are members of the well-proven family of PM series mid-range industrial printers.
Fast Rapid 304 mm/s (12 ips) print speed and consistent barcode printing quality with pin-point accuracy.
Smart Run apps right inside the printer, control peripherals, and eliminate the need for a connected PC, using either C# for Printers or Fingerprint.
Connected Flexible conectivity options, plus every PM series printer features a multilingual web interface for simple remote device management.
Vibrant Avaiable with a large, color, multilingual, tamper-proof touchscreen or intuitive icon user interface.
Flexible Available with three different enclosure sizes, all with multiple door configurations, to fit your needs plus a wide range of accessories for maximum media compatibility.
RFID Capable Available in RFID-enabled configurations capable of simultaneously encoding and printing frequency-agile RFID tags.
Dimensions & Weight
Dimensions
H x W x D: 11.60" x 11.20" x 19.00"
Weight
34.88 lbs.
Additional Information
Date First Available
April 13, 2023
