Across many industries, 2D bar coding is becoming the new standard. Not only is it possible to hold much more data in a 2D code, but government regulations and supplier mandates are requiring their adoption. Enterprises are also looking to leverage emerging trends that require area-imaging technology—today or in the near future—without the need to purchase additional scanning hardware, or settle for reduced scanning performance.

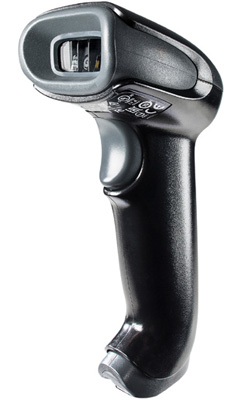

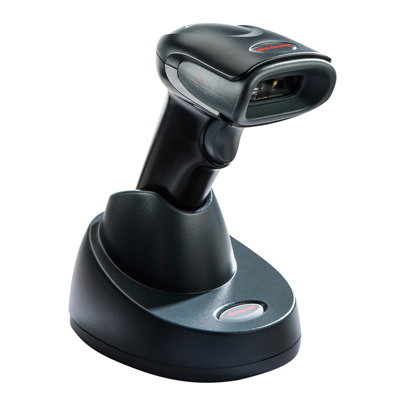

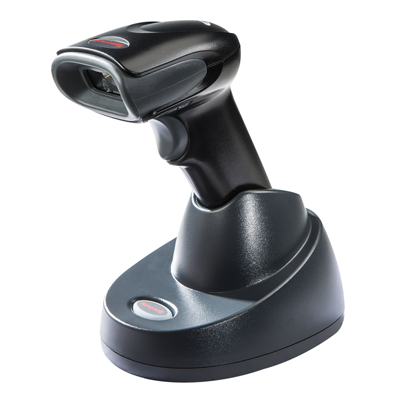

The Voyager 1452g allows enterprises to embrace area-imaging at their own pace, and in the most cost-effective manner. Built on the platform of Honeywell’s world-renowned Voyager series of handheld scanners, the Voyager 1452g delivers omnidirectional reading of linear bar codes, plus the ability to affordably upgrade the device to enable 2D bar code scanning—either at the time of purchase, or as data capture needs evolve.
Incorporating a Bluetooth® Class 2 radio, the Voyager 1452g has a wireless range of up to 10 meters (33 feet) from the base, enabling maximum operator freedom while eliminating the hassle and trip-hazard of a tethered cable. For added convenience, an included paging system helps locate misplaced scanners with visual and auditory signals.
The Voyager 1452g offers an exceptional value for enterprises that require the versatility of area-imaging technology today or may need it in the future. Produced by a company with decades of experience in engineering quality data capture solutions, Honeywell’s Voyager 1452g wireless area-imaging scanner is a smart—and scalable—investment.
| Wireless | ||
|---|---|---|
| Radio/Range | 2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1 Class 2: 10m (33’) line of sight | |
| Data Rate (Transmission Rate) |
Up to 1 Mbps | |
| Battery | 2,400 mAh lithium-ion battery | |
| Number of Scans | Up to 40,000 scans per charge | |
| Expected Hours of Operation |
14 hours | |
| Expected Charge Time | 4.5 hours | |
| Mechanical/Electrical | Scanner (1452g) | Charger/Communication Base (CCB01-010BT-V7N) |
| Dimensions (LxWxH) | 62 mm x 173 mm x 82 mm (2.5" x 6.8" x 3.2") | 132 mm x 102 mm x 81mm (5.2” x 4.0” x 3.2”) |
| Weight | 210 g (7.4 oz) | 179 g (6.3 oz) |
| Operating Power (Charging) |
N/A | 5 W (1A @ 5V) |
| Non-Charging Power | N/A | 0.5 W (0.1A @ 5 V) |
| Host System Interfaces | N/A | USB, Keyboard Wedge, RS232 TTL, IBM 46xx (RS485) |
| Environmental | Scanner (1452g) | Charger/Communication Base (CCB01-010BT-V7N) |
| Operating Temperature | Charging: 5°C to 40°C (41°F to 104°F) Non-Charging: 0°C to 50°C (23°F to 122°F) |
Charging: 5°C to 40°C (41°F to 104°F) Non-Charging: 0°C to 50°C (32°F to 122°F) |
| Storage Temperature with Battery |
For storage up to 90 days: -20°C to 35°C (-4°F to 95°F) For storage up to 1 year: -20°C to 20°C (-4°F to 68°F) |
-40°C to 70°C (-40°F to 158°F) |
| Humidity | 0 to 95% relative humidity, non-condensing | 0 to 95% relative humidity, non-condensing |
| Drop | Designed to withstand 30 1.5 m (5’) drops to concrete | Designed to withstand 50 1.0 m (3.3’) drops to concrete |
| Environmental Sealing | IP42 | IP41 |
| Light Levels | 0 to 100,000 lux (9,290 foot-candles) | N/A |
| Scan Performance | ||
| Scan Pattern | Area Image (640 x 480 pixel array) | |
| Motion Tolerance | Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus | |
| Scan Angle | Horizontal 37.8°; Vertical 28.9° | |
| Symbol Contrast | 35% minimum reflectance difference | |
| Pitch, Skew | ±60°, ±70° | |
| Decode Capability | 1452g1D: All standard 1D symbologies 1452g2D: All standard 1D, PDF417, and 2D symbologies |
|
| Warranty | 3 year factory warranty | |
