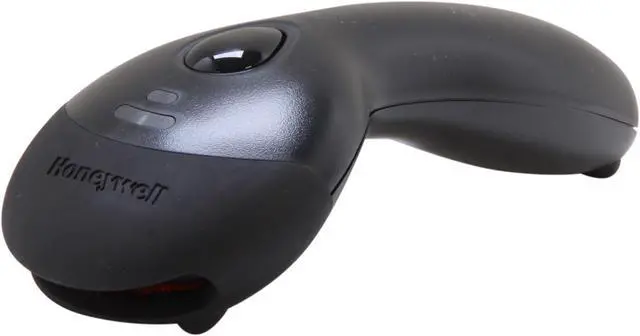

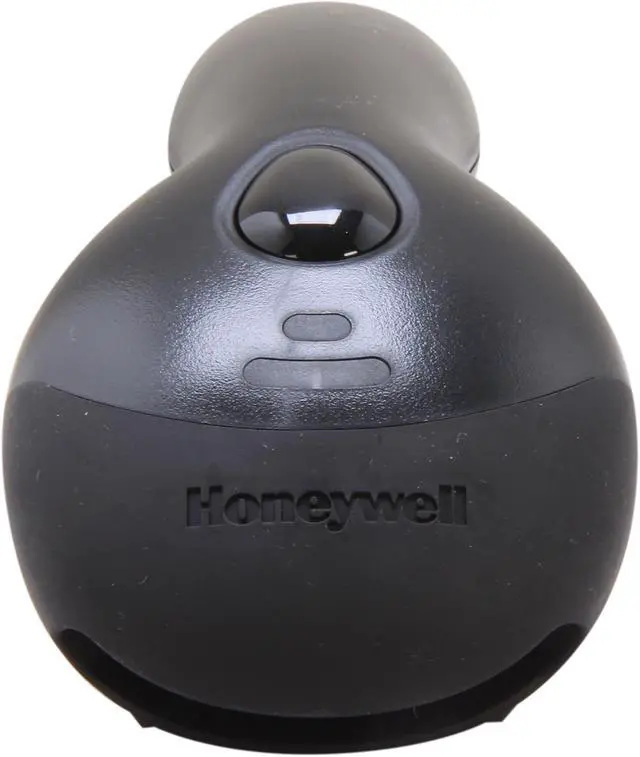

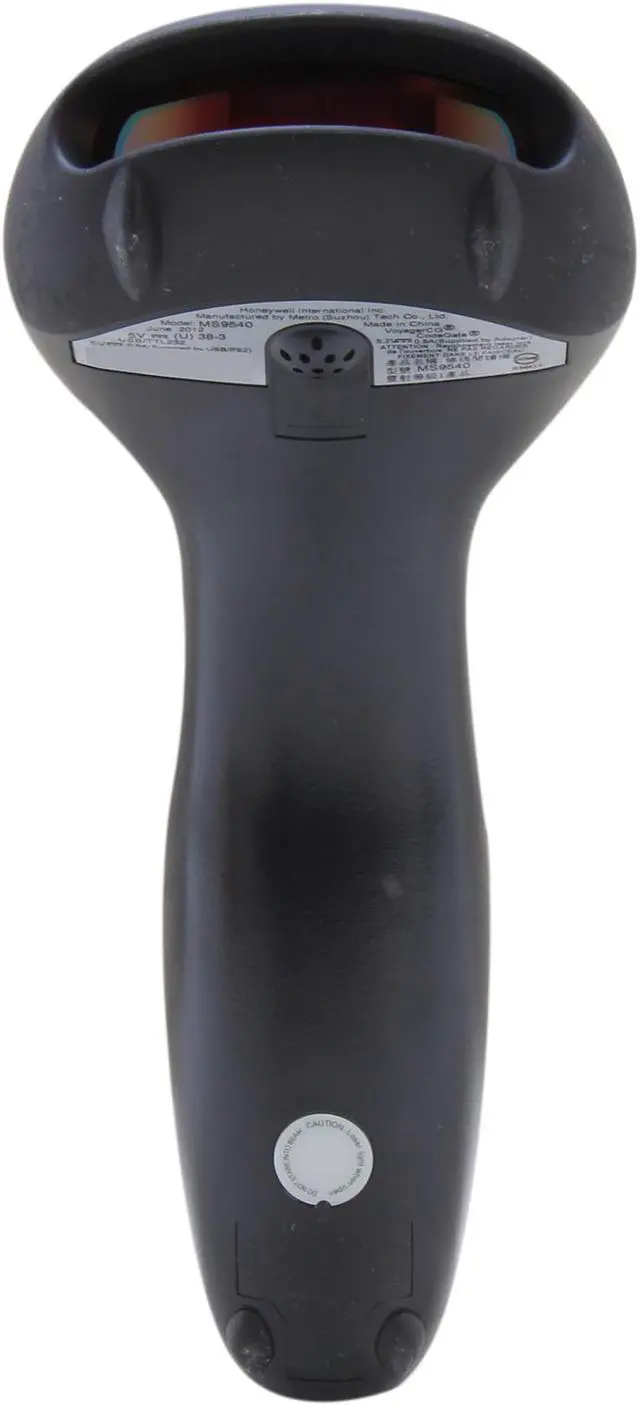

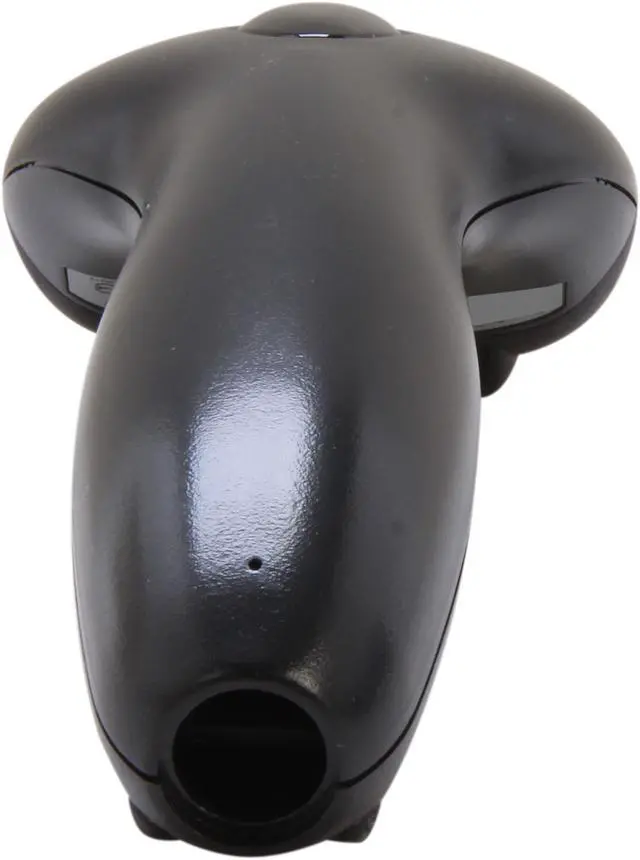

Honeywell MS9540-38-3 VoyagerCG MS9540 Bar Code Reader - Scanner Only (Black), Low Speed USB Special Order Only, non-returnable
- 1D Laser Scanner
- Scanner Only, Cable Sold Separately
- Automatic trigger for hand-held or fixed presentation
- Low Speed USB
- CodeGate data transmission
+
+
Overview
Specs
Reviews (1)
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
Voyager® 95X0 Series of Single-Line Laser Scanners
Single-Line Laser Scanners
Honeywell's Voyager® 9500 series of hand-held, single-line laser scanners offer aggressive scanning of all standard 1D bar codes. The Voyager series of hand-held, single-line bar code scanners have united form with function in becoming the industry benchmark for value and performance.
These sleek scanners feature patented automatic infrared activation and decode all standard 1D bar codes, including GS1 DataBarTM (formerly known as RSS codes).
VoyagerCG 9540 also includes patented CodeGate® technology which allows the user to easily target the desired bar code and complete data transmission with the press of a single button. For presentation scanning, Honeywell offers a stand with automatic in-stand detection technology.
Features
- Automatic Trigger: Use scanner as either a hand-held device or a fixed presentation scanner when mounted in the stand
- 650-Nanometer Laser: High-visibility laser allows user to place laser line on selected bar code
- CodeGate Technology (VoyagerCG 9540 Only): Zero in on desired code and complete data transmission with the push of a single button - ideal for menu scanning applications
- Flash ROM: Future proof POS system with free firmware updates via MetroSet®2 software and standard PC
- Parsing (Data Editing): Format bar code data to meet host system's specific requirements
Specifications
| Mechanical | |
| Dimensions (L x W x H) | 7.8 x 3.1 x 2.2 inches (198 x 78 x 56mm) |
| Weight | 5.3oz (149g) |
| Electrical | |
| Input Voltage | 5VDC + 0.25V |
| Operating Power | 825mW (165mA @ 5V) |
| Standby Power | 600mW (120mA @ 5V) |
| Host System Interfaces | USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Emulation, Light Pen Wand Emulation |
| Environmental | |
| Operating Temperature | 32 - 104°F (0 - 40°C) |
| Storage Temperature | -40 - 140°F (-40 - 60°C) |
| Humidity | 5% to 95% relative humidity, non-condensing |
| Drop | Designed to withstand 5-foot (1.5m) drops |
| Environmental Sealing | Sealed to resist airborne particulate contaminants |
| Light Levels | 4842 Lux |
| Scan Performance | |
| Scan Pattern | Single scan line |
| Scan Speed (laser only) | 72 scan lines per second |
| Scan Angle | Horizontal: 50 degrees |
| Print Contrast | 35% minimum reflectance difference |
| Pitch, Skew | 68 degrees, 52 degrees |
| Decode Capabilities | Reads standard 1D and GS1 DataBar symbologies |
| Warranty | 5-Year factory warranty |
