Cbt-500 Audio Cable Tester Continuity Test Battery Check

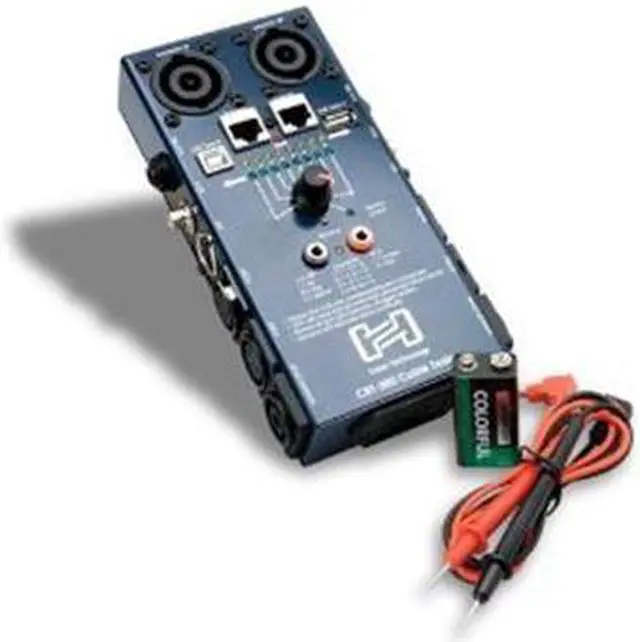

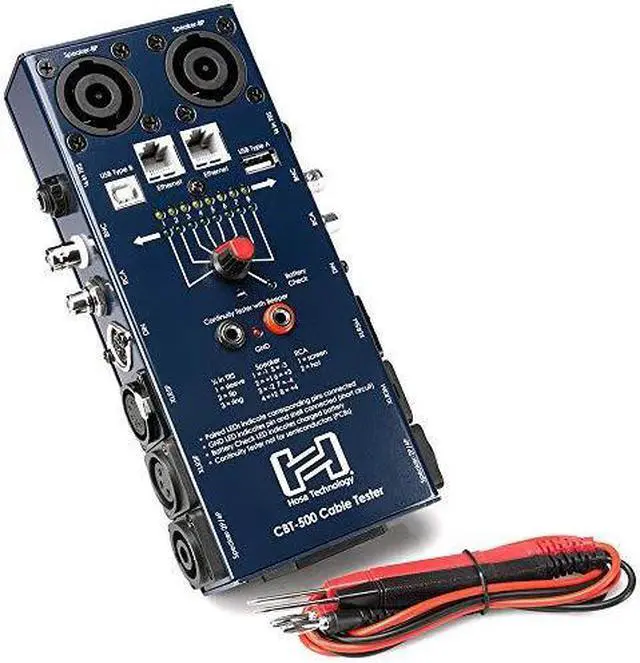

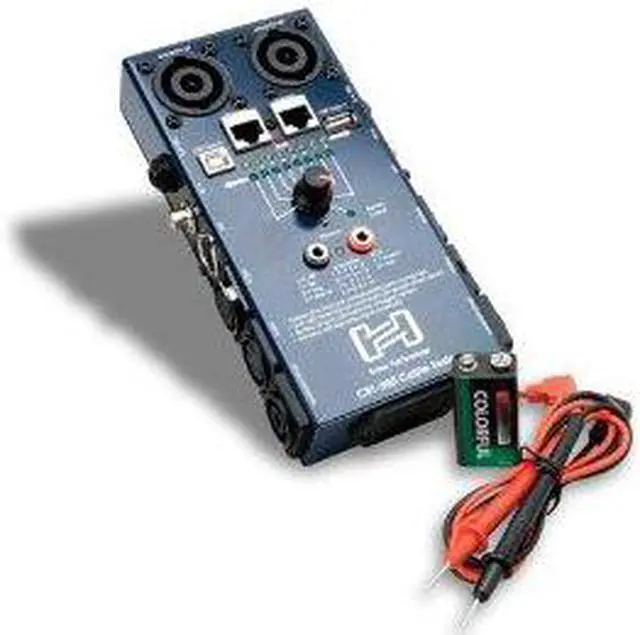

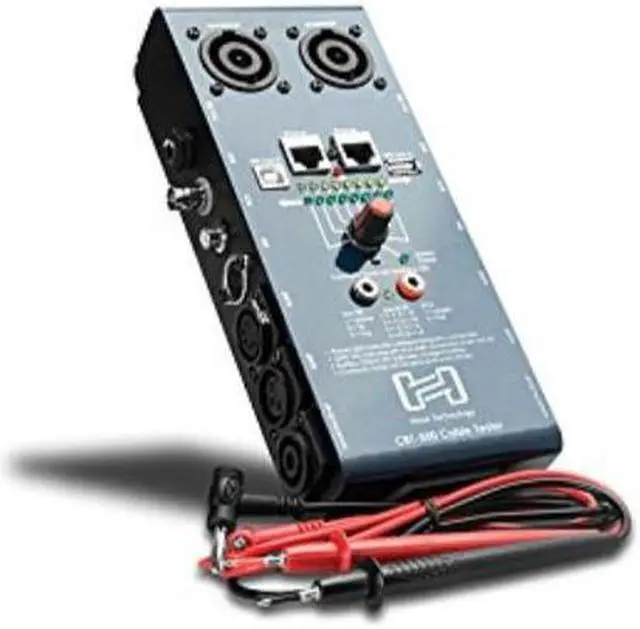

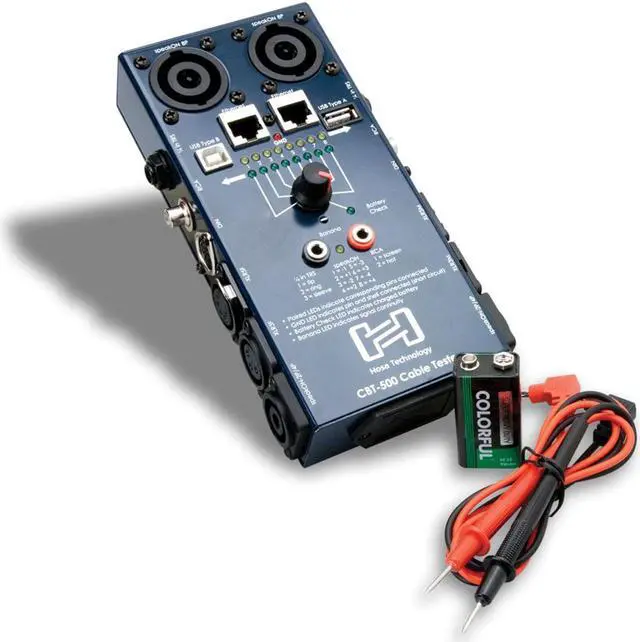

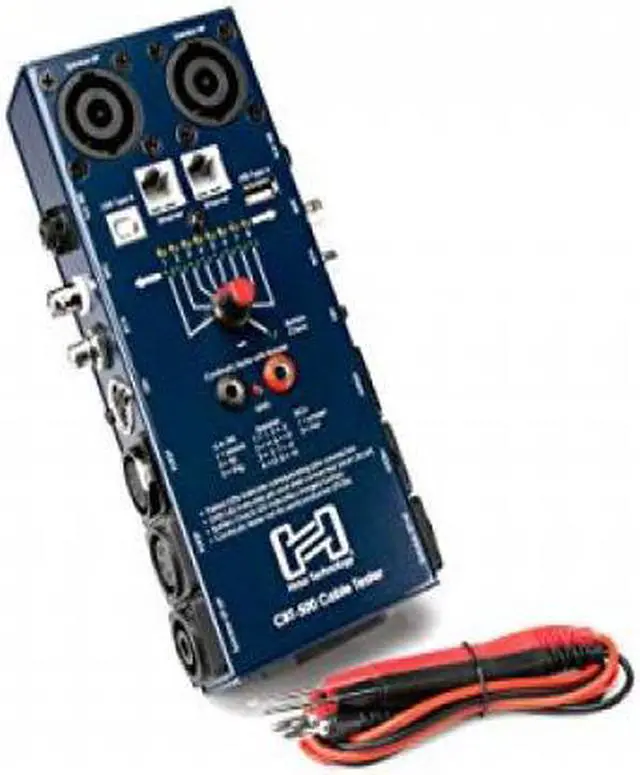

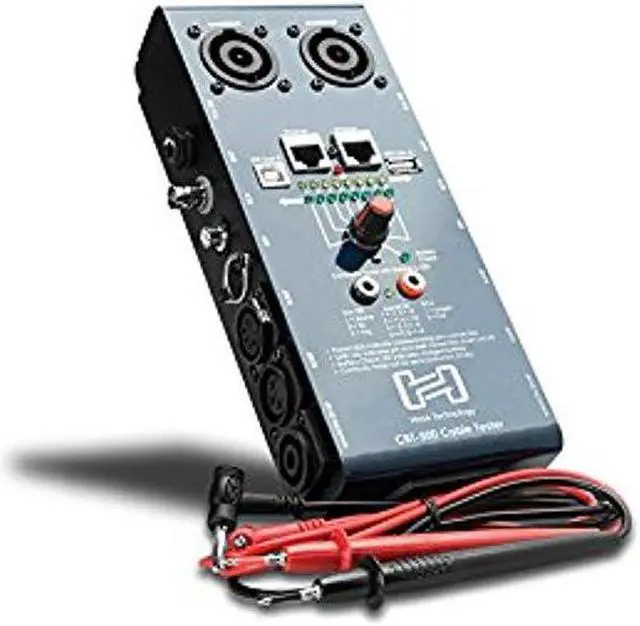

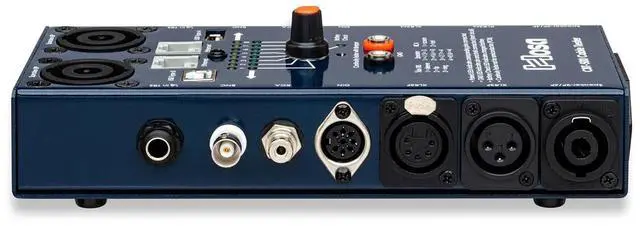

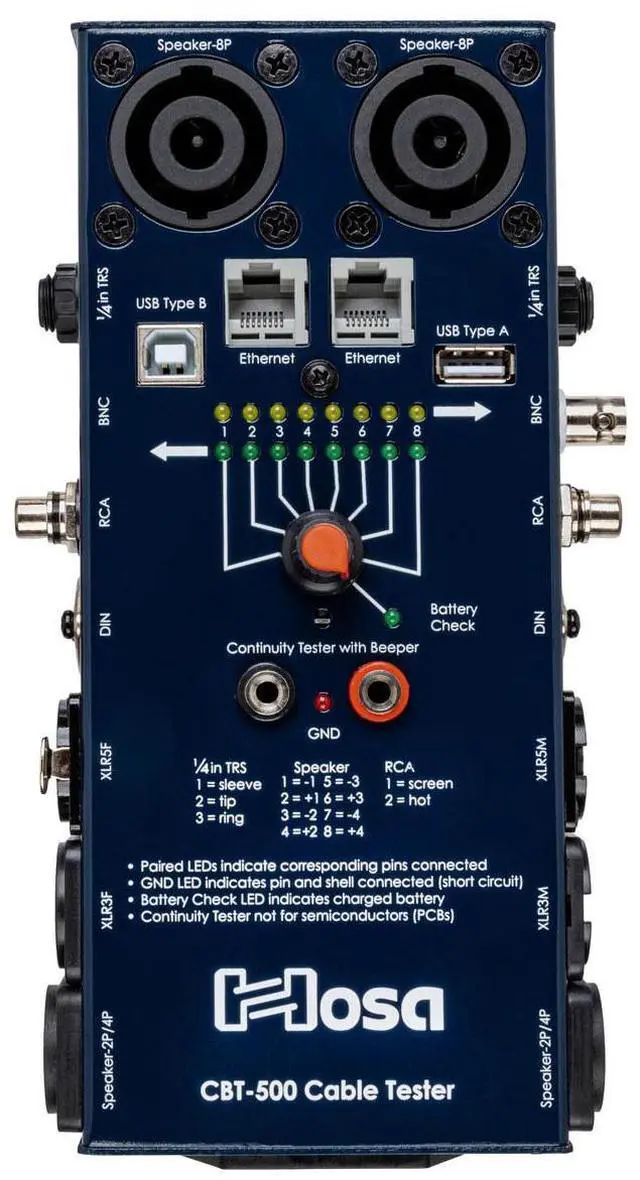

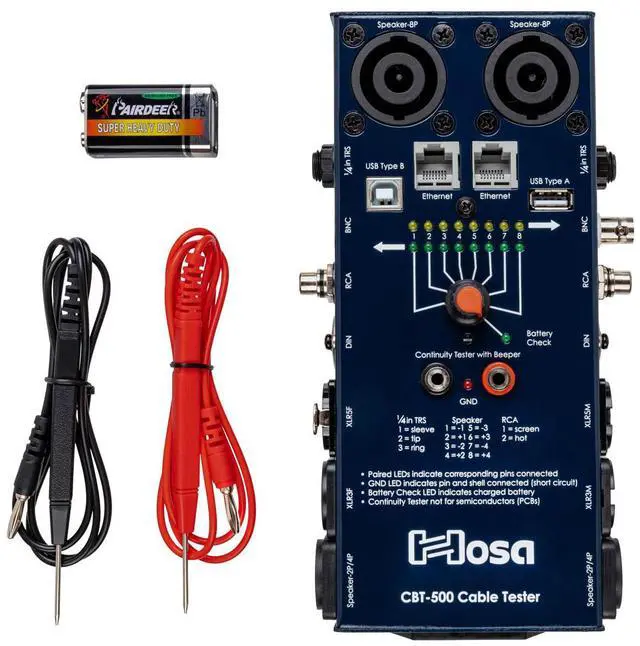

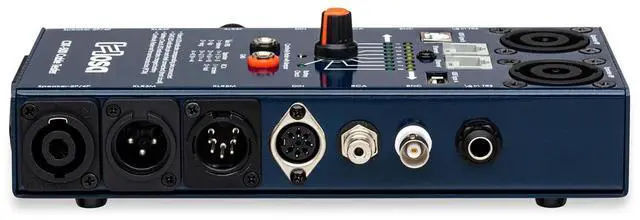

The CBT-500 Cable Tester by Hosa Technology diagnoses signal failure in cables terminated with any combination of XLR, Phone, Phono, and speakON® connectors, as well as DIN, Ethernet, and USB Type A to Type B cables. It is also equipped with removable leads to verify continuity of additional connectors and jacks. Operation requires one 9-volt battery (included).FunctionsCable Test:• Turn knob to position 1• Plug one connector into corresponding jack on left side of tester• Plug other connector into corresponding jack on right side of tester• Turn knob to each position to check wiring of each contactContinuity Test:• Apply the tip of each lead to the corresponding contacts• If continuity exists, the center LED will illuminate and tester will beepBattery Check:• Turn knob to Battery Check• LED will illuminate if the battery is charged
