HP AF600A 2x16 Server Console Switch with Virtual Media

Be the first to review this product...

AF600A

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

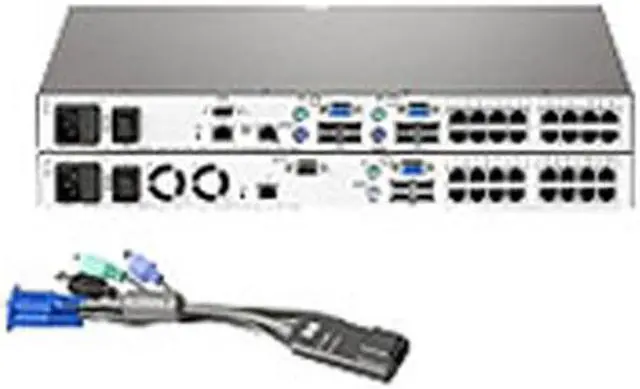

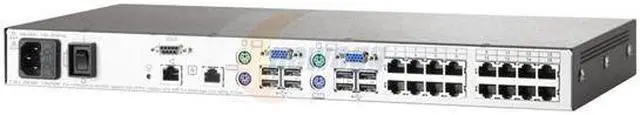

The HP Server Console AF600A KVM Switch with Virtual Media provides local access to a variety of devices inside datacenter using HP's proven Cat5 technology and intelligent Interface Adapters to improve cabling and airflow, and allows for cascading up to three levels. Up to 2 local keyboards, mice, and monitors can be connected to the switch allowing two administrators to work on attached devices simultaneously. The switchable USB pass-through allows connection of USB devices for performing software upgrades or installations when used with Virtual Media Interface Adapters.

Hp Server Console Switch With Virtual Media 2X16 Kvm Switch 16 Ports Ps/2 Cascadable

Model
Brand	HP
Model	AF600A

Features
Features	On-Screen Display (OSD) - Displays system-related information on the console monitor, such as selected server name, status, power-up test data, configuration menus and virtual media. Programmable Scanning - An evaluation of system performance can be made by sequentially scanning any or all of the computers in the system. Programmable scanning allows you to determine which computers to include as well as the duration of the connection. Configuration NVRAM - NVRAM (non-volatile RAM) makes it easy to set configuration information using commands entered from the keyboard. The NVRAM stores the resulting configuration until a user decision is made to change the information, even if the unit loses power. Password Protection - For protection against unauthorized users, the switch box provides a password option for security purposes. Switch Firmware Update - The application code of the switch can be quickly and easily updated via FLASH ROM. Updates can be accomplished over the LAN eliminating the need to carry a notebook into the data center to perform firmware upgrades. Multiple Space Saving 0U Installation Methods Side Mount - Rails are provided for mounting the unit to the side of rack cabinets with side mounting capability. Rear Rack Mount - HP Console Switches may be mounted behind a HP 1U Rackmount Keyboard, or the TFT7600 rack mounted keyboard and monitor with slide rails provided with the switch. PS2 Virtual Media Interface Adapter support servers with PS2 mouse and keyboard connection and a USB port for virtual media (recommended for ProLiant servers). USB Virtual Media Interface Adapter supports servers without PS2 mouse and keyboard connections such as Integrity servers running Microsoft Windows. USB 2.0 protocol and speed supported on both Virtual Media Interface Adapters. Support for a variety of server connections with Interface Adapters where virtual media is not needed. PS/2 USB mouse and keyboard VT100 serial console support

Additional Information
First Listed on Newegg	March 15, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: Non-refundable

Return for replacement within: 30 days

This item is covered by Newegg.com's Replacement Only Return Policy.
Read full return policy for details.
