HP ProLiant DL560 Gen9 E5-4620v3 2P 64 GB-R P440ar/2 GB 8SFF 2x1200W RPS Base Server(741065-B21)

4-Socket Performance in a Dense 2U Form Factor

• Providing 4S computing in a dense 2U form factor, the HP ProLiant DL560 Gen9 Server supports up to four Intel® Xeon® E5-4600v3 processors with up to 39% 1 more processor performance and 50% 1 more cores than the previous generation.
• The HP Flexible Smart Array and HP Smart SAS HBA Controllers, with support of up to 4 GB FBWC, allow you the flexibility to choose the optimal 12 Gb/s controller most suited to your environment. Along with the embedded SATA HP Dynamic Smart Array B140i Controller for boot, data and media needs.
• HP DDR4 SmartMemory improves workload performance and power efficiency while preventing data loss and downtime with enhanced error handling. Support for up to 3 TB DDR4 max capacity (48 DIMM slots) with speeds up to 2133 MHz with up to 14% 2 performance gain.

New Generation Expandability and Reliability for Multi-workloads

• The HP ProLiant DL580 Gen9 Server supports up to seven PCIe 3.0 expansion slots, to support a GPU and networking cards offering increased IO bandwidth and expandability.
• Achieve greater capacity with a redesigned chassis including up to 24 Small Form Factor(SFF) HP SmartDrives and NVMe options; along with an optional HP Universal Media Bay delivering optimal performance, capacity, and reliability to meet various customer workload requirements at the right economics.
• You have a choice of embedded 4x1GbE, HP FlexibleLOM, PCIe standup 1GbE or 10GbE adapters which provides flexibility of networking bandwidth and fabric so you can adapt and grow to changing business needs.
• Support for up 2x 1200W or 1500W HP Common Slot Power Supplies for maximum redundancy and reducing unnecessary downtime.

Optimal Efficiencies for Scale-up Environments

• The HP ProLiant DL560 Gen9 Server supports improved ambient temperature ASHRAE A3 and A4 3 standards helping to reduce your cooling expenses.
• High efficiency HP Common Slot Power Supplies provide up to 94% efficiency (Platinum Plus), and support for HP Power Discovery Services.
• Customer-inspired and easily accessible features include: new chassis design for ease of serviceability, hot pluggable fans and drives, optional SID for health and monitoring of components and Quick Reference code for quick access to product information.

Agile Infrastructure Management for Accelerating IT Service Delivery

• With the HP ProLiant DL560 Gen9 Server, HP OneView provides infrastructure management for automation simplicity across servers, storage and networking.
• Online personalized dashboard for converged infrastructure health monitoring and support management with HP Insight Online.
• Configure in Unified Extensible Firmware Interface (UEFI) boot mode, provision local and remote with Intelligent Provisioning and Scripting Toolkits.
• Embedded management to deploy, monitor and support your server remotely, out of band with HP iLO and optimize firmware and driver updates and reduce downtime with HP Smart Update, consisting of HP SUM (Smart Update Manager) and SPP (Service Pack for ProLiant).

HP ProLiant DL560 Generation9 (Gen9)

• Business-critical workloads and virtualized environments require compact and powerful computing capacity. The HP ProLiant DL560 Gen9 Server is designed for exactly that. To deliver performance, scalability, and expandability in a dense 2U footprint. Deploy the ideal high-density four-socket server for multi-workload compute with the latest technology. It’s designed to help you achieve greater performance at the right price.

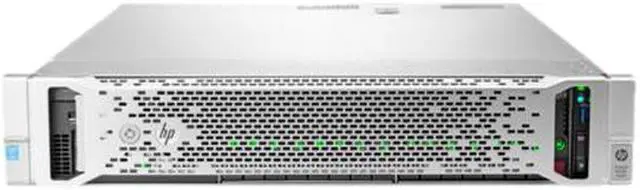

Front view

1. Quick removal access panel
2. Bay 1 – Optional 8 SFF Drive Bay or Universal Media Bay
3. Optional Optical drive. Requires Universal Media Bay
4. Optional 2 SFF HDDs. Requires Universal Media bay
5. Bay 2 – Optional 8 SFF Drive Bay
6. Bay 3 – fixed 8 SFF Drive Bay
7. Power On/Standby button and system power LED button
8. Health Status LED
9. UID button
10. NIC Status LED
11. USB 3.0 connector
12. Systems Insight Display (SID) (optional)
13. Serial label pull tag

Rear view

1. PCIe Slots (Slots 1-3 top to bottom)
2. PCIe Slots (Slots 4-6 top to bottom)
3. PCIe Slot (Slot 7)
4. HP Common Slot Power Supply bay 1
5. Power supply power LED
6. Power supply power connection
7. HP Common Slot Power Supply bay 2
8. Power supply power LED
9. Power supply power connection
10. Serial connector
11. Dedicated iLO connector
12. VGA (video) connector
13. Unit ID LED
14. USB 2.0 connectors (2)
15. USB 3.0 connectors (3)
16. HP FlexibleLOM ports
