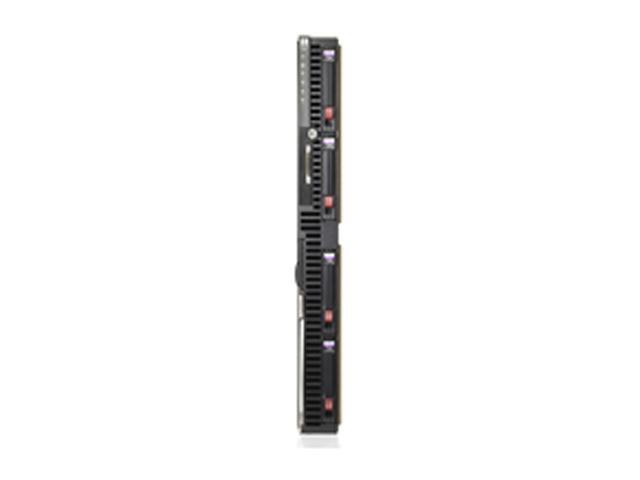

Main image of HP ProLiant BL480c Blade Xeon 5110 1.60 GHz 2 GB DDR2 Servers 1 x Dual-core Intel Xeon 5110 (1.60 GHz, 1066 MHz FSB) 2 GB (2 x 1 GB) PC2-5300 Fully Buffered DIMMs running at 667 MHz 416666-B21

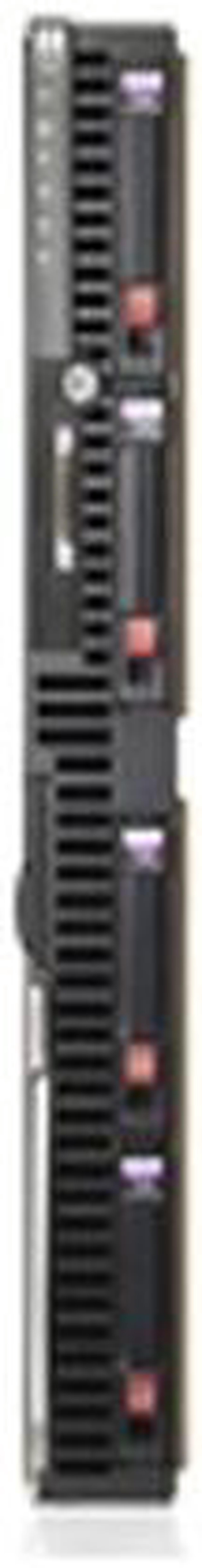

Alt view image 2 of 2 - HP ProLiant BL480c Blade Xeon 5110 1.60 GHz 2 GB DDR2 Servers 1 x Dual-core Intel Xeon 5110 (1.60 GHz, 1066 MHz FSB) 2 GB (2 x 1 GB) PC2-5300 Fully Buffered DIMMs running at 667 MHz 416666-B21

Shop All HP Products

HP ProLiant BL480c Blade Xeon 5110 1.60 GHz 2 GB DDR2 Servers 1 x Dual-core Intel Xeon 5110 (1.60 GHz, 1066 MHz FSB) 2 GB (2 x 1 GB) PC2-5300 Fully Buffered DIMMs running at 667 MHz 416666-B21

Be the first to review this product...

1 x Dual-core Intel Xeon 5110 (1.60 GHz, 1066 MHz FSB)
Upgradeable to dual processors MAX Processors
2 GB (2 x 1 GB) PC2-5300 Fully Buffered DIMMs running at 667 MHz
48 GB Max Memory Capacity

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Introducing a new category of server blade that delivers an unmatched combination. The HP ProLiant BL480c has more than you've come to expect from a 2P server blade, and can handle your most challenging applications.

Model
Brand	HP
Series	ProLiant BL480c
Model	416666-B21

Details
Type	Blade
Security	One (1) internal USB 2.0 connector for security key devices and USB drive keys Power-on password Administrator's password Integrated Lights-Out 2 has 12 customizable user accounts and SSL encryption Integrated Lights-Out 2 can be disabled via a Global Setting

Processor
CPU Type	1 x Dual-core Intel Xeon 5110 (1.60 GHz, 1066 MHz FSB)
Cache Memory	1 x 4MB L2 cache memory
MAX Processors	Upgradeable to dual processors
Chipset	Intel 5000P

Memory
Installed Memory Size	2 GB (2 x 1 GB)
Memory Type	PC2-5300 Fully Buffered DIMMs running at 667 MHz
Max Memory Capacity	48 GB

Storage
Storage Controller	HP Smart Array P400i Controller with 256MB
HDD Interface	SAS/SATA
Raid Level	RAID 0/1/1+0/5
Max HDD Capacity	584GB SAS 240GB SATA

Graphic Controller
Graphic Type	ATI RN-50
Video Memory	32 MB DDR memory

Networking
Ethernet Controller	Four embedded NIC ports, plus one (1) additional management NIC port: (2) embedded NC373i Multifunction Gigabit Server Adapters (1) embedded NC326i Dual Port Gigabit Server Adapter (1) additional embedded 10/100 NIC dedicated to iLO 2 management
Remote Management	Integrated Lights-Out 2 (iLO 2) Standard Blade Edition

Expansion & Ports
Expansion Slots	3 x Mezzanine slots (Two x8 and one x4)
Expansion Bays	4 x SFF SAS/SATA drive bays

Software
Operating System	No
Compatible/Certified OS	Microsoft Windows 2000 Server Microsoft Windows 2000 Advanced Server Microsoft Windows Server 2003, Standard Edition Microsoft Windows Server 2003 R2, Standard Edition Microsoft Windows Server 2003, Standard x64 Edition Microsoft Windows Server 2003 R2, Standard x64 Edition Microsoft Windows Server 2003, Web Edition Microsoft Windows Server 2003 R2, Web Edition Microsoft Windows Server 2003, Enterprise Edition Microsoft Windows Server 2003 R2, Enterprise Edition Microsoft Windows Server 2003, Enterprise x64 Edition Microsoft Windows Server 2003 R2, Enterprise x64 Edition Red Hat Enterprise Linux SUSE Linux Enterprise Server

Features
Features	Up to 8 full-height blades supported in the HP BladeSystem c7000 Enclosure

Additional Information
First Listed on Newegg	February 27, 2007
