HP ProLiant DL320e Gen8 v2 Rack Server System Intel Xeon E3-1220 v3 3.1GHz 4GB DDR3-1600 No Hard Drive 736663-S01
- Intel Xeon E3-1220 v3 3.1GHz
- 4GB DDR3-1600
- 32GB Max Memory Capacity
- No Hard Drive
- 300 Watts Non-Hot Plug, Non redundant Power Supply
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
HP ProLiant DL320e Gen8 v2 E3-1220v3 4GB-U B120i 2 LFF 250W PS Server/S-Buy
- Do you need an entry-level 1U rack server that is compact, yet packs the latest technology to keep you competitive? The HP ProLiant DL320e Gen8 v2 Server is an entry-level single processor 1U short depth rack server specifically designed to give you the competitive edge you need. The server supports the latest Intel® Xeon® E3-1200 v3 series processors, PCIe 3.0 slots, DDR3 1600MHz memory, and up to 8TB internal storage, plus the state of the art HP iLO Management Engine.
- It is ideal for small businesses, chain stores, telecommunications firms, or others that require a low-cost, compact server. The DL320e Gen8 v2 Server is versatile enough to handle a variety of workloads, including single/dedicated IT services such as networking, security, file/print, and web serving/hosting.
Processor
Intel Xeon E3-1220 v3 3.1GHz
Storage controller
Dynamic Smart Array B120i or; Smart Array P222; Depending on model
Memory
4GB DDR3-1600
Power supply
300 Watts Non-Hot Plug, Non redundant Power Supply
Features
Compact, Affordable, Powerful and Flexible
- The HP ProLiant DL320e Gen8 v2 Server provides a short 15.07 inch chassis depth for mobility and space requirements while tool-less access to system components enhances serviceability.
- The latest Intel Xeon E3-1200 v3 series processors, supporting up to 3.7 GHz and four (4) cores, provide the processing power needed to handle a variety of workloads. Low cost Pentium® and Core series processors enable the most affordable configurations.
- Offers outstanding configuration flexibility with support for up to two Large Form Factor (LFF) or four Small Form Factor (SFF) drives, four DDR3 UDIMMs, 250W/300W (depending on region) or 750W power supplies, and optimal deployment options via two PCIe slots and seven USB ports.
- Supports the 24-port HP 1810 Switch Series, extending the benefits of HP Converged Infrastructure. HP 1810 Switch Series devices enhance both connectivity and data availability, with features such as a browser-based management interface and link aggregation.
Increase System Uptime with Built-in Gen8 Technologies
- The HP ProLiant DL320e Gen8v2 Server supports HP SmartMemory, preventing data loss and downtime with enhanced error handling while also improving workload performance and power efficiency.
- HP SmartDrive technology improves serviceability and prevents data loss with features such as icon-based status display and Do Not Remove LED.
- HP Smart Array options provide businesses RAID mirroring and striping capability to protect critical data while Flash-backed write cache (FBWC) captures and holds data indefinitely in the event of a power loss, equipment failure, human error or virus attacks.
- Dedicated iLO connection for faster and more secure data transmission.
- NEBS compliance verifies high product quality and reliability for the telecommunications environment. Note that a 750W power supply is required.
Unlock Your Infrastructure’s Potential with Easy-to-Use Integrated Management and Support
- HP iLO Management Engine is a complete set of embedded features, standard on all HP ProLiant Gen8 Server series. It includes HP iLO, HP Agentless Management, HP Active Health System, HP Intelligent Provisioning, and HP Embedded Remote Support.
- HP Insight Control provides advanced management capabilities across the lifecycle of your HP ProLiant server infrastructure. HP iLO Advanced, a key component, provides enhanced remote server functions that reduce IT travel costs, while decreasing time-to-resolution.
- HP Insight Online with HP Insight Remote Support provides 24X7 remote monitoring and anywhere, anytime personalized access to your IT and support status.
- HP Smart Update reduces deployment time and update complexity by systematically updating server infrastructure in the data center. It includes HP Smart Update Manager (HP SUM), and Service Pack for ProLiant (SPP), and other products.
Energy Efficiency for Power Savings and a Green Environment
- The high efficiency, optional 750W DC power supply available with the four Small Form Factor (SFF) disk drive configuration provides up to 94% efficiency.
- First in industry to include 3D array of temperature sensors to help precisely control server fans to direct cooling and reduce unnecessary fan power, saving on cooling costs.
HP ProLiant DL320e Generation 8 (Gen8) v2
- Do you need an entry-level short-depth server utilizing the latest technology to keep you competitive?
- The HP ProLiant DL320e Gen8 v2 Server is an entry-level single processor 1U short depth rack server specifically designed to give you the competitive edge you need. The server supports the latest Intel Xeon E3-1200 v3, PCIe 3.0 slots, DDR3 1600 MHz memory, and up to 8 TB internal storage, plus the state of the art HP iLO Management Engine.
- It is ideal for small businesses, chain stores, telecommunications firms, or others that require a low-cost, compact server. The DL320e Gen8 v2 is versatile enough to handle a variety of workloads, including single/dedicated IT services such as networking, security, file/print, and web serving/hosting.

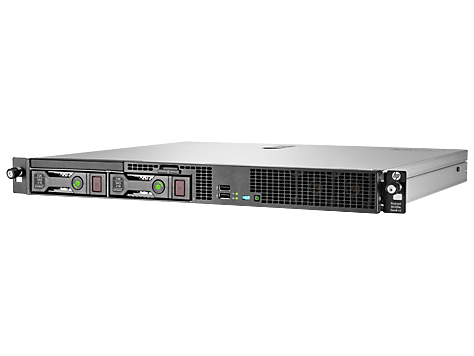

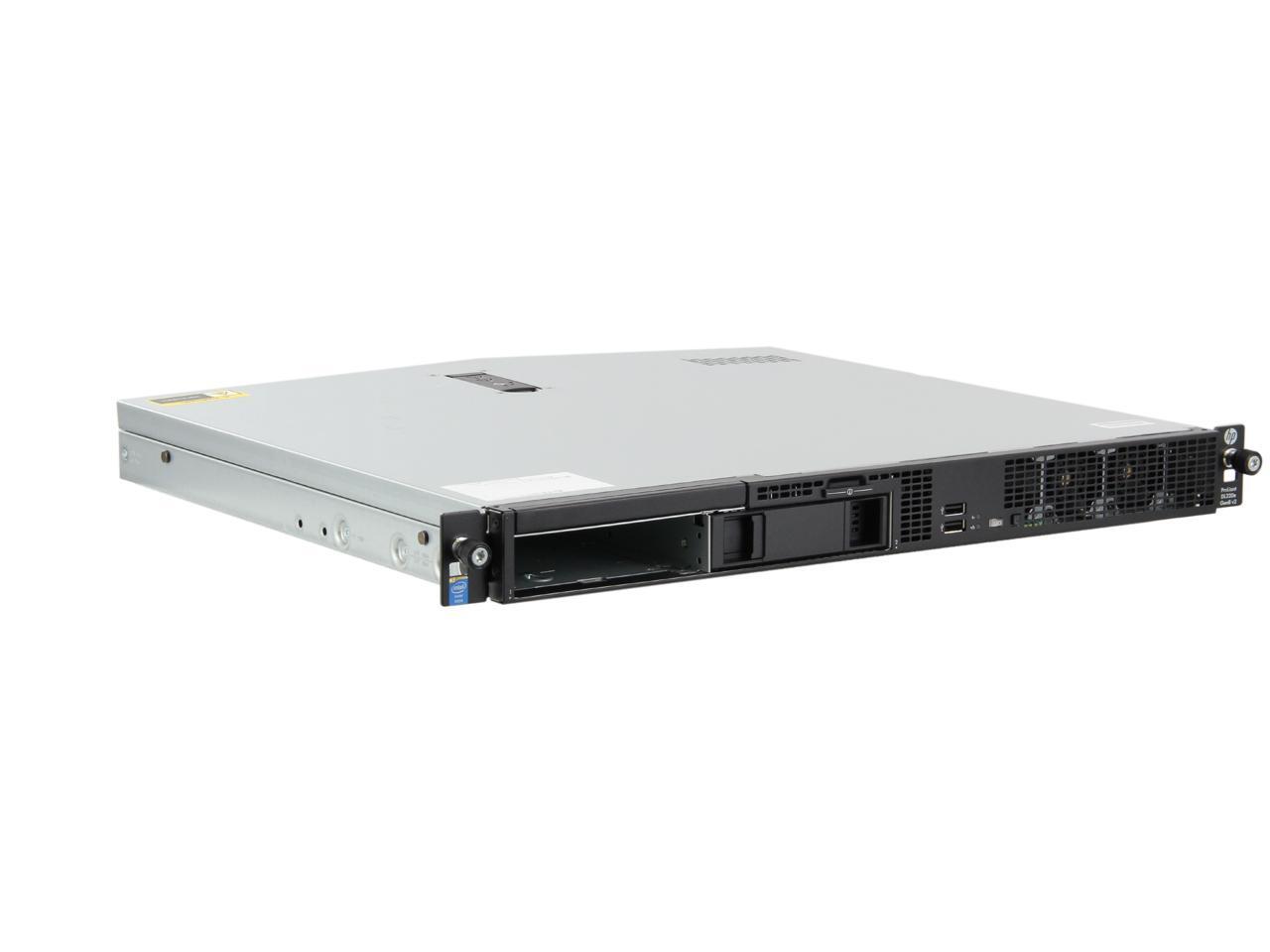

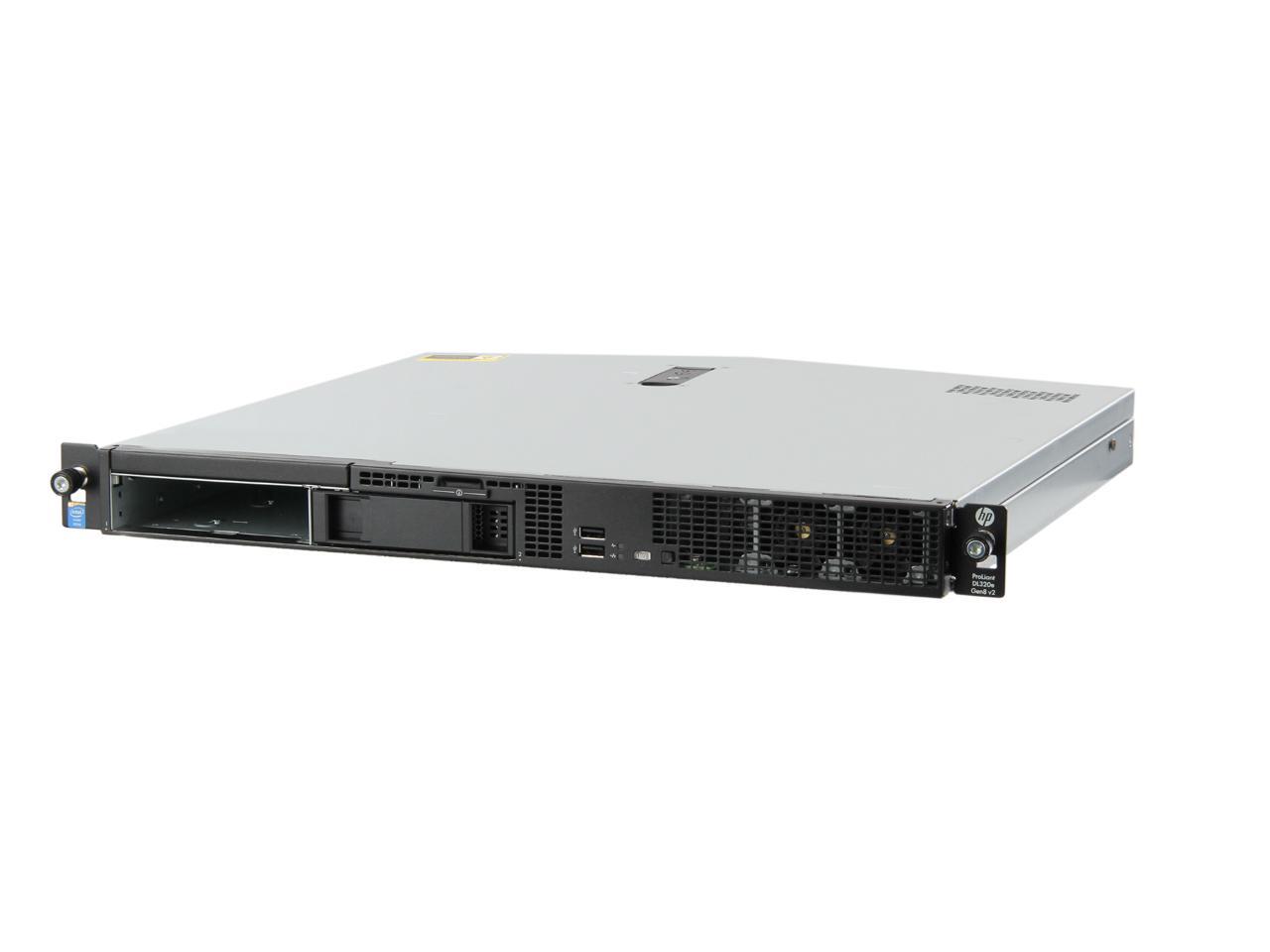

Front view
- Access Panel
- Power Supply
- Fan Assembly
- PCI Riser Cage
- Processor
- DIMMS
- Fan Assembly
- Power On/Standby button and LED
- UID LED button
- Health LED
- NIC status LED
- 2 USB Connectors
- Serial number/iLO information pull tab
- Hard Drive Bays
- Optical drive

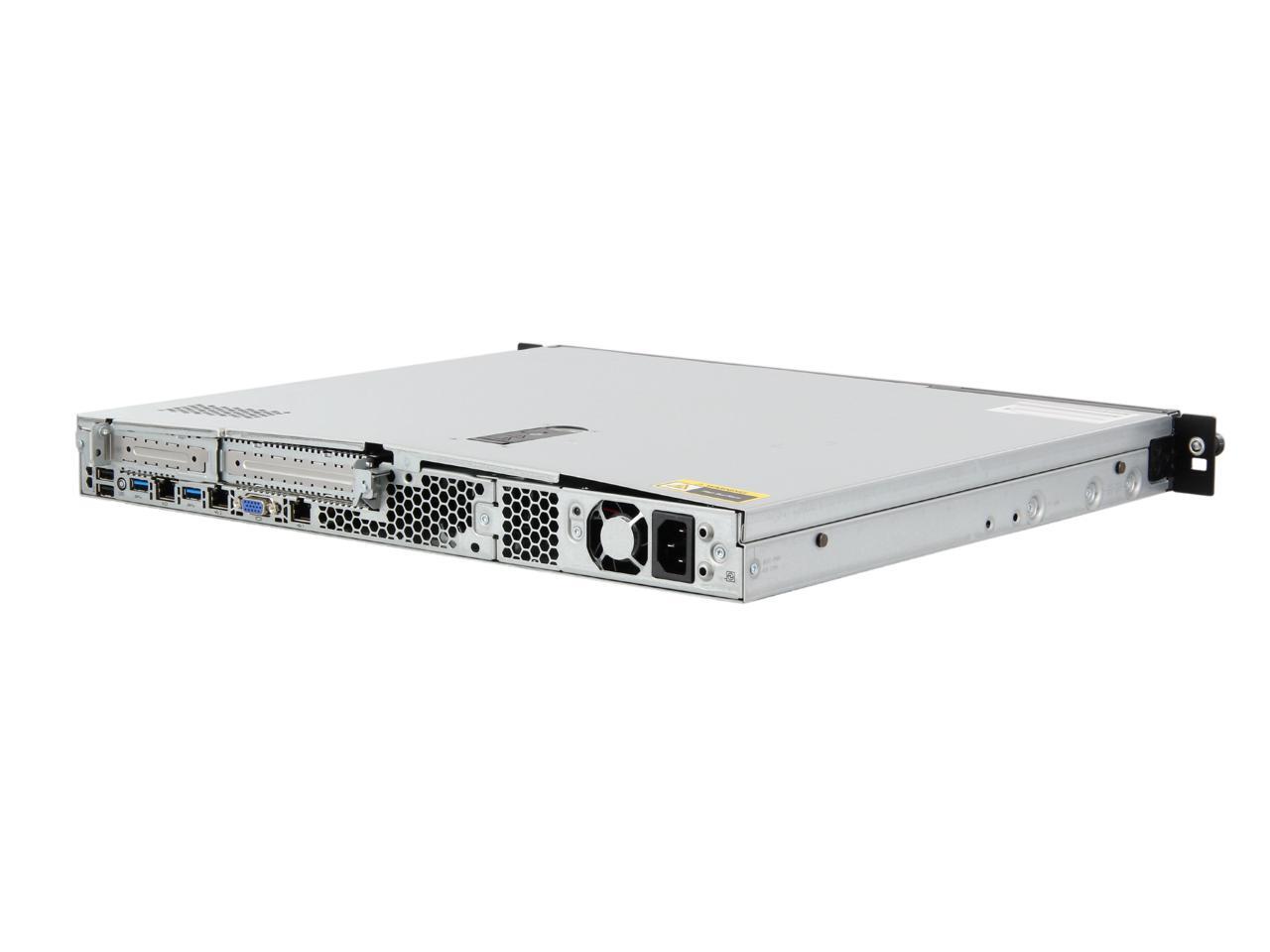

Rear view
- Expansion slot 2, PCIe x8
- Expansion slot 1, PCIe x16
- Integrated Power Supply
- T-10/T-15 Torx screwdriver
- NIC1/shared iLO connector
- Video Connector
- NIC Connector 2
- USB 3.0 Connector
- iLO4 Connector
- USB 3.0 Connector
- NIC link LED
- USB2.0 Connectors
What`s New
- New HDD offering, addition of new short friction rail kit
- New HP Care Pack Services
Do you need an entry-level short-depth server utilizing the latest technology to keep you competitive?
The HP ProLiant DL320e Gen8 v2 Server offers you an entry-level single processor 1U short-depth server specifically designed to give you the competitive edge you need. The server supports the latest Intel Xeon E3-1200 v3 series processors, PCI Gen3 slots, DDR3 1600 MHz memory and up to 8 TB internal storage, plus HP's state of the art iLO Management Engine,
The HP ProLiant DL320e Gen8 v2 Server offers you an entry-level single processor 1U short-depth server specifically designed to give you the competitive edge you need. The server supports the latest Intel Xeon E3-1200 v3 series processors, PCI Gen3 slots, DDR3 1600 MHz memory and up to 8 TB internal storage, plus HP's state of the art iLO Management Engine,
It is ideal for businesses such as corporates, small businesses, chain stores, telecommunication firms, or industrial firms, that require a low-cost, compact server. The DL320e Gen8 v2 is versatile enough to handle a variety of workloads. These include single/dedicated IT services, telecommunications services or IT infrastructure requirements - such as networking, security, file/print, and web serving/hosting.
