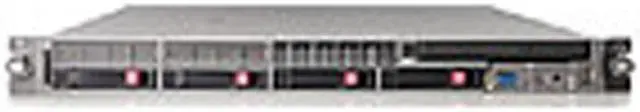

Main image of HP ProLiant DL360 G5 Rack Xeon 5120 1.86 GHz 1GB DDR2 Servers 1 x Dual-Core Intel Xeon 5120 (1.86 GHz, 65 Watts, 1066 FSB) 1 GB (2 x 512 MB) PC2-5300 Fully Buffered DIMMs (DDR2-667) 416560-001

Shop All HP Products

HP ProLiant DL360 G5 Rack Xeon 5120 1.86 GHz 1GB DDR2 Servers 1 x Dual-Core Intel Xeon 5120 (1.86 GHz, 65 Watts, 1066 FSB) 1 GB (2 x 512 MB) PC2-5300 Fully Buffered DIMMs (DDR2-667) 416560-001

Be the first to review this product...

1 x Dual-Core Intel Xeon 5120 (1.86 GHz, 65 Watts, 1066 FSB)
2 MAX Processors
1 GB (2 x 512 MB) PC2-5300 Fully Buffered DIMMs (DDR2-667)
32 GB Max Memory Capacity
700W power supply

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Combining concentrated 1U compute power, integrated Lights-Out management, and essential fault tolerance, the ProLiant DL360R05 Server is optimized for space constrained installations.

Model
Brand	HP
Series	ProLiant DL360 G5
Model	416560-001

Details
Type	Rack
Rack Height	1U
Hot-swap Fans	9 total, redundancy standard
Security	Power-on password Keyboard password Diskette drive control Diskette boot control QuickLock, Network Server Mode Removable CD and Diskette Drive Assembly Serial interface control Administrator's password Disk configuration lock Integrated Lights-Out has 12 customizable user accounts and SSL encryption Integrated Lights-Out can be disabled via a Global Setting iLO Advance Pack supports directory services integration and two-factor authentication

Processor
CPU Type	1 x Dual-Core Intel Xeon 5120 (1.86 GHz, 65 Watts, 1066 FSB)
Cache Memory	4MB (1 x 4MB) Level 2 cache
MAX Processors	2
Chipset	Intel 5000P

Memory
Installed Memory Size	1 GB (2 x 512 MB)
Memory Type	PC2-5300 Fully Buffered DIMMs (DDR2-667)
Max Memory Capacity	32 GB
Memory Features	Advanced ECC (multi-bit error protection), Online Spare, Mirroring 4-way interleaving

Storage
Storage Controller	HP Smart Array E200i/64MB Controller
HDD Interface	SAS/SATA
Raid Level	RAID 0/1/1+0
Max HDD Capacity	876GB SAS 360GB SATA

Graphic Controller
Graphic Type	ATI ES1000
Video Memory	32MB

Networking
Ethernet Controller	Embedded NC373i Multifunction Gigabit Server Adapters
Remote Management	Integrated Lights Out 2 (iLO 2) Standard Management
Compliant Standard	ACPI 2.0b Compliant PCI 2.2 Compliant WOL Support Microsoft Logo certifications PXE Support USB 1.1 and 2.0 Compliant
LAN Ports	2 x Ports

Expansion & Ports
Expansion Slots	1 x full-length x8 PCI-Express slot 1 x low-profile x8 PCI-Express slot
Expansion Bays	4 x SAS/SATA hot plug drive bay
Other ports	1 x Keyboard 1 x Mouse 1 x Serial 1 x Video 4 x USB 2.0 Ports
Management Port	1 x iLO 2 remote management port

Software
Operating System	No
Compatible/Certified OS	Microsoft Windows 2000 Server Microsoft Windows Server 2003 Novell NetWare Linux (Red Hat, SuSE) Solaris 10 32/64-bit VMware Virtualization Software

Power
Power Characteristics	700W power supply

Additional Information
First Listed on Newegg	January 31, 2007
