Question 1

does this have the drive racks so you can directly bolt in a raw drive?

Accepted Answer

This server supports hot swap hard drives.  This means you need to either purchase HP brand hard dries with the included Gen8 Smart Drive caddies, or you will need to purchase third party compatible Gen8 LFF compatible drive caddies.

Question 2

Can server hold two Xeon processors ?

Accepted Answer

No, the ML310 supports only 1 socket. For 2 socket you need the ML350

Question 3

Saw a guy's review says that it doesn't come with any caddy, but since I just going to put 2x 3.5' HD in it permanently without needed to hot-swap, is screw the two hard drives into the existing drive bay possible? or the space is too wide for securing the hard drive in place when screw it onto its body?

Accepted Answer

Not possible, you actually need to buy certified hp caddies

Question 4

I looked at VMware's HCL and it appears this is the system on that list.  Can anyone confirm this systems capatibility with ESXi 5.5?

Thanks

Accepted Answer

Yes, I have vSphere 5.5 installed. Use the .iso of vSphere from HP and you should be fine.

Question 5

Does the HP ProLiant ML310e Gen8 server was ever tested with Debian linux? Does it support Mint Linux release?

Accepted Answer

I'm running Ubuntu 14.04 LTS with network boot/root on a bunch of these without problems.

Question 6

Does this HP ProLiant ML310e Gen8 v2 Tower have the back plane for 4 3.5" drives or 8 2.5" drives?  Do I need SATA drives or what type is recommended?

Accepted Answer

736661-S01 is 4 LFF (3.5)

SATA Drives supported out of the box.

SAS is Supported if you add an HP P420 or similar SAS Capable controller.  You can easily move the internal cage connection from the Motherboard based SATA controller to the PCIe Controller card.

Question 7

Hi, I read somewhere that Dynamic Smart Array B120i/ZM only run on SATAII 3Gb/s, although if I plug a SATAIII 6Gb/s drive it'll still appears supported and run, but it just not running at 6Gb/s. So my final question is: can anyone confirm that if this Server's SATA controller is 3Gb/s or 6Gb/s?

Accepted Answer

I always disable the smart array. since its fake (soft) raid, its super slow. I'd recommend to either install a hard raid or use windows2012 raid (in case you are using windows).

Question 8

does this come with a motherboard? what ssd drives can i load on this?

Accepted Answer

Yes, its a complete system except for the Hard Drives.

HP has a list of "Supported" SSDs on their website, but realistically you can use whatever you like.  I have a Crucial M550 in a similar model server right now.

Question 9

Is the RAM on this server ECC or Non-ECC?

Accepted Answer

According to the "QuickSpecs", its ECC: 8GB (2 x 4GB) PC3-10600E DDR3 UDIMM

The E in 10600E means ECC.  R means ECC Registered.  LR means ECC Load Reduced.

CPU Type	Intel Xeon E3-1230 v3 3.3 GHz 4C/8T
CPU Features	80W
Cache Memory	8MB
MAX Processors	1

Installed Memory Size	2 x 4GB
Memory Type	DDR3
Max Memory Capacity	32GB
Memory Features	Dual Rank x8 PC3-12800E Memory

Hard Drive (Installed)	No Hard Drive
Storage Controller	(1) Dynamic Smart Array B120i/ZM

Meet Your Seller

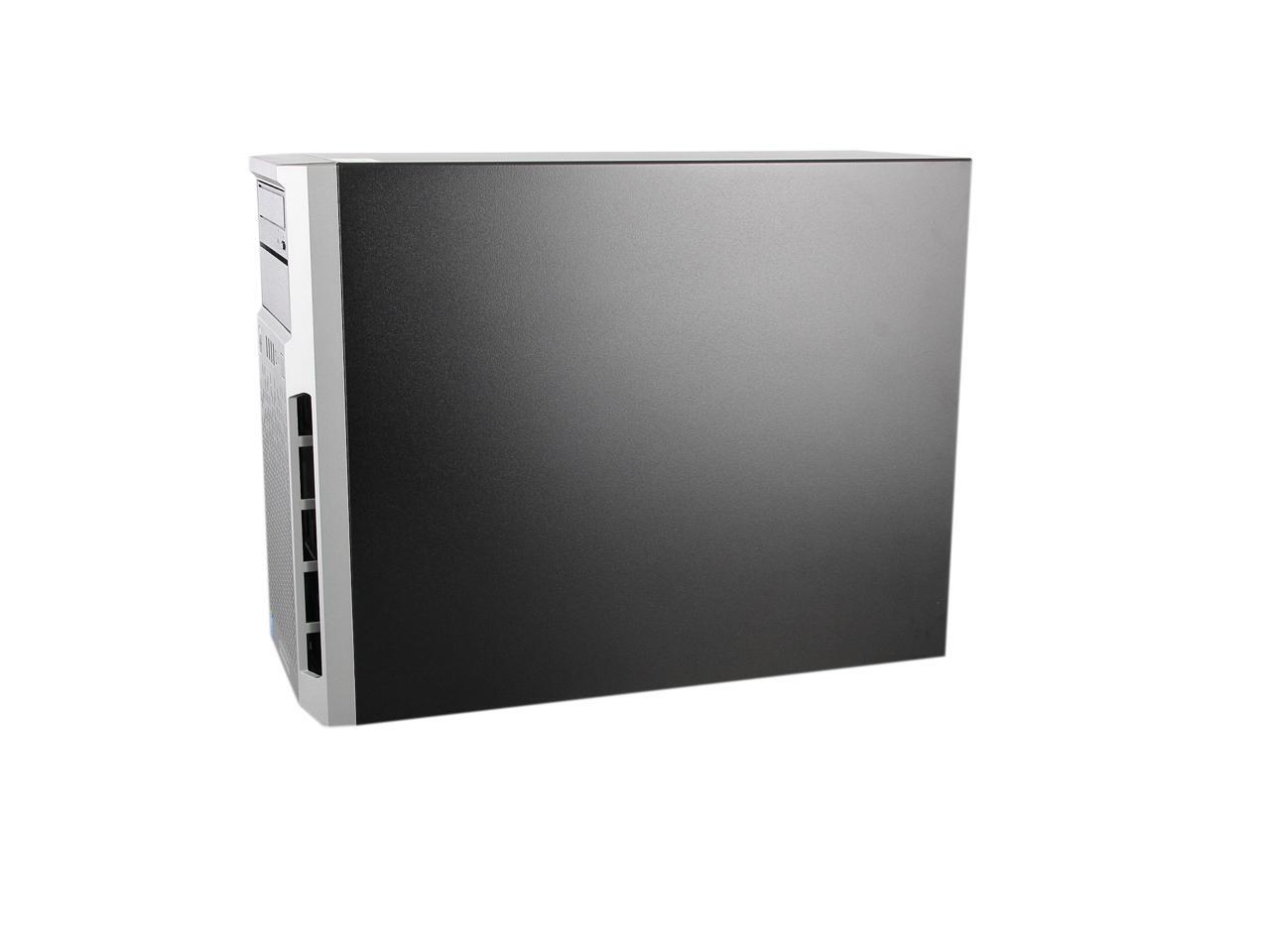

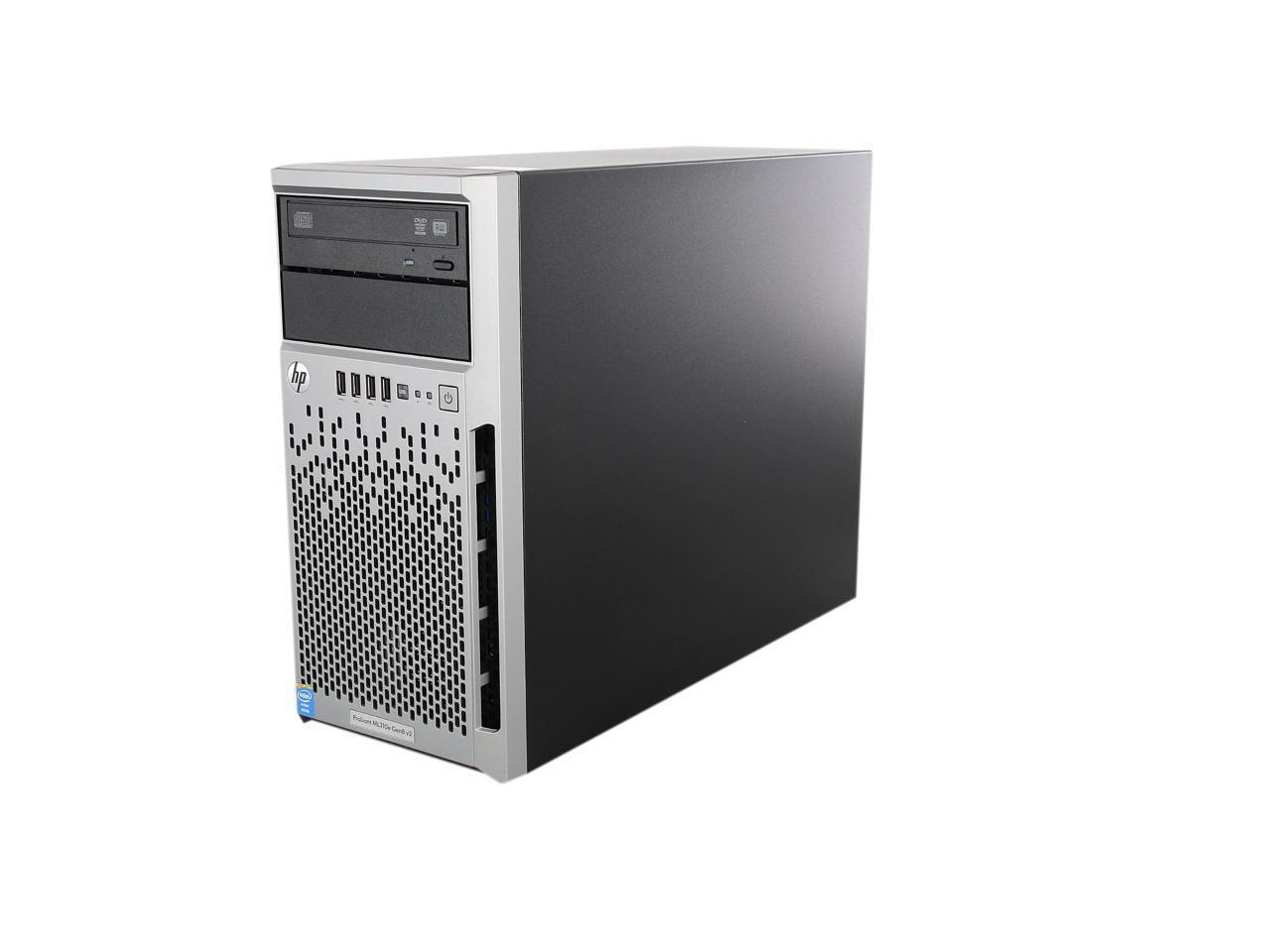

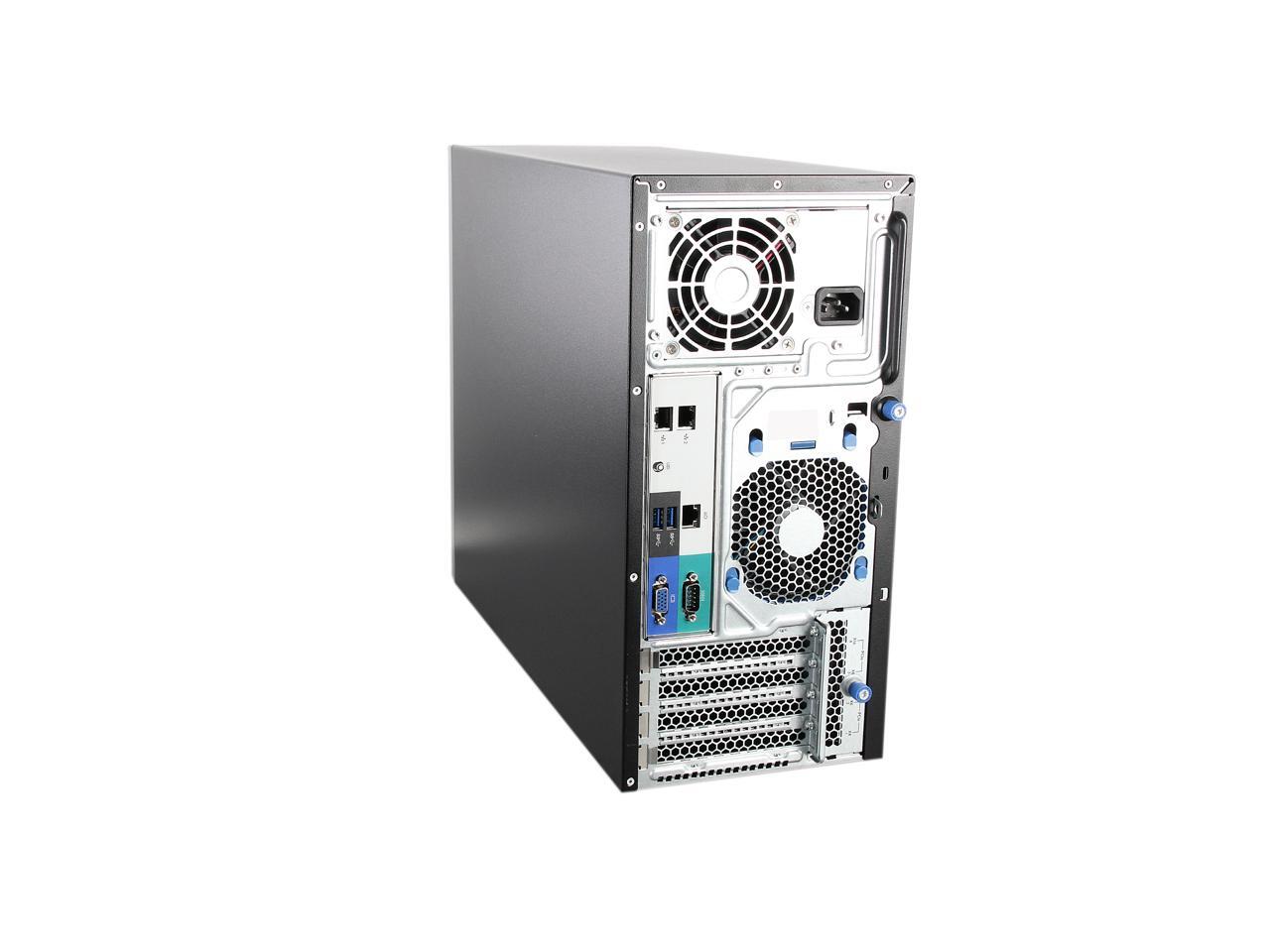

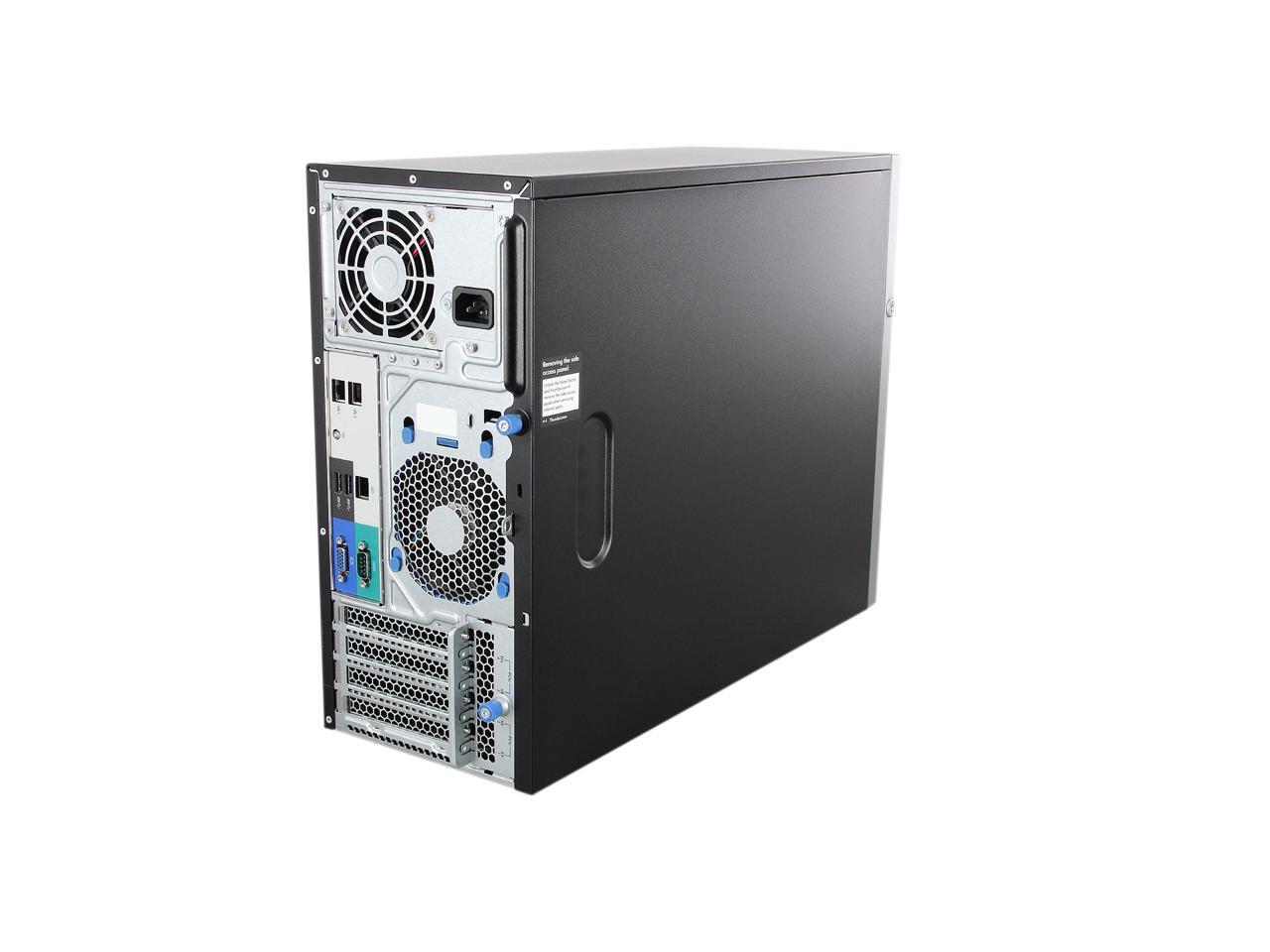

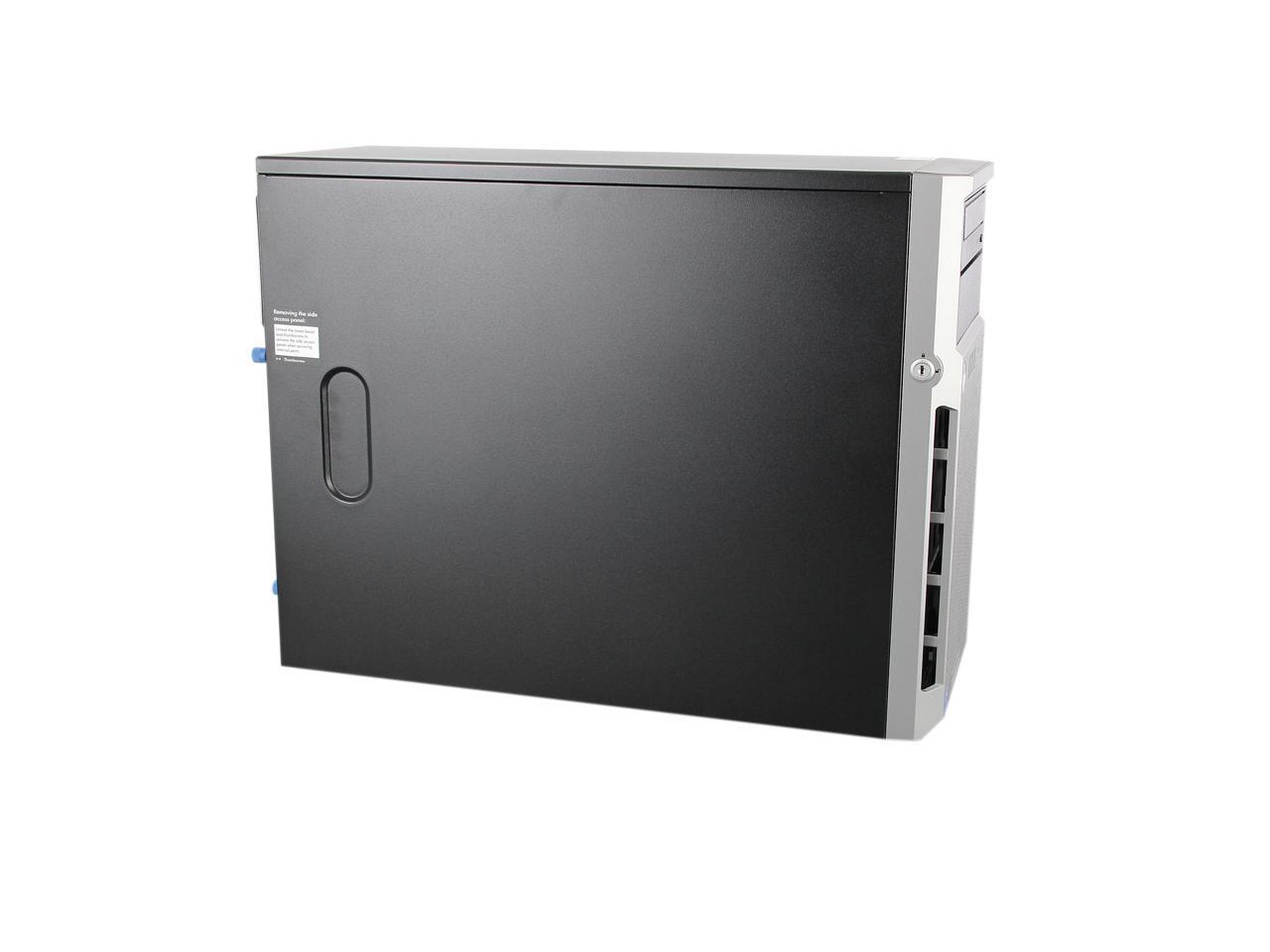

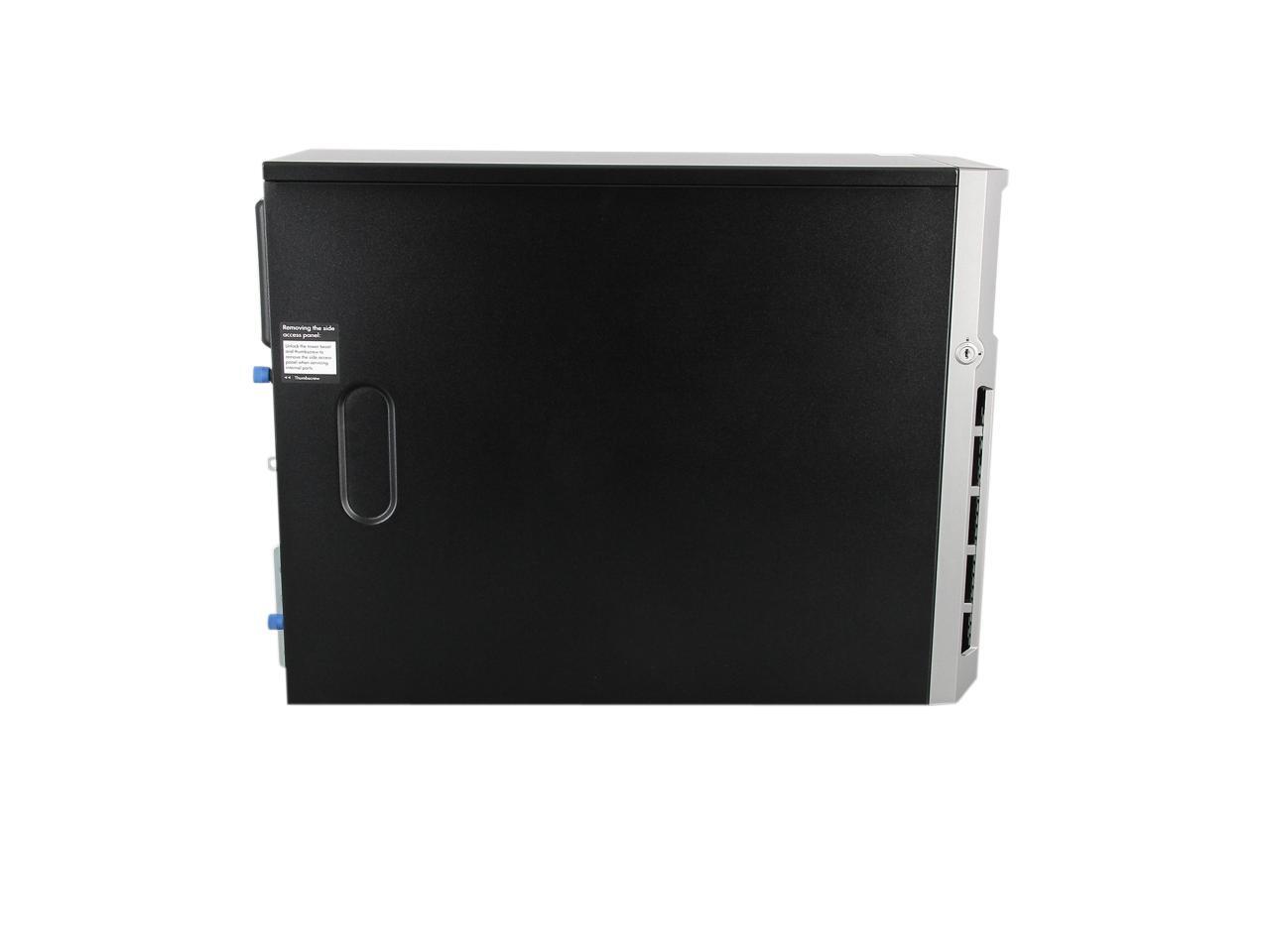

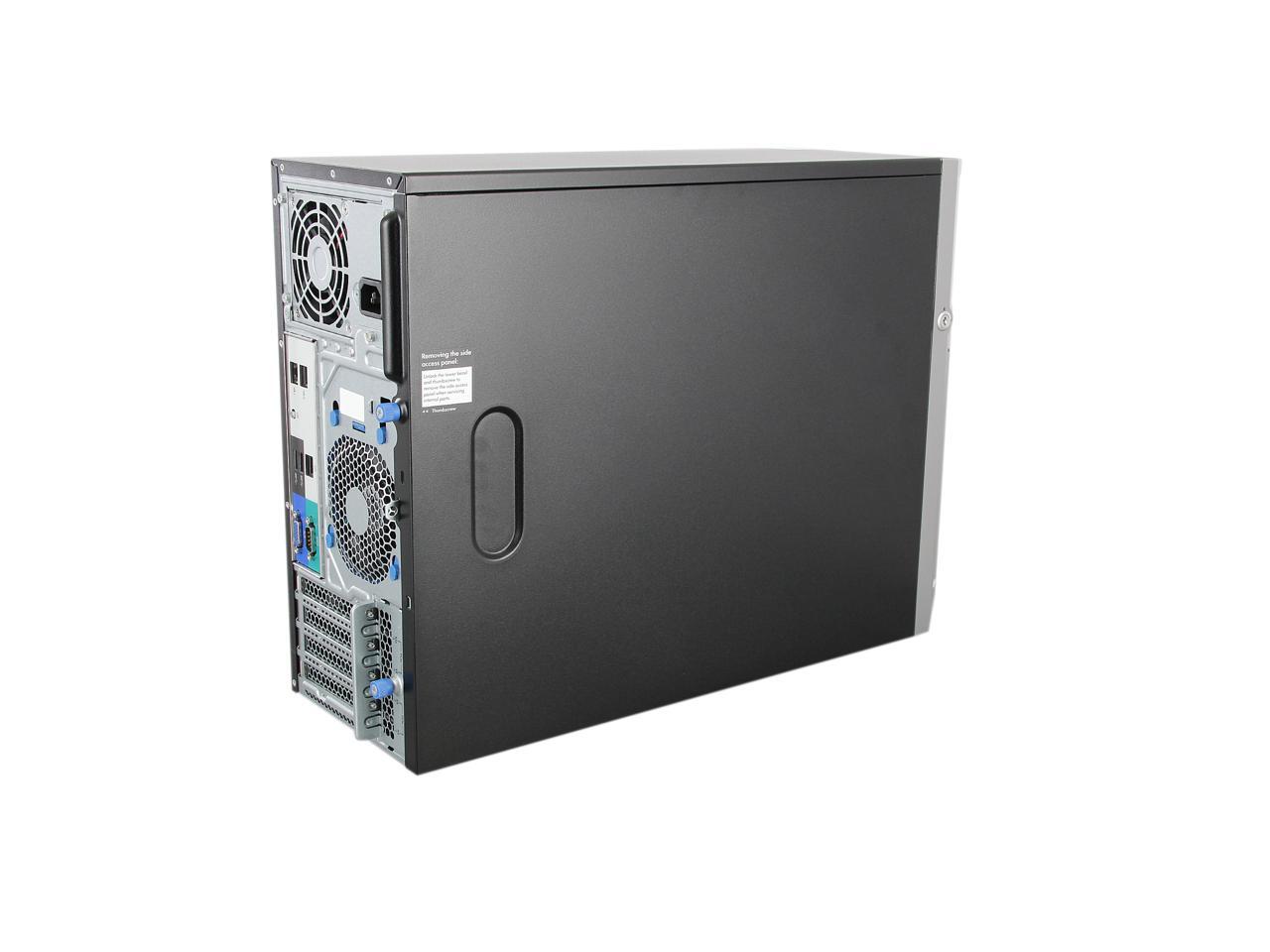

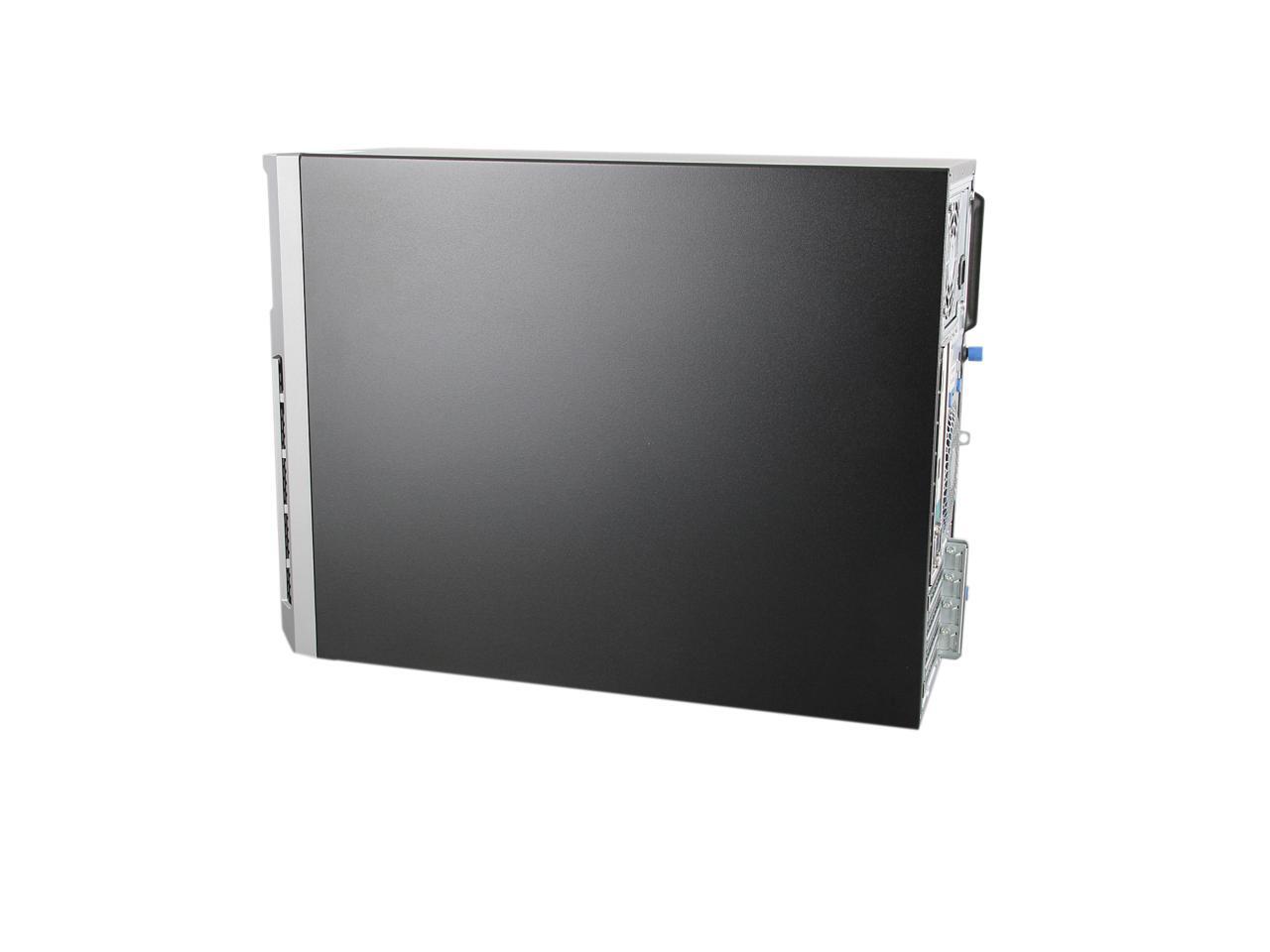

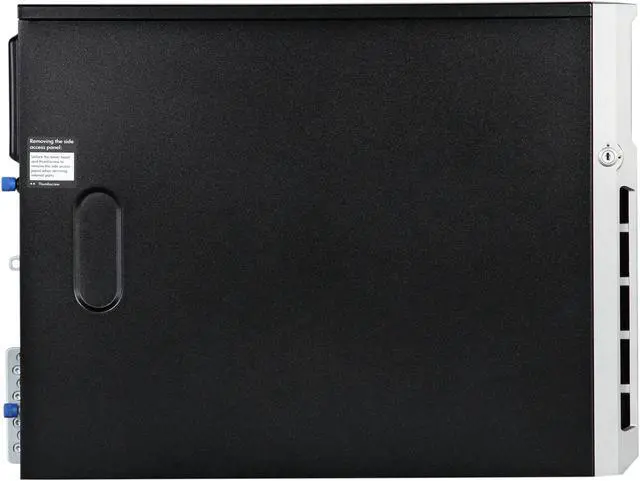

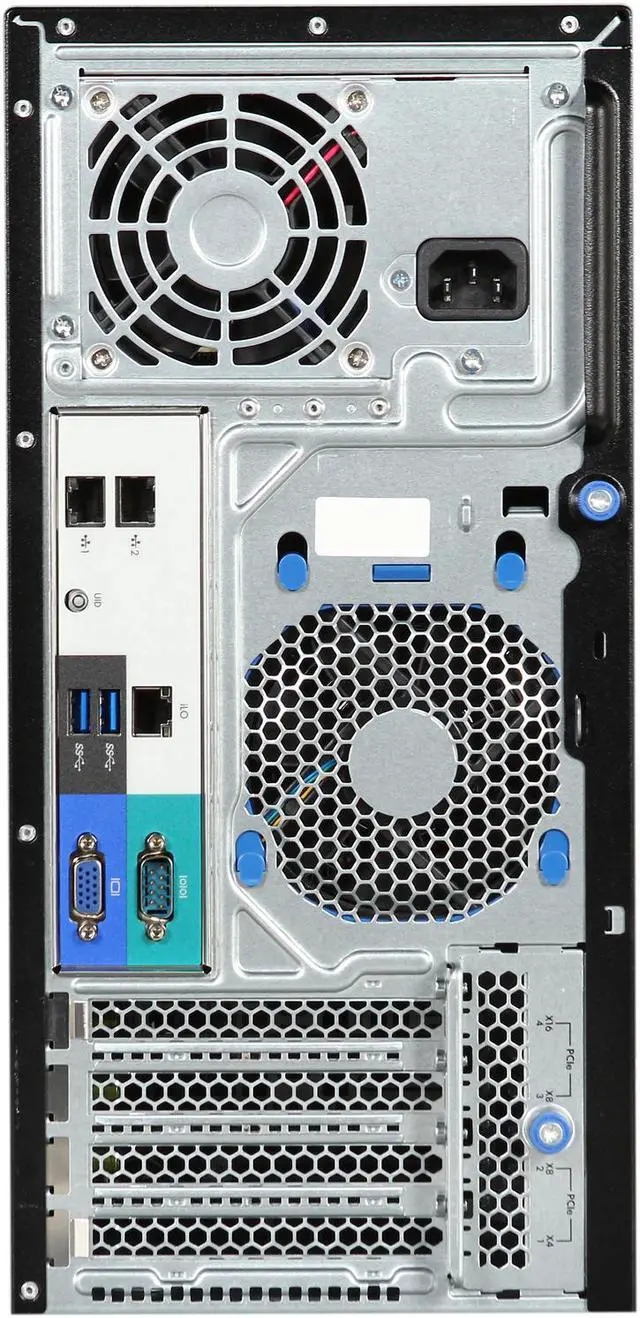

HP ProLiant ML310e Gen8 Micro Tower Server System Intel Xeon E3-1230 v3 3.3 GHz 4C/8T 2 x 4GB DDR3 No Hard Drive 736661-S01
