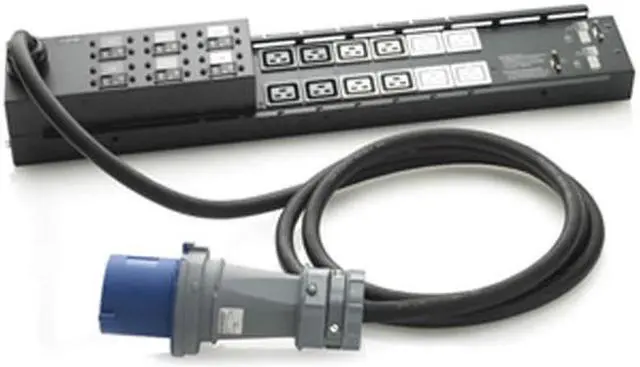

HP S348 (AF916A) Monitored 200-208V 60A 8 ft Single Input 3 Phase 48A Monitored Power Distribution Unit

Be the first to review this product...

200-208V
60A
8 ft

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Hp Monitored Power Distribution Unit Half Rack Version S348 - Power Distribution Unit ( Rack-Mountable ) - 17300 Va - 12 Output Connector(S) - Japan North America - For Proliant Dl120 G6 Dl160 Gen8 Dl580 G4 Dl580 G5 Dl585 G6 Dl785 G5 Dl785 G6; Rack

Model
Brand	HP
Model	S348 (AF916A)

Details
Type	Monitored
Style	Vertical

Input
Input Voltage	200 - 240V
Input Frequency	50/60 Hz
Maximum Input Current	60A
Regulatory Derated Input Current	48A
Input Connector(s)	1 x IEC-309, 60 A, 4-wire, 3-phase, 208 VAC
Cord Length	8 ft

Output
Output Voltage	200-208V
Output Frequency	50/60Hz
Output Watts (VA)	17.3 kVA
Output Connector(s)	12 x C19

Environmental
Operating Environment	10 - 50 ºC
Operating Relative Humidity	10 - 90%
Operating Elevation	0 - 2000 m
Storage Temperature	-20 - 60 ºC
Storage Elevation	0 - 15000 m

Feature
Features	Half-Rack Vertical PDU Unique color-coded load identification Local power monitoring display and optional remote power reporting with the PDU Management Module Includes two serial ports-#1 for local set-up and configuration and #2 for attachment of the optional remote monitoring module. Includes fixed rail and swing out brackets for mounting behind BladeSystem enclosures Power display - The local user interface consists of a basic control panel that includes a two-digit 7-segment display, a recessed reset button, a scroll/invert button and 6 segment-dedicated LEDs. Local alarms are annunciated for current and voltage excursions.

Dimensions & Weight
Dimensions	28.32" x 3.78" x 3.7" (H x W x D)
Weight	24.2 lbs.

Additional Information
First Listed on Newegg	October 08, 2010

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
