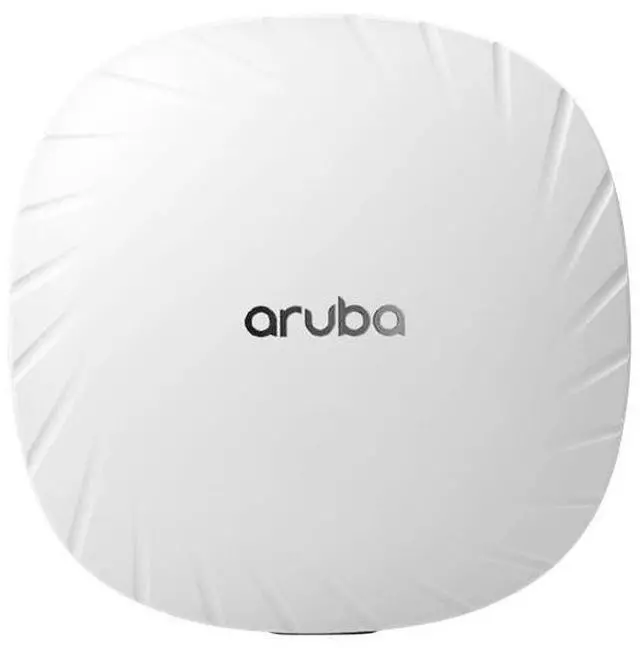

International version HPE Aruba AP-514 (RW) Q9H57A 1 x HPE Smart Rate - RJ-45 - wireless access point

Specifications General Device Type Wireless access point Ruggedized Design Indoor Networking Form Factor In-ceiling Connectivity Technology Wireless Data Transfer Rate 4.8 Gbps Line Coding Format CCK, 64 QAM, 256 QAM, BPSK, QPSK, 16 QAM, OFDM, 1024 QAM, OFDMA Data Link Protocol IEEE 802.11 b, IEEE 802.11 a, IEEE 802.11 g, IEEE 802.11 n, IEEE 802.11 ac, Bluetooth 5.0, IEEE 802.11 ax (Wi-Fi 6) Spread Spectrum Method OFDM, DSSS Frequency Band 2.4 GHz, 5 GHz Performance Maximum data rate ( 2.4
GHz): 575 Mbps ¦
Maximum data rate (5 GHz): 4.8 Gbps ¦
Aggregate bandwidth: 5.4 Gbps Capacity Wireless clients per
Wi-Fi radio: 256 ¦
OFDMA units: 16 ¦ BSSI
Ds per radio: 16 Status Indicators System, status Features Trusted Platform Module (TPM), LACP support, Adaptive Radio Management (ARM), Maximum Ratio Combining (MRC), Low Density Parity Check (LDPC), Transmit Beam-forming (TxBF) ready, Direct Sequence Spread Spectrum (DSSS), Cyclic Delay Diversity (CDD), Space Time Blocking Code (STBC), Advanced Cellular Coexistence (ACC), ClientMatch, cyclic shift diversity (CSD), AppRF technology, MU-MIMO technology, packet aggregation A-MPDU, packet aggregation A-MSDU, Air Monitor (AM), Intelligent Power Monitoring (IPM), Dynamic Frequency Selection (DFS), Secure Core Technology (SCT), High-Throughput (HT) support, 4x4 MU-MIMO technology, LED off mode, Orthogonal Frequency Division Multiplexing (OFDM), Aruba AirMatch, spectrum analyzer, Very High Throughput (VHT) support, Orthogonal Frequency Division Multiple Access (OFDMA), unified AP support, custom deep-sleep mode, High Efficiency (HE) support, Target Wait Time (TWT) Encryption Algorithm WPA, WPA2, WPA3 Compliant Standards IEEE 802.11 b, IEEE 802.11 a, IEEE 802.3 af, IEEE 802.11 g, IEEE 802.11 n, IEEE 802.3 at, IEEE 802.11 ac, IEEE 802.3 bz, IEEE 802.3 bt, IEEE 802.11 ax Antenna Antenna External detachable Antenna Qty 4 Internet of Things (IoT) Internet of Things (IoT) Compatible Yes Communications Technology Bluetooth, Zigbee Expansion / Connectivity Interfaces 1 x HPE Smart Rate - RJ-45 ¦ 1 x 1000Base-T - RJ-45 ¦ 1 x USB 2.0 - Type A ¦ 4 x antenna - RP-SMA x 4 ¦ 1 x console - micro-USB Miscellaneous MTBF 64 years Compliant Standards UL 2043, FCC, EN 60601-1-1, CE/EMC, Directive 2014/35/EU, Directive 2014/30/EU, ISED, Directive 2014/53/EU, IEC/EN/UL 60950, EN60601-1-2, ETS 300 019 Class 1.1, ETS 300 019 Class 2.3 Power Power Over Ethernet (PoE) Supported PoE Power Consumption Operational 16 Watt Software / System Requirements OS Required ArubaOS, InstantOS.
