What is the maximum power consumption of the AP-577 when powered by a single PoE port?

When powered by a single PoE port, the maximum power consumption of the AP-577 is 26.1W.

What are the weatherproof capabilities of the HPE Aruba Networking AP-577 access point?

The HPE Aruba Networking AP-577 access point is weatherproof and temperature hardened, capable of handling temperatures ranging from -40°C to +65°C, making it suitable for full sun deployments.

$2,739^.00

Free 30-day Returns

Limit 1 per customer.

Sold by Unixlaptops

Shipped by Unixlaptops

Price alert

Add to Wish List

Best Sellers

Newegg

$2,113^.99
+ FREE SHIPPING

Meet Your Seller

Unixlaptops

See Seller Store

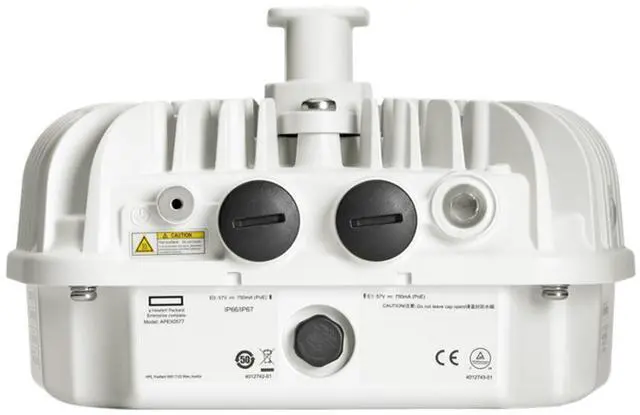

Main image of HPE Aruba Networking AP-577 Dual Radio 2x2/4x4 802.11ax Integ Directional Ant Outdoor Access Point | R4H23A

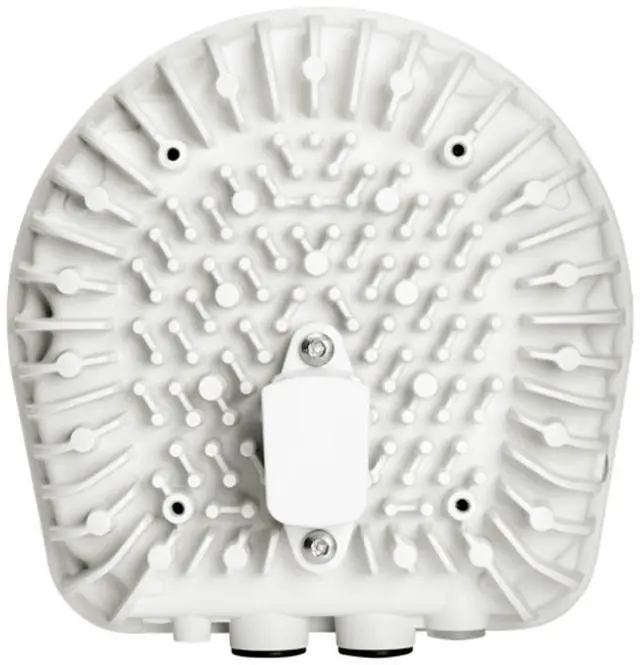

Alt view image 2 of 4 - HPE Aruba Networking AP-577 Dual Radio 2x2/4x4 802.11ax Integ Directional Ant Outdoor Access Point | R4H23A

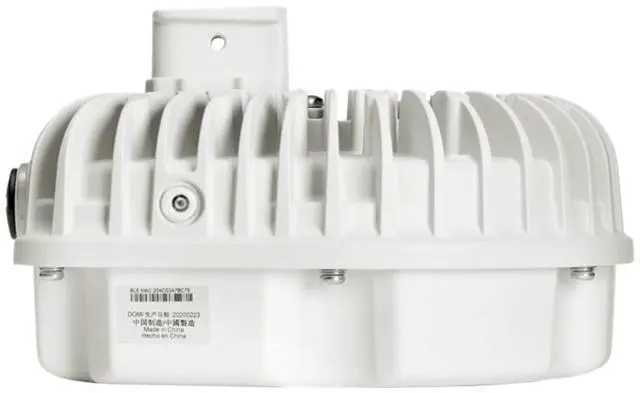

Alt view image 3 of 4 - HPE Aruba Networking AP-577 Dual Radio 2x2/4x4 802.11ax Integ Directional Ant Outdoor Access Point | R4H23A

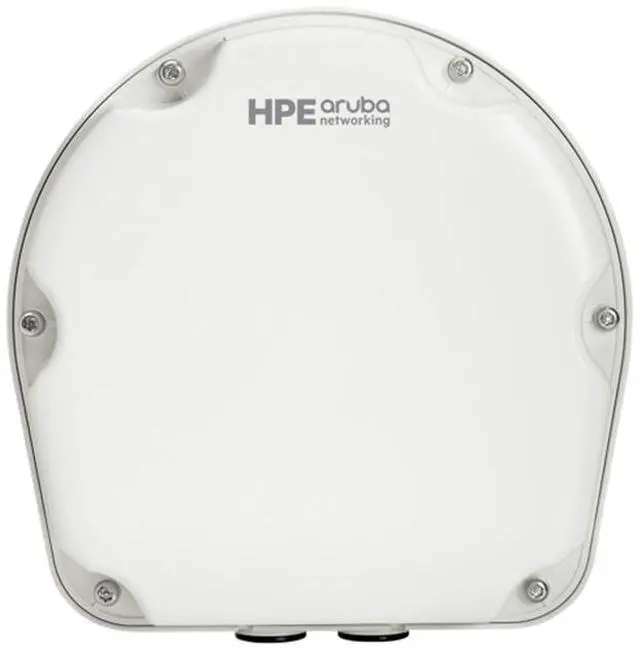

Alt view image 4 of 4 - HPE Aruba Networking AP-577 Dual Radio 2x2/4x4 802.11ax Integ Directional Ant Outdoor Access Point | R4H23A

Shop All HPE Aruba Networking Products | Visit Unixlaptops Store

HPE Aruba Networking AP-577 Dual Radio 2x2/4x4 802.11ax Integ Directional Ant Outdoor Access Point | R4H23A

Be the first to review this product...

Model: AP-577

AP-504
AP-505H
AP-514
AP-515
AP-534
AP-535
AP-567
AP-575
AP-577
AP-634
AP-675
AP-677

Weatherproof and temperature hardened, can handle temperatures ranging from -40°C to +65°C, including full sun deployments.
Supports Bluetooth 5 and Zigbee wireless protocols through an integrated IoT radio, and third-party expansion with an integrated USB port.
Target wake time (TWT) improves battery life of IoT devices.
Uses deep packet inspection to provide additional context and behavioral information that help verify devices are receiving proper policy enforcement and continuously monitor for rogue devices.

Overview

Specs

Reviews

See all Q & A

Any questions? Our AI mode will help you find out quickly.

Try me now

Aruba R4H23A AP-577 Wireless Access Point

Model
Brand	HPE Aruba Networking
Series	570 Series
Model	AP-577
Part Number	R4H23A

Details
Standards	CB Scheme Safety, cTUVus UL2043 plenum rating Wi-Fi Alliance certified 802.11a/b/g/n/ Wi-Fi CERTIFIED™ 6 (802.11ax) Wi-Fi CERTIFIED™ ac (with Wave 2 features) Passpoint® (Release 2) with HPE Aruba Networking Operating System and Instant Wi-Fi CERTIFIED Location™
WiFi Generation	Wi-Fi 6
Wireless Data Rates	Built-in 90°H x 90°V directional antennas: 5 GHz (6.3 dBi), 2.4 GHz (6.4 dBi)
Mounting Location	Outdoor
Operating Range	AP type: Outdoor Hardened, Wi-Fi 6 dual radio, 5 GHz 4x4 MIMO and 2.4 GHz 2x2 MIMO Software-configurable dual radio supports 5 GHz (Radio 0) and 2.4 GHz (Radio 1) 5 GHz
Max Power Consumption	Maximum power consumption: PoE powered (dual ports): 32.0W PoE powered (single port, full function): 26.1W Maximum power consumption in idle mode: 14.0W (single PoE) or 16.0W (dual PoE) Maximum power consumption in deep-sleep mode: 2.9W (single PoE) or 3.9W (dual PoE)

Environmental
Compliance	FCC/ISED CE Marked RED Directive 2014/53/EU EMC Directive 2014/30/EU Low Voltage Directive 2014/35/EU IEC/EN/UL 62368-1 EN 60601-1-1, EN60601-1-2 Railway Certs: EN 50155:2017-Railway Applications EN 50121-1:2017-Railway EMC EN 50121-3-2-Railway EMC EN 50121-4:2016-Railway Immunity IEC 61373 ed2:2008-Railway Shock and Vibration

Dimensions & Weight
Dimensions	23x22x13 cm
Weight	2.1 Kg
