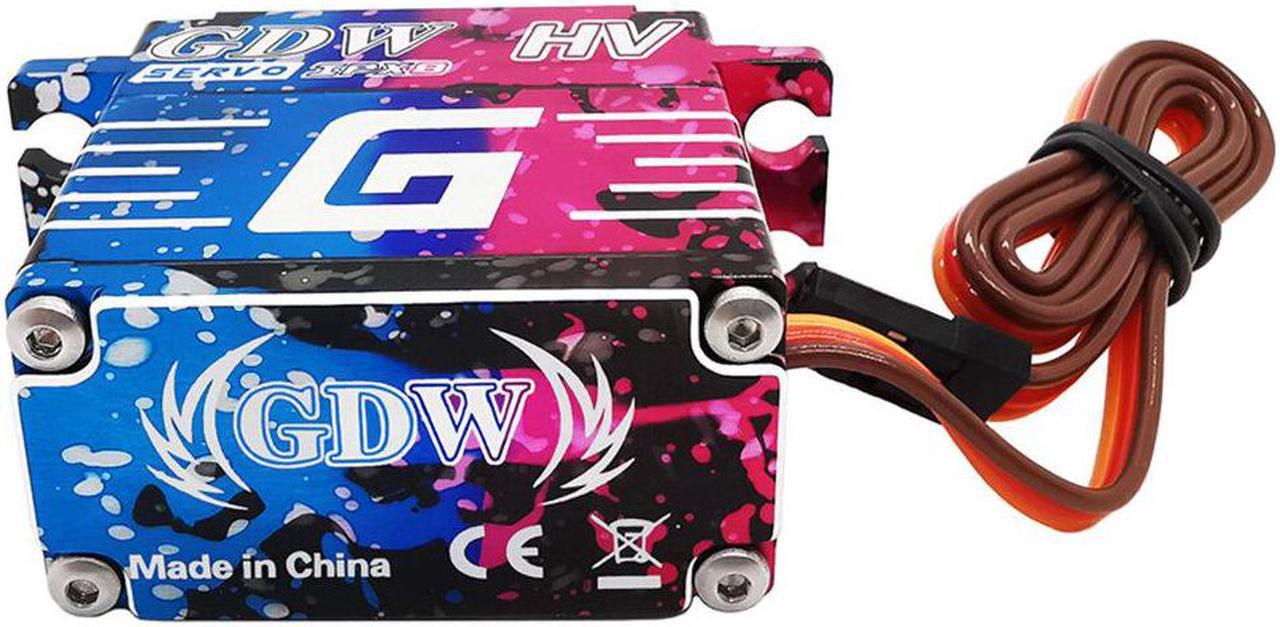

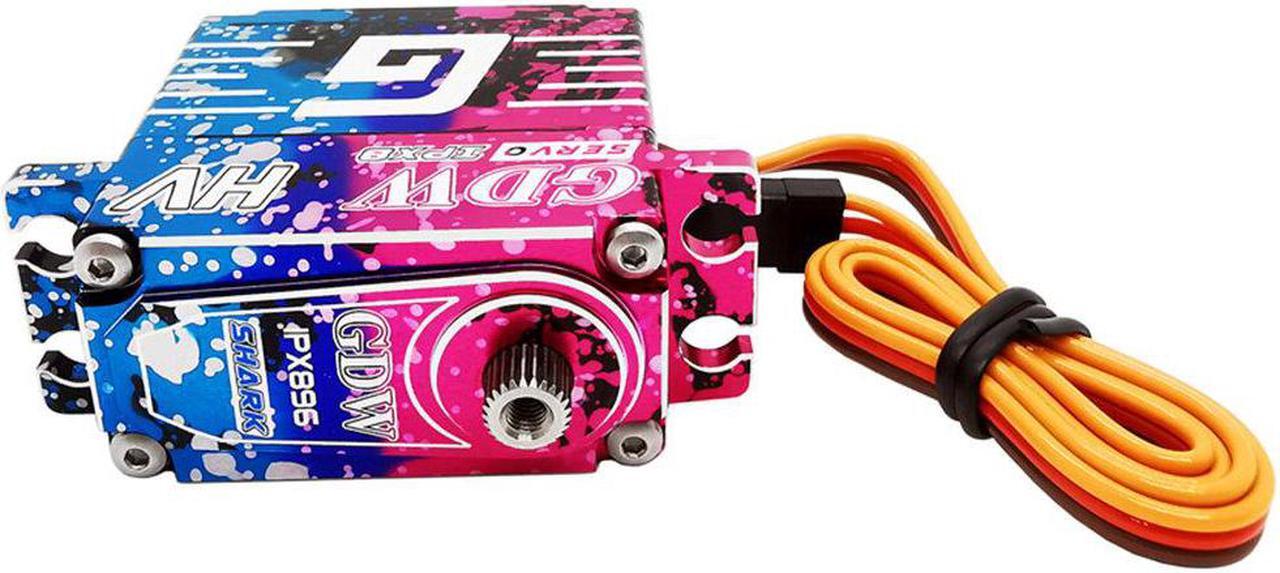

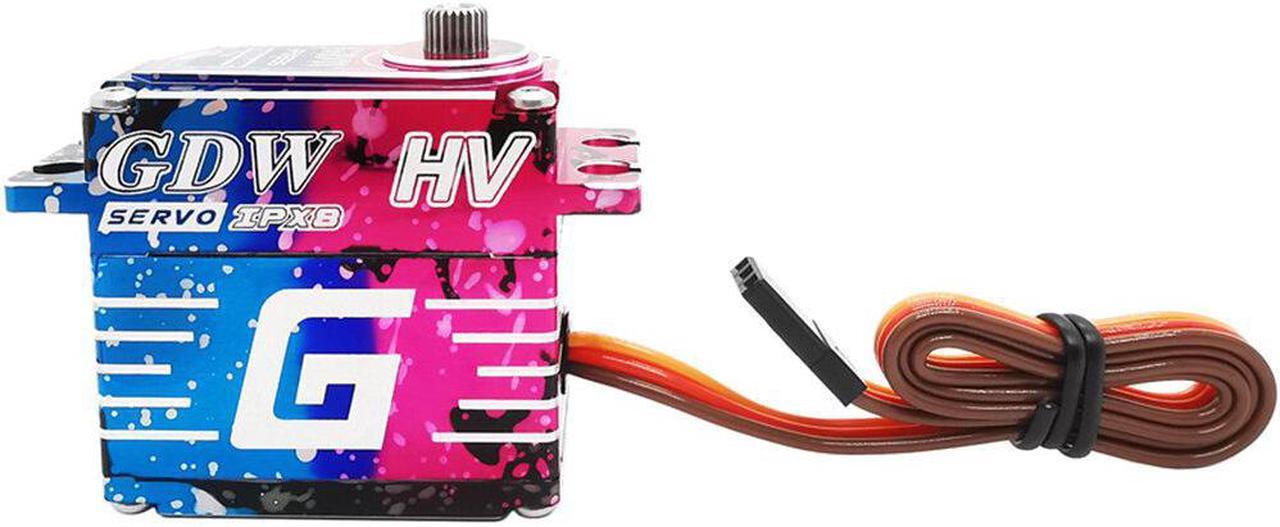

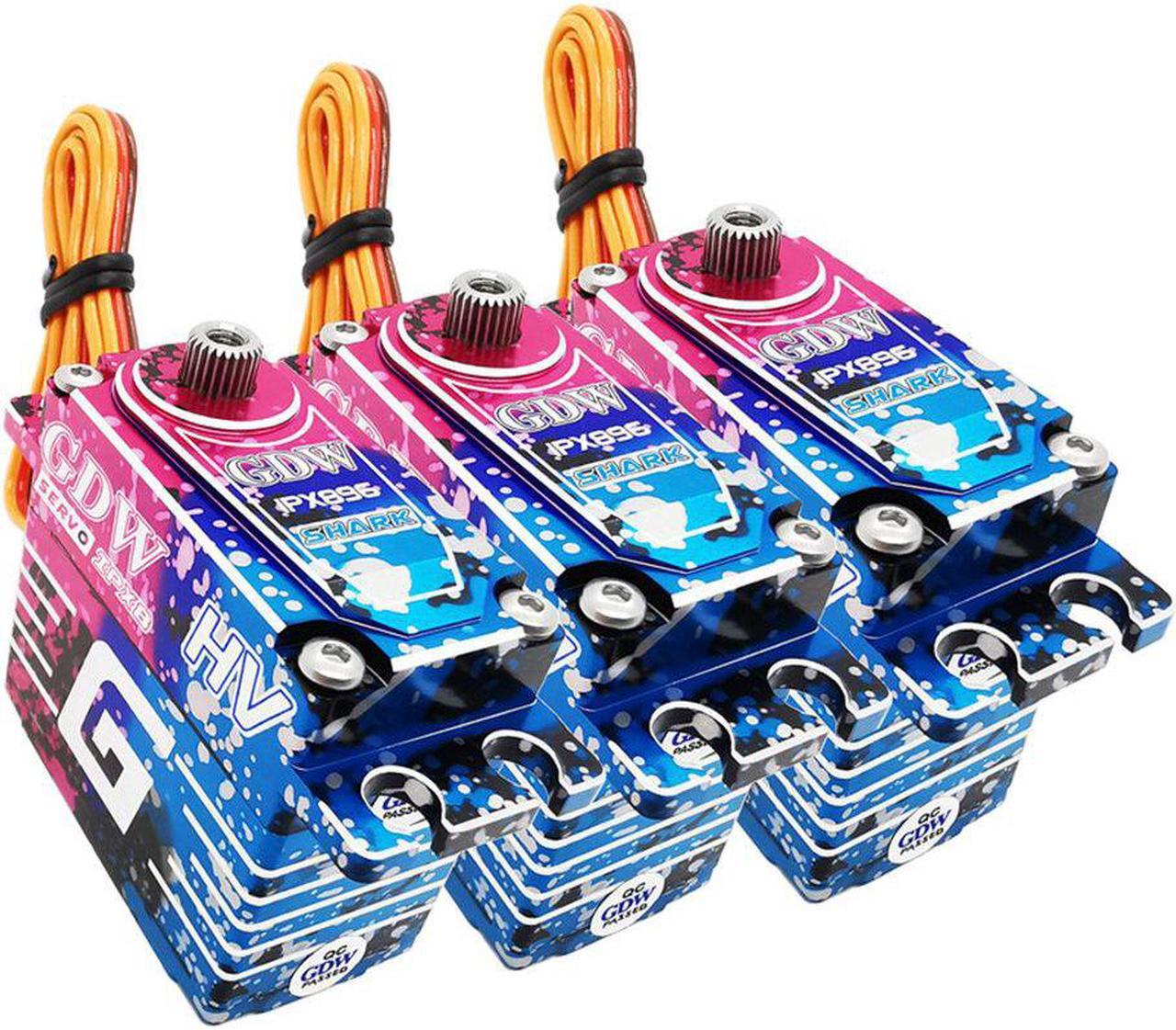

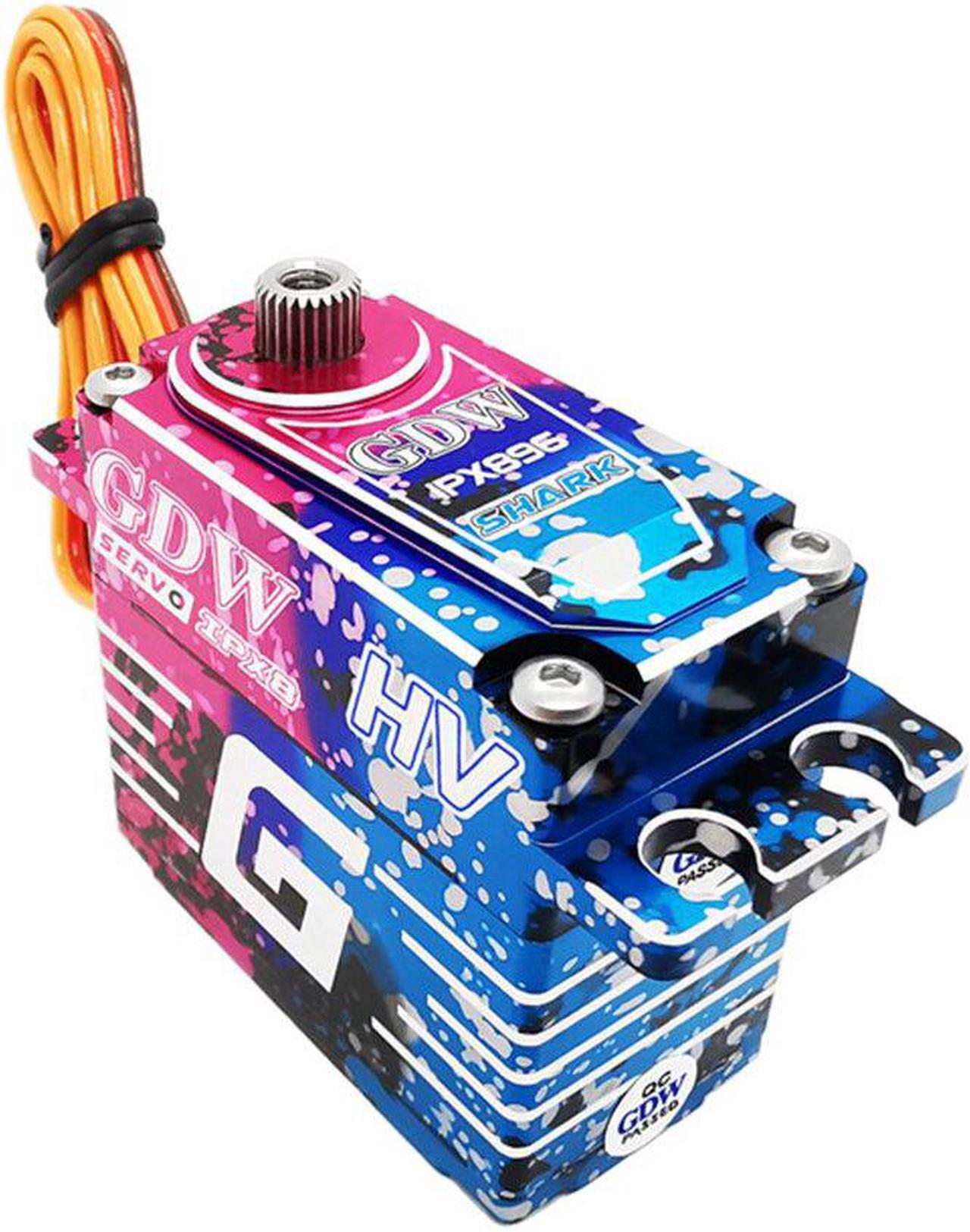

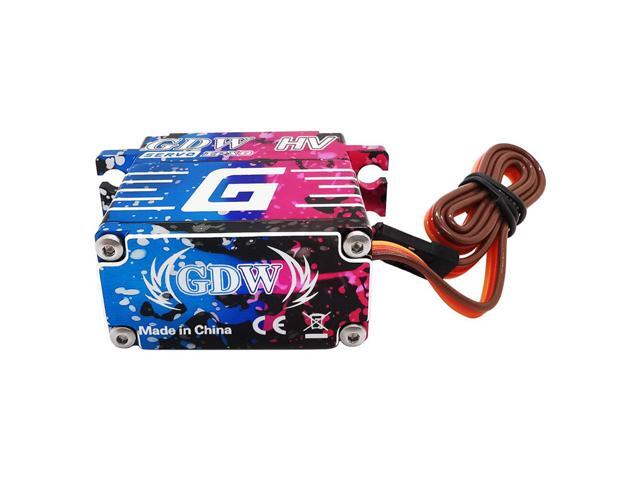

IPX896 Shark 43KG 120° / 180° Steel Gear Brushless Waterproof Digital Servo For RC Models RC Car Robot
- Model:120 degree
+
+
Overview
Specs
Reviews
?
Description:
Brand:
Product: IPX896 Shark Digital Servo
Operation Voltage Range: 4.8V up to 8.4V
Operation Temperature Range: -10C° up to +60C°
Working frequency: 1520us/333Hz
Motor Type: Brushless motor 17*18mm
Potentiometer Type: Japan noble 220°
Chip type: Digital
Weight: 88±1g
Gear Material: Steel gear
Horn Gear Spline: 25T F5.9mm
Wire length: 380±5mm
Wire Diameter: 0.3mm²
Number of wire cores: 60
Bench tests reported values
Test Voltage
6.0V
7.4V
8.4V
Speed
0.13sec/60°
0.11sec/60°
0.09sec/60°
Torque
32Kg.cm
38Kg.cm
43Kg.cm
Fast continuous operating current
700mA
800mA
900mA
Stall current
4800mA
5300mA
6000mA
Dead Band Width
2u
Package Include:
1*
IPX896 Shark Digital Servo
