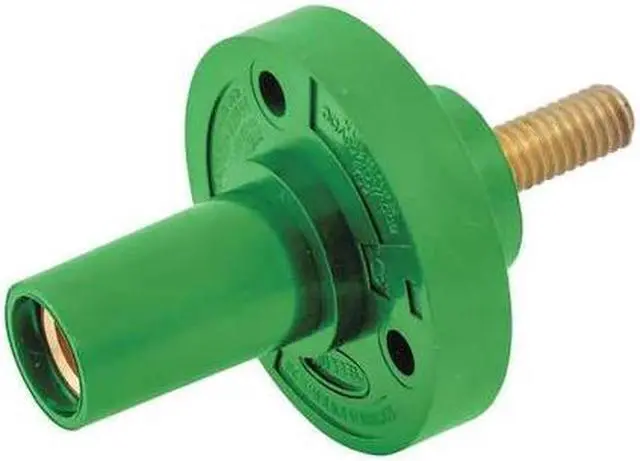

HUBBELL WIRING DEVICE-KELLEMS HBL15FRSGN Recpt,Green,Female,Threaded Stud,150 A

The HUBBELL Receptacle, Stud, Green, Female, Taper is a single pole device suitable for use in industrial settings where temporary electrical power distribution is needed. This female receptacle includes a threaded stud termination and is compatible with Series 15 devices. It accommodates wire sizes from #8 to #2 AWG and supports up to 150 amps at 600V AC or 250V DC. The housing is constructed from thermoplastic elastomer; intended for use in indoor dry locations unless otherwise protected.

Key Features of the HUBBELL Receptacle, Stud, Green, Female, Taper:

• Amperage Rating: Rated for up to 150 A (AC/DC)


• Voltage Rating: Supports up to 600V AC or 250V DC


• Connection Type: Threaded stud terminal connection with through hole mounting style


• Compatible Series: Designed for use with Series 15 single pole devices


• Contact/Conductor Material: Brass contacts and conductor material


• NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements


• Standards Compliance: UL Listed; cUL Listed; ANSI/NFPA 70; National Electric Code (NEC)


• Cable Accommodation: Accepts #8 to #2 AWG wire sizes (#4 AWG Type SC/PPC recommended)


• Pole Configuration: Single-pole device with straight connection orientation
