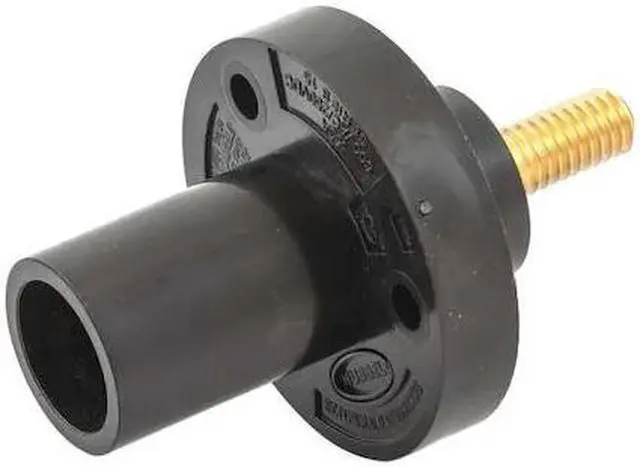

HUBBELL WIRING DEVICE-KELLEMS HBL15MRSBK Receptacle,Single Pin,Male,Blk,Taper

The HUBBELL Single Pin Male Receptacle is a single pole device intended for use in industrial settings where temporary electrical power distribution is needed. This receptacle includes a straight connection orientation and threaded stud termination, and is compatible with Series 15 devices. It accommodates wire sizes from #8 to #2 AWG and is rated for up to 150 amps at 600V AC or 250V DC. The housing is constructed with a thermoplastic elastomer housing; suitable for indoor dry locations unless otherwise protected.

Key Features of the HUBBELL Single Pin Male Receptacle:

• Amperage Rating: Rated for 150 A maximum (AC/DC)


• Voltage Rating: Supports up to 600V AC or 250V DC


• Cable Range: Accepts #8 to #2 AWG wire sizes


• Connection Type: Threaded stud terminal connection with through hole mounting style


• Material Construction: Brass conductor/contact material; thermoplastic elastomer housing


• NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements


• Standards Compliance: UL Listed, cUL Listed, ANSI/NFPA 70 (NEC), UL Enclosure Types listed


• Pole Configuration: Single pole (1-pole) design; male inlet style with taper nose end type
