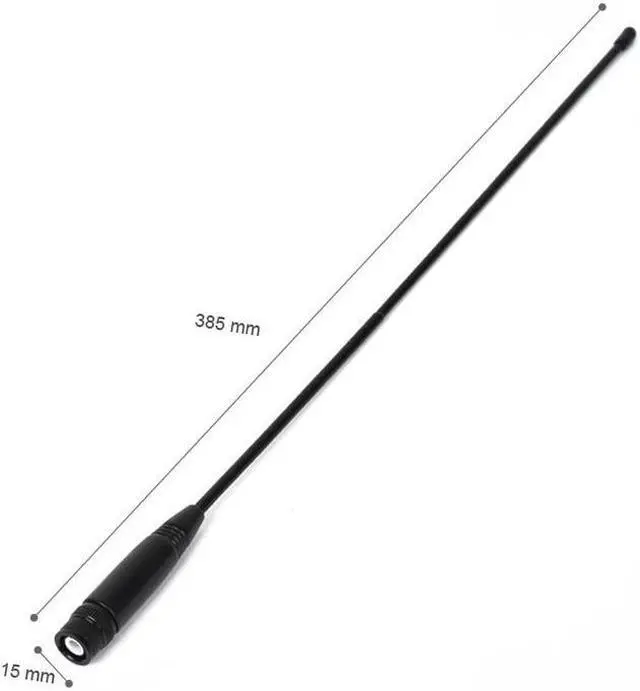

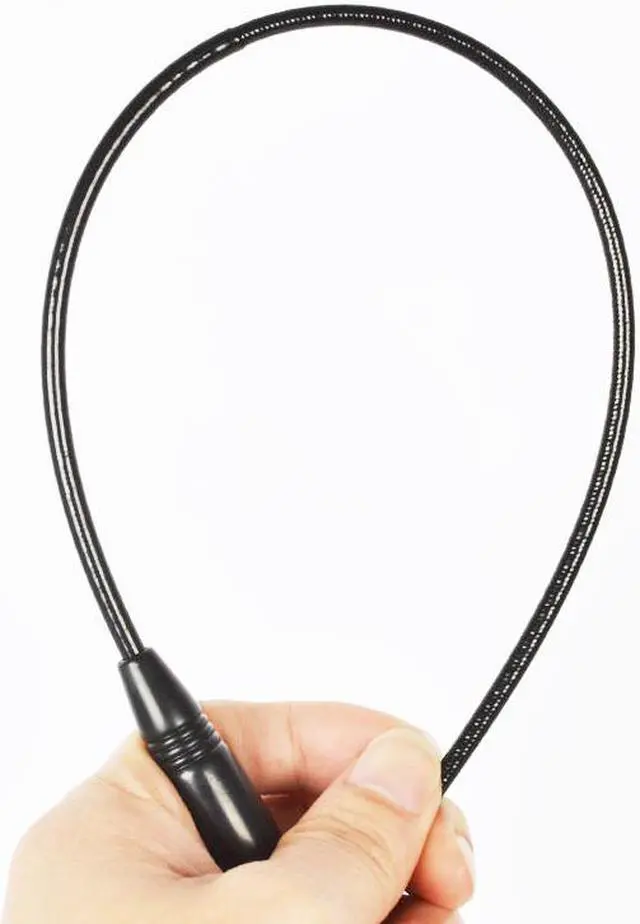

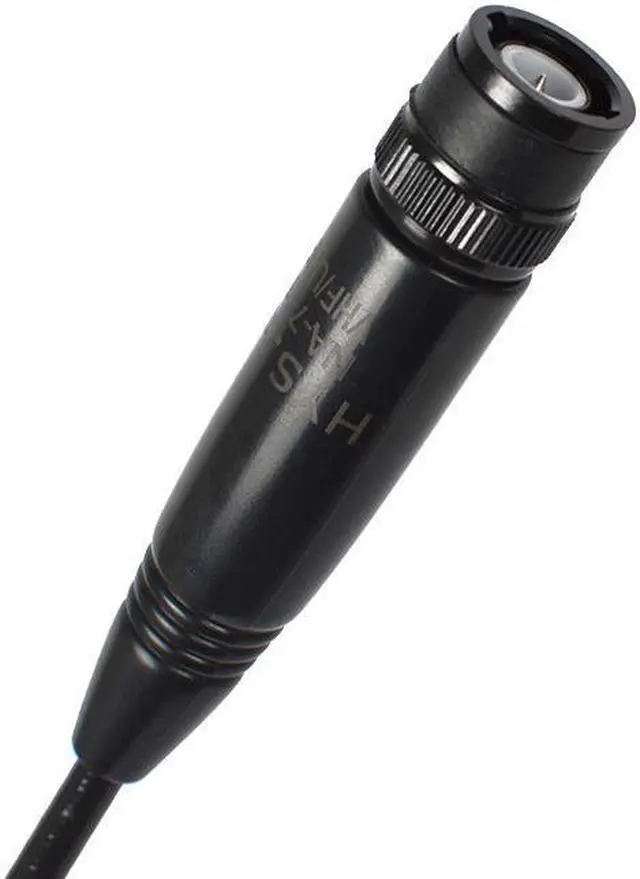

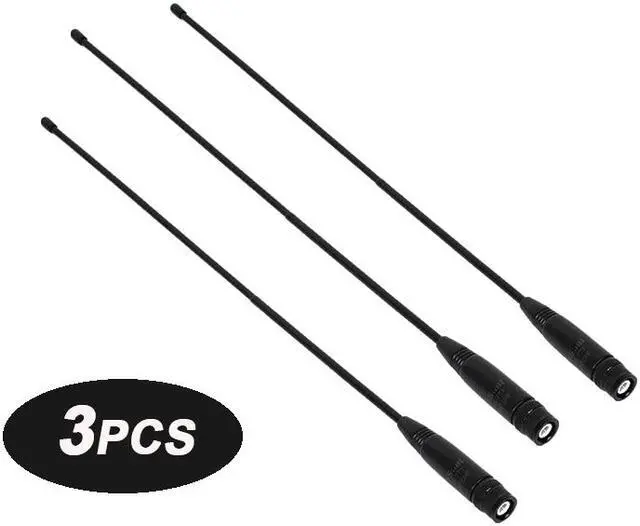

HYS 3*NA-771 Dual Band VHF/UHF 2m/70cm BNC Handheld Ham Radio Antenna for Kenwood Icom
- Frequency Range: 144MHZ&430MHZ
- Gain: 2.15 dB/3.0 dB
- Connector : BNC
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ELECTRICAL SPECIFICATIONS
Frequency Range: 144MHZ&430MHZ
Band width: MHz
Impedance: 50
VSWR: <1.5
Gain: 2.15 dB/ 3.0 dB
Polarization: Vertical
Maximum Power Input-watts: 10W
Radiation: Omni
Radiation: Direct Ground
MECHANICAL SPECIFICATIONS
Termination: BNC
Radome material: PLASTIC CEMENT
Radome Color: BLACK
Compatible with Two-way handheld radio:
Kenwood: TK100, TK200, TK220, TK300, TK310, TK320, TK308, TH28A, TH42AT
Icom: IC-V8, IC-V80, IC-V82, IC-U82, IC-W32, IC-V85
Motorola: HT440, HT90: Maxon HR, CP500, CP520, 1015
Vertex Standard: 734, 834, HR146, HX300, HX320, HX400, CU32, CP/CS 5015, 0420
Wilson: HH152, HH154, HH156, HH462, HH464
Uniden: HH979
Notice: If you have any problem aout this item, feel free to contact us, thank you!
Packing include:
1*HYS NA-771 BNC Antenna
Frequency Range: 144MHZ&430MHZ
Band width: MHz
Impedance: 50
VSWR: <1.5
Gain: 2.15 dB/ 3.0 dB
Polarization: Vertical
Maximum Power Input-watts: 10W
Radiation: Omni
Radiation: Direct Ground
MECHANICAL SPECIFICATIONS
Termination: BNC
Radome material: PLASTIC CEMENT
Radome Color: BLACK
Compatible with Two-way handheld radio:
Kenwood: TK100, TK200, TK220, TK300, TK310, TK320, TK308, TH28A, TH42AT
Icom: IC-V8, IC-V80, IC-V82, IC-U82, IC-W32, IC-V85
Motorola: HT440, HT90: Maxon HR, CP500, CP520, 1015
Vertex Standard: 734, 834, HR146, HX300, HX320, HX400, CU32, CP/CS 5015, 0420
Wilson: HH152, HH154, HH156, HH462, HH464
Uniden: HH979
Notice: If you have any problem aout this item, feel free to contact us, thank you!
Packing include:
1*HYS NA-771 BNC Antenna
