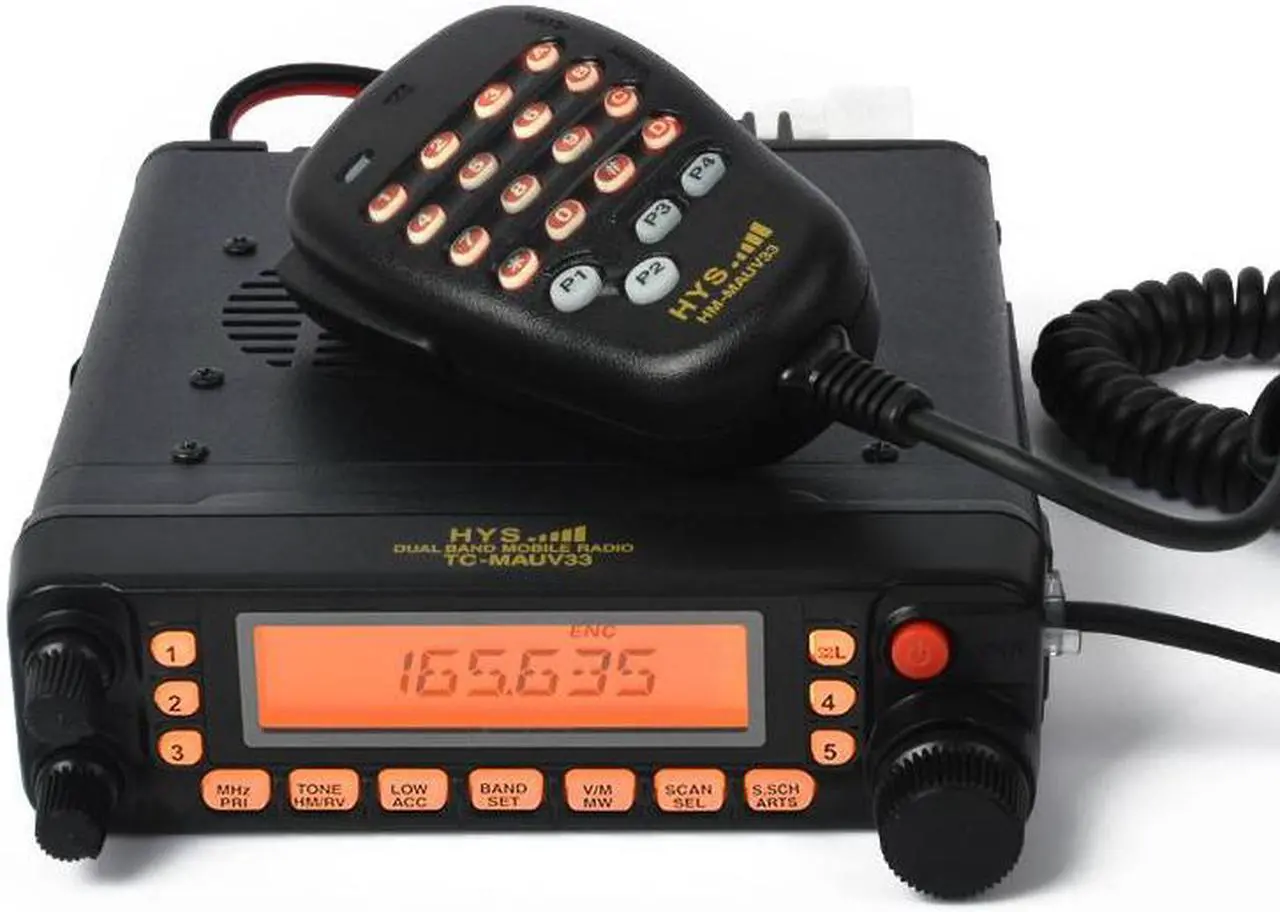

HYS TC-MAUV33 Mobile Radio FM transceiver Dual-Band Amateur Ham Radio 50W/45W Remove panel VHF/UHF Transceiver

Product Description:

Dual Band TX, Five Band RX, AM+FM RX

VFO/Channel/Priority/Programmable Scan

Dual Band Watch

Smart Search Function

Support Multi-scan Modes

Split Type Panel

Large Screen Display

Internet Connecting

Communication Range Auto Alert

MIC Auto Gain Control

Automatic Repeater Shift

Support DTMF/1750Hz Encode

Weather Broadcast Channel Alert

General Specification:

Frequency Range:

RX: 108.000 - 520.000 MHz & 700.000 - 999.990 MHz;

TX: 136.000 - 174.000 MHz & 400.000 - 470.000 MHz

Channel Capacity: 1105

Channel Spacing: 5/10/ 12.5 /15/20/25/50/100 KHz

Operating Voltage: DC 13.8V 15%

Operating Temperature: -20~ +60

RF Power: VHF: 50/20/10/5W; UHF: 45/20/10/5W

Frequency Modulation: F3E, F2D, F2A

Maximum Deviation: 5KHz (Wide Band), 2.5KH z (Narrow Band)

Sensitivity: 0.8 uV (10dB SINAD, 108-137 MHz)

0.2 uV (12dB SINAD, 136-174 MHz & 400-470 MHz)

Maximum AF Output: 2W (8O, 10% THD)

Dimensions(W×H×D): 140mm * 42mm *168mm

Weight: 1kg
1. Large backlit LCD display, easier operation

2. stable RF power (50W VHF / 45W UHF)


3. Mobile radio can also use in evil environment (Reliability)

4. 5pp frequency stability (+ 14 ° F to + 140 ° F / -10 ° C to + 60 ° C)

5.1000 store channel, for professional users


6. Mobile radio specific energy-saving circuit design, save the vehicle battery consumption

Note: The price is not including the USB programming cable. If you need it, pls contact with us before purchasing.

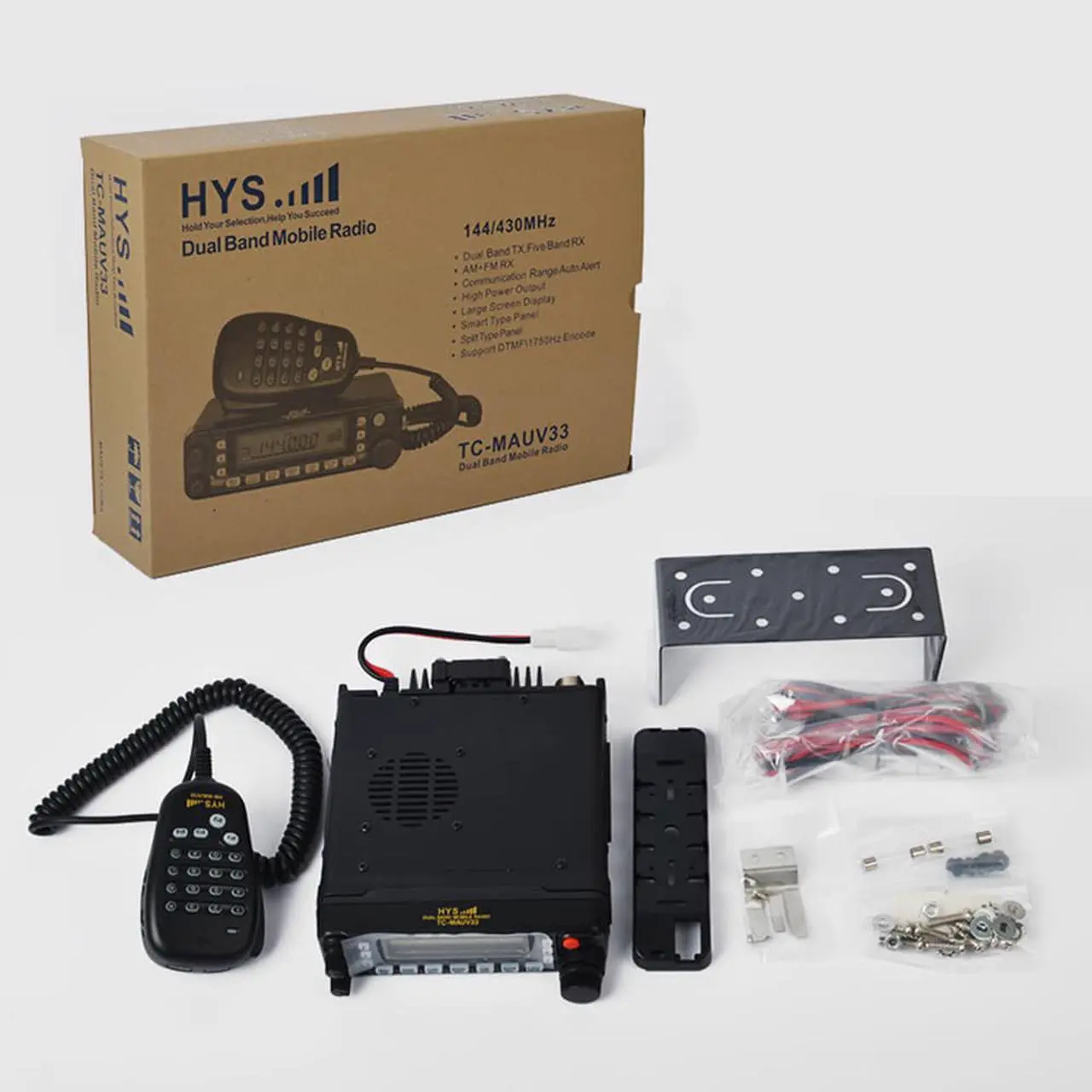

Package includes:

1 x TC-MAUV33 Mobile radio

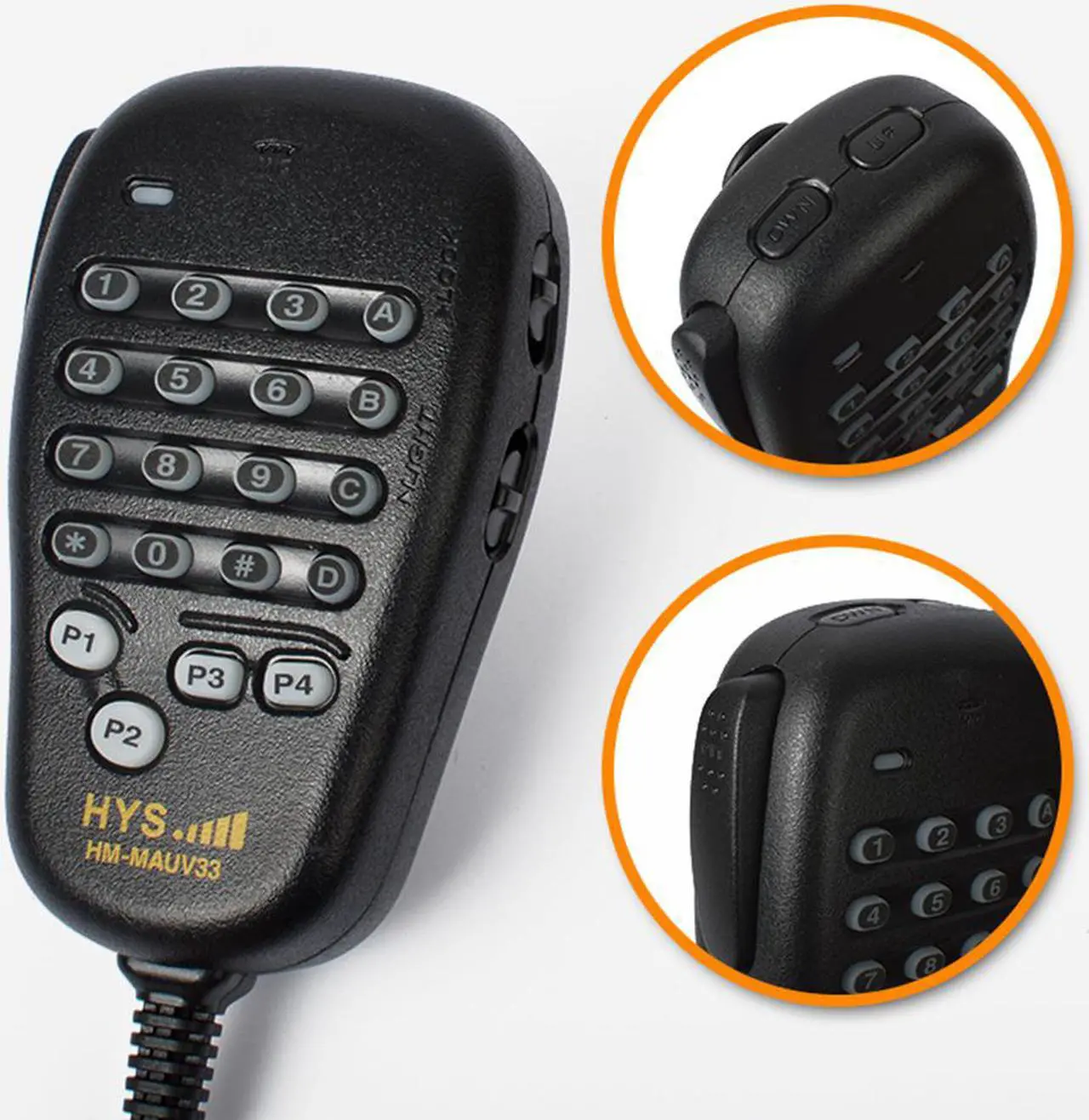

1 x Microphone

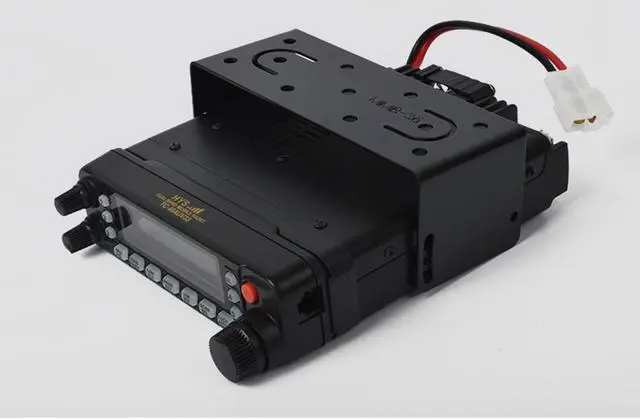

1 x Mobile Mounting Bracket

1 x DC Power Cord with Fuse

2 x Spare Fuse 15 A

1 x English Operating Manual
