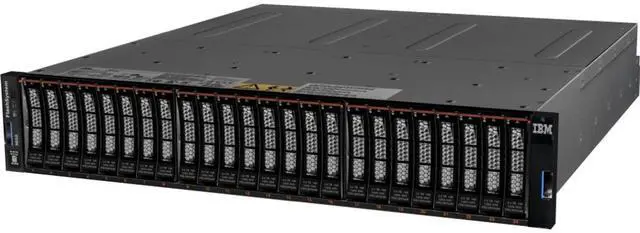

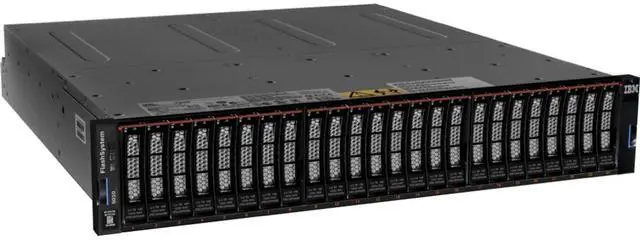

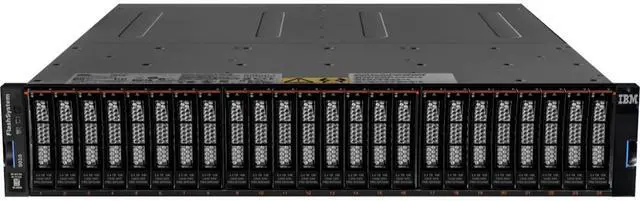

IBM FlashSystem 5015 All Flash 40TB - 2U

Be the first to review this product...
  • FlashSystem 5015 All Flash 13TB
  • FlashSystem 5015 All Flash 30TB
  • FlashSystem 5015 All Flash 40TB
  • FlashSystem 5015 NL-SAS HDD 140TB
  • FlashSystem 5015 NL-SAS HDD 70TB
  • FlashSystem 5015 SAS HDD 20TB
  • FlashSystem 5015 SAS HDD 45TB
  • IBM Storage Area Networks (SAN) Solutions
  • 14 x 3.84TB SAS SSD
  • Onboard 1Gb iSCSI
  • 64GB Cache
  • Fully redundant, hot-swappable fans and power supplies
  • 2 x 4-port 16Gb Fiber Cards
  • Dual (Active/Active) Controller
  • 8 x 5m OM3 Fiber Cables (LC)
  • Standard 19-inch Rack Support
  • Flash Copy
  • Easy Tier
  • Remote Mirroring
Please note that this product is non-returnable and non-refundable.
+
+
Specs
Reviews
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the IBM 5015 All Flash 40TB

General
Brand IBM
Series FlashSystem
Model 5015 All Flash 40TB
Form Factor 2U Rackmount
Workload Storage Server
Expansion Bays
2.5" Bays Drive Configuration: 14 x 3.84TB SAS SSD
Host Connections: 1GB iSCSI, 16GB Fiber Channel
Drives Supported: 2.5-inch flash drives, SFF 2.5-inch disk drives, LFF 3.5-inch disk drives
Connectivity Supported: 1Gb ISCI, 10Gb ISCSI, 16Gb Fiber Channel, 12Gb SAS
Max IOPs: 400K IOPs
RAID levels: Distributed RAID 1, 5 and 6
Min latency: Under 70µs
Max bandwidth: 8GB/s
Features
Features Data Reduction Pools (Compression, DeDuplication, Thin Provisioning, UNMAP): No
Hardware Assisted Compression: No
Encryption: No
VMWare Integration: Yes
IBM Safeguarded Copy: No
CyberVault Support for Cyber Resiliency: No
Remote Replication (Synchronous Metro Mirror, Asynchronous Global Mirror): Yes
Hyperswap High Availability: No
NVMe Flash: No
FC-NVMe Host Connections: No
Easy Tier AI-driven automated tiering: Yes
Storage Class Memory: No
Transparent Data Migration: Yes
Red Hat OpenShift Container Integration: Yes
Scale-out Clustering: No
Heterogenous Support for >500 storage systems: No
Metro Mirror (synchronous): Yes
Global Mirror (asynchronous): Yes
IBM Spectrum Virtualize Software: Yes
Snapshots: Yes
Maximum drives supported: Maximum of 392 drives per system
Dual Controller: Yes
Cache per control enclosure: 32GB or 64GB
Cache per clustered system: N/A
Cores per control enclosure: 4
Cores per clustered system: N/A
Maximum standard expansion enclosure capacity: Up to 10 standard expansion enclosures per controller
Maximum high density expansion enclosure capacity: Up to 4 high-density expansion enclosures per controller
Redundant, hot-swappable fans: Yes
Redundant, hot-swappable power supplies: Yes
Standard 19-inch rack support: Yes
