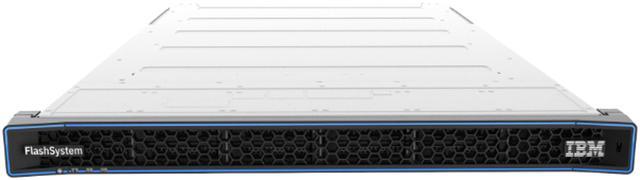

IBM FlashSystem 5300 All Flash 28TB Value Bundle
- 6 x 4.8TB FlashCore Module (FCM) 4
- 28TB Raw Capacity
- 14TB Usable Capacity
- 28TB Effective with 2:1 Compression
- Onboard 25/10Gb iSCSI
- 256GB Cache
- 2 x 4-port 32Gb Fiber Cards
- IBM Patented FlashCore Module (FCM) 4 Technology
- 2:1 Hardware Assisted Data Reduction with no performance impact
- Available Hardware Assisted Encryption
- Fully inclusive software
- FlashCopy and Remote Mirror as standard
- 24 cores of processing power in 1 Rack Unit
- Dual (Active/Active) Controller
- Fully redundant, hot-swappable fans and power supplies
- Standard 19-inch Rack Support
+
+
Learn more about the IBM 5300 All Flash 28TB Value Bundle
| Brand | IBM |
|---|---|
| Series | FlashSystem |
| Model | 5300 All Flash 28TB Value Bundle |
| Form Factor | 1U Rackmount |
| Workload | Storage Server |
| 2.5" Bays | Capacity: 28TB Cache: 256GB Drive Configuration: 6 x 4.8TB FlashCore Module Host Connections: 25/10Gb iSCSI, 32Gb Fiber Channel Drives Supported: 2.5-inch flash drives, SFF 2.5-inch disk drives, LFF 3.5-inch disk drives, IBM FlashCore Modules. Storage Class Memory Connectivity Supported: 25/10Gb ISCSI, 10Gb ISCSI, 32/64Gb Fiber Channel Max IOPs: 2.2M IOPs RAID levels: Distributed RAID 1, 5 and 6 Min latency: Under 50µs Max bandwidth: 28.6 GB/s |
|---|
| Features | Data Reduction Pools (Compression, DeDuplication, Thin Provisioning, UNMAP): Yes Hardware Assisted Compression: Hardware Based Encryption: Yes VMWare Integration: Yes IBM Safeguarded Copy: Yes CyberVault Support for Cyber Resiliency: Yes Policy Based Repliction: Yes NVMe Flash: Yes FC-NVMe Host Connections: Yes Easy Tier AI-driven automated tiering: Yes Storage Class Memory: Yes Transparent Data Migration: Yes Red Hat OpenShift Container Integration: Yes Scale-out Clustering: Yes Heterogenous Support for >500 storage systems: Yes IBM Spectrum Virtualize Software: Yes Snapshots: Yes Maximum drives supported: 428 per control enclosure; 856 per clustered system Dual Controller: Yes Cache per control enclosure: 64GB, 256GB or 512GB Cache per clustered system: 1.02 TB Cores per control enclosure: 24 Cores per clustered system: 48 Maximum standard expansion enclosure capacity: Up to 12 standard expansion enclosures per controller Maximum high density expansion enclosure capacity: Up to 4 high-density expansion enclosures per controller Redundant, hot-swappable fans: Yes Redundant, hot-swappable power supplies: Yes Standard 19-inch rack support: Yes |
|---|
| First Listed on Newegg | July 11, 2025 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 1 year
- Limited Warranty period (labor): 1 year
- Read full details
Return Policies
- Return for refund until: January 31, 2027
- Return for replacement until: January 31, 2027
- This item is covered by Newegg.com's Extended Holiday Return Policy.
- Read full return policy for details.
We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-800-426-4968
- Support Website
- View other products from IBM
LOADING...
The IBM FlashSystem 5300 All Flash 28TB Value Bundle is a 1U enterprise storage system with six 4.8TB FlashCore Modules, 256GB cache, and 14TB usable capacity. It suits organizations seeking compact, high-performance shared storage with hardware-assisted data reduction and built-in storage software.
Recommended For
- IT teams consolidating virtual machines and business databases onto shared storage can use the FlashSystem 5300 as a compact, dual-controller all-flash SAN; an independent review tested it with a database-like mixed workload and reported strong random-read and sequential-read results.
- Organizations with an existing Fibre Channel or dedicated iSCSI SAN can use this bundle to serve shared block storage to connected servers; its 32Gb Fibre Channel and 25/10Gb iSCSI interfaces suit data-center host connectivity rather than direct-attached desktop storage.
- Infrastructure teams with limited rack space that still need enterprise storage services can consider it for a 1U deployment with redundant controllers, snapshots, remote mirroring, and encryption options.
- Businesses refreshing primary storage on a constrained footprint can assess the 5300 as an entry-level enterprise array; IBM positions the model for organizations with demanding workloads and resource-constrained data centers.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | Storage-server workloads in a 1U rackmount deployment |
| Capacity And Drive Configuration | 28TB capacity with six 4.8TB FlashCore Modules |
| Cache And Processing | 256GB cache and 24 cores per control enclosure |
| Host Connectivity | 25/10Gb iSCSI and 32Gb Fibre Channel host connections |
| Storage Performance | Up to 2.2M IOPS and 28.6 GB/s bandwidth, with latency under 50µs |
| Storage And Expansion | Supports 2.5-inch flash drives, SFF 2.5-inch and LFF 3.5-inch disk drives, FlashCore Modules, and Storage Class Memory; up to 428 drives per control enclosure or 856 per clustered system, with support for standard and high-density expansion enclosures |
| Data Protection And Reduction | Distributed RAID 1, 5, and 6; data reduction pools with compression, deduplication, thin provisioning, and UNMAP; encryption, snapshots, IBM Safeguarded Copy, and policy-based replication |
| Software And Platform Integration | IBM Spectrum Virtualize software with VMware and Red Hat OpenShift integration, Easy Tier automated tiering, transparent data migration, CyberVault support, scale-out clustering, and heterogeneous support for more than 500 storage systems |
| Controller And Reliability | Dual controllers with redundant, hot-swappable fans and power supplies |
| Rack Compatibility | Supports standard 19-inch racks |
| Model Identifiers | IBM FlashSystem 5300 All Flash 28TB Value Bundle |
