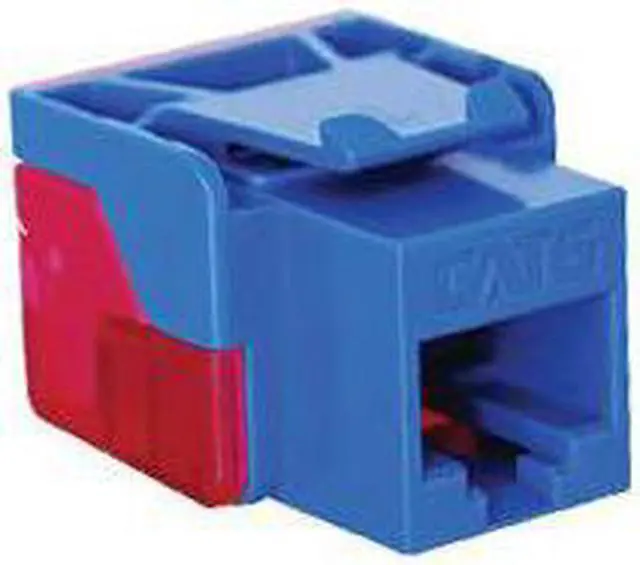

ICC CAT6JACK-BL IC1078L6BL - CAT6 JCK BLUE

Overview: ICCs EZ; Category 6 modular jacks, RJ-45 keystone jacks, is 8-position 8-conductor (8P8C) is engineered to provide superior performance and reliability, supporting Gigabit Ethernet applications and beyond. The advanced printed circuit board design is tuned to provide optimum signal quality with maximum headroom, allowing it to exceed TIA/ EIA Category 6 performance standards. It offers superior signal quality and noise reduction due to its enhanced Near-End and Far-End Crosstalk cancellation and minimum return losses. The EZ; connectors flat back IDC construction offers faster installation through its straight through in-line termination design and one piece snap-on termination cap.
Feature: CAT 6 rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth PCB technology provides maximum performance and superior signal quality Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals Designed with in-line 110 IDC, in-sequence termination reducing termination time Terminate with 110 punch down tool ICACSPDT00 One piece termination cap allows for a quick and easy termination Includes an integrated TIA-568A/ B color wiring diagram Backwards compatible to all lower rated category components Compatible with all ICC configurable faceplates, inserts, surface mount boxes, and blank patch panels Compatible with all ICC furniture faceplates, Elite bezels, and Elite surface mount boxes Used with ICC Category 6 patch cords Available in almond, black, blue, gray, green, ivory, orange, purple, red, white, and yellow Installation instructions included Exceeds ANSI/ TIA-568-C requirements for permanent, channel link and component performances UL 1863
Compliant Specification: 1.
CAT 6 MODULE: A.
ELECTRICAL: -CURRENT
RATING: 1.5 AMPS -INSULATION
RESISTANCE: 500 MOHMS MIN.
-CONTACT RESISTANCE: 20 MOHMS MAX.
-DC RESISTANCE: 0.1 OHM MAX -TRANSMISSION PERFORMANCE EXCEEDS CATEGORY 6 CONNECTING HARDWARE REQUIREMENTS SPECIFIED IN ANSI/ TIA-568-C. 2 WHEN USED WITH COMPATIBLE HORIZONTAL CABLE B.
MECHANICAL: -PLUG
INSERTION LIFE: 750 CYCLES MIN. -PLUG
AND JACK CONTACT FORCE: 100 GRAMS MIN. USING FCC APPROVED PLUG -PLUG
RETENTION FORCE: 30 LBS MIN.
-TEMPERATURE: -40 degs; TO 150 degs; F (-40 degs; TO 68 degs; C) C.
PHYSICALS:
-HOUSING: ABS, UL 94V-0 -JACK
WIRING: 50 MICRO INCHES OF GOLD OVER 100
MICRO INCHES OF NICKEL -CONNECTOR: INSULATION DISPLACEMENT CONNECTOR (IDC); ACCEPTS 22~24
AWG SOLID WIRE D:
COLORS:
XX: AL-ALMOND, BK-BLACK, BL, BLUE, GN-GREEN, GY-GRAY, IV-IVORY, OR-ORANGE, PR-PURPLE, RD-RED, WH-WHITE, YL-YELLOW 2.
TERMINATION CAP: A.
MATERIAL: PC, UL 94V-0 B.
COLOR: CLEAR RED Also known as -CAT6 Jack Blue-ICC IC1078L6BL - Cat6 Jck BLUE-ICC IC1078L6BL EZ Style Category 6 Modular RJ45 Connector 8P8C Blue
