Products |
|
|
|
|
|
Maximum TDP |
160 W |
200 W |
225 W |
170 W |
160 W |

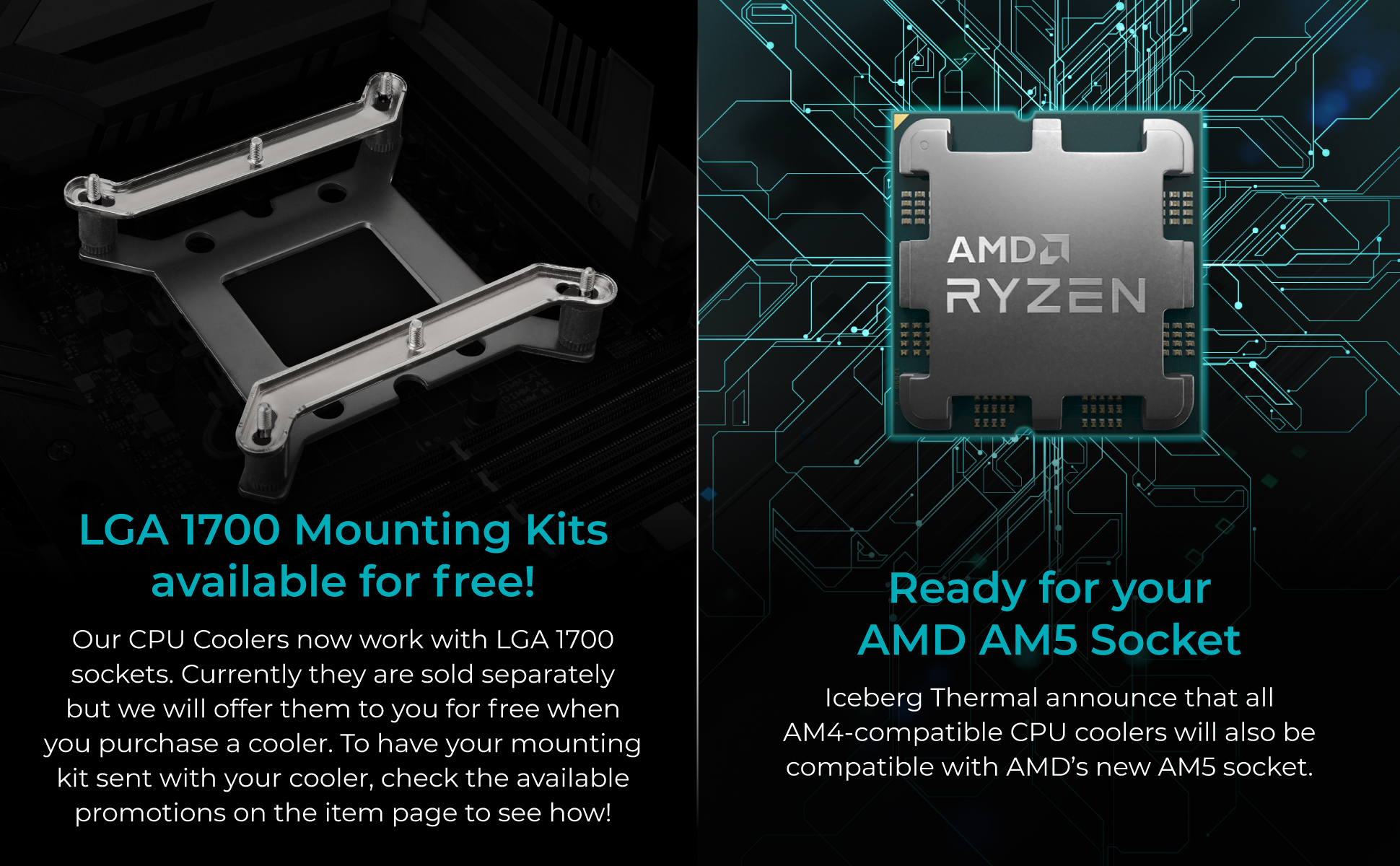

LGA 1700 Compatible |
Yes |
Yes |
Yes |
Yes |
Yes |
AM5 Compatible |
Yes |
Yes |
Yes |
Yes |
Yes |
Noise Level |
0 - 36 dBA (with Auto START/STOP) |
0 - 36 dBA (with Auto START/STOP) |
0 - 38 dBA (with Auto START/STOP) |
20.5 dBA |
20.5 dBA |
Heatpipes |
Ø 6 mm x 5 |
Ø 6 mm x 6 |
Ø 6 mm x 7 |
Direct Touch Ø 6 mm x 4 |
Direct Touch Ø 6 mm x 3 |
Fan Speed |
500 - 1850 RPM |
500 - 1850 RPM |
Dual Fans, 500 - 1850 RPM / 500 - 1600 RPM |
600 - 1200 RPM |
600 - 1200 RPM |
Lighting |
Addressable RGB |
Addressable RGB |
Addressable RGB |
- |
- |
RAM Clearance |
Infinite |
Infinite |
45 mm |
Adjustable, 35 - 56 mm |
Adjustable, 35 - 56 mm |

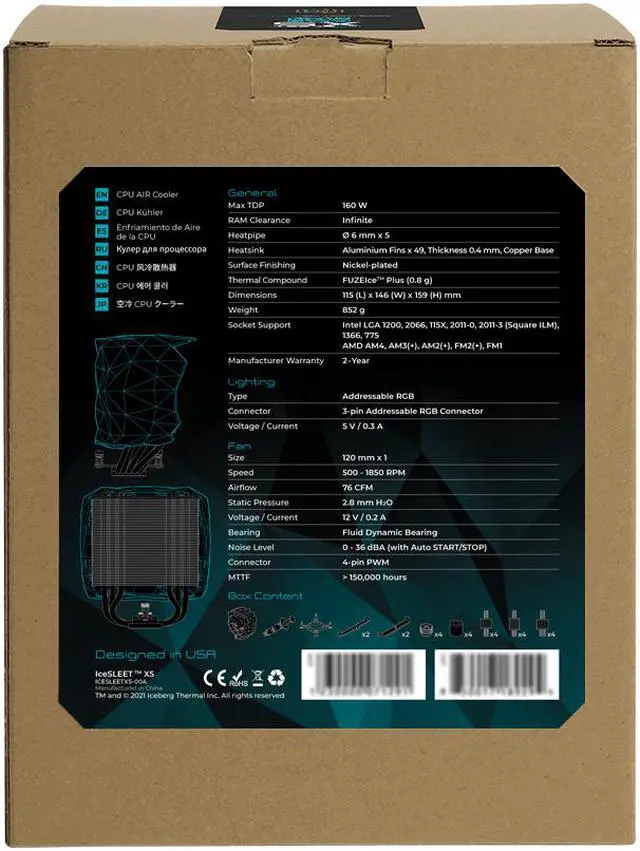

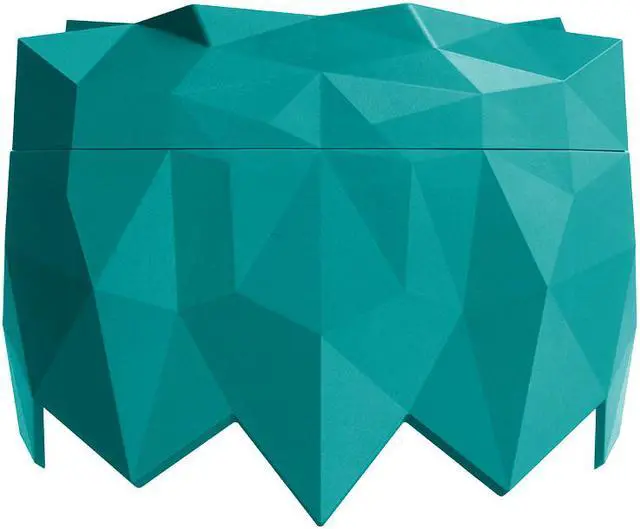

IceSLEET X5 Technical Specifications
Max. TDP |
160 W |
RAM Clearance |
Infinite |

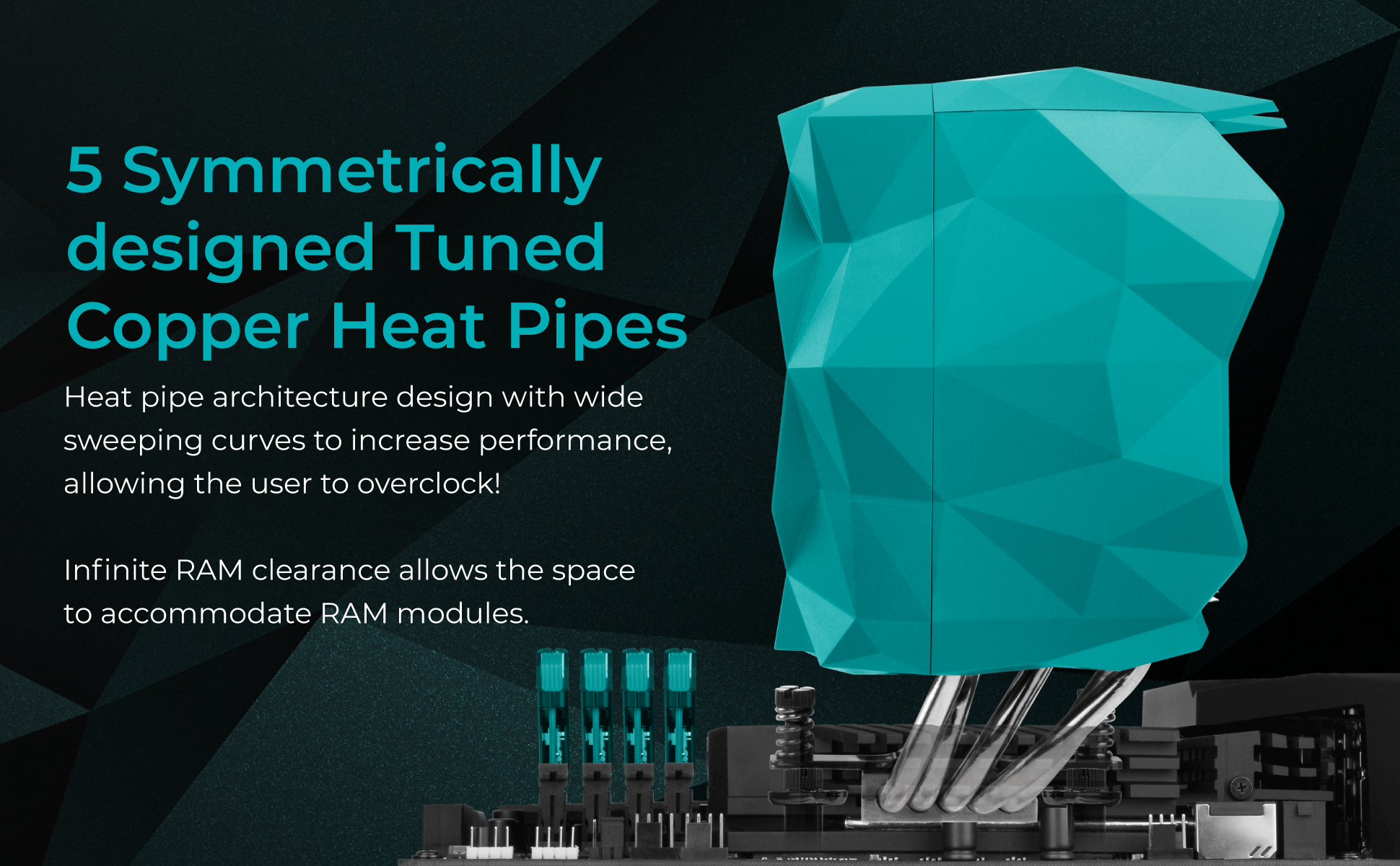

Heatpipe |
Ø 6 mm x 5 |

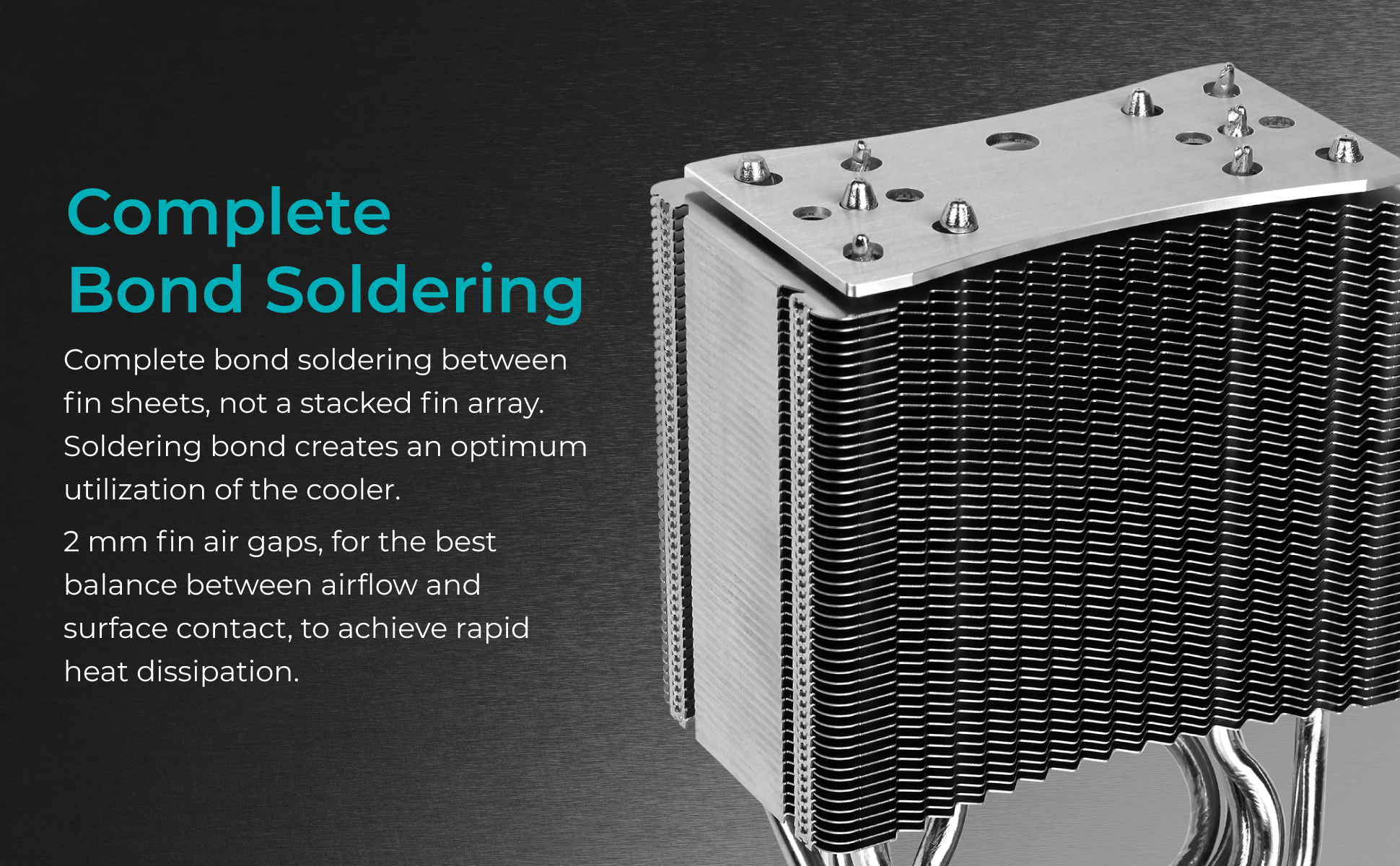

Heatsink |
Aluminum Fins x 49, Thickness 0.4 mm, Copper Base |
Surface Finishing |
Nickel-plated |
Thermal Compound |
FUZEIce Plus (0.8 g) |
Dimensions |
115 (L) x 146 (W) x 159 (H) mm |
Weight |
852 g |
Compatible Socket |
Intel LGA 1700,1200,2066,115X,2011-0/3(Square ILM),1366,775 / AMD AM5,AM4,AM3(+),AM2(+),FM2(+) |
Fan Size / Speed |
120 mm with Addressable RGB / 500 - 1850 RPM |
Airflow / Static Pressure |
76 CFM / 2.8 mm H2O |
Voltage / Current |
12 V / 0.2 A (Lighting: 5 V / 0.3 A) |
Bearing |
Fluid Dynamic Bearing |

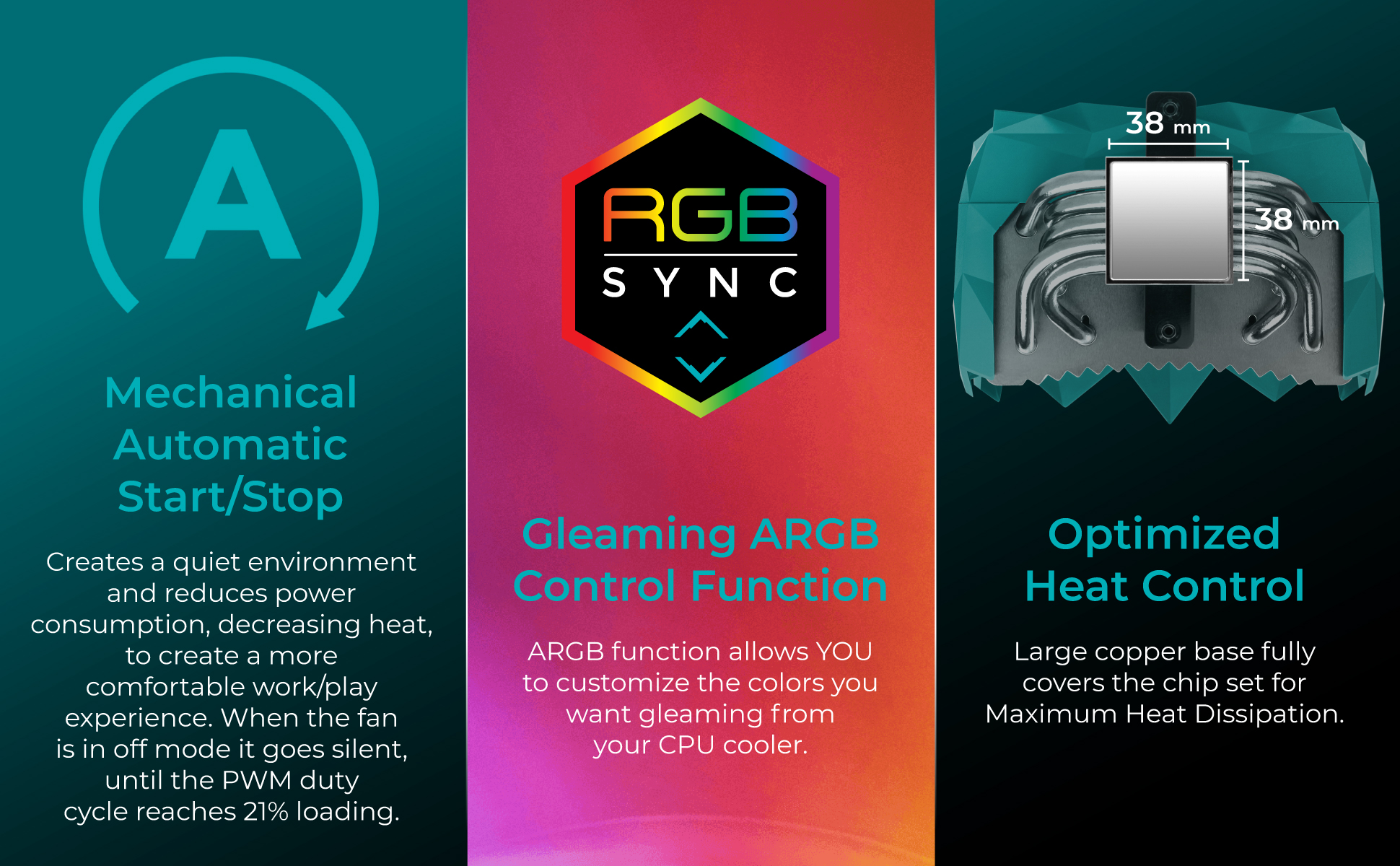

Noise Level |
0 - 36 dBA (with Auto START/STOP) |
Connector |
4-pin PWM / 3-pin Addressable RGB Connector |
MTTF |
> 150000 hours |
