| Products |
|
|
|
|
|
| Available Size |
80 / 120 / 140 mm |
80 / 120 / 140 mm |
80 / 120 / 140 mm |
80 / 120 / 140 mm |
120 / 140 mm |
| Available Color |
Teal / Gray / Black |
Teal / Gray / Black |
Teal / Gray / Black |
Teal / Gray / Black |
Teal / Black |
| Bearing |
Dual Ball Bearing |
Fluid Dynamic Bearing |
Fluid Dynamic Bearing |
Dual Ball Bearing |
Dual Ball Bearing |
| Speed |
800 - 3000 RPM |
800 - 2000 RPM |
500 - 1850 RPM |
500 - 3000 RPM |
500 - 2200 RPM |
| Airflow |
37 CFM |
29 CFM |
76 CFM |
127 CFM |
94 CFM |
| Noise Level |
0 - 29 dBA (with Auto START/STOP) |
0 - 26 dBA (with Auto START/STOP) |
0 - 35 dBA (with Auto START/STOP) |
0 - 44 dBA (with Auto START/STOP) |
0 - 38 dBA (with Auto START/STOP) |
| Static Pressure |
1.91 mm H2O |
1.54 mm H2O |
2.8 mm H2O |
4.6 mm H2O |
3.27 mm H2O |
| Lighting |
- |
- |
- |
- |
Addressable RGB |

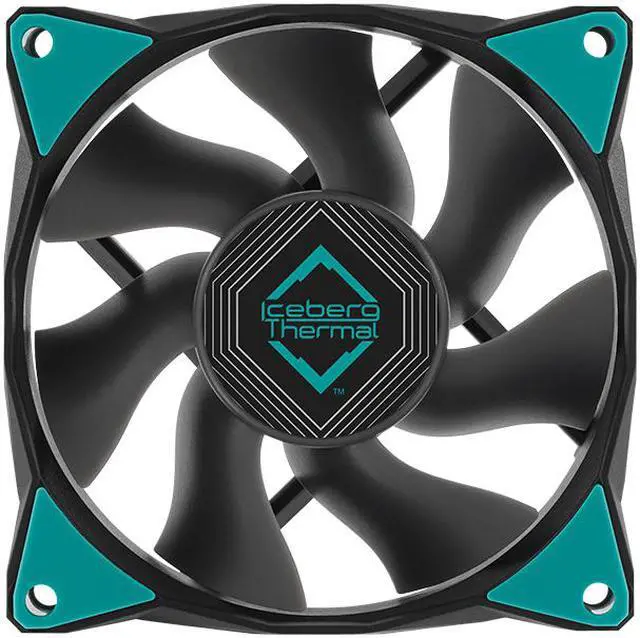

IceGALE Xtra 80 mm Case Fan Technical Specifications
| Available Color |
Teal / Gray / Black |
| Dimensions |
80 (L) x 80 (W) x 25 (H) mm |
| Connector |
4-pin PWM |
| Bearing |
Dual Ball Bearing |
| Speed |
800 - 3000 RPM |
| Airflow / Static Pressure |
37 CFM / 1.91 mm H2O |
| Noise Level |
0 - 29 dBA (with Auto START/STOP) |
| Voltage / Current |
12 V / 0.12 A |
| MTTF |
> 160000 hours |
IceGALE Xtra comes with a higher RPM Range of 800-3000, making this the ideal gaming PC fan. Iceberg Thermal IceGALE fans are designed to transport airflow in an aerodynamic way, delivering a concentrated airflow that helps to generate higher PC performance and efficiency. Fans come standard with automatic start/stop feature for ultimate quiet and power saving. Fans additionally feature customizable speed settings, letting you control your power consumption and noise level. Our fans provide a more powerful airflow, allowing the temperature inside your case to stay cooler, expanding the longevity of your PC’s components. All IceGALE fans have been Two-Plane balanced to ensure stability. Anti-vibration pads are attached to the outer corners of the fans frame to absorb and eliminate vibration. Our IceGALE 80mm fan is made with a Rigid Brass Housing to provide a reliable product. The housing holds Dual Ball Bearings to extend the life cycle of the fan.
