ID TECH IDBA-4244MRB ValueScan II Mid Range CCD Scanner
- Lightweight, ergonomic design
- General purpose reader - a single device covering the broadest range of application
- Durable - no moving parts to wear out
- 100 scans per second
- Scan range from contact to 6 inches
- Auto-sensing mode for energy saving and hands-free operation
- Readable under sunlight
Overview
Specs
Reviews (1)
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now

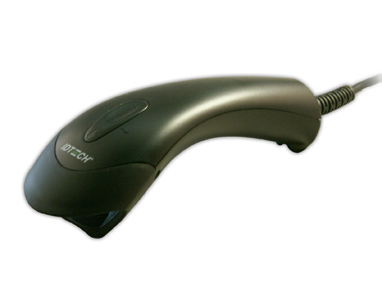

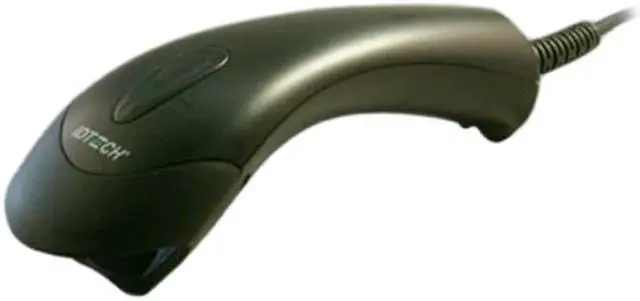

ValueScan II Mid Range CCD Scanner
(IDBA-42X4MRB Series)
(IDBA-42X4MRB Series)
Tremendous Value
Truly one of a kind, the ID TECH ValueScan II provides the utmost value in terms of price and performance. ID TECH’s new ValueScan II mid-range CCD scanner is specially designed to deliver high-end performance with a scanning range from contact to 6 inches depending on the barcode density.
Auto-Sensing Capabilities
The ValueScan II features an auto-sensing mode, allowing the scanner to operate while resting in its stand. When the scanner detects a barcode is present, it will automatically activate, allowing users the freedom of scanning barcodes without a scanner in their hands. With two hands free to manage other tasks, the ValueScan II provides added productivity.
Lightweight and Ergonomical
The ValueScan II contains no moving parts, yet it is exceptionally lightweight and designed to fit comfortably in the hand for extended periods of usage. This ergonomic hand-held scanner is ideal to be used in a wide variety of markets, including retail, logistics and light industry applications.
Features and Benefits
- Lightweight, ergonomic design
- General purpose reader - a single device covering the broadest range of application
- Durable - no moving parts to wear out
- 100 scans per second
- Scan range from contact to 6 inches
- Auto-sensing mode for energy saving and hands-free operation
- Readable under sunlight
Specifications
| Electrical | |
| Power Requirements: | 5.0 VDC ± 5% |
| Interfaces: | PS/2, RS232, USB Keyboard |
| Light Source: | 660 nm visible red LED |
| Sensor: | 2048 pixel CCD |
| Environmental | |
| Operating Temperature: | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature: | -20°C to 60°C (-4°F to 140°F) |
| Humidity: | 10% - 90% relative humidity, non-condensing |
| Drop Test: | 4.92 feet (1.5 m) |
| Mechanical | |
| Dimensions: | 6.93 inches (176 mm) x 2.64 inches (67 mm) x 1.57 inches (40 mm) |
| Weight: | 3.17 oz. (without cable) |
| Indicator: | LED, beep tone |
| Color: | Black |
| Field Width: | 1.97 inches (50mm) @ 10 mm |
| Resolution: | 0.1mm (4mils) Code39,PCS=90% |
| PCS: | 45% or more |
| Scan Rate: | 100 scans per second |
| Range: | 0 inches (0 cm) to 6 inches (15.24 cm) |
| Symbologies: | Auto-discriminates all standard one dimension barcodes |
| Approvals: | FCC Class A, CE |
