ID TECH IDMB-333133B MiniMag II Card Reader (Black) – KBW, Track 1, 2, 3
- Keyboard Wedge Interface
- Track 1, 2, 3
- Side Cable Exit
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

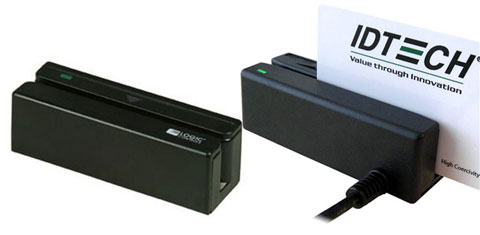

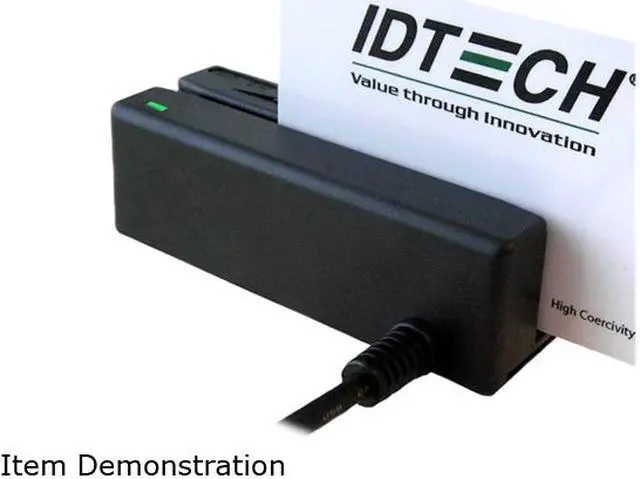

ID Tech IDMB-332133B MiniMag II Card Reader
General Information:
The MiniMag II is an intelligent, programmable MagStripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 3.5in. (90mm) long, about the length of a credit card. It reads up to three tracks (varies by model) of information with a single swipe in either direction. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed and configured to match application and communication requirements. Programming is easy using ID Tech's Magswipe PC software.
- Size: 3.54 x 1.34 x 1.10 inches (L X W X H)

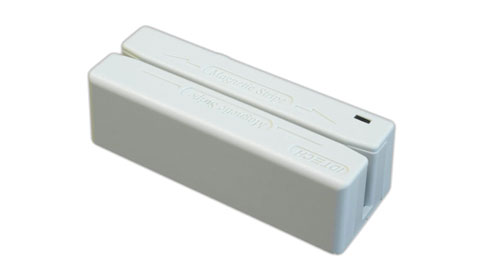

- Color: beige or black
- Swipe speeds from 3 to 60 inches per second
- Interfaces: Keyboard, RS232, USB/Keyboard, USB/CDC, USB/HID and RS232 Port-Powered
- Fully supports USB 2.0
The MiniMag II is an intelligent, programmable MagStripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 3.5in. (90mm) long, about the length of a credit card. It reads up to three tracks (varies by model) of information with a single swipe in either direction. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed and configured to match application and communication requirements. Programming is easy using ID Tech's Magswipe PC software.
- Small footprint to fit in tight places
- Reads up to 3 tracks (varies by model) of information
- Bi-directional swipe reading
- Superior reading of high jitter, scratched, and worn cards
- Reliable for over 1,000,000 card swipes
- Threaded inserts for mounting
- Reads ISO7811, AAMVA, & most other card data formats
- Magswipe PC software makes configuration changes easy
- JPOS & OPOS support for all interfaces is provided
- Two-year warranty
The MiniMag Intelligent Swipe Reader is designed for POS and desktop applications where space is at a premium. The entire unit is just 90 mm long (about the length of a credit card), giving it the smallest footprint of any unit with comparable features.The MiniMag is a fully intelligent swipe reader that can be programmed to divide, rearrange, edit, and validate fields of magnetic card data. It automatically distinguishes between AAMVA and CA DMV formats.The MiniMag reads up to three tracks of information with a single swipe in either direction. Its standard-length slot makes it easy to use.The MiniMag Intelligent Swipe Reader delivers exceptional functionality and value in the smallest possible package. It can be used as a freestanding unit, or permanently mounted using the threaded inserts in the bottom of the reader. Width: 1.3 in Depth: 3.5 in Height: 1.1 in Weight: 4.59 oz Device Type: Magnetic card reader Interface Type: Keyboard wedge Color: Black Connections: 1 x keyboard wedge - 6 pin mini-DIN (PS/2 style) Expansion Slots: 1 x Magnetic Card Service & Support: 2 years warranty Service & Support Details: Limited warranty - 2 years Compliant Standards: FCC Part 15 B, ISO 7811 TTL Decoding: Decoded OK Notification: LED indicator Min Operating Temperature: 41 °F Max Operating Temperature: 131 °F Humidity Range Operating: 0 - 95% ISO Card Tracks: Tracks 1, 2 & 3 Head Duty Cycle (Passes): 1,000,000 Card Format: AAMVA, CA DVM Manufacturer Warranty: 2 years warranty Dimensions (WxDxH): 1.3 in x 3.5 in x 1.1 in Weight: 4.59 oz Device Type: Magnetic card reader Interface Type: Keyboard wedge ISO Card Tracks: Tracks 1, 2 & 3
