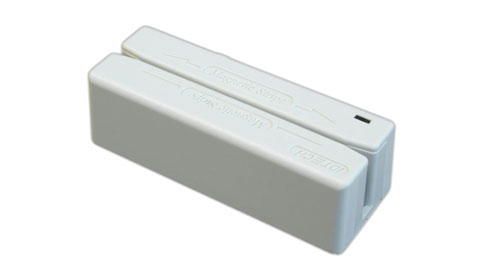

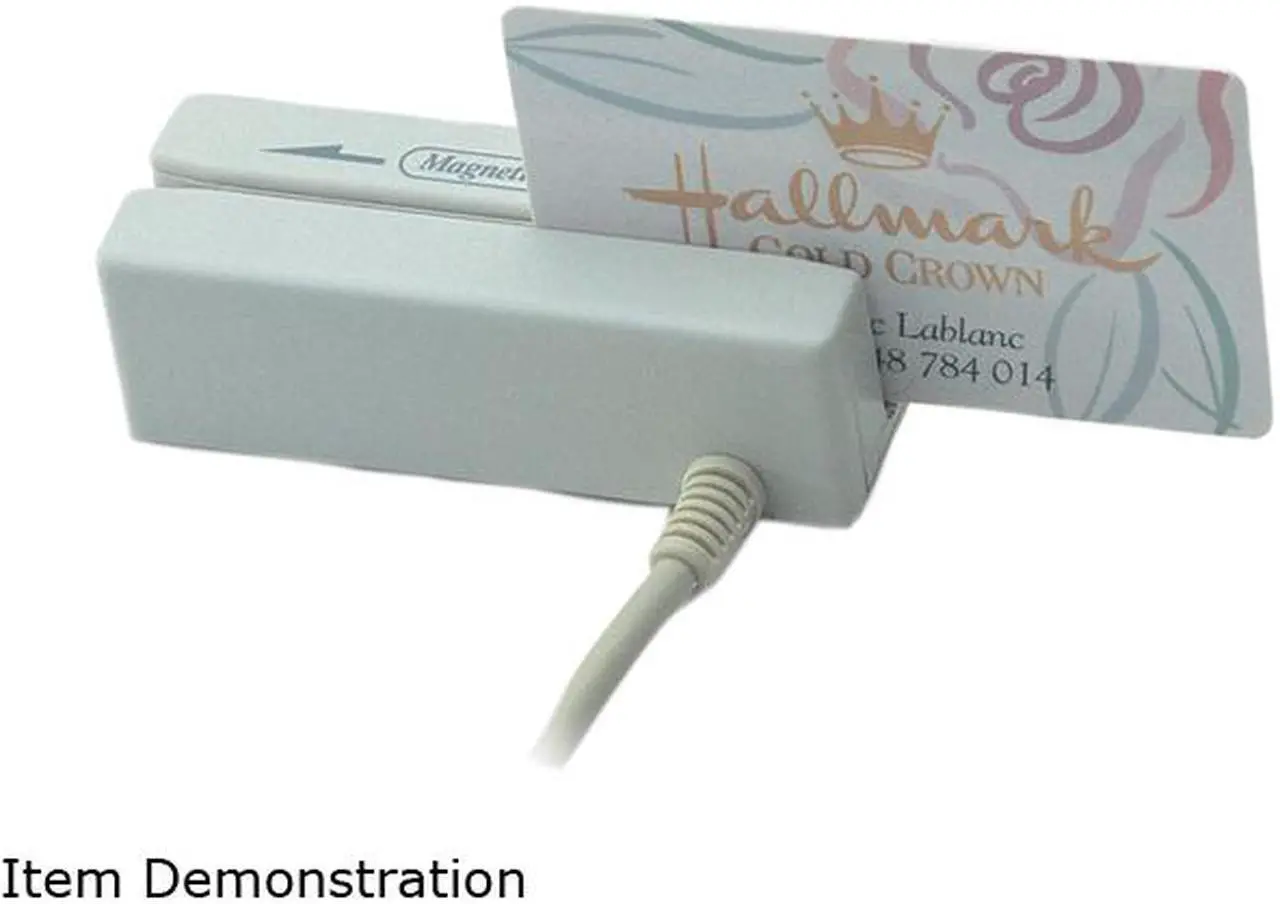

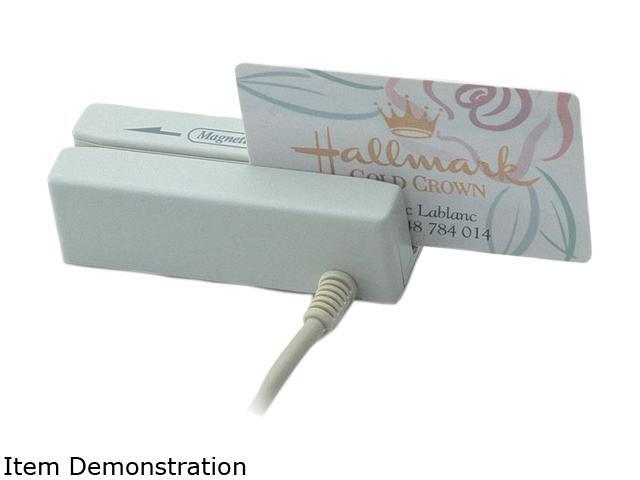

ID TECH IDMB-334112 MiniMag II Card Reader (White) – USB – Keyboard Emulation, Track 1, 2
- USB - Keyboard Emulation
- Track 1, 2
- Side Cable Exit
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Ask CelesteSM will help you find out quickly.
Try me now

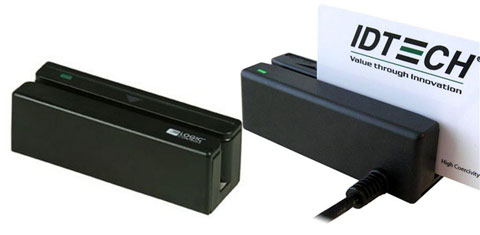

ID Tech IDMB-332133B MiniMag II Card Reader
General Information:
The MiniMag II is an intelligent, programmable MagStripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 3.5in. (90mm) long, about the length of a credit card. It reads up to three tracks (varies by model) of information with a single swipe in either direction. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed and configured to match application and communication requirements. Programming is easy using ID Tech's Magswipe PC software.
- Size: 3.54 x 1.34 x 1.10 inches (L X W X H)
- Color: beige or black
- Swipe speeds from 3 to 60 inches per second
- Interfaces: Keyboard, RS232, USB/Keyboard, USB/CDC, USB/HID and RS232 Port-Powered
- Fully supports USB 2.0
The MiniMag II is an intelligent, programmable MagStripe reader providing a wide range of functionality and value in a convenient package size. The entire unit is just 3.5in. (90mm) long, about the length of a credit card. It reads up to three tracks (varies by model) of information with a single swipe in either direction. It has a beeper and three-color LED indicator to signal a successful read. The reader is programmable so that the data format and intelligent interface output can be programmed and configured to match application and communication requirements. Programming is easy using ID Tech's Magswipe PC software.
- Small footprint to fit in tight places
- Reads up to 3 tracks (varies by model) of information
- Bi-directional swipe reading
- Superior reading of high jitter, scratched, and worn cards
- Reliable for over 1,000,000 card swipes
- Threaded inserts for mounting
- Reads ISO7811, AAMVA, & most other card data formats
- Magswipe PC software makes configuration changes easy
- JPOS & OPOS support for all interfaces is provided
- Two-year warranty
Warranty & Returns
Warranty, Returns, And Additional Information
Warranty
- Limited Warranty period (parts): 2 years
- Limited Warranty period (labor): 2 years
- Read full details
Return Policies
- Contact Manufacturer for Assistance
- This item is covered by Newegg.com's Manufacturer Warranty Only Return Policy.
- Read full return policy for details.
Manufacturer Contact Info
- Manufacturer Product Page
- Manufacturer Website
- Support Phone: 1-714-761-6368
- Support Email: support@idtechproducts.com
- Support Website
- View other products from ID TECH
LOADING...
The ID TECH IDMB-334112 MiniMag II is a compact USB magnetic-stripe reader with keyboard emulation for Track 1 and 2 cards, suited to point-of-sale, security, and loyalty setups that need a small-footprint reader.
Recommended For
- Fixed checkout or service-counter operators whose POS software accepts magnetic-stripe data as keyboard input, and who need a compact reader for swipe-based workflows.
- Security or service-desk staff who swipe magnetic-stripe IDs, including supported AAMVA-format cards, and enter the resulting data into a configured desktop workflow.
- Businesses using magnetic-stripe membership or loyalty cards at a stationary check-in or service counter, where the receiving application is set up to accept the swipe data.
- System integrators adapting desktop forms or legacy software that expects keyboard-entered track data and needs configurable output formatting, such as track selection or added control characters.
Spec Summary
| Attribute | Value |
|---|---|
| Best For | USB-connected POS, security, loyalty, and other space-limited setups that read magnetic-stripe cards |
| Card Reading | Magnetic-stripe reader for Track 1 and 2 cards in AAMVA and CA DVM formats |
| Connectivity And Output | USB keyboard emulation; programmable output can parse card data and add control, prefix, or suffix characters, with vertical and longitudinal error checking |
| Durability | Rated for 1,000,000 head passes |
| Dimensions And Weight | 3.5 × 1.4 × 1.1 in; 4.6 oz |
| Color | White |
| Model Identifiers | ID TECH IDMB-334112 |
