iDatalink HRN-RR-HO1 Factory Integration Adapter. Connect a new car stereo and retain steering wheel controls and factory amp in select 2006-11 Honda-made vehicles

iDatalink HRN-RR-HO1 Factory Integration Adapter Connect a new car stereo and retain steering wheel controls and factory amp in select 2006-11 Honda-made vehicles

• allows installation of a new car stereo in select Honda vehicles (also requires the Maestro ADS-MRR module)
• retains the use of your steering wheel audio controls and factory amp
• also retains aux input and Bluetooth with select Alpine, JVC, Kenwood and Pioneer receivers
• displays engine data and vehicle info onscreen with select Alpine, JVC, Kenwood and Pioneer receivers

Features

Honda/Acura Harness:   The iDatalink Maestro HRN-RR-HO1 installation harness greatly simplifies the installation of the Maestro RR Car Radio Replacement Interface module (794ADSMRR, sold separately) in select Honda & Acura vehicles when replacing your factory radio with an iDatalink Serial Port compatible head unit or other aftermarket head unit from Kenwood, JVC, Alpine or Pioneer (click
  here
  for a list of fully compatible radios); or other aftermarket head unit.

Vehicle Compatibility Chart:   The iDatalink Maestro HRN-RR-HO1 installation harness is compatible with the following vehicles -

Honda:

2007-2009

• CR-V (w/ Factory Navigation)
• CR-V (w/ Factory Navigation & Bluetooth)

2007-2011

• CR-V (w/o Factory Navigation)

2006-2008

• Civic (w/ Factory Navigation)
• Civic (w/ Factory Navigation & Bluetooth)

2006-2011

• Civic (w/o Factory Navigation)

Acura:

2006-2008

• CSX (w/ Factory Navigation)
• CSX (w/ Factory Navigation & Bluetooth)

2006-2011

• CSX (w/o Factory Navigation

Retained Features:   The following factory features (if applicable) are retained when replacing your factory radio with a compatible iDatalink Serial Port head unit from Kenwood, JVC, Alpine, JVC, or Pioneer using the Maestro RR Car Radio Replacement Interface module and HRN-RR-HO1 installation harness.

• Factory Amplifier
• Aux Input
• Bluetooth
• Steering Wheel Controls

Note:   When installing an aftermarket head unit without the iDatalink Serial Port, only steering wheel control & amplifier turn-on are retained.

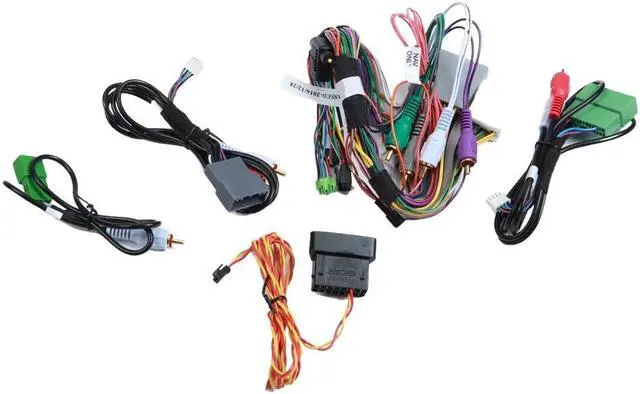

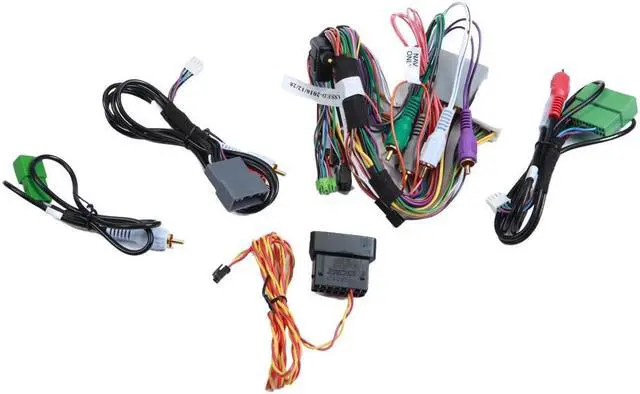

Connections:   The iDatalink Maestro HRN-RR-HO1 installation harness contains five Molex connectors which plug into your factory radio harness. On the other end of the harness are four multi-pin connectors which plug into the Maestro RR Car Radio Replacement Interface module (794ADSMRR, sold separately). In addition, you will need to hardwire the power/ground, illumination, speaker, and navigation output leads of the HRN-RR-HO1 harness to your aftermarket head unit's wiring harness. There are also stereo RCA connectors to plug into your aftermarket head unit's rear-panel Aux input. In addition, stereo RCA connectors connect to your aftermarket head unit's front, rear, and sub pre-outs.

Note:   When using the HRN-RR-HO1 installation harness, you will not use the additional harnesses that are included with the Maestro RR Car Radio Replacement Interface module (794ADSMRR, sold separately).

Extra Features:   The following Extra features are added when replacing your aftermarket head unit with a compatible iDatalink Serial Port head unit from Kenwood, JVC, Pioneer, or Alpine using the Maestro RR Car Radio Replacement Interface module and HRN-RR-HO1 installation harness.

• Performances Gauges (user selectable)
• Vehicle Information (Tire Pressure, Battery Voltage, Door Open, & Check Engine Codes)
