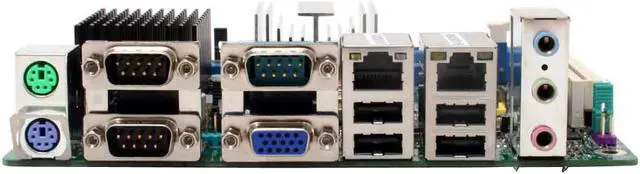

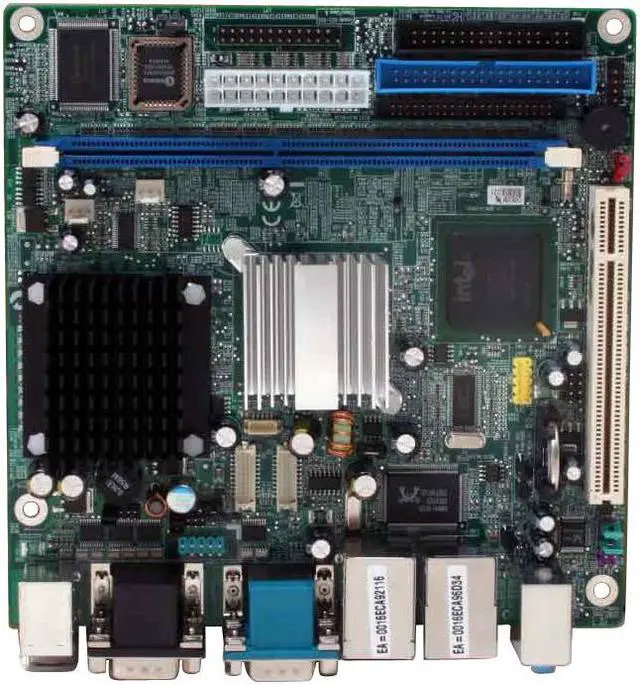

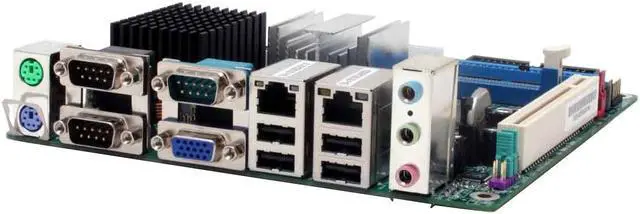

iGoLogic Inc MBI3368G-8E Intel Celeron M 800MHz Fanless Embedded Processor 479 Intel 852GM Mini ITX Motherboard / CPU Combo
- Celeron M
- Integrated Intel 852GM GMCH
Specs
Reviews (2)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the iGoLogic Inc MBI3368G-8E
| Brand | iGoLogic Inc |
|---|---|
| Model | MBI3368G-8E |
| Combo Type | Motherboard / CPU Combo |
| CPU | Intel Celeron M 800MHz Fanless Embedded Processor |
|---|
| CPU Socket Type | 479 |
|---|---|
| CPU Type | Celeron M |
| FSB | 533/400 MHz |
| North Bridge | Intel 852GM |
|---|---|
| South Bridge | Intel ICH4 |
| Number of Memory Slots | 1x184pin |
|---|---|
| Maximum Memory Supported | 1GB |
| PCI Express x16 | None |
|---|---|
| PCI Slots | 1 x PCI Slot |
| PATA | 1 x ATA 100 2 Dev. Max |
|---|
| Onboard Video Chipset | Integrated Intel 852GM GMCH |
|---|
| Audio Chipset | AC97 Codec |
|---|
| LAN Speed | 10/100/1000Mbps |
|---|---|
| Second LAN Speed | 10/100Mbps |
| Max LAN Speed | 1Gbps + 100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 3 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 2 x USB 2.0 |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |

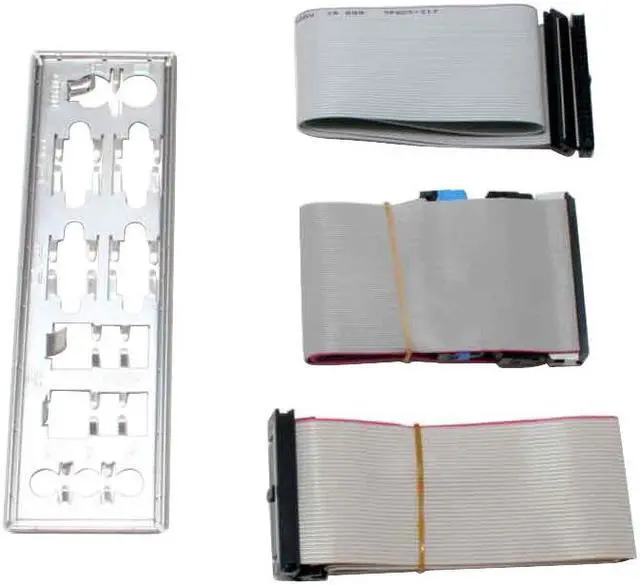

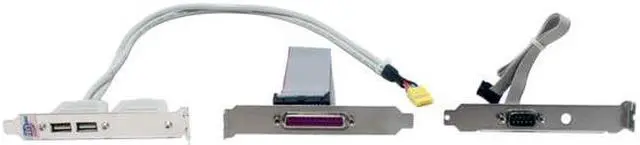

| Package Contents | MBI3368G-8E Driver Disk Rear I/O Panel Shield IDE/PATA Cable FDD Cable USB Bracket LPT Bracket COM Port Bracket |
|---|
| First Listed on Newegg | August 29, 2006 |
|---|
