IN WIN Open Bay 3U Short Depth Server Chasis With 500W Power Supply - Black IW-R300N-S500

  • Compatible with single or redundant power supply
  • Supporting two rear fan to optimize thermal exhaust efficiency

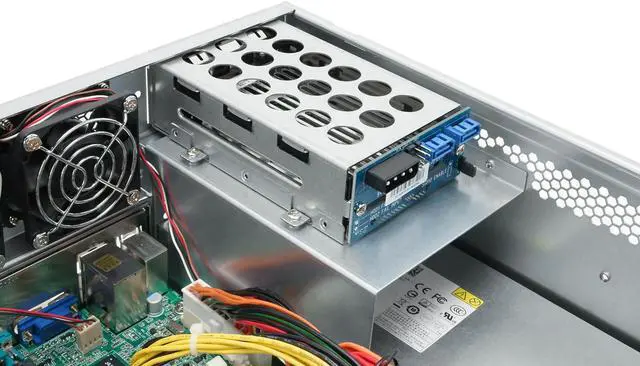

  • Expandable storage option with InWin storage kit

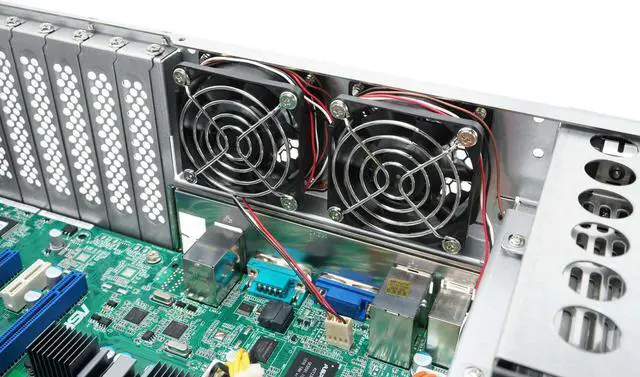

  • Supports 60 x 25mm rear fan x 2 for optimized cooling (optional)
  • Tool-less top cover for quick maintenance
  • Vibration resistant design
Specs
Reviews
See all Q & A
avatar

Any questions? Our AI beta will help you find out quickly.

Learn more about the In Win IW-R300N-S500

Model
Brand IN WIN
Model IW-R300N-S500
Part Number IW-R300N-S500
Details
Chassis Type Rackmount
Form Factor 3U
Color Black
Case Material SGCC
Motherboard Compatibility ATX (12" x 9.6"), CEB (12" x 10.5")
Power Supply 500W
Expansion
External 5.25" Drive Bays 2
External 3.5" Drive Bays 1

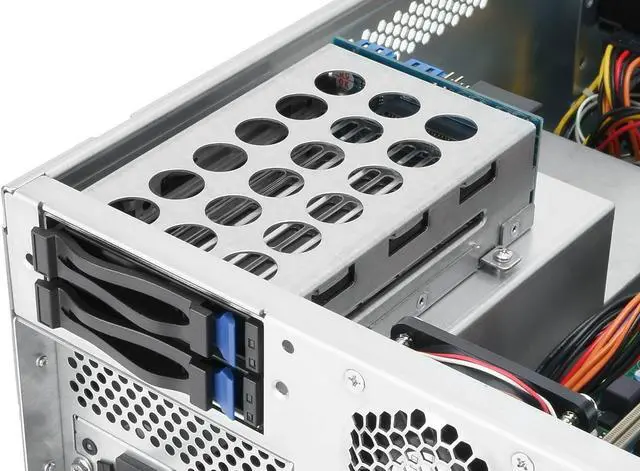

Hot-Swap Drive Bays 2

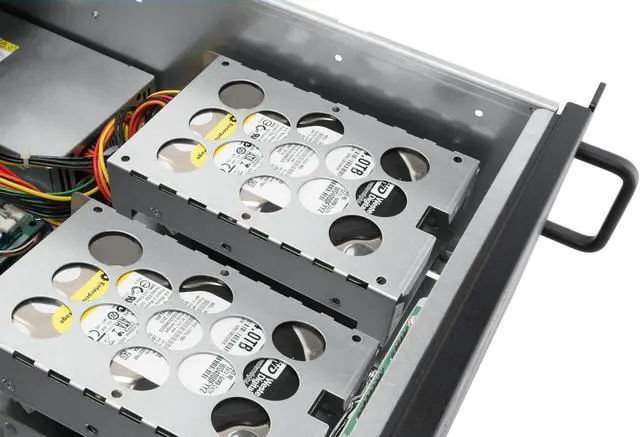

Internal 3.5" Drive Bays 6
Expansion Slots Full height PCI slot x 7
Ports
Front Ports Power switch, system reset, USB 2.0 x 2
Cooling System
60mm Fans Supports:
• 60 x 25mm PWM rear fan x 2 (optional)
80mm Fans Supports:
80 x 25mm PWM front fan x 1
• 60 x 25mm PWM rear fan x 2 (optional)
Dimensions & Weight
Dimensions 508 x 482.6 x 133.4mm
(20" x 19" x 5.25")
Weight 8.5kg
