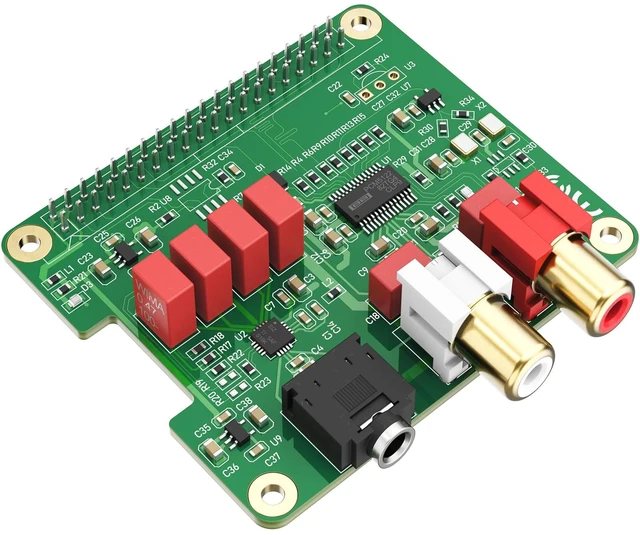

InnoMaker HiFi DAC HAT for Raspberry Pi 5/4/3B+/Zero | PCM5122 384kHz/32bit DAC Audio Card Expansion Board | Dual Oscillators & DOP | RCA/3.5mm Output, 112dB SNR

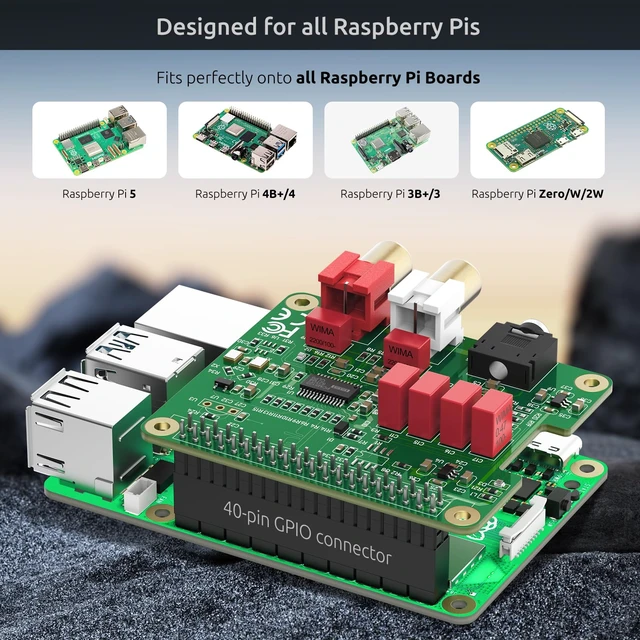

- Direct-Connect HiFi DAC Expansion BoardSeamlessly integrates with Raspberry Pi 5, 4, 3B+, Zero & Zero W via 40-pin GPIO. No soldering or external wiring needed unlock studio-grade audio at 10% of traditional cost. Features 384kHz/32bit PCM5122 DAC with dual ultra-low jitter oscillators (45.158MHz/49.152MHz).

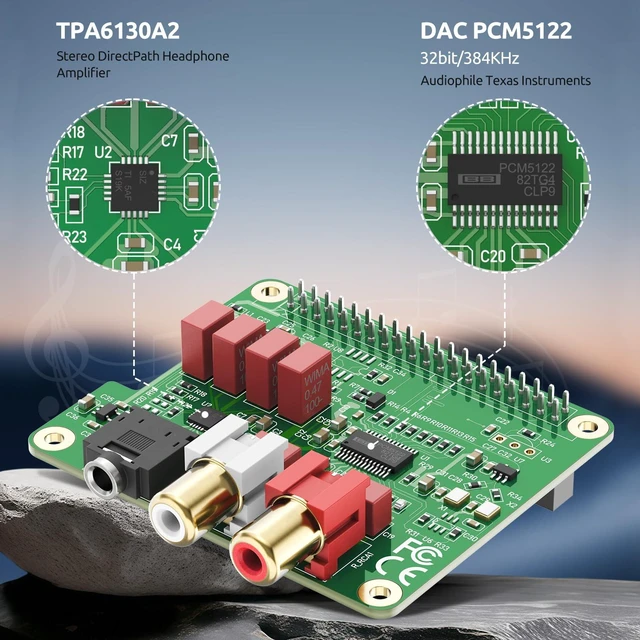

- Reference-Class Audio EngineeringTI PCM5122 reference DAC delivers 112dB SNR and -78dB THD+N, coupled with film capacitors for pristine RCA/3.5mm outputs. Master-clock mode eliminates Raspberry Pi jitter, supporting DSD over PCM (DOP) and 8kHz-384kHz sampling.

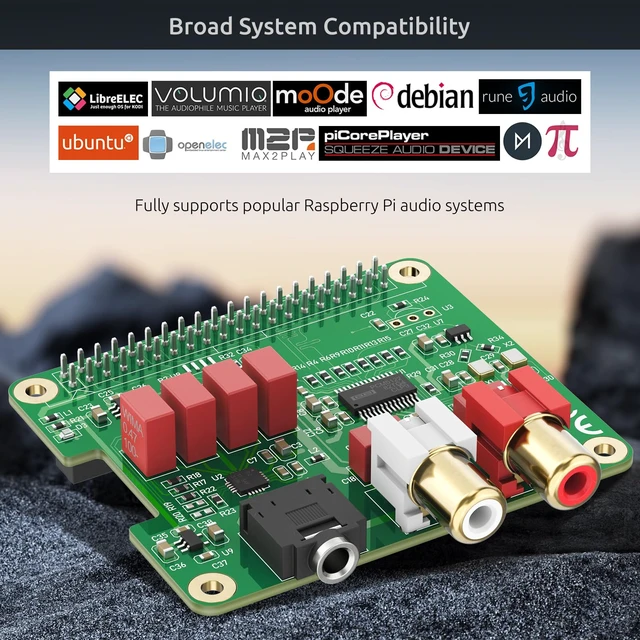

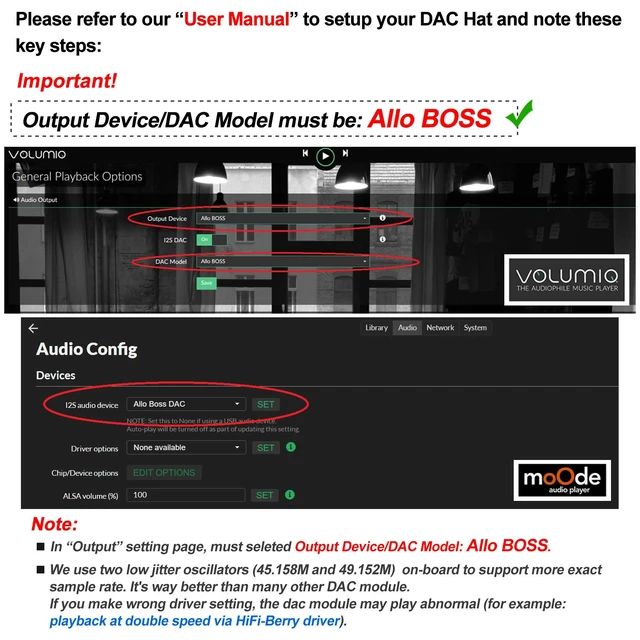

- Universal OS & Software SupportTested with Volumio, Moode, RuneAudio, LibreELEC, and Raspberry Pi OS. Stream high-res audio via network/NAS/USB storage. Onboard EEPROM enables plug-and-play configuration.

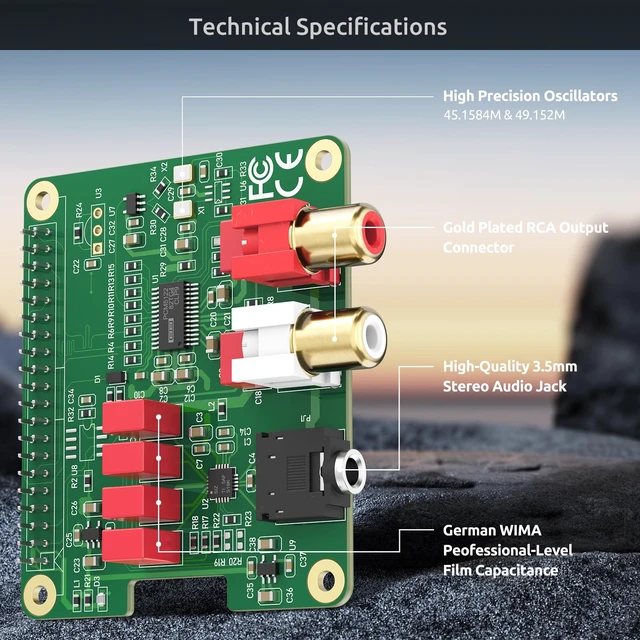

- Professional Dual-Output InterfaceGold-plated RCA line-level outputs (2.1Vrms) + dedicated headphone amp (138mW@32 via TPA6133). Independent grounding eliminates crosstalk for studio monitors or high-impedance headphones.
- Developer-Optimized Design & SupportFeatures ultra-low-noise power regulation + reserved IR port (GPIO26). Compliant with Raspberry Pi HAT specs, with open-source SDK, documented API, and technical support via InnoMaker Wiki (link in manual).
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product information
| Compatible Devices | Raspberry Pi 4, Raspberry Pi Zero, Raspberry Pi Zero W, Raspberry Pi 3B, Raspberry Pi 3B+ |
| Brand | innomaker |
| Hardware Interface | 3.5mm Audio |
| Audio Output Mode | Stereo |
| Platform | Linux |
| Hardware Connectivity | 3.5mm Audio |
| Hardware Platform | Personal Computer |
| Surround Sound Channel Configuration | Stereo |
| Maximum Sample Rate | 384 KHz |
| Signal-to-Noise Ratio | 112 db |
| Model Name | InnoMaker Rasp Pi HiFi DAC Hat |
| Model Number | InnoMaker Rasp Pi HiFi DAC Hat |
| Unit Count | 1 Count |
| Number of Packs | 1 |
| Number of Items | 1 |
| UPC | 606462079181 |
| Manufacturer | innomaker |
| Mfr Part Number | RPI-HIFI |
