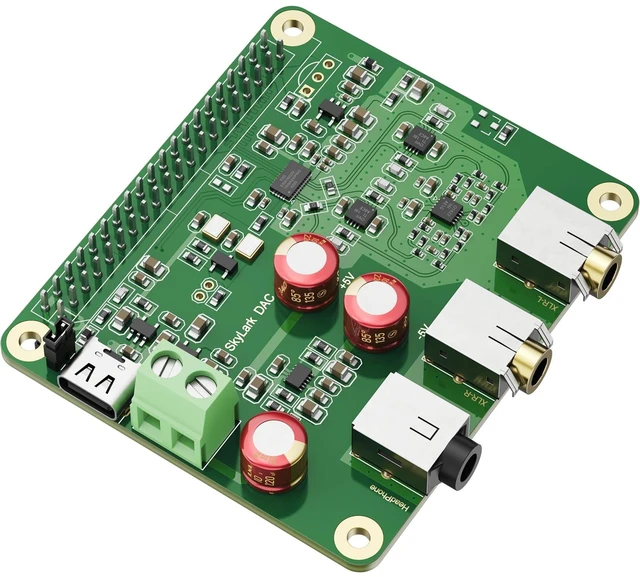

InnoMaker HiFi DAC Pro Hat with ES9038Q2M Chip for Raspberry Pi 5/4/3B+/3B/Zero - High-Resolution 384KHz/32bit & DSD512 Audio Card, DAC Converter for Volumio, Moode, Headphone & Balanced Output
- Professional ES9038Q2M DAC ChipEngineered with the flagship ESS ES9038Q2M converter, delivering an unparalleled audio experience with a 129dB DNR and -120dB THD+N. Supports high-resolution playback up to 32-bit/384kHz PCM and DSD512 for true studio-quality, bit-perfect sound.
- Dual Ultra-Low Jitter ClocksFeatures independent 45.158MHz & 49.152MHz oscillators to eliminate timing jitter, a critical upgrade over designs that rely on the Raspberry Pi's internal clocks. This ensures pristine, crystal-clear audio reproduction by providing perfectly accurate sample rates.
- Universal Raspberry Pi CompatibilityOffers plug-and-play connectivity to the 40-pin GPIO header of all models (Raspberry Pi 5, 4, 3B+, 3B, Zero W, Zero) without soldering or extra cables. Fully supports Volumio, Moode Audio, RuneAudio, LibreELEC, and Raspbian for seamless music playback.
- High-Power Headphone & Balanced OutputsDriven by three Texas Instruments SoundPlus Hi-Fi op-amps, the board provides a robust 2.1Vrms output through its 3.5mm stereo jack and balanced (X+, X-) outputs, ideal for headphones and professional audio equipment.
- Comprehensive Software & Wiki SupportIncludes all necessary drivers and documentation. Extensive configuration guides and support are provided through our dedicated online Wiki (access link included on the supplied color card).
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
InnoMaker HiFi DAC Pro Hat: High-Resolution Digital Audio Card for Raspberry Pi
Engineered for the discerning audiophile and technical user, the InnoMaker HiFi DAC Pro Hat transforms your Raspberry Pi into a reference-grade audio source. Built around the acclaimed ESS ES9038Q2M converterthe same chip found in many high-end digital audio players and professional equipmentthis board brings master-quality sound to the Raspberry Pi ecosystem.

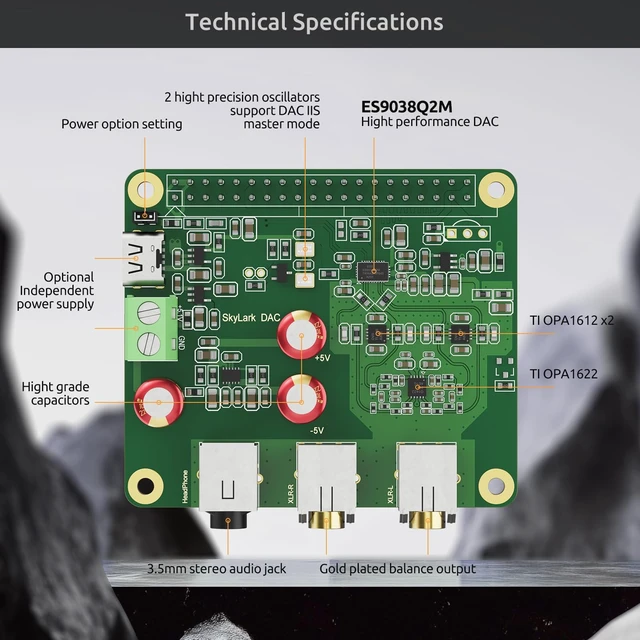

Key Features & Technical Advantages

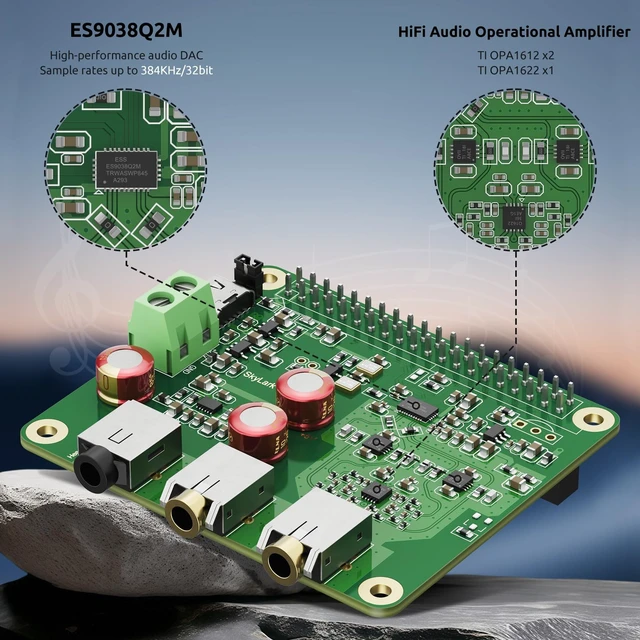

Reference ES9038Q2M Digital-to-Analog Converter: Supports PCM up to 32-bit/384kHz and DSD512 playback with a dynamic range of 129dB and THD+N of -120dB.
Independent Low-Jitter Dual Clock Design: Onboard 45.1584MHz & 49.152MHz oscillators provide clean, jitter-free master timing for superior soundstage and accuracy.
Professional-Grade Output Stage: Features three Texas Instruments SoundPlus high-fidelity op-amps delivering 2.1Vrms via 3.5mm headphone and balanced (X+/X-) outputs.

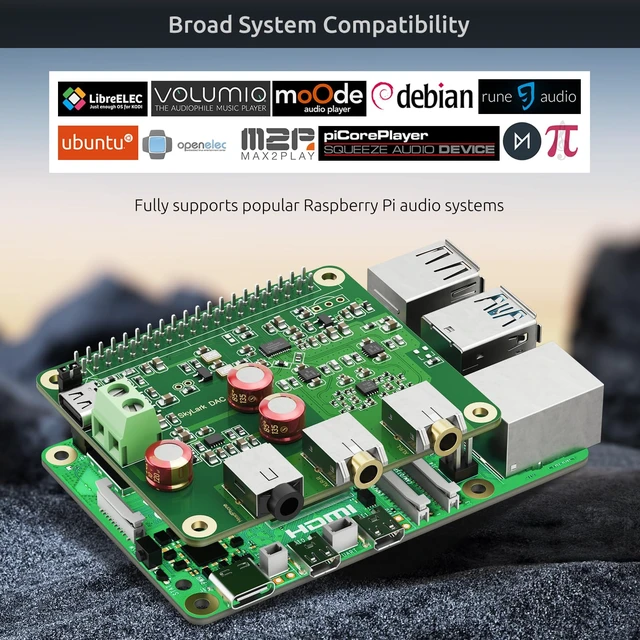

Extensive Software & Hardware Compatibility: Works with Raspberry Pi 5/4/3B+/3B/Zero and audio distributions including Volumio, Moode, RuneAudio, LibreELEC, and Raspbian.

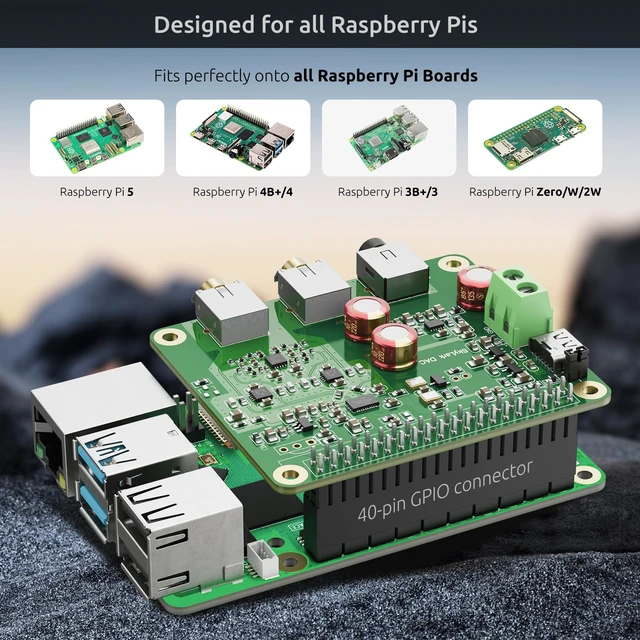

Tool-Free Installation: No soldering or extra cables required. Mounts directly onto the 40-pin GPIO header for a clean and reliable connection.
Seamless Setup Genuine Hi-Fi Performance
The ES9038Q2M DAC architecture is renowned for its musicality and precision in advanced digital audio systems. Weve integrated this technology into a Raspberry Pi HAT thats both accessible and sonically exceptional. Just plug the board in, perform a quick software configuration, and youll have a high-class, low-cost music player ready to useno modifications or audio expertise required.
Package Includes
HiFi DAC Pro Hat (with ES9038Q2M chip)
Mounting hardware (spacers and screws)
Color information card with link to online Wiki for software and support

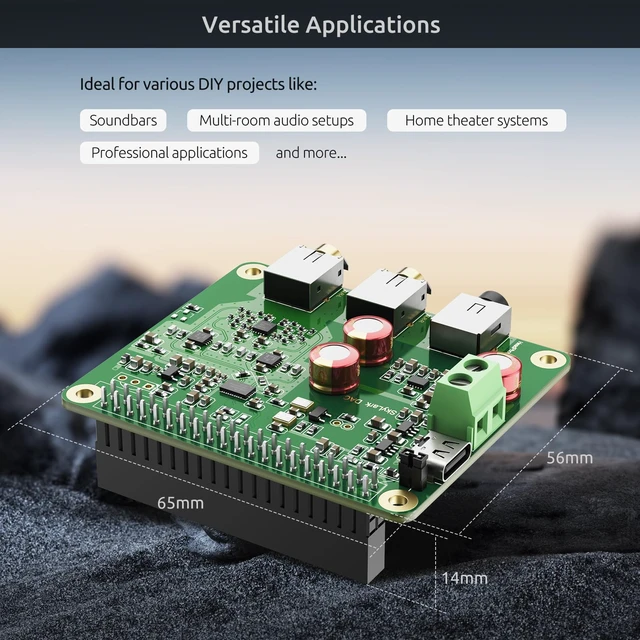

Discover the clarity and detail of professional digital audio with your Raspberry Pi. Ideal for music servers, headphone amplifiers, and high-fidelity streaming projects.
