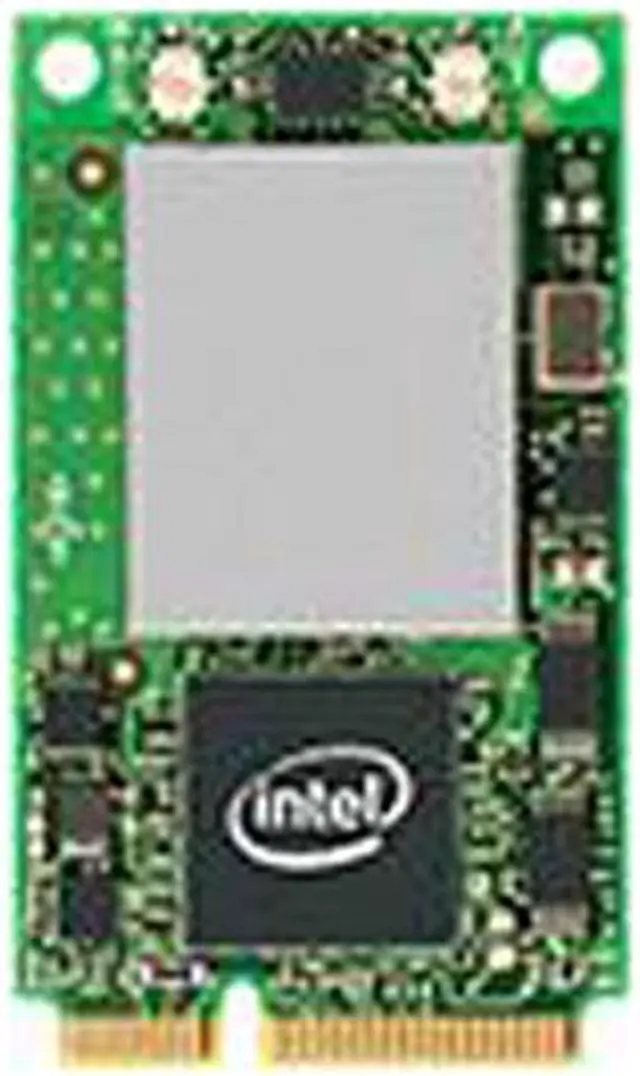

Intel 3945ABG PRO/Wireless Network Connection IEEE 802.11a, IEEE 802.11g and IEEE 802.11b Mini Card form factor, based on PCIe electrical interface 802.11b up to 11Mbps and 802.11a/g up to 54 Mbps data rates Wireless Data Rates
- IEEE 802.11a, IEEE 802.11g and IEEE 802.11b
- 802.11b up to 11Mbps and 802.11a/g up to 54 Mbps data rates Wireless Data Rates
- 5 GHz UNII: Orthogonal Frequency Division Multiplexing (OFDM) for 802.11
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Intel 3945ABG
| Brand | Intel |
|---|---|
| Model | 3945ABG |
| Standards | IEEE 802.11a, IEEE 802.11g and IEEE 802.11b |
|---|---|
| Wireless Data Rates | 802.11b up to 11Mbps and 802.11a/g up to 54 Mbps data rates |
| Security | AUTHENTICATION: WPA and WPA2, 802.1X (EAP-TLS, TTLS, MD5, PEAP, LEAP, EAP-FAST), EAP-SIM Authentication Protocols: PAP, CHAP, MD5, GTC, MS-CHAP, MS-CHAPv2 ENCRYPTION: 64-bit and 128-bit WEP, AES-CCMP, CKIP, TKIP |
| Interface | Mini Card form factor, based on PCIe electrical interface |
| Frequency Band | 5 GHz UNII: Orthogonal Frequency Division Multiplexing (OFDM) for 802.11a 2.4 GHz ISM: Direct Sequence Spread Spectrum (DSSS) for 802.11b 2.4 GHz ISM: Orthogonal Frequency Division (OFDM) for 802.11g |
| Modulation | DSSS, OFDM |
| LEDs | Link, Activity |
| Antenna | Antenna Interface Connector: Hirose U.FL-R-SMT mates with cable connector U.FL-LP-066 Dual Diversity Antenna: On-board dual diversity switching support for systems designed with two antennas |
| Operating Range | Typical indoor range of 40 ft (12 m) @ 54 Mbps / 300 ft (91 m) @ 6 Mbps for 802.11a, 100 ft (30 m) @ 11 Mbps / 300 ft (90 m) @ 1 Mbps for 802.11b, 100 ft (30 m) @ 54 Mbps / 300 ft (91 m) @ 1 Mbps for 802.11g |
| System Requirements | Operating System: Microsoft Windows XP (Professional, Home, Tablet), 2000 |
| Features | Radio ON/OFF control: Supported by both hardware and software Wi-Fi Alliance: Wi-Fi CERTIFIED for 2.4GHz and 5GHZ band, WMM, WPA and WPA2 Microsoft WHQL: YES 802.11e QoS with enhancements for VoIP Noise Interference Filter enhances performance, especially in areas with wireless signal overlap Wake on WLAN Support allows waking up a notebook remotely and distributing upgrades and patches Business Class Wireless Suite offering Enhanced VoIP Quality Technology and Optimal AP Selection Technology Intel PROSet/Wireless Software v10.1 with a new IT Administrator Toolkit and GUI enhancements that simplify connecting to WLAN networks Advanced roaming and AP selection algorithms based on link quality parameters IEEE 802.11a/b/g standard tri-mode Wi-Fi CERTIFIED Wireless LAN support (2.4GHz and 5GHz) Up to 54 Mbps data rates Note: 802.11b up to 11Mbps and 802.11a/g up to 54 Mbps data rates Industry-standard wireless LAN security support is provided (802.11i, 802.1X, WEP, WPA, WPA2, AES) Cisco Compatible Extensions v4 support available on certain models. Check with your PC manufacturer for details Support for antenna diversity enables optimized WLAN performance for multi-antenna systems Intel Wireless Coexistence System capability enables Bluetooth co-existence |
|---|
| Dimensions | 2.0" x 1.2" x 0.2" |
|---|---|
| Weight | 0.3 oz. |
| Temperature | 0 to +80° Celsius |
|---|---|
| Humidity | 50% to 92% RH non-condensing (at temperatures of 25°C to 80°C) |
| First Listed on Newegg | May 01, 2007 |
|---|
