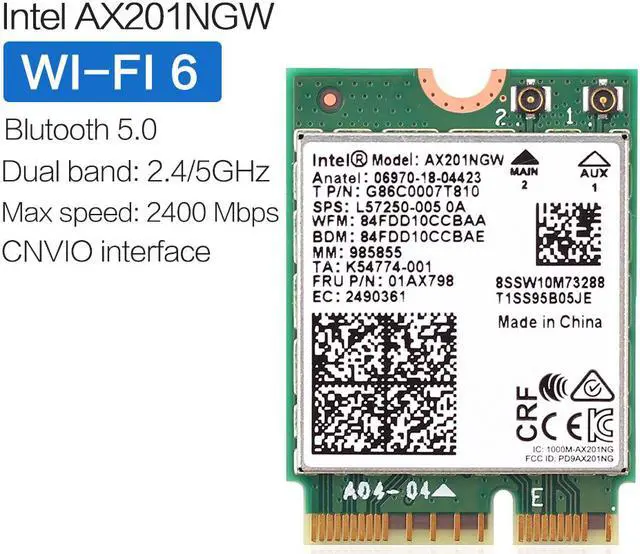

Dual Band 2400Mbps Wireless Intel Wi-Fi 6 AX201 Bluetooth 5.0 NGFF Key E CNVi Wifi Card AX201NGW 2.4Ghz/5Ghz 802.11ac/ax,Interface:NGFF(M.2),22x30mm,just support CNVIO interface.

Note: it is driver free in win10., it can t support win
XP/7/8. it just support CNVIO interface. Intel Wifi-6 AX201 The Intel Wi-Fi 6 AX201 adapter is a CRF (companion RF module) supporting the integrated wireless 802.11 ax solutions from Intel. The solution provides Bluetooth 5 and 2x2 802.11 ax Wi-Fi. The maximum throughput supported by the Wi-Fi 6 AX201 is a speedy 2.4 Gbps (160Mhz). The Intel AX201NGW can provide Gigabit download speed1 and dramatically improve your connected experience at home, work, or on the go.
Description Chipest Brand: Intel

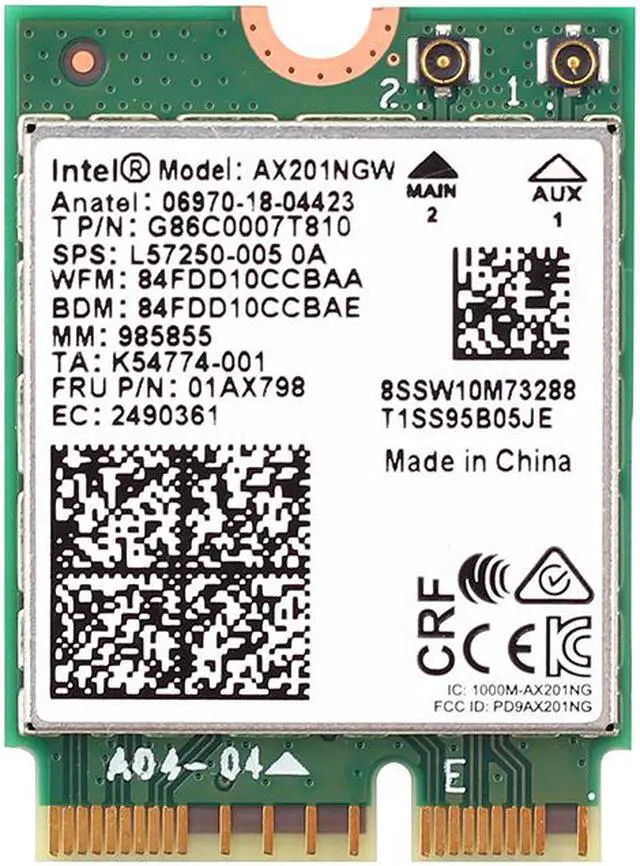

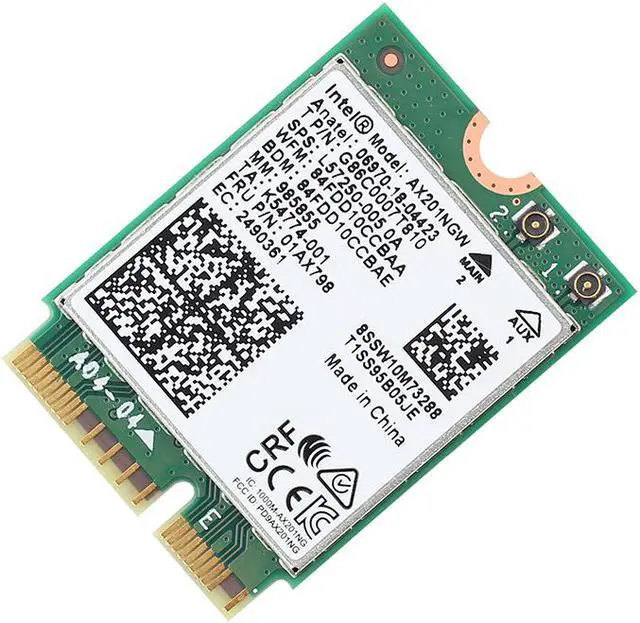

Model: AX201NGW
Dual band: 2.4G hz / 5Ghz (160Mhz) Speed up to 2.4G bps (The router must on 160Mhz, 802.11 ax); Speed of 2.4 Gbps on the 5 GHz (160 MHz) band and around 574 MB/s using 2.4 GHz band ( 802.11 ax in both). With Bluetooth 5.0, Support MU-MIMO?
Interface: M. 2, CNVI, 22*30MM
Supported Operating Systems: Only work on Microsoft Windows 10* 64bit, Note: Not support Windows 7/8/ 8.1 The module supports MU-MIMO, 2x2 TX/RX channels with two antenna and Bluetooth 5.0 It currently only support ceretain processors 8th Gen Intel Core processors Intel Pentium Silver processors based on Gemini Lake Celeron processors based on
Gemini Lake Note: Even though you can insert these CRF to a standard M. 2 Key E socket, they are only compatible with a system designed with the CNVi. Contact your system or motherboard manufacturer to verify compatibility.
Compatible With: Support almost laptop with NGFF(M. 2) 2230 slot; Samsung/Dell/Sony/ACER/ISUS/MSI/Clevo/Terransforce/Hasee etc (Do not include lenovo and HP, if it can use after rewrite the whitelist ). Not support IBM/Thinkpad/lenovo/hp laptop. (Any question, pls feel free to contact with us, thanks. ) Package Include 1 x Intel ax201NGW NGFF Key E Wireless card
