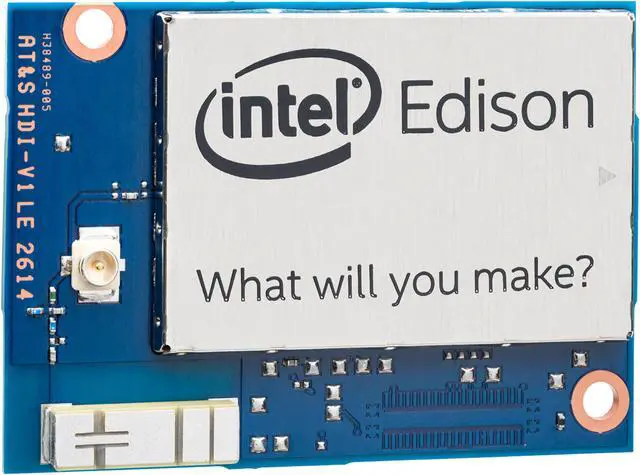

Intel Edison Compute Module (IoT, On-Board Antenna) Model EDI1.SPON.AL.S
- Intel Atom system-on-a-chip (SoC)
- Integrated Wi-Fi, Bluetooth LE, memory, and storage
- Support for Yocto Linux, Arduino, Python, and Node.js
Learn more about the Intel EDI1.SPON.AL.S
| Brand | Intel |
|---|---|
| Model | EDI1.SPON.AL.S |
| Combo Type | Embedded Solution |
| CPU | Silvermont dual-core CPU @ 500MHz |
|---|---|
| Memory | 1 GB LPDDR3 POP memory (2 channel 32bits @ 800MT/sec) |
| Wireless LAN | Broadcom 43340 802.11 a/b/g/n; Dual-band (2.4 and 5 GHz) On board antenna or external antenna SKU configurations |
|---|---|
| Bluetooth | BT 4.0 + 2.1 EDR |
| Other Connectors | External Interfaces Total of 40 GPIOs which can be configured as: SD Card: 1 Interface UART: 2 Controllers (1 full flow control, 1 RX/TX) I2C: 2 Controllers SPI: 1 Controller with 2 chip selects I2S: 1 Controller GPIO: Additional 12 (with 4 capable of PWM) USB 2.0: 1 OTG Controller |
|---|
| Features | C/M/F: Blue PCB with Shields / No enclosure Connector: Hirose DF40 Series (1.5mm, 2.0mm, or 3.0mm stack height) Operating Temperature: 0 - 40 degrees Celsius Relative Humidity: 70 degrees Celsius, 160hrs, 85% RH, non-operational Industrial: No extended temp, or long life |
|---|
| Form Factor | Board with 70-pin connector |
|---|
| First Listed on Newegg | September 09, 2014 |
|---|
