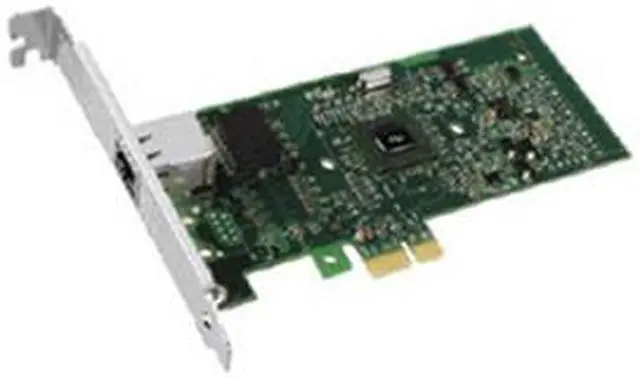

Intel EXPI9300PT Gigabit Performance to the Desktop 10/100/1000Mbps PCI-Express 1 x RJ45

(45) Write a Review
  • 10/100/1000Mbps
  • 1 x RJ45
  • PCI Express 1.0a
Specs
Reviews (45)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Intel EXPI9300PT

Model
Brand Intel
Model EXPI9300PT
Details
Standards IEEE802.3, IEEE802.3u, IEEE802.3ab
Speed 10/100/1000Mbps
Connectors 1 x RJ45
Interface PCI-Express
BUS PCI Express 1.0a
LEDs 2 (1/port, link and speed) solid and blinking
Wake On LAN Yes
Temperature 0°C ~ 55°C
Windows Vista Certified for Windows Vista
Features
Features Adapter Product Features:
Intel PROSet Utility and Intel PRO Intelligent Install for easy installation
Intel lead-free1 technology
Plug and play specification support: Standard
Auto-negotiation, full-duplex capable
Integrated media access control (MAC) and physical layer (PHY)
Cable distance: 100 m Category-5 for 1000/100 Mbps; Category-3 for 10 Mbps

Network Management:
Wired for Management (WfM) baseline v2.0 enabled for servers •
DMI 2.0 support, Windows Management Instrumentation (WMI) and SNMP-manageable SMBus support
Remote Installation Services (RIS)
Diagnostics (loopback, testability, PHY register access)
Intel boot agent
ACPI 1.0 power management
Wake on LAN support over PCI Express
PXE 2.0 enabled through boot read-only memory (ROM)

Network Operating Systems (NOS) Software Support:
Microsoft Windows Professional, XP, 2000
Red Hat Linux 2.4x or later (32- and 64-bit)
Novell Netware 5.x, 6.x
Intel Backing

Advanced Software Features:
Test switch configuration Tested with major switch original equipment manufacturers (OEMS)
TCP checksum offload—transmission control protocol (TCP), user datagram protocol (UDP), Internet protocol (IP) •
IEEE 802.1p, Intel Priority Packet II
TCP segmentation/large send offload
Interrupt moderation

Technical Features:
Bus width x1 lane PCI Express operable in x1, x4, x8, x16 slots
Bus speed (x1, encoded rate) 2.5 Gbps uni-directional
EEPROM-SPI and single EEPROM support
Interrupt levels: INTA
IEEE support: 802.3z
Hardware certifications: FCC B, UL, CE, VCCI, BSMI, CTICK, MIC
Controller-processor: Intel 82572GI
Typical power consumption: 3.3 W (3.3 V @ 1 A)
Dimensions & Weight
Dimensions 5.1" x 3.1" x 0.9"
Additional Information
First Listed on Newegg November 16, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): Lifetime
  • Limited Warranty period (labor): Lifetime
