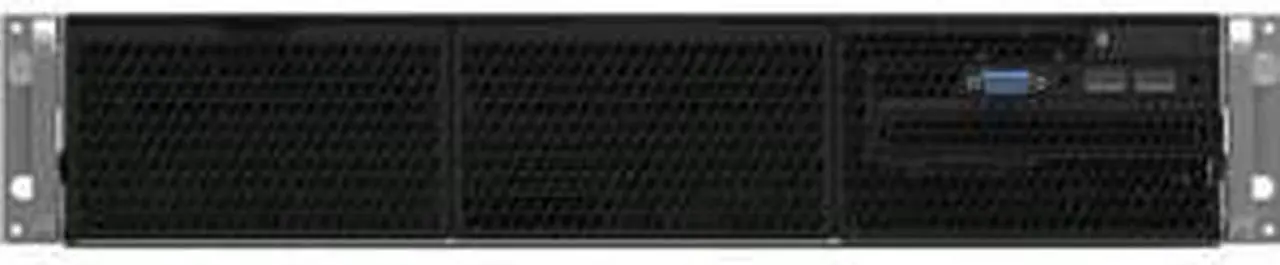

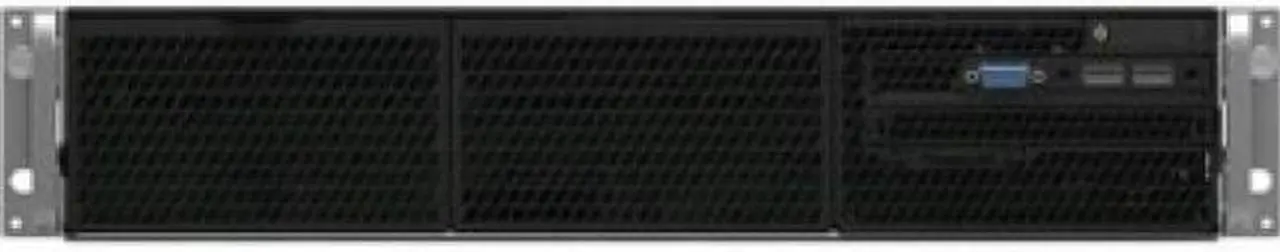

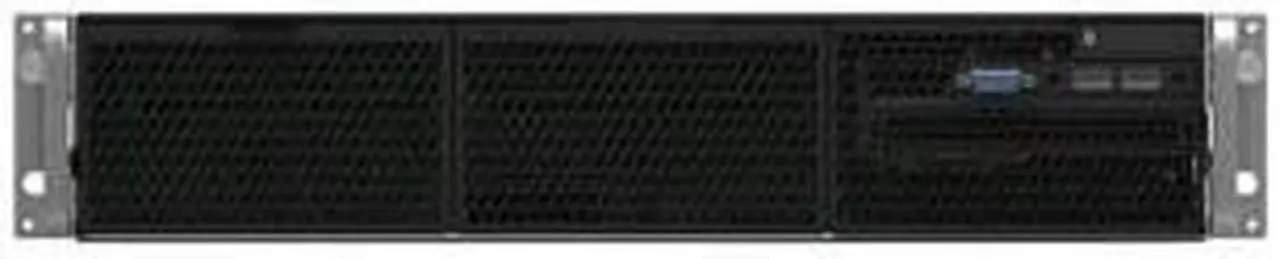

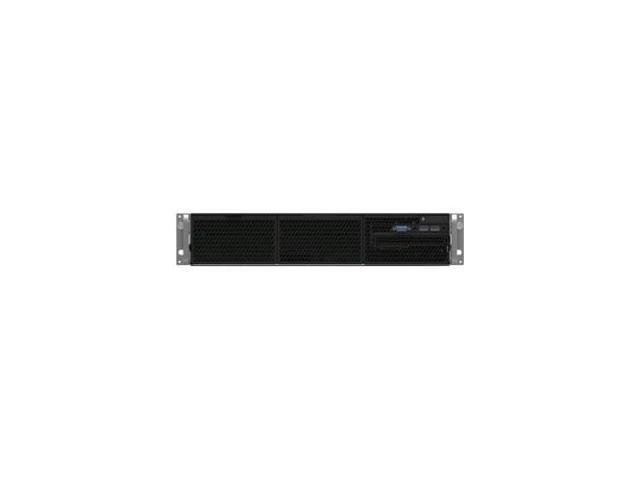

Intel Server System R2224WFTZSR, Single - Wolf Pass
Learn more about the Intel R2224WFTZSR
General
Brand
Intel
Model
R2224WFTZSR
CPU Supported
CPU Type
Xeon Bronze Xeon Gold Xeon Platinum Xeon Silver
Memory Supported
Memory Type Supported
DDR4-2933/PC4-23466
Storage
Serial ATA
Number of SATA Interfaces:10
Features
Features
Number of Processors Supported:2 Width:16.9" Depth:28" Form Factor:Rack-mountable Controller Type:12Gb/s SAS Maximum Memory:7.50 TB Height:3.4" Chipset Manufacturer:Intel Chipset Model:C624 RAID Supported:Yes Ethernet Technology:10 Gigabit Ethernet Total Number of USB Ports:5 Rack Height:2U
Packaging
Package Contents
Server System R2224WFTZSR 1 x 2U Chassis with Quick Reference Label affixed to top cover 1 x Intel® Server Board S2600WFT (dual 10 GbE LAN) 2 x PCIe riser card brackets. 2 x 3-slot PCIe riser cards 1 x 2-slot low profile PCIe* riser card 24 2.5" hot-swap drive bays with drive carriers and blanks. 3 x SAS/NVMe combo backplane 24 x 2.5" hot-swap drive tool less carriers 1 x Storage rack handle assembly - Mini front panel (board only) 1 x Backplane I2C cable 2 x Backplane to backplane I2C jumper cable 2 x Mini SAS HD VT-VT cable 4 x Mini SAS HD VT-VT cable 1 x Backplane power cable 1 x Standard 2U air duct 6 x Hot-swap system fans FR2UFAN60HSW 16 x DIMM slot blanks 1 x 1300W AC power supply module 1 x Power supply bay blank insert 2 x CPU heat sinks 2 x CPU heat sink "NO CPU" Mylar* spacer insert 2 x Standard CPU carrier 1 x 3x Intel® RAID Mai
