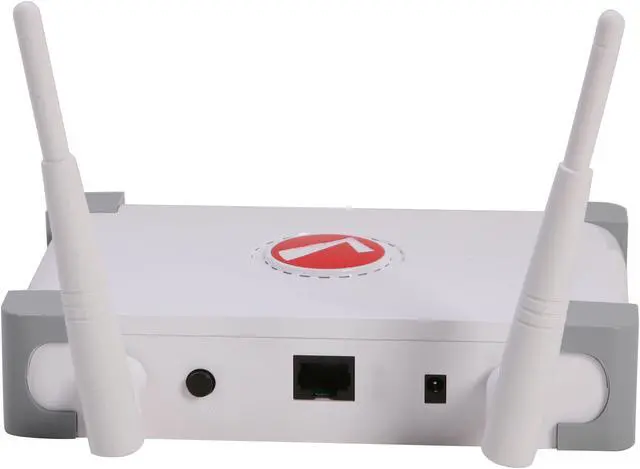

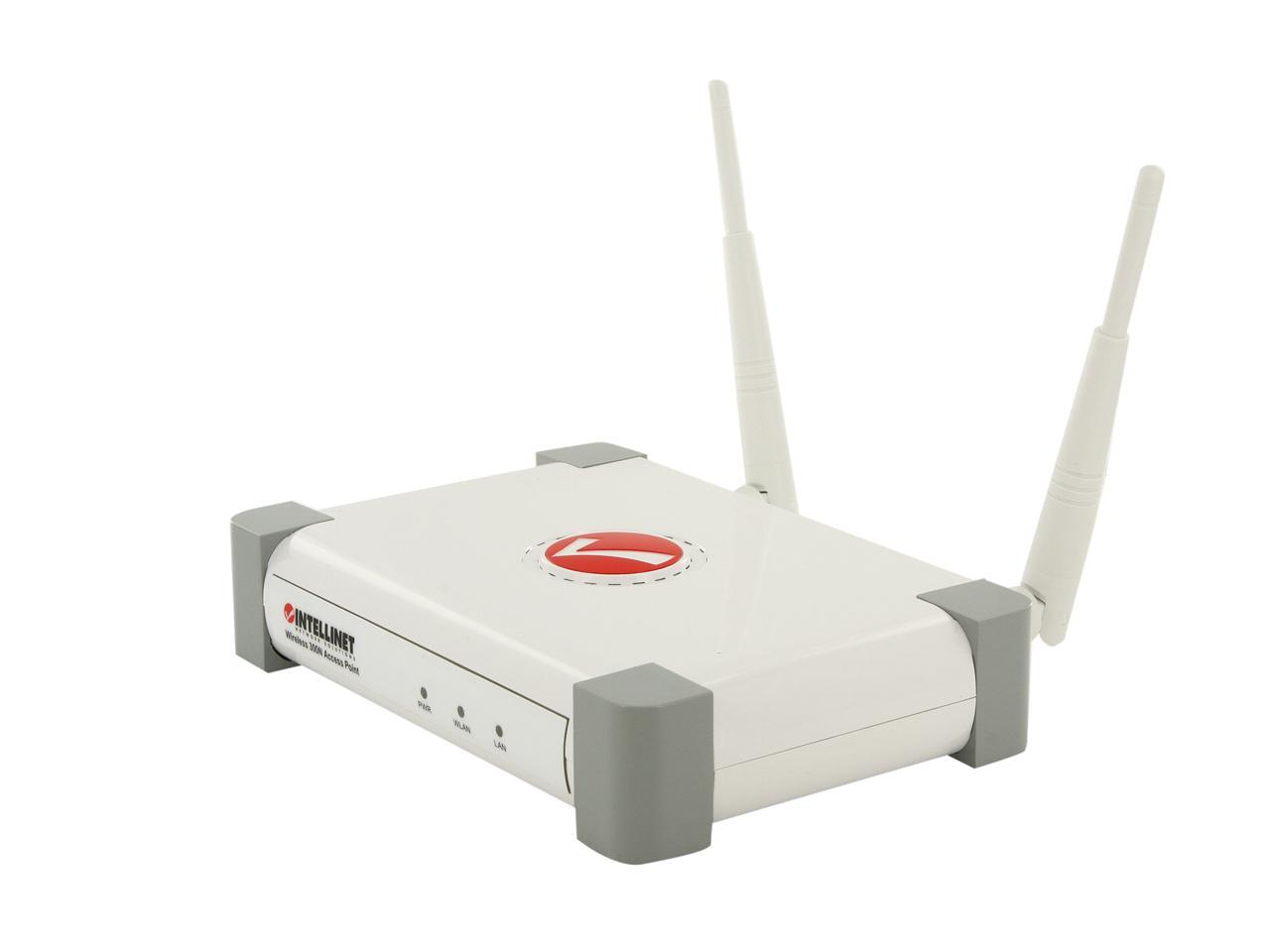

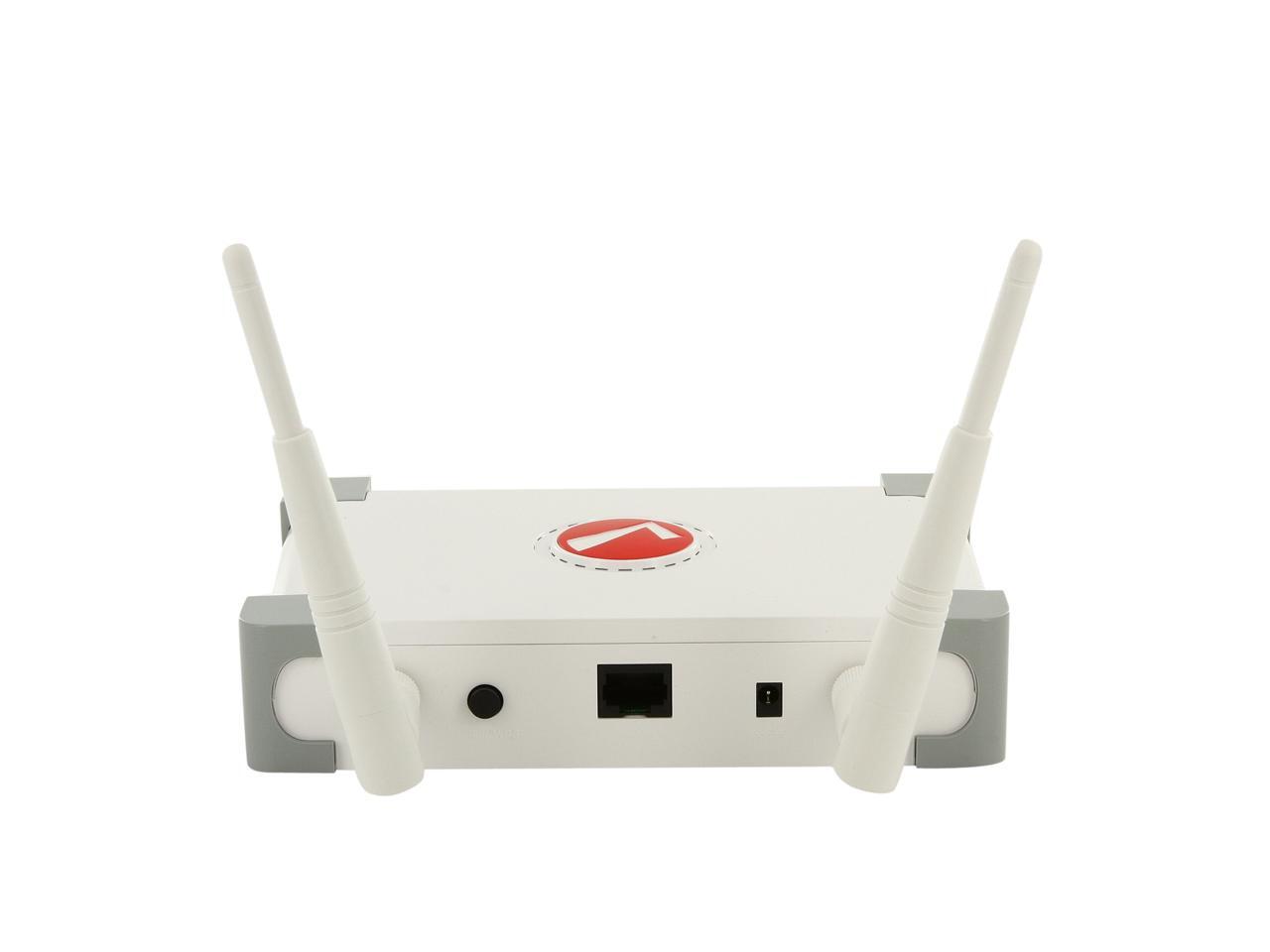

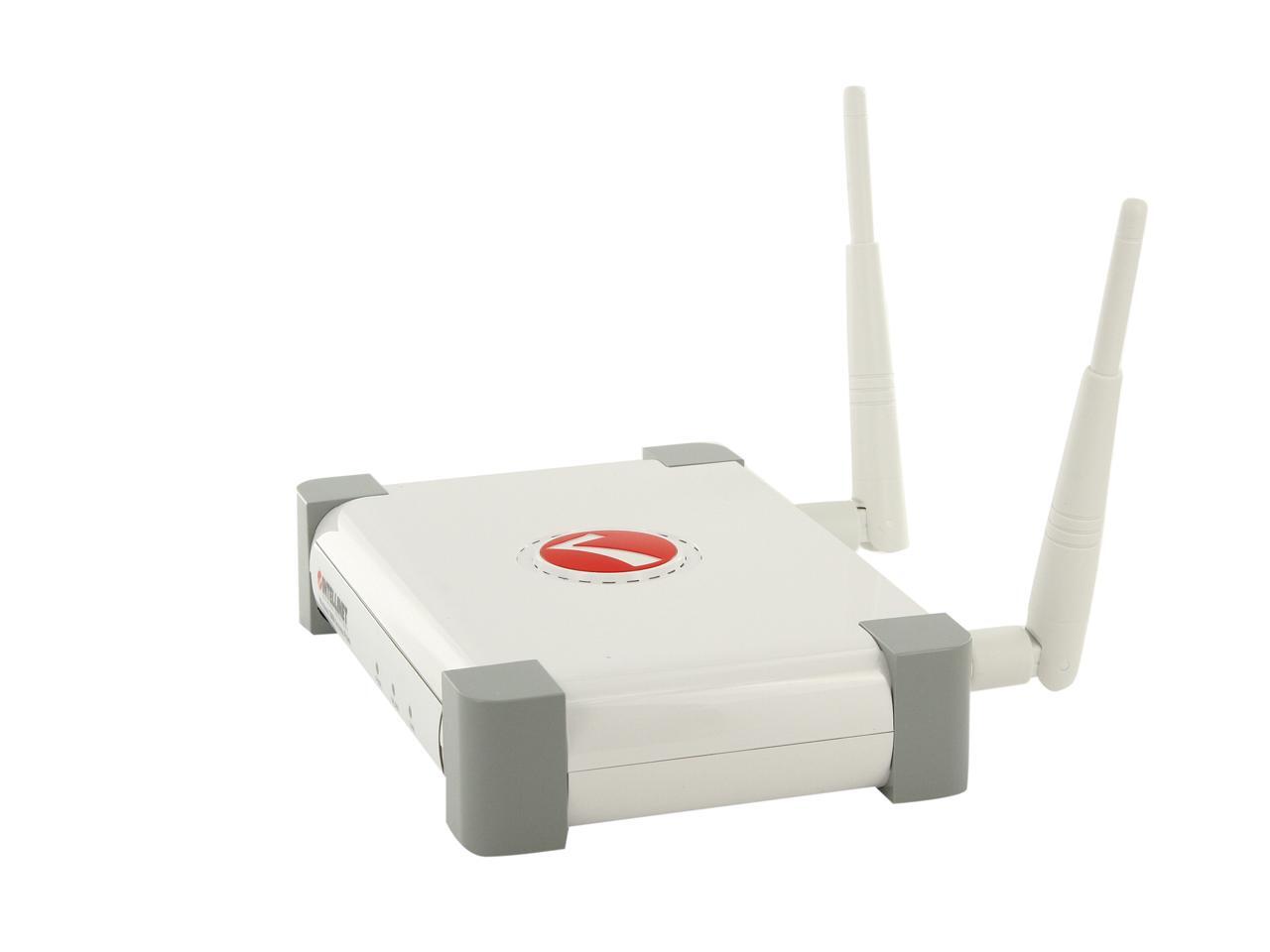

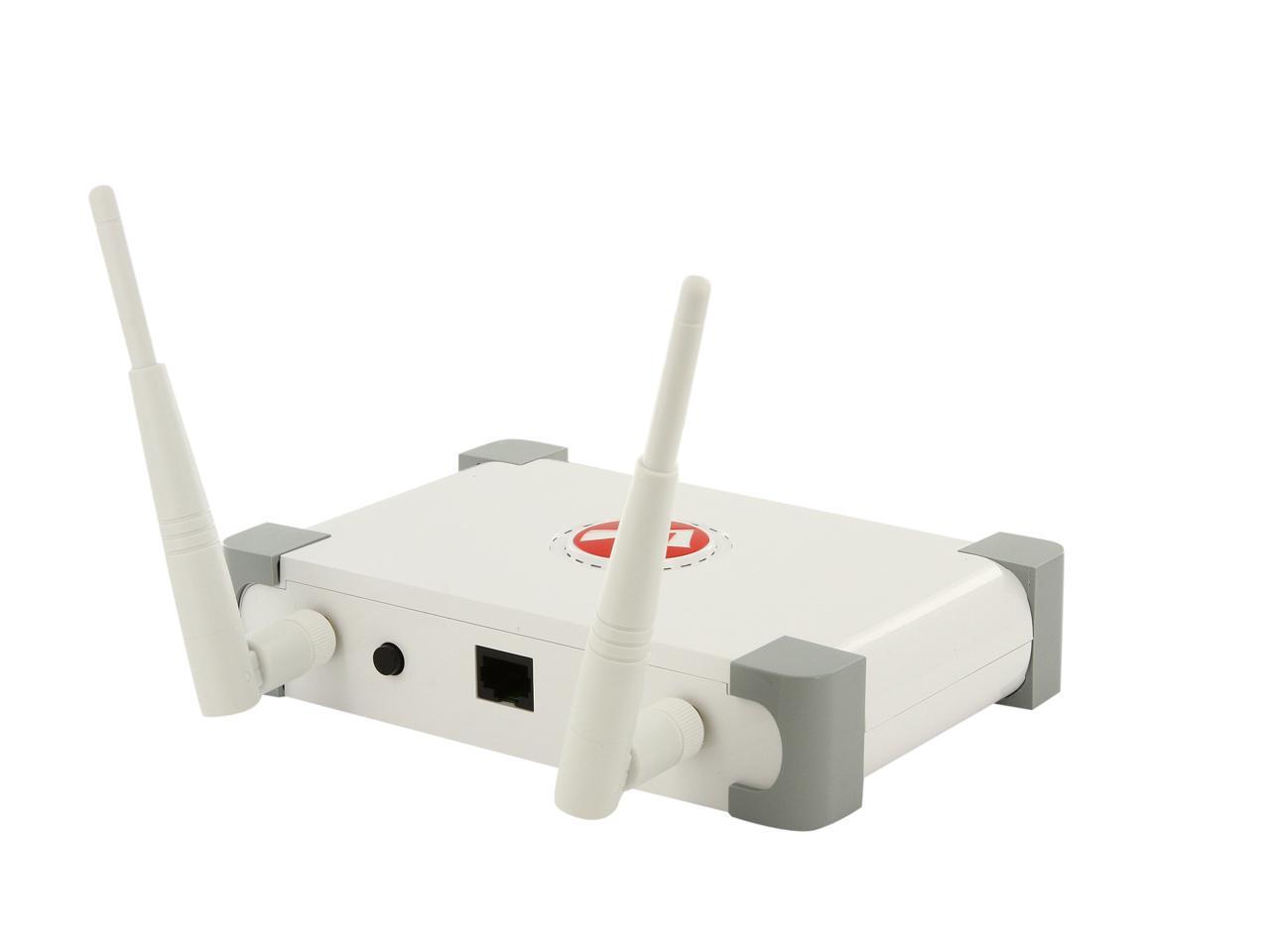

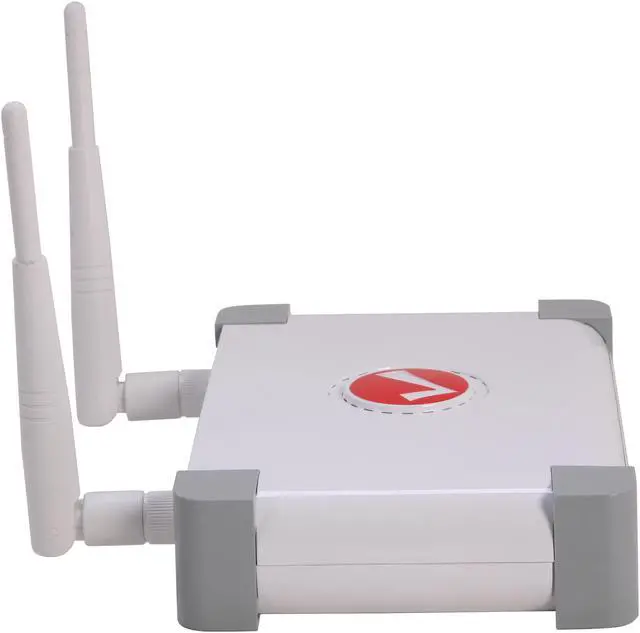

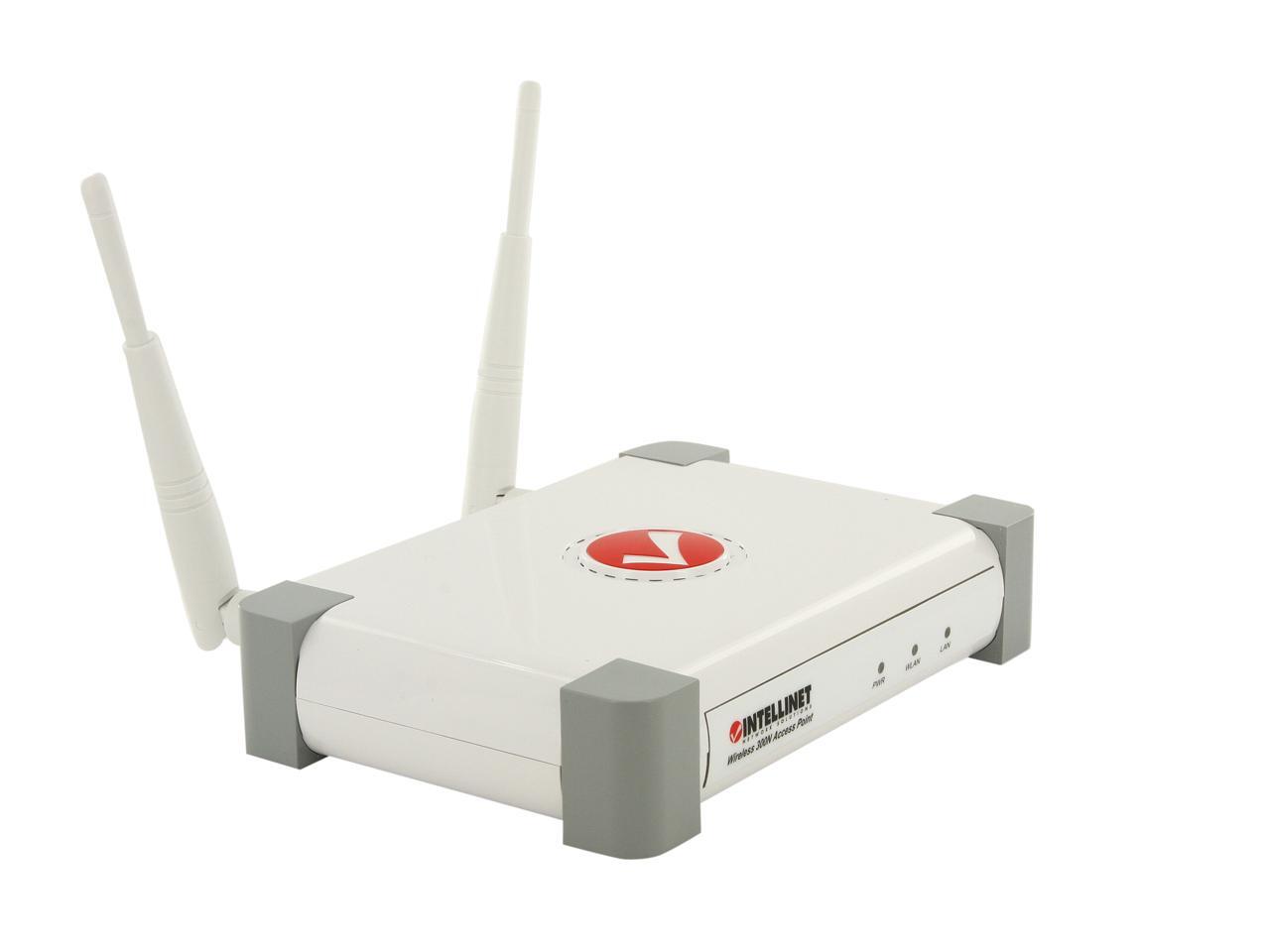

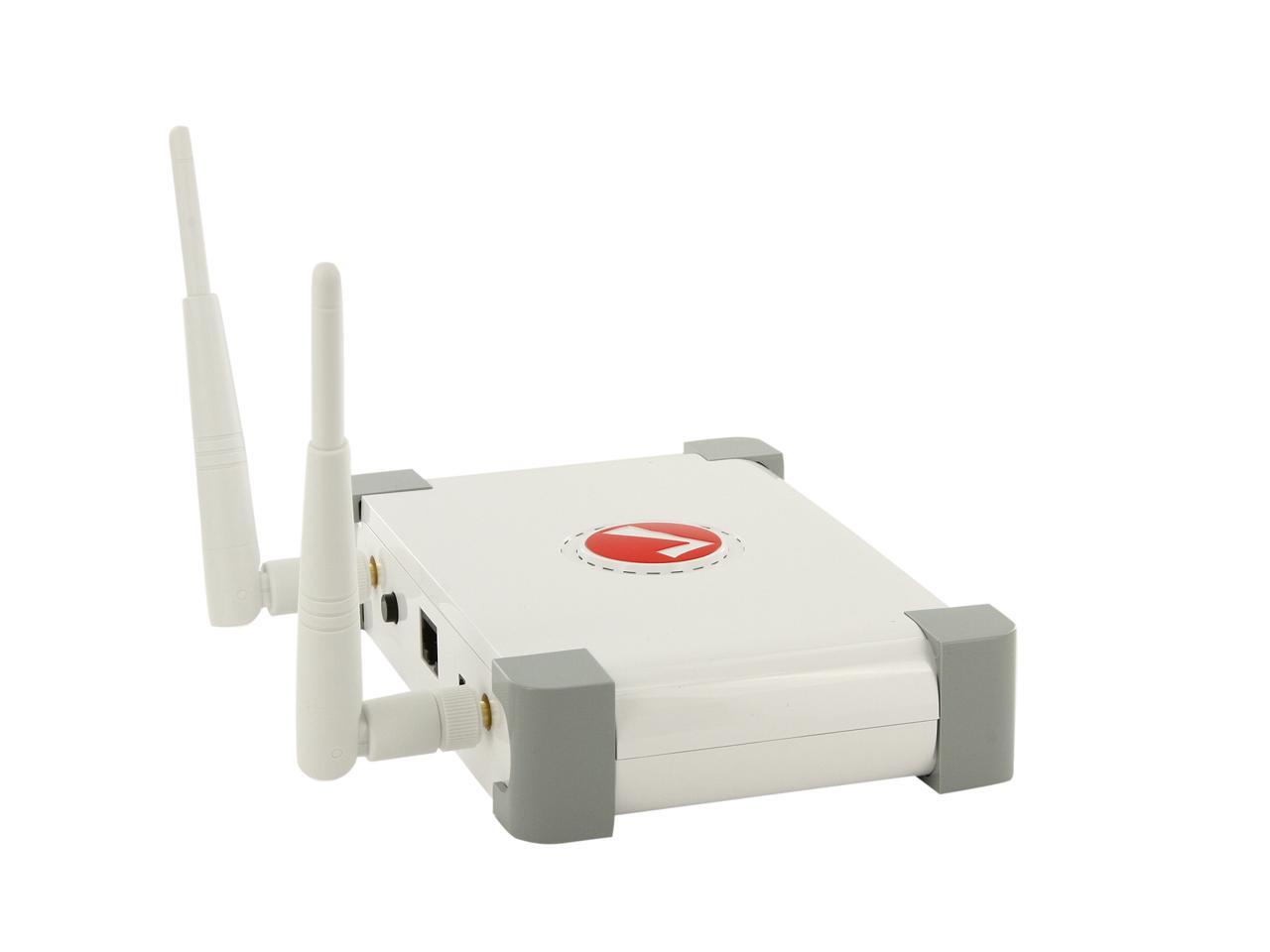

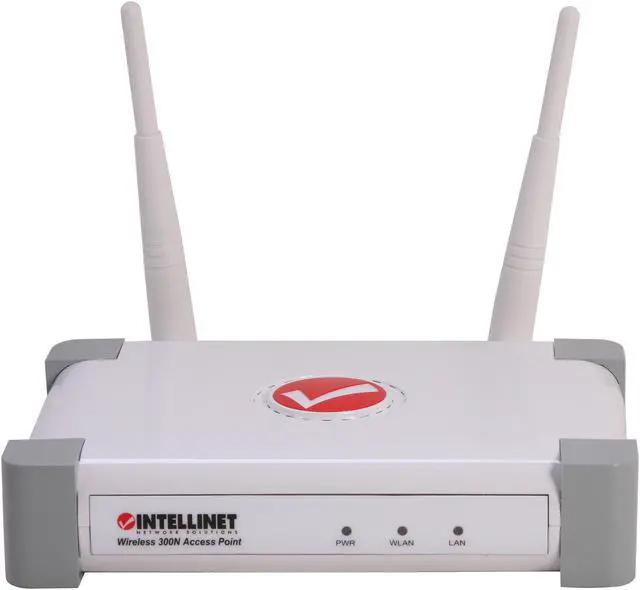

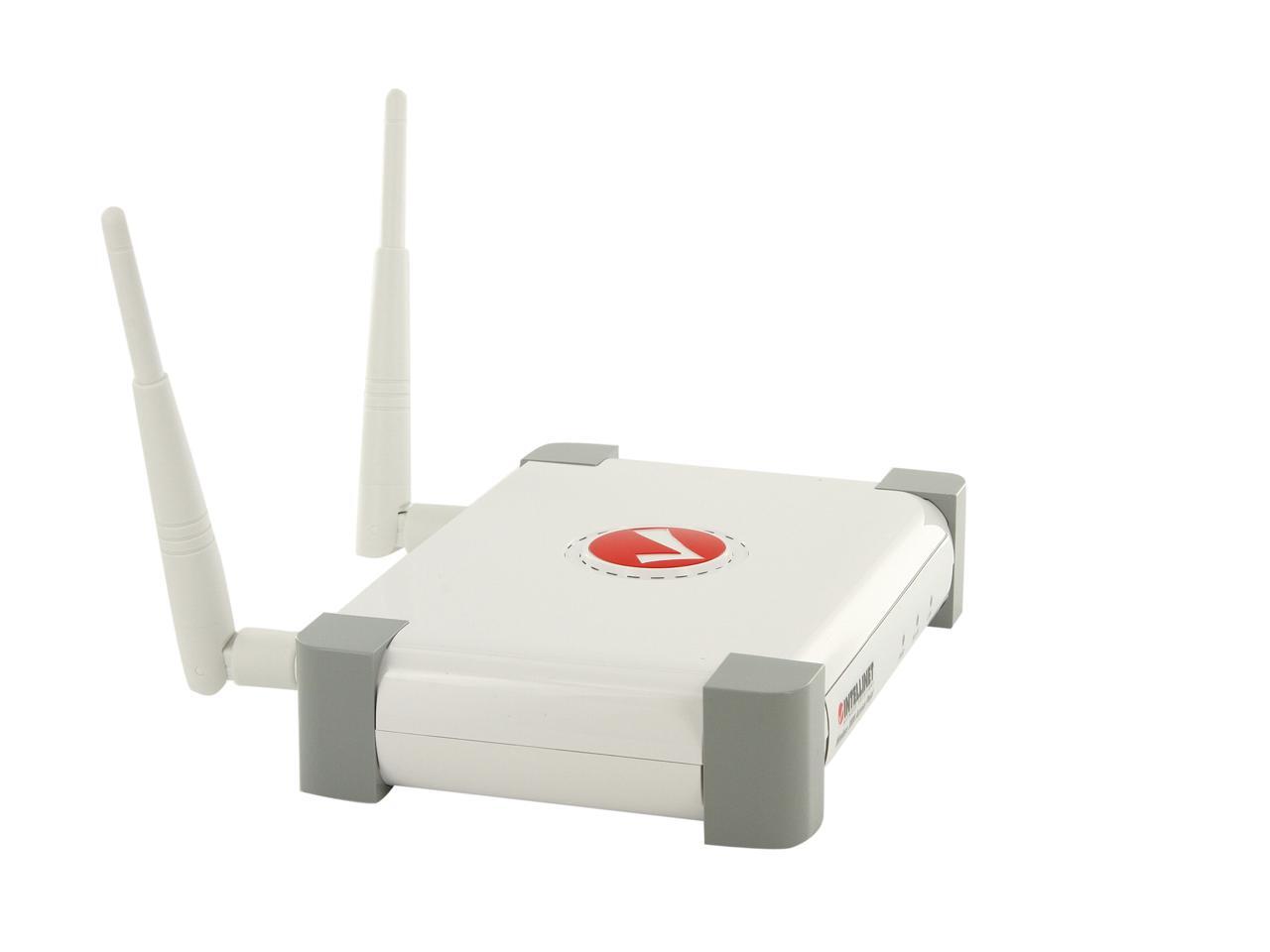

Main image of INTELLINET 524728 Wireless 300N Access Point

100%

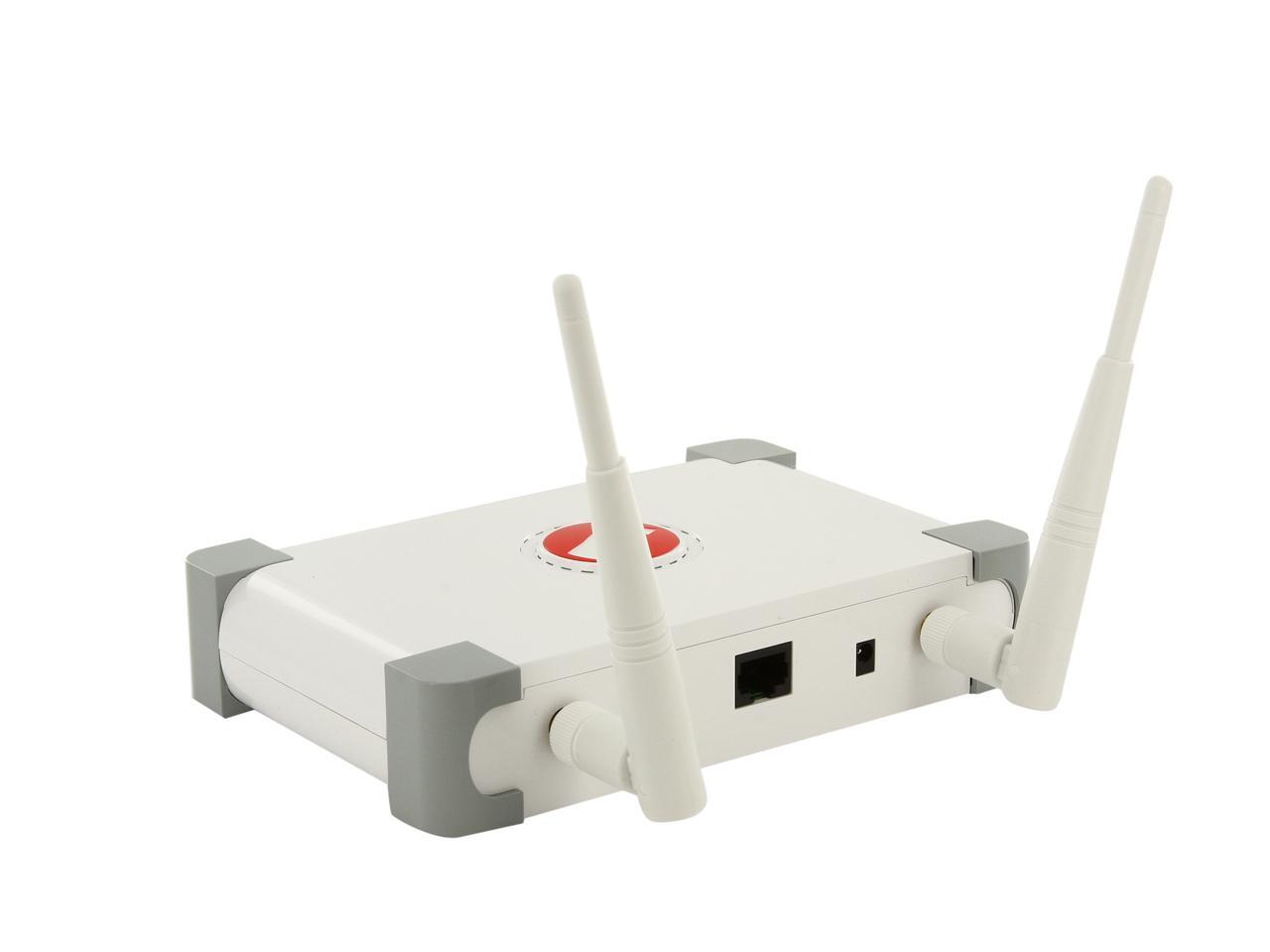

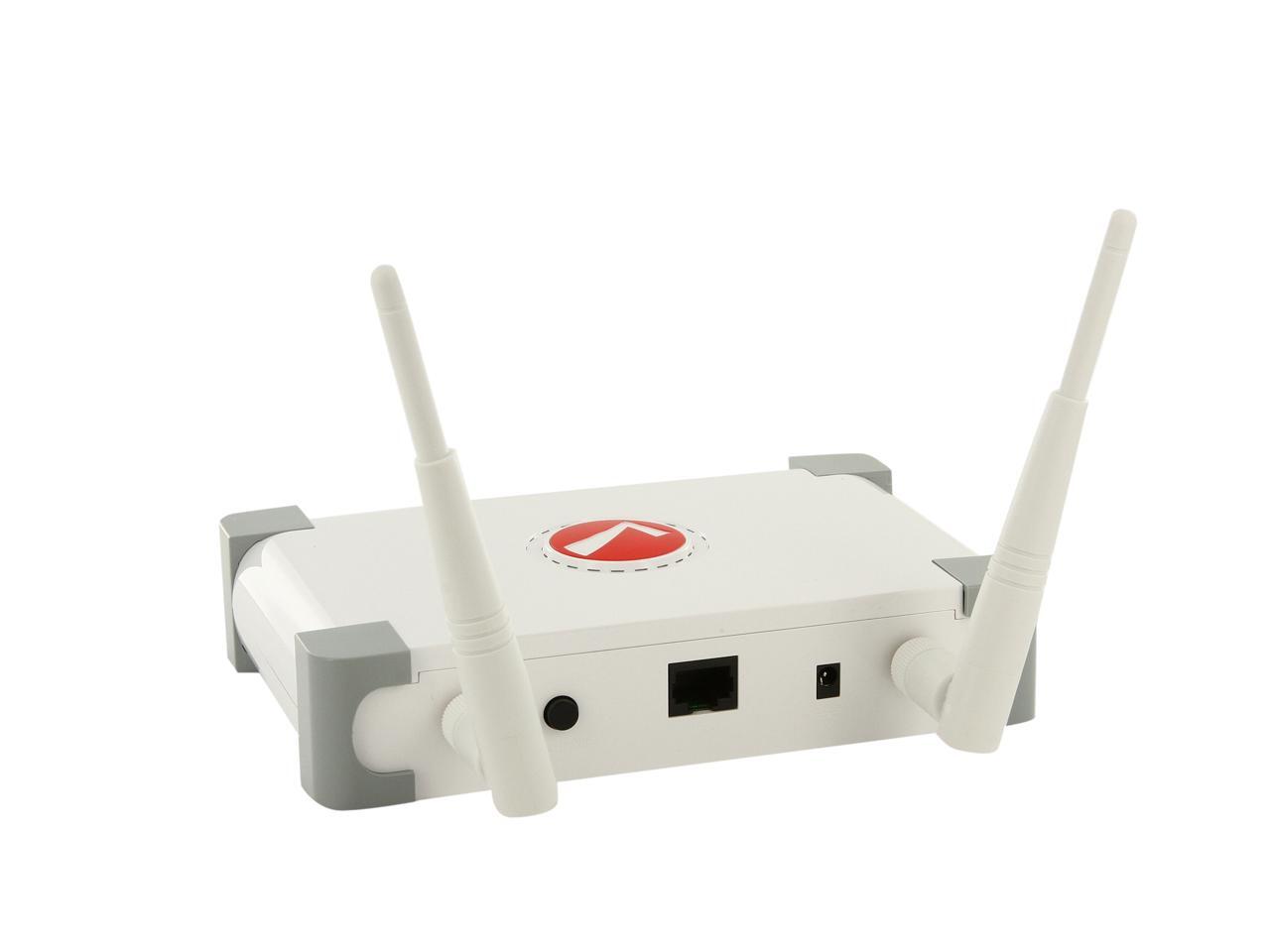

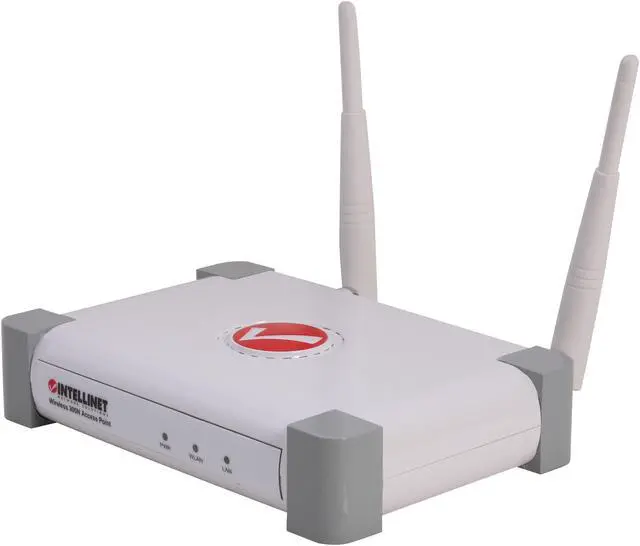

Alt view image 2 of 5 - INTELLINET 524728 Wireless 300N Access Point

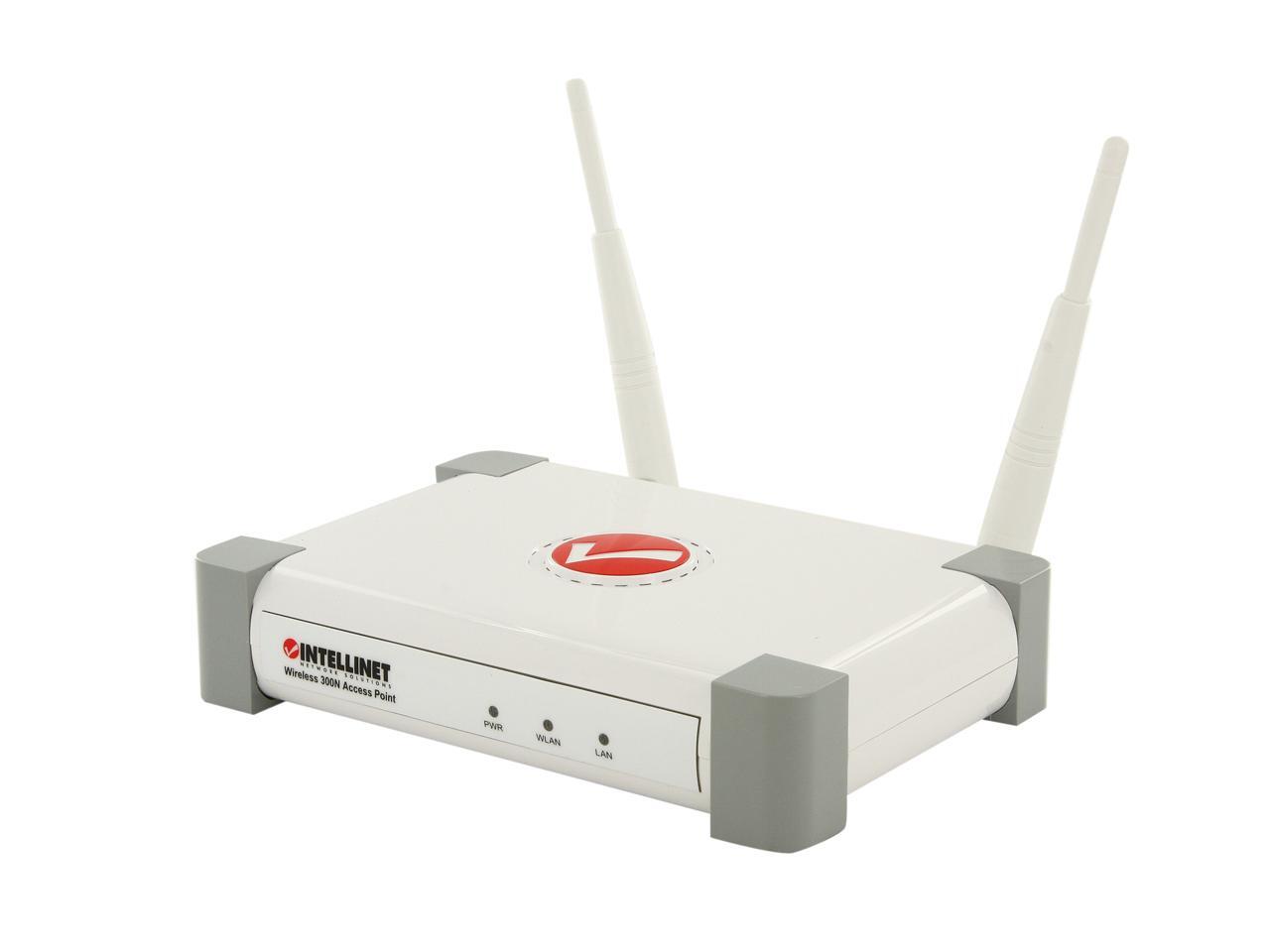

Alt view image 3 of 5 - INTELLINET 524728 Wireless 300N Access Point

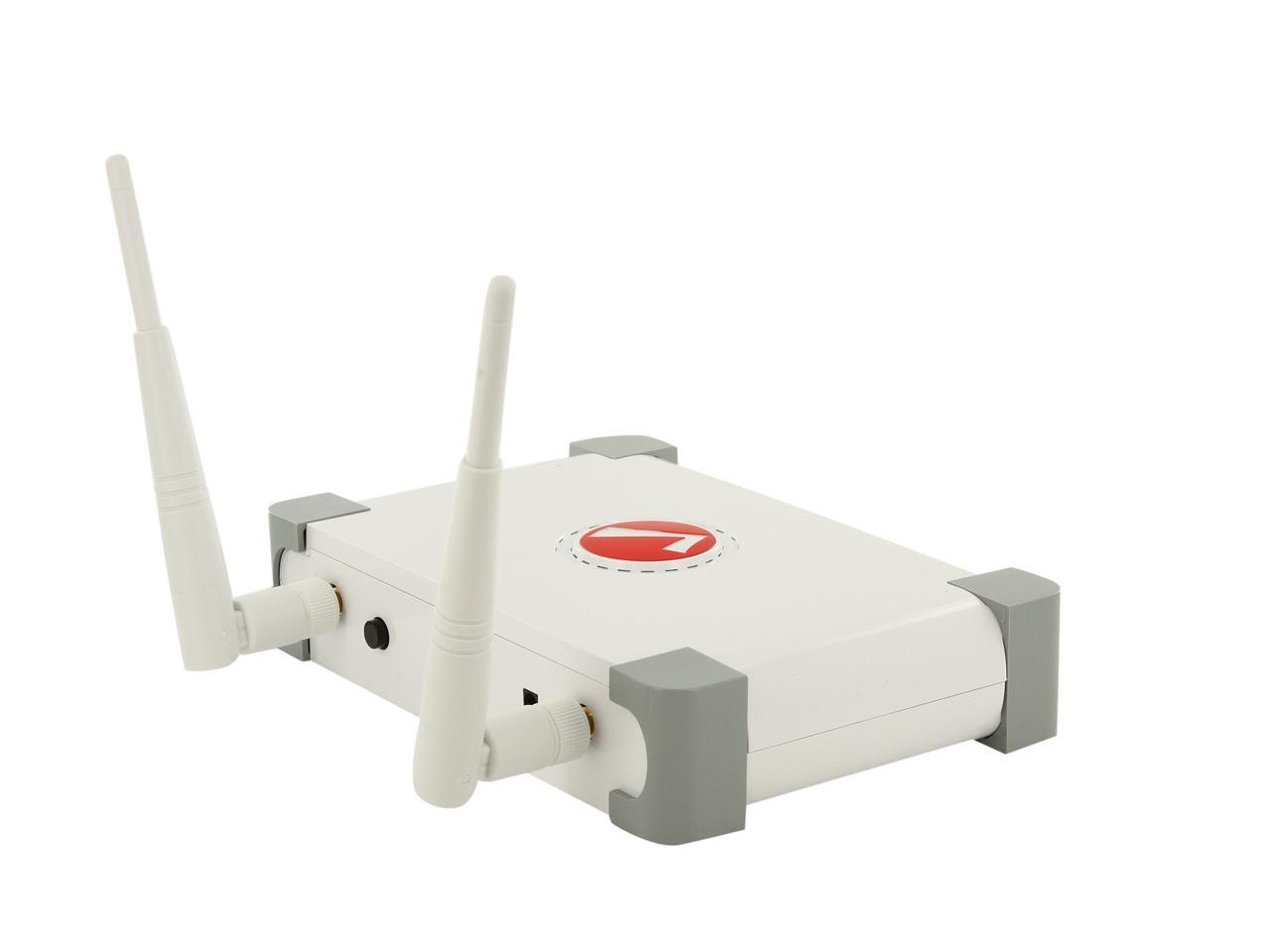

Alt view image 4 of 5 - INTELLINET 524728 Wireless 300N Access Point

Alt view image 5 of 5 - INTELLINET 524728 Wireless 300N Access Point

360^°

Shop All Intellinet Network Solutions Products

INTELLINET 524728 Wireless 300N Access Point

(10) Write a Review

Up to 300Mbps Wireless Data Rates
IEEE 802.1d (Spanning Tree Protocol) IEEE 802.11b (11 Mbps Wireless LAN) IEEE 802.11g (54 Mbps Wireless LAN) IEEE 802.11n (300 Mbps Wireless LAN) IEEE 802.1x (Network Access Control) IEEE 802.3 (10Base-T Ethernet) IEEE 802.3u (100Base-TX Fast Ethernet)
Ethernet Port
2.4 GHz - 2.483 GHz

Overview

Specs

Reviews (10)

Any questions? Our AI mode will help you find out quickly.

Try me now

Wireless networking with three times the speed and five times the flexibility.

The INTELLINET NETWORK SOLUTIONS Wireless 300N Access Point is the latest in wireless networking. Taking advantage of new technology, a wireless network can now see greatly enhanced network speeds.

Model
Brand	INTELLINET
Model	524728

Details
Standards	IEEE 802.1d (Spanning Tree Protocol) IEEE 802.11b (11 Mbps Wireless LAN) IEEE 802.11g (54 Mbps Wireless LAN) IEEE 802.11n (300 Mbps Wireless LAN) IEEE 802.1x (Network Access Control) IEEE 802.3 (10Base-T Ethernet) IEEE 802.3u (100Base-TX Fast Ethernet)
Device Management	Web-Based
Wireless Data Rates	Up to 300Mbps
Security	WEP encryption (64/128 bit) WPA TKIP WPA2 AES WPA2 mixed WPA RADIUS 802.1x Authentication Internal MD5/PEAP RADIUS server Client access control through media access control (MAC) filter
Frequency Band	2.4 GHz - 2.483 GHz
Antenna	2 detachable dipole antennas with 3 dBi gain each 2T2R MIMO mode (2 transmitters, 2 receivers)
Receiver Sensitivity	11n (300 Mbps) MCS0-15: 20 MHz: -73 dBm; 40MHz: -68 dBm 11g (54 Mbps) OFDM: -78 dBm 11b (11 Mbps) CCK: -91 dBm
Modulation	802.11b: Direct Sequence Spread Spectrum (DSSS): DBPSK, DQPSK, CCK 802.11g: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM 802.11n: Orthogonal Frequency Division Multiplexing (OFDM): BPSK, QPSK, 16QAM, 64QAM
Interface	Ethernet Port
LEDs	Power, WLAN Link/Act, LAN Link/Act
WAN Ports	RJ45 10/100 Mbps data port
Power Supply	5 V DC, 1.0 A

Environmental
Temperature	Operating temperature: 0 – 40°C (32 – 104°F) Storage temperature: -20 – 60°C (4 – 149°F)
Humidity	10% - 90% (Non-Condensing)

Dimensions & Weight
Dimensions	6.3" x 5.0" x 1.4"
Weight	1.7 lbs.

Features
Features	2T2R MIMO technology for enhanced throughput and coverage Supports WMM function to meet the multimedia data bandwidth requirement Supports Wi-Fi Protected Setup (WPS) Integrated RADIUS authentication server for 16 wireless clients DHCP server assigns IP addresses for all LAN users Supported modes: Access Point, Bridge Point-to-Point, Bridge Point-to-Multi-Point, WDS and Universal Repeater Supports multiple ESSIDs with individual security settings Multiple ESSIDs support VLAN tagging Easy installation through Web-based user interface Firmware upgradeable Use INTELLINET NETWORK SOLUTIONS Wireless N adapters for the best compatibility and performance General: LAN port with Auto MDI/MDI-X Flash: 4 MB Memory: 16 MB SDRAM Certifications: FCC Class B, CE Mark, RoHS Wireless: Chipset: Ralink RT3052 Data rates: IEEE 802.11b (11 Mbps, 5.5 Mbps, 2 Mbps, 1 Mbps) IEEE 802.11g (54 Mbps, 48 Mbps, 36 Mbps, 24 Mbps, 18 Mbps, 12 Mbps, 9 Mbps, 6 Mbps) IEEE 802.11n (MCS0-15: up to 300 Mbps) Output power: OFDM: 14 dBm +/1.5 dBm (300 Mbps, 40 mW max.) OFDM: 15 dBm +/1.5 dBm (54 Mbps, 40 mW max.) CCK: 17 dBm +/1 dBm (11 Mbps, 63 mW max.)

Packaging

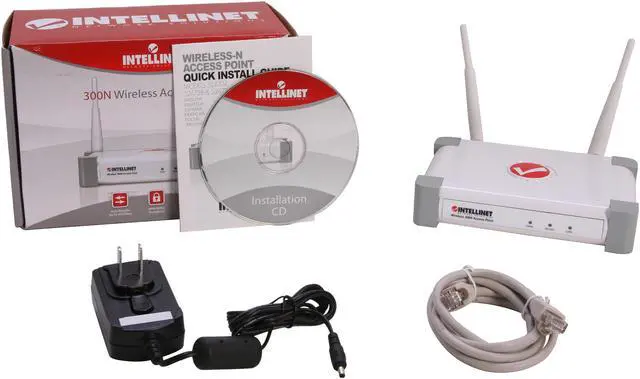

Package Contents	Wireless 300N Access Point User manual 2 detachable antennas Power adapter Ethernet Cat5 RJ45 cable: 1.0 m (3 ft.)

Additional Information
First Listed on Newegg	March 16, 2011

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
